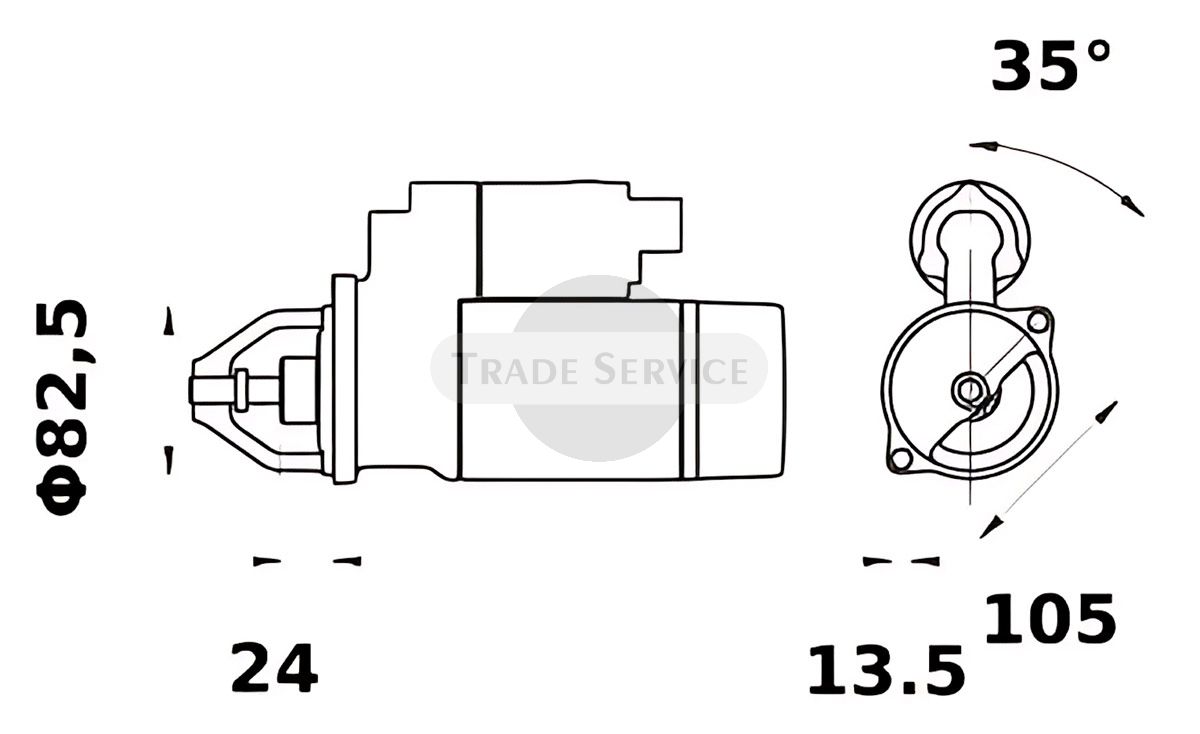

12V 3.0kW z11 (IS0201, MS58)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

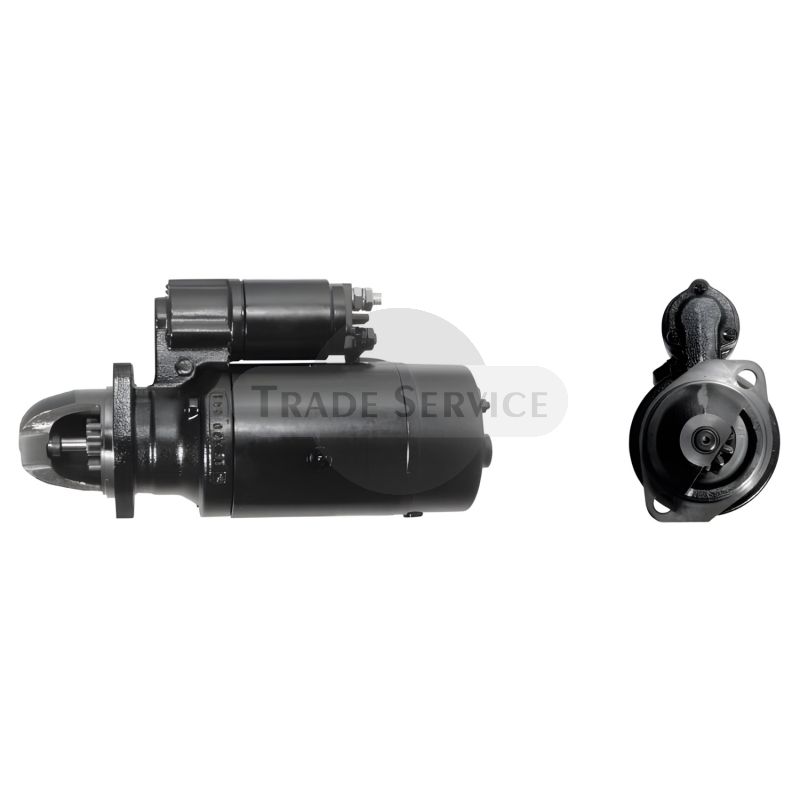

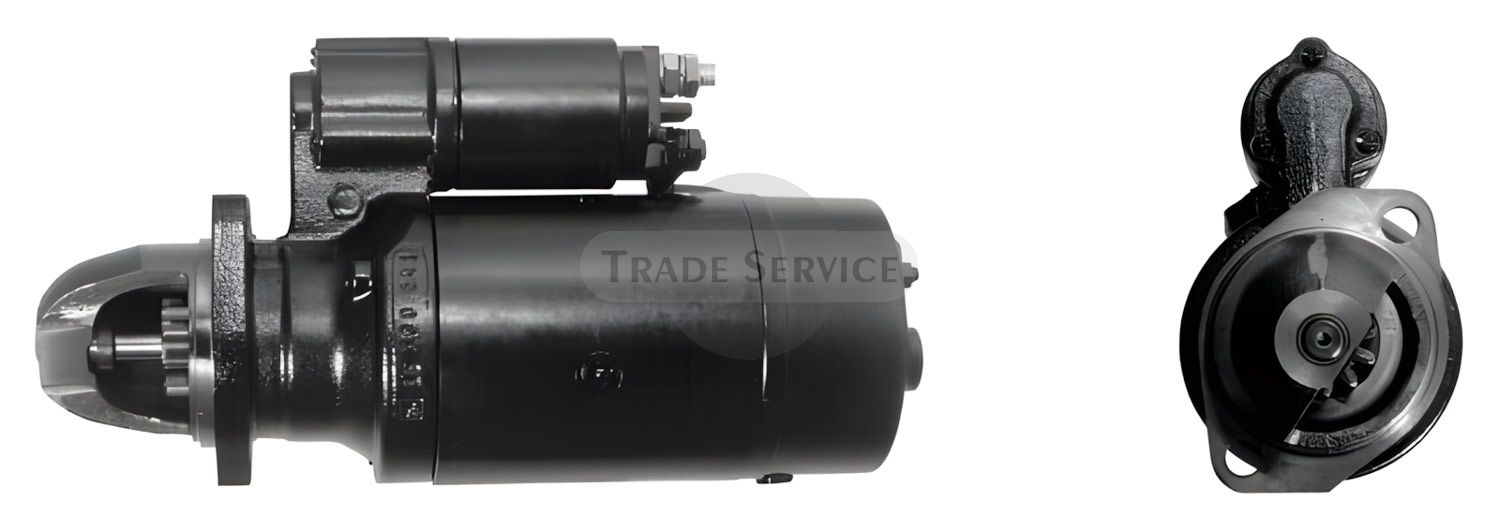

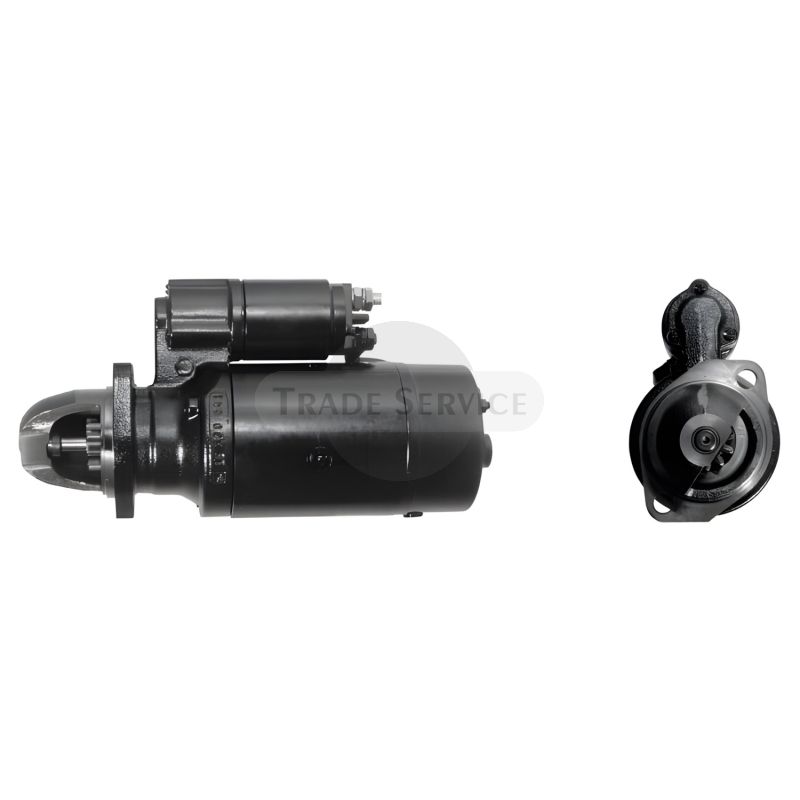

11.130.201 AZJ3537 MAHLE (Letrika, Iskra) starter motor MS58
Similar products
We found other products you might like!
-
9144821 Magneton starter motor12V 2.9kW z11 -
Information
This 11.130.201 AZJ3537 MAHLE (Letrika, Iskra) starter motor MS58 is a reliable spare part which is widely used on ADIM, AGCO, HUERLIMANN, LAMBORGHINI(SAME DEUTZ-FAHR GROUP), MUZZI, PALMIERI, SAME (DEUTZ- FAHR GROUP), STEYR (STEYR-DAIMLER-PUCH AG) engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AGCO | C000900060020 |
|---|---|
| BOSCH | 0001358003, 0001358020, 0001358051, 0001359004, 0001359108, 0001367013, 0986012710 |
| CLAAS | 6005706616 |
| CNH / FIAT AGRI | 140800090010 |
| EFEL | 11750 |
| HELLA | 8EA726083001, 8EA737245001, CS335, CS996 |
| LESTER | 17113, 17326 |
| LUCAS | LRS00932 |
| MAGNETI MARELLI | 63216876, MSN614, MT68PA |
| MAHLE (Letrika, Iskra) | IS0201, 11130201, AZJ3537, MS58 |
| SAME (DEUTZ- FAHR GROUP) | 296191800 |
| SPAREX | 359830 |
| STEYR | 40800090010 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| ADIM | 1000.3 | AT/W (12V) | - | - | - |
| ADIM | 1000.4 | AT/ATI/W/WT (12V) | - | - | - |
| ADIM | 1053 | P (12V) | - | - | - |
| ADIM | 1054 | P/PT (12V) | - | - | - |
| ADIM | 1055 | P (12V) | - | - | - |
| ADIM | 1056 | P/PS/PT/PTI (12V) | - | - | - |
| AGCO | 4660 | AWD.2WD | Same-105.3P | 3.1 | 1991.05- |
| AGCO | 8610 | CAAWD | Same-1000.6A | 6.0 | 1991.05- |
| AGCO | 8630 | CAAWD | Same-1000.6AT | 6.0 | 1991.05- |
| AGCO | ALLIS | 8610 | Same 1000.6A | 6.0 | 1991.05-1997.12 |
| AGCO | ALLIS | 8630 | Same 1000.6AT | 6.0 | 1991.05-1997.12 |
| AGCO | WHITE-Tractors | 6065 | Same 1000.4WT | - | 1992.01-2000.12 |
| AGCO | WHITE-Tractors | 6085 | Same 1004.WT | - | 1992.01-1997.12 |
| AGCO | WHITE-Tractors | 6105 | Same 1000.6W | 6.0 | 1992.01-1997.12 |
| HUERLIMANN | H 345 | - | 983L | 2.7 | 1981.07-1986.03 |
| HUERLIMANN | H 355 | /F | 1053P | 3.1 | 1982.01-1986.06 |
| HUERLIMANN | H 358 | prestige | 1000.3W | 3.0 | 1986.06-1989.12 |
| HUERLIMANN | H 360 | - | H-1103/5 | 3.4 | 1979.10-1985.06 |
| HUERLIMANN | H 361 | XF 2RM / DT | 1053PA | 3.1 | 1986.01-1987.12 |
| HUERLIMANN | H 470 | - | H-1104/6 | 4.6 | 1979.09-1985.06 |
| HUERLIMANN | H 476 | XF DT REV | 1000.3WT | 3.0 | 1991.05- |
| HUERLIMANN | H 480 | - | H-1104/7 | 4.6 | 1979.04-1983.06 |
| HUERLIMANN | H 490 | - | H-1106/8T | 4.6 | 1979.04-1986.06 |
| HUERLIMANN | H 496 | T | H-1104/9T | 4.6 | 1984.04-1989.12 |
| HUERLIMANN | H 5110 | - | H-1105/10T | 5.7 | 1980.12-1986.06 |
| HUERLIMANN | H 5110/ 5116T | - | H-1105/11T | 5.7 | 1984.04-1990.12 |
| HUERLIMANN | H 6130 | - | H-1106/12 | 6.8 | 1979.03-1984.06 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 1000 | .3W | - | 3.0 | 1987.01- |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 345 | F | 983L | 2.7 | 1988.03- |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 573 | 60N | 1000.3W | 3.0 | 1988.02-1990.11 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 574 | 60N | 1000.3W | 3.0 | 1988.02-1990.11 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 654 | DT | Same-984P | 3.6 | 1977.07-1981.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 660 | - | 1053.P | 3.1 | 1986.01-1987.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 664-60 | Spring /DT/2RM | 1000.3W | 3.0 | 1995.01-2000.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 684 | DT | 984P | 67HP | 3.6 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 754 | DT | Same-984P | 3.6 | 1976.11-1982.01 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 916 | /3W | - | 2.8 | 1984.01-1987.01 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 684 L. 684 N | 100.4P | 3.8 | 1983.04-1983.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 754 | 105.4P | 4.2 | 1980.01-1984.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 784 L | 105.4P | 4.2 | 1983.04-1984.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 1056 DT | 986-3 | - | 1977.02-1981.01 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 613 DT | 105.3P | 3.1 | 1982.01-1988.02 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 653 F | 105.3P | 3.1 | 1982.03-1985.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 684 F | 984P | 3.6 | 1982.03-1985.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 714 DT 2RM | 100.4P | 3.8 | 1984.03-1988.02 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 754 | 105.4P | 4.2 | 1982.01-1985.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 854 DT 2RM | 105.4P | 4.2 | 1976.11-1985.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 955 DT 2RM | 105.5P | 5.2 | 1979.06-1985.12 |
| MUZZI | MD | 100 | Same-1056P | 6.2 | 1981.10-1981.12 |
| MUZZI | MD | 20 | Same-1052LP | 2.1 | 1979.06- |
| MUZZI | MD | 33 | Same-1053P | 3.1 | 1979.06-1988.12 |
| MUZZI | MD | 45 | Same-1054P | 4.2 | 1979.06-1988.12 |
| MUZZI | MD | 55 | Same-1055P | 5.2 | 1979.06-1988.12 |
| MUZZI | MD | 65 | Same-1056P | 6.2 | 1979.06-1988.12 |
| MUZZI | MD | 65 | Same-1056PT | 6.2 | 1982.03-1982.12 |
| MUZZI | MDS | 100 | Same-1056PT | 6.2 | 1982.03- |
| MUZZI | MDS | 110 | Same-1056PTI | 6.2 | 1986.12- |
| MUZZI | MDS | 44 | Same-1000.4A | 4.0 | 1989.01- |
| MUZZI | MDS | 54 | Same-1000.4AT | 4.0 | 1989.01- |
| MUZZI | MDS | 90 | Same-1056PS | 6.2 | 1989.01- |
| MUZZI | MDV | 35 | Same-1005A | 3.0 | 1988.01- |
| PALMIERI | 1500 GN | 100 | Same-1056PT | 6.2 | 1991.07- |
| PALMIERI | 1500 GN | 15 | Same-1052P | 2.1 | 1980.09-1985.12 |
| PALMIERI | 1500 GN | 15 | Same-982P | 1.8 | 1980.09-1982.01 |
| PALMIERI | 1500 GN | 25 | Same-983P | 2.7 | 1979.07-1982.01 |
| PALMIERI | 1500 GN | 30 | Same-1053P | 3.1 | 1979.07-1985.12 |
| PALMIERI | 1500 GN | 40 | Same-1054P | 4.2 | 1979.07-1990.12 |
| PALMIERI | 1500 GN | 50 | Same-1055P | 5.2 | 1979.07- |
| PALMIERI | 1500 GN | 60 | Same-1056P | 6.2 | 1978.01- |
| PALMIERI | 1500 GN | 80 | Same-1056PT | 6.2 | 1985.02- |
| PALMIERI | 1500 GN | 90T | Same-1056PT | 6.2 | 1980.01-1985.12 |
| PALMIERI | 1500 GN | 95 | Same-1056PTI | 6.2 | 1985.02- |
| PALMIERI | 1800 GN | 100T | Same-1056PT | 6.2 | 1980.01-1985.02 |
| PALMIERI | 1800 GN | 101T | Same-1056PTI | 6.2 | 1985.02- |
| PALMIERI | 1800 GN | 18 | Same-982L | 1.8 | 1980.09-1982.01 |
| PALMIERI | 1800 GN | 24 | Same-1052L | 2.1 | 1980.09-1987.01 |
| PALMIERI | 1800 GN | 30 | Same-983P | 2.7 | 1979.07-1982.01 |
| PALMIERI | 1800 GN | 36 | Same-1053P | 3.1 | 1979.07-1988.12 |
| PALMIERI | 1800 GN | 48 | Same-1054P | 4.2 | 1979.07-1988.12 |
| PALMIERI | 1800 GN | 60 | Same-1055P | 5.2 | 1979.07-1988.12 |
| PALMIERI | 1800 GN | 70 | Same-1056P | 6.2 | 1978.01-1990.12 |
| PALMIERI | 1800 GN | 90 | Same-1056PT | 6.2 | 1985.02- |
| SAME (DEUTZ- FAHR GROUP) | 1000 | 3A | - | 3.0 | 1987.01- |
| SAME (DEUTZ- FAHR GROUP) | 1000 | 3AT | - | 3.0 | 1990.04- |
| SAME (DEUTZ- FAHR GROUP) | 1000 | 4AT | - | 4.0 | 1987.01- |
| SAME (DEUTZ- FAHR GROUP) | 1000 | 6A | - | 6.0 | 1990.10- |
| SAME (DEUTZ- FAHR GROUP) | 1000 | 6AT | - | 6.0 | 1990.10- |
| SAME (DEUTZ- FAHR GROUP) | 1000 | 6ATI | - | 6.0 | 1991.12- |
| SAME (DEUTZ- FAHR GROUP) | 105 | 2LP | - | 2.1 | 1980.09- |
| SAME (DEUTZ- FAHR GROUP) | 105 | 3P | - | 3.1 | 1978.05- |
| SAME (DEUTZ- FAHR GROUP) | 105 | 4P | - | 4.2 | 1979.07- |
| SAME (DEUTZ- FAHR GROUP) | 1054 | PT | - | 4.2 | 1984.01- |
| SAME (DEUTZ- FAHR GROUP) | 1055 | P | - | 5.2 | 1978.05- |
| SAME (DEUTZ- FAHR GROUP) | 1056 | P | - | 6.2 | 1978.01- |
| SAME (DEUTZ- FAHR GROUP) | 1056 | PS | - | 6.2 | 1984.01- |
| SAME (DEUTZ- FAHR GROUP) | 1056 | PT | - | 6.2 | 1980.01- |
| SAME (DEUTZ- FAHR GROUP) | 1056 | PTI | - | 6.2 | 1985.12- |
| SAME (DEUTZ- FAHR GROUP) | 916 | 3A | - | 2.8 | 1984.01-1987.01 |
| SAME (DEUTZ- FAHR GROUP) | 916 | 4A | - | 3.7 | 1984.01-1987.01 |
| SAME (DEUTZ- FAHR GROUP) | 982 | LP | - | 1.8 | 1980.09-1983.06 |
| SAME (DEUTZ- FAHR GROUP) | 983 | P | - | 2.7 | 1979.07-1983.06 |
| SAME (DEUTZ- FAHR GROUP) | 984 | P | - | 3.6 | 1978.06-1983.09 |
| SAME (DEUTZ- FAHR GROUP) | 985 | P | - | 4.5 | 1975.03-1980.03 |
| SAME (DEUTZ- FAHR GROUP) | AURORA | 45 | 983L | 2.7 | 1981.10-1982.02 |
| SAME (DEUTZ- FAHR GROUP) | BUFFALO | 130 | 1056P | 6.2 | 1978.01-1981.10 |
| SAME (DEUTZ- FAHR GROUP) | CENTAURO | 70Export | 100.4P | 3.8 | 1982.09-1987.10 |
| SAME (DEUTZ- FAHR GROUP) | CENTAURO | 70Export | 984P | 3.6 | 1981.12-1982.08 |
| SAME (DEUTZ- FAHR GROUP) | CENTAURO | 70Special | 100.4P | 3.8 | 1982.09-1987.10 |
| SAME (DEUTZ- FAHR GROUP) | CENTAURO | 70Special | 984P | 3.6 | 1981.12-1982.08 |
| SAME (DEUTZ- FAHR GROUP) | CENTURION | 75 | 105.4P | 4.2 | 1978.11-1980.09 |
| SAME (DEUTZ- FAHR GROUP) | CENTURION | 75Export | 984P | 3.6 | 1981.01-1981.01 |
| SAME (DEUTZ- FAHR GROUP) | CENTURION | 75Special | 105.4P | 4.2 | 1981.01-1988.05 |
| SAME (DEUTZ- FAHR GROUP) | CONDOR | 55 | 100.3P | 2.8 | 1982.07-1987.10 |
| SAME (DEUTZ- FAHR GROUP) | CONDOR | 55 | 983P | 2.7 | 1979.02-1982.06 |
| SAME (DEUTZ- FAHR GROUP) | CORSARO | Frutteto 70 | 984P | 3.6 | 1981.10-1988.03 |
| SAME (DEUTZ- FAHR GROUP) | CORSARO | Synchro 70 | 984P | 3.6 | 1978.03-1980.12 |
| SAME (DEUTZ- FAHR GROUP) | CROP | 85 | 105.4P | 4.2 | 1983.12-1989.12 |
| SAME (DEUTZ- FAHR GROUP) | DA | 986 | - | 5.4 | 1973.05-1982.12 |
| SAME (DEUTZ- FAHR GROUP) | DRAGO | 120 | 1056P | 6.2 | 1978.01-1986.05 |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 55 | 916.3A | 2.8 | 1983.04-1986.05 |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 65 | 916.4A | 3.7 | 1983.03-1986.05 |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 75 | 916.4A | 3.7 | 1985.02-1986.05 |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 85 | 916.4TA | 3.7 | 1985.02-1986.05 |
| SAME (DEUTZ- FAHR GROUP) | FALCON | - | 983L | 2.7 | 1975.07-1987.10 |
| SAME (DEUTZ- FAHR GROUP) | FRUTTETO | 75 2RM | 1000.3AT | 3.0 | 1991.05- |
| SAME (DEUTZ- FAHR GROUP) | GALAXY | 170 | 105.6 PTI | 6.2 | 1983.06-1998.10 |
| SAME (DEUTZ- FAHR GROUP) | HERCULES | 160 | 105.6PT | 6.2 | 1979.06-1983.10 |
| SAME (DEUTZ- FAHR GROUP) | JAGUAR | - | 105.4P | 4.2 | 1978.09-1980.09 |
| SAME (DEUTZ- FAHR GROUP) | JAGUAR | 100 | 105.5P | 5.2 | 1982.03-1984.03 |
| SAME (DEUTZ- FAHR GROUP) | JAGUAR | 95 | 105.5P | 5.2 | 1979.02-1982.03 |
| SAME (DEUTZ- FAHR GROUP) | LASER | 100 | 105.5P | 5.2 | 1984.03- |
| SAME (DEUTZ- FAHR GROUP) | LASER | 130 | 105.6P | 6.2 | 1983.04-1987.12 |
| SAME (DEUTZ- FAHR GROUP) | LASER | 90 | 105.4PT | 4.2 | 1984.03-1987.12 |
| SAME (DEUTZ- FAHR GROUP) | LEOPARD | 85 | 105.4P | 4.2 | 1978.01-1982.02 |
| SAME (DEUTZ- FAHR GROUP) | LEOPARD | 85 Export | 105.4P | 4.2 | 1979.02-1981.11 |
| SAME (DEUTZ- FAHR GROUP) | LEOPARD | 90 Turbo | 105.4PT | 4.2 | 1982.02-1984.03 |
| SAME (DEUTZ- FAHR GROUP) | LEOPARD | C | 105.4P | 4.2 | 1980.06-1985.12 |
| SAME (DEUTZ- FAHR GROUP) | MERCURY | 85 | 105.4P | 4.2 | 1981.01-1987.10 |
| SAME (DEUTZ- FAHR GROUP) | MERCURY | 85 Export | 105.4P | 4.2 | 1981.01-1987.10 |
| SAME (DEUTZ- FAHR GROUP) | MERCURY | 85 Special | 105.4P | 4.2 | 1981.06-1987.10 |
| SAME (DEUTZ- FAHR GROUP) | MINITAURO | 60 | 1053L | 3.1 | 1974.01-1980.09 |
| SAME (DEUTZ- FAHR GROUP) | MINITAURO | 60 Frutteto | 105.3P | 3.1 | 1982.03-1988.03 |
| SAME (DEUTZ- FAHR GROUP) | PANTHER | 90 | 985P | 4.5 | 1978.01-1980.09 |
| SAME (DEUTZ- FAHR GROUP) | PANTHER | 95 | 1055P | 5.2 | 1979.02-1981.10 |
| SAME (DEUTZ- FAHR GROUP) | SATURNO | 80 Synchro | 1054P | 4.2 | 1972.02-1980.12 |
| SAME (DEUTZ- FAHR GROUP) | SOLAR | 50 | 983LA | 2.7 | 1986.01-2001.12 |
| SAME (DEUTZ- FAHR GROUP) | TAURUS | 60 | 105.3P | 3.1 | 1978.11-1984.12 |
| SAME (DEUTZ- FAHR GROUP) | TAURUS | C | 105.3P | 3.1 | 1980.06-1983.12 |
| SAME (DEUTZ- FAHR GROUP) | TIGER | 100 | 105.5L | 5.2 | 1977.01-1980.09 |
| SAME (DEUTZ- FAHR GROUP) | TIGER | Six 105 | 986P | 5.4 | 1977.01-1980.09 |
| SAME (DEUTZ- FAHR GROUP) | TRANSPORTER | 85 | 105.4P | 4.2 | 1991.01- |
| SAME (DEUTZ- FAHR GROUP) | VIGNERON | 60 | 105.3P | 3.1 | 1978.03-1988.02 |
| SAME (DEUTZ- FAHR GROUP) | VIGNERON | 70 | 100.4P | 3.8 | 1982.06-1988.02 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 406 | - | - | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 50 | - | - | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 650 | - | WD210.40.WD308 | 3.1 | -1977.07 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 650 | A | WD408.41 | 3.1 | 1975.11-1977.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 658 | .A | WD408.42 | 3.1 | 1977.03-1979.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 760 | A | WD408.40 | 3.1 | 1976.01-1977.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 760 | Super | WD408.43 | 3.1 | 1978.01-1982.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 768 | .A | WD408.43 | 3.1 | 1977.03-1979.12 |
More Information
| Weight (kg) | 13.947000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.0 kW |
| Pinion teeth | 11 |
| Rotation direction | CW |
Spare Parts
-
-
-
-
-
Alternative:
-
-
-
-
-
-
-
-
