12V 2.7kW z9 (IS0203, MS388)
Got Questions?
€401 €316
Available in 2-3 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

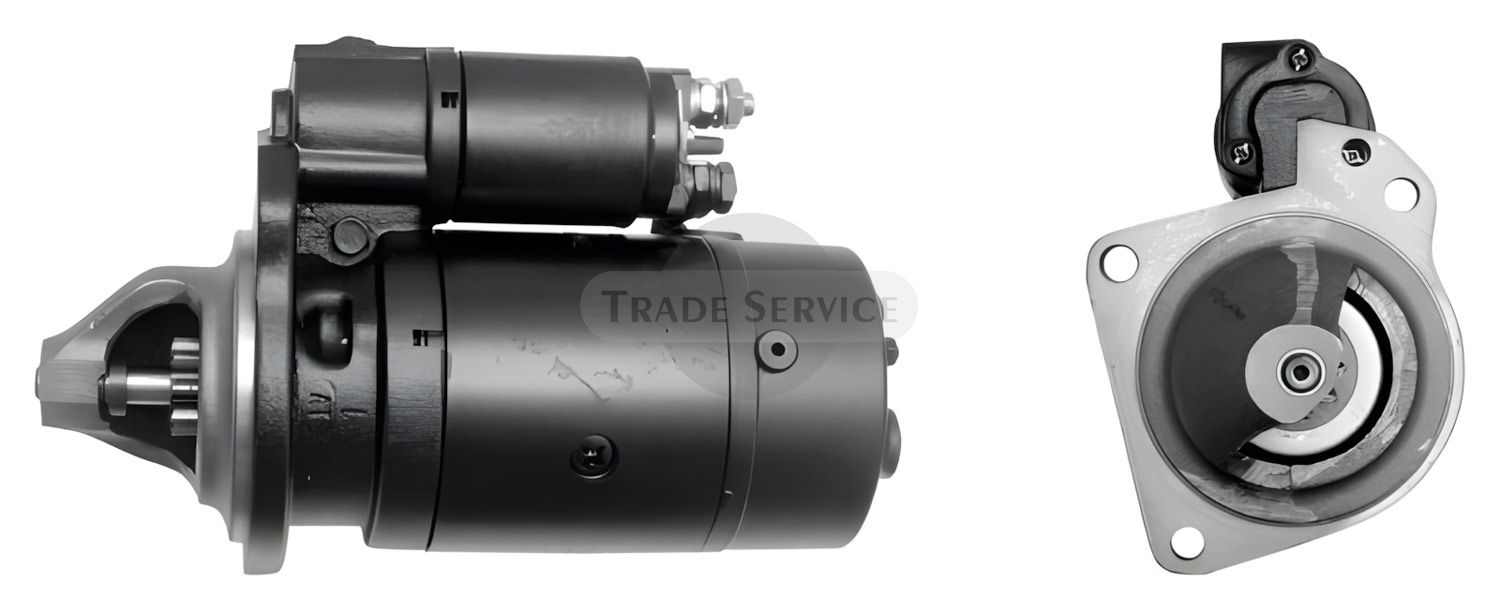

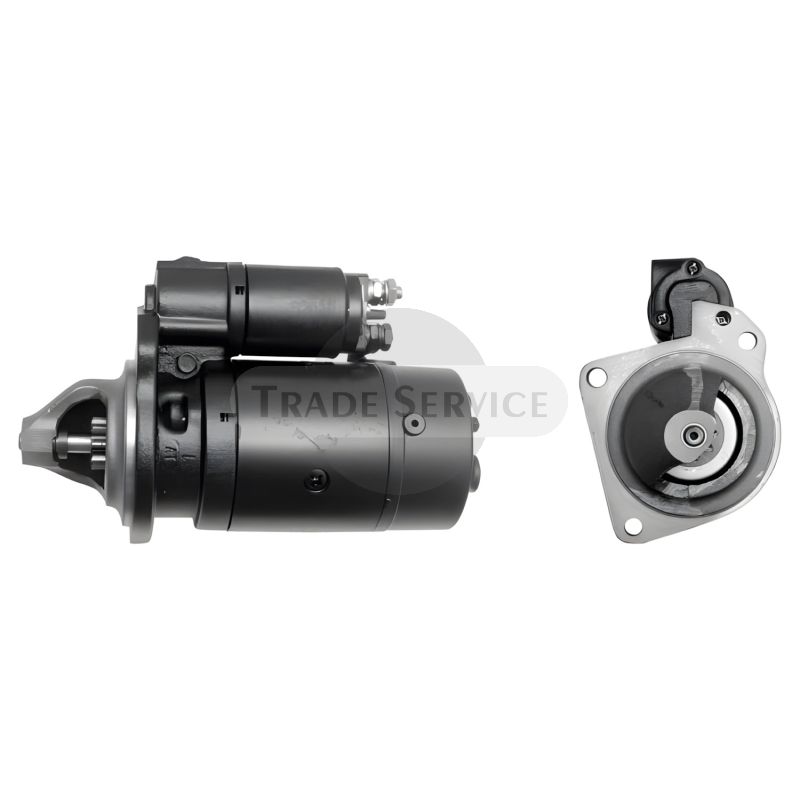

11.130.203 AZJ3538 MAHLE (Letrika, Iskra) starter motor MS388
Similar products
We found other products you might like!
-
20500850 Prestolite starter motor12V 2.4kW z9
Information
This 11.130.203 AZJ3538 MAHLE (Letrika, Iskra) starter motor MS388 is a reliable spare part which is widely used on AGRIFULL, AIFO, FIAT, FIAT-ALLIS, IVECO, NEW HOLLAND ITALIA, WHITE engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AGCO | C000900060030 |
|---|---|
| BOSCH | 0001362032, 0001362039, 0001362105, 0986012670, 0986012671 |
| CLAAS | 6005706617 |
| CNH / FIAT AGRI | 84224935 |
| FIAT | 4169096, 4172113, 4682998, 4710224, 4722682, 4728682, 4759929, 4807373, 88205005 |
| HELLA | 8EA726196001, CS572 |
| IVECO | 500338953 |
| LESTER | 16662, 17093, 17126, 19728 |
| LUCAS | 26290, 26390, LRS00850 |
| MAGNETI MARELLI | 30380319, 63207159, 63207161, 63217101, 63217125, 63217126, 63224600, 943217126, MSN227, MT71A, MT71AA, MT71AB |
| MAHLE (Letrika, Iskra) | IS0203, 11130203, AZJ3538, MS388 |
| SPAREX | 35972 |
| VALEO | 436074 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AGRIFULL | 45 | 66.DT Vigneto | 8035.06.220.320 | 2.7 | 1985.01- |
| AGRIFULL | 45 | 66RM DT | 8035.06.321 | 2.7 | 1990.01- |
| AGRIFULL | 45 | DT | 8035.06.220.222.323 | 2.7 | 1987.02- |
| AGRIFULL | 50 | 8035.06.320.321 | 2.7 | 1986.07- | |
| AGRIFULL | 50 | DT | 8035.06.220 | 2.7 | 1986.07- |
| AGRIFULL | 50 | DT | 8035.06.321 | 2.7 | 1990.01- |
| AGRIFULL | 55 | 8035.06.306 | 2.7 | 1985.03-1989.12 | |
| AGRIFULL | 55 | 8035.06.307 | 2.7 | 1990.01- | |
| AGRIFULL | 55 | .85.M.V | 8035.06.208 | 2.7 | 1992.09- |
| AGRIFULL | 55 | .86F.V | 8035.06.222.223 | 2.7 | 1992.09- |
| AGRIFULL | 55 | C-Vigneto | 8035.06.208 | 2.7 | 1985.03- |
| AGRIFULL | 55 | C-Vigneto | 8035.06.308 | 2.7 | 1985.03-1989.12 |
| AGRIFULL | 55 | C-Vigneto | 8035.06.309 | 2.7 | 1990.01- |
| AGRIFULL | 55 | DT | 8035.06.206 | 2.7 | 1985.03- |
| AGRIFULL | 55 | Frutteto DT | 8035.06.222 | 2.7 | 1985.04-1989.12 |
| AGRIFULL | 55 | Frutteto DT | 8035.06.323 | 2.7 | 1990.01- |
| AGRIFULL | 55 | Vigneto | 8035.06.222 | 2.7 | 1985.04- |
| AGRIFULL | 55 | Vigneto DT | 8035.06.222 | 2.7 | 1987.06- |
| AGRIFULL | 570 | F.V | Fiat-8035.04.378 | 2.7 | 1980.09-1983.12 |
| AGRIFULL | 60 | .85F.V | 8035.05.208.309 | 3.0 | 1992.09- |
| AGRIFULL | 60 | .86F.V | 8035.05.208.309 | 3.0 | 1992.09- |
| AGRIFULL | 60 | C | 8035.05.206 | 2.9 | 1985.03- |
| AGRIFULL | 60 | CL | 8035.05.306 | 2.9 | 1985.03-1989.12 |
| AGRIFULL | 60 | CL | 8035.05.307 | 2.9 | 1990.01- |
| AGRIFULL | 60 | DT Frutteto | 8035.05.308 | 2.9 | 1985.03-1989.12 |
| AGRIFULL | 60 | DT Frutteto | 8035.05.309 | 2.9 | 1990.01- |
| AGRIFULL | 60 | Frutteto | 8035.05.208 | 2.9 | 1985.03- |
| AGRIFULL | 60 | LM | 8035.05.206.306 | 2.9 | 1987.09-1990.12 |
| AGRIFULL | 60 | LM.DT | 8035.05.206.306 | 2.9 | 1991.01- |
| AGRIFULL | 80 | .46 | 8035.02.276 | 2.6 | 1984.03-1984.12 |
| AGRIFULL | 80 | .56 | 8035.04.376 | 2.8 | 1984.04-1984.12 |
| AIFO | 8035 | .02.300 | 2.6 | 1973.06-1983.06 | |
| AIFO | 8041 | .02.310 | 3.5 | 1974.06-1980.12 | |
| AIFO | 8041 | .04.200 | 3.7 | 1979.06-1980.02 | |
| AIFO | 8041 | .04.250 | 3.7 | 1979.06-1983.06 | |
| AIFO | 8045 | .02.285 | 3.5 | 1973.06-1981.12 | |
| AIFO | 8045 | .02.300 | 3.5 | 1973.06-1981.12 | |
| AIFO | 8141 | .61.200 | 2.4 | 1978.06-1983.05 | |
| AIFO | 8141 | .61.200 | 2.4 | 1981.10-1983.05 | |
| FIAT | 25 | H2 | 8035.05.377 | 2.9 | 1985.11-1989.04 |
| FIAT | 25 | H4 | 8035.05.377 | 2.9 | 1985.11-1989.04 |
| FIAT | 25 | M2 | 8035.05.377 | 2.9 | 1985.11-1988.12 |
| FIAT | 25 | M4 | 8035.05.377 | 2.9 | 1985.11-1988.12 |
| FIAT | 30 | H2. H4 | 8035.05.377 | 2.9 | 1985.11-1989.04 |
| FIAT | 30 | M2. M4 | 8035.05.377 | 2.9 | 1985.11-1988.12 |
| FIAT | 465 | C | 8035.02.276 | 2.6 | 1982.06-1984.12 |
| FIAT | 465 | C.CF.CV | - | - | |
| FIAT | 466 | .DT | 8035.02.276 | 2.6 | 1982.12-1984.12 |
| FIAT | 474 | 8035.02.212 | 2.6 | 1983.04-1984.12 | |
| FIAT | 480 | DT.S | 8035.02.302 | 2.6 | 1976.01-1982.03 |
| FIAT | 500 | DT | 8035.02.201 | 2.6 | 1973.06-1982.03 |
| FIAT | 500 | DT.S | 8035.02.202 | 2.6 | 1978.06-1982.03 |
| FIAT | 505 | C | 8035.02.372 | 2.6 | 1973.01-1980.12 |
| FIAT | 505 | S | 8035.04.272 | 2.8 | 1980.12-1982.07 |
| FIAT | 540 | DT.S | 8035.02.302 | 2.6 | 1972.03-1982.03 |
| FIAT | 55 | .88 | 8035.06.216.317; 56HP | 2.7 | 1989.01-1993.12 |
| FIAT | 55 | .90 | 8035.06.200 | 2.7 | 1984.03-1989.06 |
| FIAT | 55 | 46 | 8035.06.206.306 | 2.7 | 1985.01-1988.12 |
| FIAT | 55 | 56 | 8035.06.206.306 | 2.7 | 1989.01- |
| FIAT | 55 | 65 | 8035.06.206.306 | 2.7 | 1984.10-1989.02 |
| FIAT | 55 | 66 | 8035.06.307 | 2.7 | 1990.01- |
| FIAT | 55 | 66 DT Frutteto | 8035.06.323 | 2.7 | 1985.04- |
| FIAT | 55 | 66 Vigneto | 8035.06.222 | 2.7 | 1985.04- |
| FIAT | 55 | 66DT | 8035.06.206 | 2.7 | 1984.09- |
| FIAT | 55 | 66DT Vigneto | 8035.06.222 | 2.7 | 1987.05- |
| FIAT | 55 | 66LP | 8035.06.208 | 2.7 | 1985.04-1988.06 |
| FIAT | 55 | 66LP.DT | 8035.06.308 | 2.7 | 1985.04-1988.06 |
| FIAT | 55 | 75 | 8035.06.206.306 | 2.7 | 1989.03- |
| FIAT | 55 | F10 | OM8340.04.200 | 4.6 | 1978.04-1980.10 |
| FIAT | 565 | C | 8035.04.376 | 2.8 | 1982.06-1984.12 |
| FIAT | 566 | 8035.04.376 | 2.8 | 1982.02-1984.12 | |
| FIAT | 570 | DT | 8035.04.270 | 2.8 | 1977.12-1982.02 |
| FIAT | 570 | F.V | 8035.04.378 | 2.8 | 1980.09-1984.12 |
| FIAT | 580 | DT | 8035.04.270 | 2.8 | 1977.12-1984.02 |
| FIAT | 60 | .46 | 8035.05.206.306 | 2.9 | 1987.09-1988.12 |
| FIAT | 60 | .56 | 8035.05.206 | 2.9 | 1989.01- |
| FIAT | 60 | .56 | 8035.05.307 | 2.9 | 1990.01- |
| FIAT | 60 | .65 | 8035.05.206.306 | 2.9 | 1984.10-1989.01 |
| FIAT | 60 | .66 | 8035.05.306 | 2.9 | 1984.09-1989.12 |
| FIAT | 60 | .66 | 8035.05.307 | 2.9 | 1990.01- |
| FIAT | 60 | .66 Frutteto | 8035.05.208 | 2.9 | 1985.04-1988.06 |
| FIAT | 60 | .66DT | 8035.05.206 | 2.9 | 1984.09- |
| FIAT | 60 | .66DT Frutteto | 8035.05.208 | 2.9 | 1985.04-1988.06 |
| FIAT | 60 | .66LP.DT | 8035.05.308 | 2.9 | 1985.04-1988.06 |
| FIAT | 60 | .75 | 8035.05.206.306 | 2.9 | 1989.03- |
| FIAT | 60 | .88 | 8035.05.216.317 | 2.9 | 1989.11- |
| FIAT | 60 | .90DT | 8035.05.200 | 2.9 | 1984.03-1989.06 |
| FIAT | BI | 20C. 25C. 30C | 8035.44.059 | 2.8 | 1980.01-1987.12 |
| FIAT | BIM | 20. 25 | 8035.42.055 | 2.6 | 1972.01-1982.12 |
| FIAT | DI | 12. 15 | 8035.02.353 | 2.6 | 1971.01-1982.12 |
| FIAT | DIM | 20. 25 | 8035.02.355 | 2.6 | 1971.01-1982.12 |
| FIAT | DM | 12. 15 | 8035.02.350 | 2.6 | 1971.01-1982.12 |
| FIAT | L | L60 | 8035.05.214. 215; 60HP | 2.9 | 1996.03-1998.12 |
| FIAT | L | L65 | 8045.06.213-326; 65HP | 2.9 | 1996.03-1998.12 |
| FIAT | R | 450.DT | 8035.01 | 2.3 | 1972.06-1980.09 |
| FIAT | R | H2. H4 | 8035.05.377 | 2.9 | 1985.11-1989.04 |
| FIAT | R | M2. M4 | 8035.05.377 | 2.9 | 1985.11-1988.12 |
| FIAT-ALLIS | 4 | 8035.02.210 | 2.6 | 1970.11-1978.07 | |
| FIAT-ALLIS | FL | 4C | 8035.02.261.361 | 2.6 | 1970.11-1978.07 |
| IVECO | 25 | H2. H4 | 8035.05.377 | 2.9 | 1985.11-1989.04 |
| IVECO | 25 | M2. M4 | 8035.05.377 | 2.9 | 1985.11-1989.04 |
| IVECO | 30 | H2. H4 | 8035.05.377 | 2.9 | 1985.11-1989.04 |
| IVECO | 30 | M2. M4 | 8035.05.377 | 2.9 | 1985.11-1989.04 |
| IVECO | AIFO-8035 | 02.300 | 2.6 | 1983.06-1984.12 | |
| IVECO | AIFO-8040 | 25.900 | 3.9 | 1987.06- | |
| IVECO | AIFO-8041 | 04.260 | 3.7 | 1984.01-1984.12 | |
| IVECO | AIFO-8041 | 05.260 | 3.9 | 1987.06- | |
| IVECO | AIFO-8061 | 05.260 | 5.9 | 1987.06-1989.12 | |
| NEW HOLLAND ITALIA | 45 | 66 2RM DT | 8035.06.321 | 2.7 | 1990.01- |
| NEW HOLLAND ITALIA | 45 | 66DT Vigneto | 8035.06.220 | 2.7 | 1985.01- |
| NEW HOLLAND ITALIA | 55 | 56 | 8035.06.206.306 | 2.7 | 1989.01- |
| NEW HOLLAND ITALIA | 55 | 66 | 8035.06.307 | 2.7 | 1990.01- |
| NEW HOLLAND ITALIA | 55 | 66 DT Frutteto | 8035.06.323 | 2.7 | 1985.04- |
| NEW HOLLAND ITALIA | 55 | 66 Vigneto | 8035.06.222 | 2.7 | 1985.04- |
| NEW HOLLAND ITALIA | 55 | 66DT | 8035.06.206 | 2.7 | 1984.09- |
| NEW HOLLAND ITALIA | 55 | 66DT Vigneto | 8035.06.222 | 2.7 | 1987.05- |
| NEW HOLLAND ITALIA | 55 | 75 | 8035.06.206.306 | 2.7 | 1989.03- |
| NEW HOLLAND ITALIA | 55 | 85.M.V | 8035.06.208 | 2.7 | 1992.09- |
| NEW HOLLAND ITALIA | 55 | 86F.V | 8035.06.222.223 | 2.7 | 1992.09- |
| NEW HOLLAND ITALIA | 55 | 88 | 8035.06.216 | 2.7 | 1989.11- |
| NEW HOLLAND ITALIA | 55 | 88 | 8035.06.317 | 2.7 | 1990.01- |
| NEW HOLLAND ITALIA | 60 | 56 | 8035.05.206 | 2.9 | 1989.01- |
| NEW HOLLAND ITALIA | 60 | 56 | 8035.05.307 | 2.9 | 1990.01- |
| NEW HOLLAND ITALIA | 60 | 66 | 8035.05.307 | 2.9 | 1990.01- |
| NEW HOLLAND ITALIA | 60 | 66DT | 8035.05.206 | 2.9 | 1984.09- |
| NEW HOLLAND ITALIA | 60 | 75 | 8035.05.206.306 | 2.9 | 1989.03- |
| NEW HOLLAND ITALIA | 60 | 85F.V | 8035.05.208.309 | 3.0 | 1992.09- |
| NEW HOLLAND ITALIA | 60 | 86F.V | 8035.05.208.309 | 3.0 | 1992.09- |
| NEW HOLLAND ITALIA | 60 | 88 | 8035.05.317 | 2.9 | 1989.11- |
| WHITE | TRACTORS | 2-60 | 4-211 | 1976.01-1984.01 |
More Information
| Weight (kg) | 13.048000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 2.7 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
