24V 3.2kW z9 (IS0216, MS389)
Got Questions?
€405 €319
Available in 2-3 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

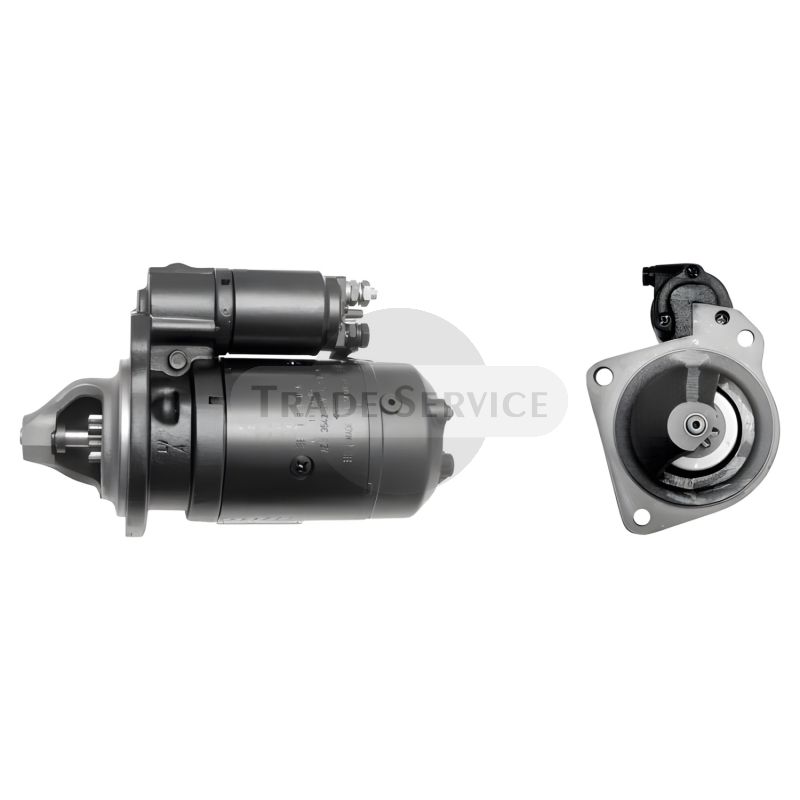

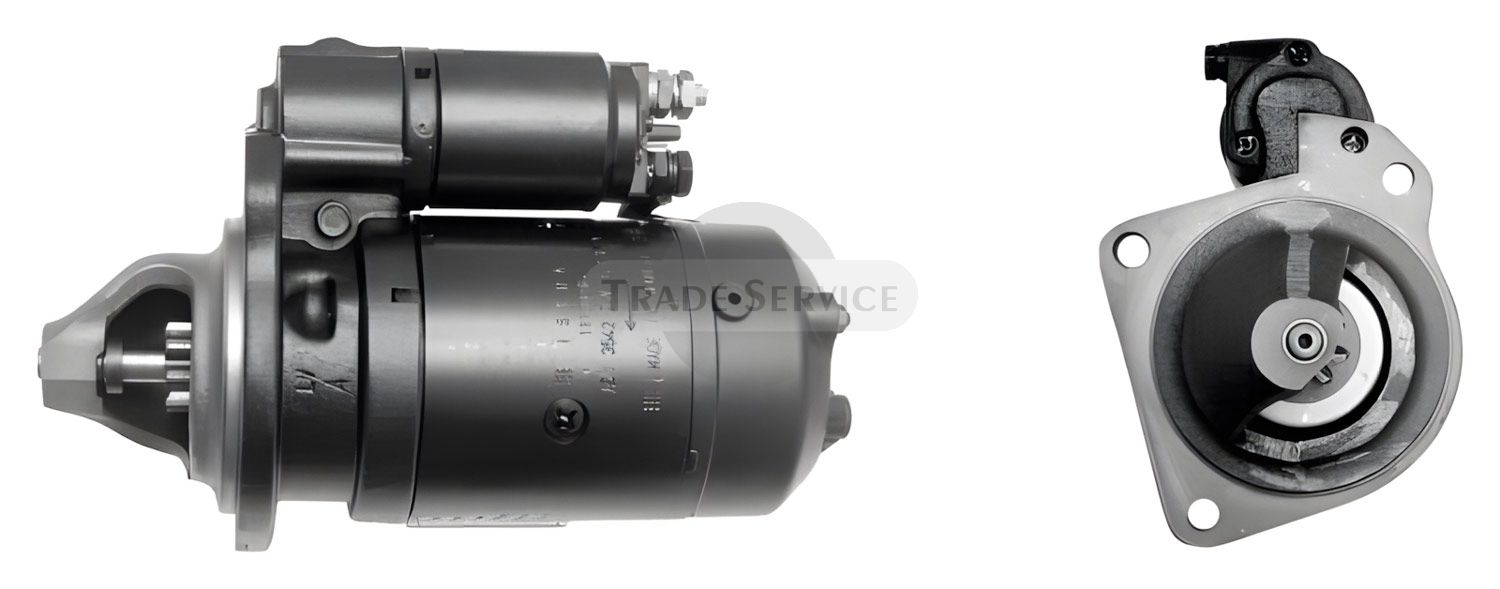

11.130.216 AZJ3542 MAHLE (Letrika, Iskra) starter motor MS389
Similar products
We found other products you might like!
-
20500839 Prestolite starter motor24V 3.0kW z9
Information
This 11.130.216 AZJ3542 MAHLE (Letrika, Iskra) starter motor MS389 is a reliable spare part which is widely used on AIFO, BENFRA, FIAT, FIAT-ALLIS, IVECO, OM (BRESCIA), UNIC engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH | 0001363101, 0001363111, 0986011160, 0986011161 |
|---|---|
| EFEL | 12080 |
| FIAT | 4691200, 4706931, 4744841, 4752403, 4807377, 6706931, 77050561, 77080560, 77080561 |
| HELLA | 8EA726030001, CS231 |
| IVECO | 2995374, 2997051, 42498142, 4691200, 4744841, 504038038, 504072485 |
| LESTER | 18031 |
| LUCAS | LRS00839 |
| MAGNETI MARELLI | 30281018, 63217201, 63217225, 63217226, 943217226, MSN237, MT72A, MT72AA, MT72AB |
| MAHLE (Letrika, Iskra) | IS0216, 11130216, AZJ3542, MS389, 11130146, AZJ3520 |
| VALEO | 455520 |
| ZASTAVA | 1626179, 4744841 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AIFO | 8031 | .04.300 | - | 2.8 | 1979.06-1983.06 |
| AIFO | 8041 | .04.300 | - | 3.7 | 1979.06-1983.06 |
| AIFO | 8045 | .02.285 | - | 3.5 | 1973.06-1981.12 |
| AIFO | 8045 | .02.300 | - | 3.5 | 1973.06-1981.12 |
| BENFRA | 1.15 | - | Aifo-8035I002 | 2.6 | 1983.04-1985.06 |
| BENFRA | 1.25 | - | Aifo-8031I002 | 2.8 | 1983.10-1985.06 |
| BENFRA | 1.35 | - | Aifo-8041I002 | 3.7 | 1983.11-1985.06 |
| BENFRA | 315 | I | Aifo-8041I002 | 3.7 | 1981.04-1985.06 |
| BENFRA | 4 | CH/RD | Aifo-8031I002 | 2.8 | 1980.01-1984.12 |
| BENFRA | 8531 | - | Aifo-8041I002 | 3.7 | 1981.04-1986.02 |
| FIAT | 241 | TN | 237AZ000 | 1.9 | 1974.07-1978.12 |
| FIAT | 40 | NC | 8040.02.360 | 3.5 | 1974.11-1981.05 |
| FIAT | 50 | F8 | 8040.04.200 | 3.7 | 1978.04-1982.12 |
| FIAT | 50 | NC | 8040.02. | 3.5 | 1974.11-1979.05 |
| FIAT | 55 | F8 | 8040.04.200 | 3.7 | 1978.04-1980.06 |
| FIAT | 55 | NC | 8040.02. | 3.5 | 1974.11-1979.05 |
| FIAT | 60 | F8 | 8040.04.200 | 3.7 | 1979.06-1982.02 |
| FIAT | 616 | N3.N3/4 | 8030.02 | 2.6 | 1974.11-1979.05 |
| FIAT | 65 | PC | 8040.02. | 3.5 | 1976.02-1979.01 |
| FIAT-ALLIS | FE | 12.R | 8041I002.ALL004 | 3.7 | 1982.02-1985.03 |
| FIAT-ALLIS | FR | 7 | 8041I002ALL006 | 3.7 | 1982.12-1985.03 |
| FIAT-ALLIS | S | 60 | 8045I | 3.5 | 1970.01-1979.11 |
| IVECO | 40 | NC | Fiat-8040.02.300.360 | 3.5 | 1981.05-1990.12 |
| IVECO | 40 | NC35 | Fiat-8040.02.267.367 | 3.5 | 1973.01-1990.12 |
| IVECO | 49 | NC | Fiat-8040.02.267 | 3.5 | 1973.01-1990.12 |
| IVECO | 50 | 8 | Fiat-8040.04.200 | 3.7 | 1983.01-1986.12 |
| IVECO | 50 | 9 | Fiat-8040.05.230 | 4.0 | 1987.01-1991.06 |
| IVECO | 50 | A.I. Bus | - | - | - |
| IVECO | 55 | .8 | Fiat-8040... | - | - |
| IVECO | 55 | NC | - | - | - |
| IVECO | 60 | 11 | Fiat-8040.25.230R | 3.9 | 1987.01-1991.05 |
| IVECO | 60 | 8 | Fiat-8040.04.200 | 3.7 | 1983.01-1983.04 |
| IVECO | 60 | E12 | Fiat-8040.25X.4000 | 4.0 | 1991.01-1992.12 |
| IVECO | 60 | E14 | Fiat-8040.45.4000 | 4.0 | 1991.01-1992.12 |
| IVECO | 616 | N3/N4 | - | - | - |
| IVECO | 65 | 12 | Fiat-8040.25.200 | 3.9 | 1987.01-1992.12 |
| IVECO | 65 | 9 | Fiat-8040.05.230 | 3.9 | 1987.01-1992.12 |
| IVECO | 65 | E12 | Fiat-8040.25X.4000 | 4.0 | 1991.01-1992.12 |
| IVECO | 65 | E14 | Fiat-8040.45.4000 | 4.0 | 1991.01-1992.12 |
| IVECO | 75 | E12 | Fiat-8040.25X.4000 | 4.0 | 1991.01-1992.12 |
| IVECO | 75 | E14 | Fiat-8040.45.4000 | 4.0 | 1991.01-1992.12 |
| IVECO | 75 | E14 | Fiat-8040.45.4180 | 4.0 | 1991.01-1992.12 |
| IVECO | 79 | 12 | Fiat-8040.25.220 | 3.9 | 1987.01-1992.12 |
| IVECO | AIFO-8031 | 04.300 | - | 2.8 | 1983.06-1984.12 |
| IVECO | AIFO-8035 | 02.300 | - | 2.6 | 1983.06-1984.12 |
| IVECO | AIFO-8041 | 04.260 | - | 3.7 | 1984.01-1984.12 |
| IVECO | AIFO-8041 | 04.300 | - | 3.7 | 1983.06-1984.12 |
| IVECO | AIFO-8041 | 05.260 | - | 3.9 | 1989.10- |
| OM (BRESCIA) | 100 | N | Fiat-8060.02.. | 5.2 | 1974.11-1981.12 |
| OM (BRESCIA) | 110 | P.R.T | Fiat-8060.02.. | 5.2 | 1974.11-1981.12 |
| OM (BRESCIA) | 40 | /35N.L.T | Fiat-8040.02.. | 3.5 | 1972.09-1981.12 |
| UNIC | 40 | /35OM | 8040.02... | 3.5 | 1974.11-1981.12 |
| UNIC | 50 | NC | 8040.02... | 3.5 | 1974.11-1981.12 |
| UNIC | 55 | U8 | - | - | - |
| UNIC | 60 | U8 | - | - | - |
| UNIC | 616 | N3/4 | 8040.02... | 3.5 | 1974.11-1981.12 |
More Information
| Weight (kg) | 12.300000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 3.2 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
