12V 0.9kW z9 (IS0404, MS188)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

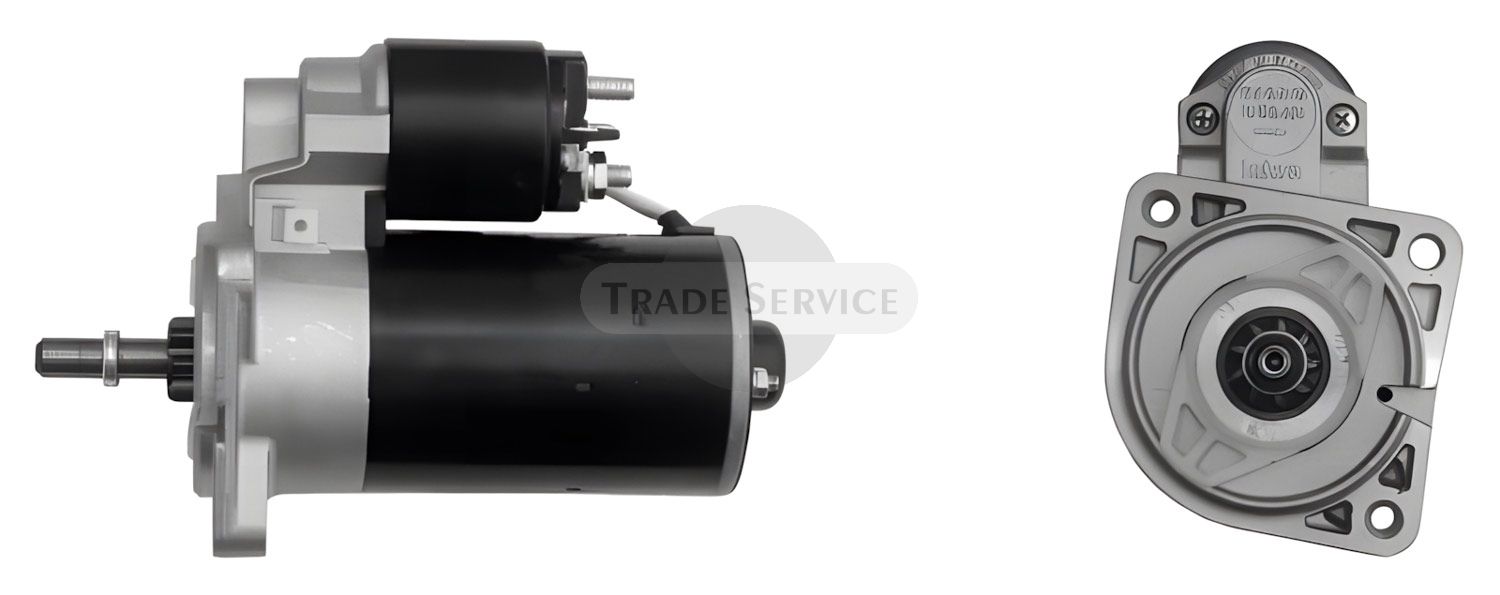

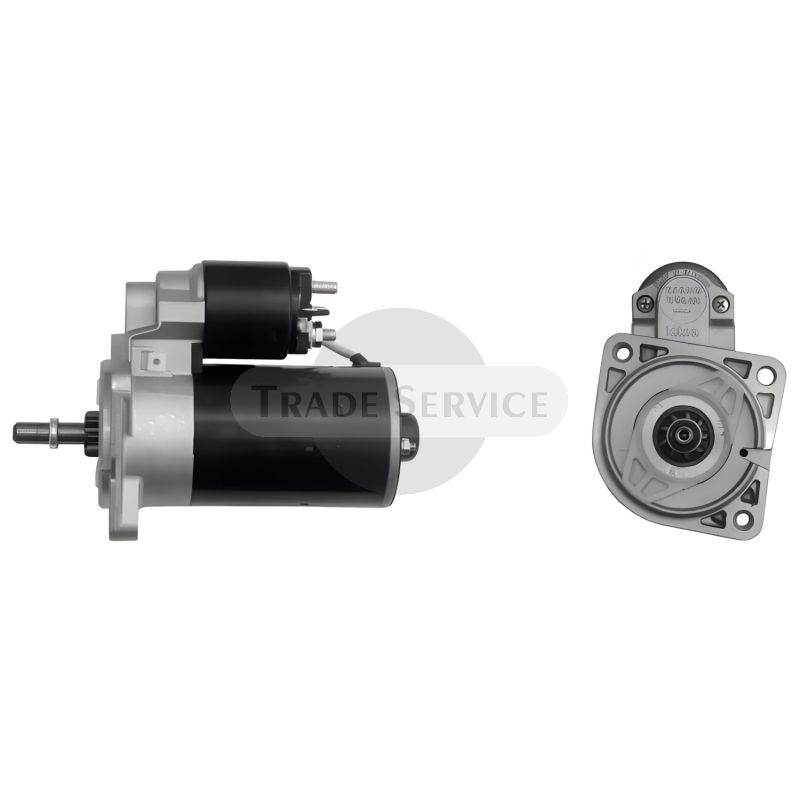

11.130.404 AZE1508 MAHLE (Letrika, Iskra) starter motor MS188
Cross References
| BOSCH | 0001112021, 0001112022, 0001113001, 0001113002, 0001113007, 0001113008, 0001211214, 0001211216, 0001211217, 0001211230, 0001211231, 0001211233, 0001211234, 0001211235, 0001211236, 0001211500, 0001211501, 0001211502, 0001211503, 0001211525, 0001211526, 0001211527, 0001211528, 0001211529, 0001211530, 0986010410, 0986010411, 0986010418, 0986010420, 0986010480, 0986010488, 0986010490, 0986010498, 0986013590, 0986016320 |
|---|---|
| HELLA | 8EA726053001, 8EA726239001, 8EA731767001, CS293, CS723, CS79 |
| LESTER | 30166, 30167, 30168, 30169, 30257, 30258, 30259, 30260, 30261, 30262 |
| LUCAS | LRS00259, LRS00360, LRS00482, LRS00761, LRS00912, LRS00913 |
| MAGNETI MARELLI | 63221305, 63221306, 63221307, 63221335, 63221535, 943221335, 943221535, 943251410, 943251646, MSR309, MSR395, MSR477 |
| MAHLE (Letrika, Iskra) | IS0404, 11130404, AZE1508, MS188 |
| PARIS-RHONE | D8E153, D8E157, D9E109, D9E114 |
| VALEO | 432654, 432658, 433261, 433263, 436021, 455547, ND063, ND096, VS126, VS181, VS341 |
| VW (VOLKSWAGEN) | 036911023, 036911023A, 036911023B, 036911023C, 036911023D, 036911023E, 036911023F, 036911023FX, 036911023G, 036911023GX, 036911023H, 036911023HX, 036911023J, 036911023K, 036911023KX, 036911023M, 036911023MX, 036911023N, 036911023P, 036911023PX, 036911023R, 036911023X, 052911023A, 052911023AX |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AUDI | 50 | HB.HC.HD | 1.1 | 1974.08-1978.07 | |
| AUDI | 50 | HH | 1.3 | 1977.08-1978.07 | |
| AUDI | 80 | FY.FZ | 1.3 | 1978.09-1981.07 | |
| SEAT | IBIZA | 1.05 | AAU | 1.1 | 1993.03-1996.06 |
| SEAT | IBIZA | 1.3 | 2G/AAV | 1.3 | 1993.03-1994.07 |
| VW (VOLKSWAGEN) | DERBY | 0.9 | HA | 0.9 | 1977.01-1981.09 |
| VW (VOLKSWAGEN) | DERBY | 1.0 | GL | 1.0 | 1981.10-1984.12 |
| VW (VOLKSWAGEN) | DERBY | 1.1 | HB | 1.1 | 1977.01-1981.09 |
| VW (VOLKSWAGEN) | DERBY | 1.1 | HD | 1.1 | 1977.01-1978.07 |
| VW (VOLKSWAGEN) | DERBY | 1.1 Formel E | HB | 1.1 | 1981.01-1981.09 |
| VW (VOLKSWAGEN) | DERBY | 1.3 | GK.HK | 1.3 | 1982.09-1984.12 |
| VW (VOLKSWAGEN) | DERBY | 1.3 | HJ.HH | 1.3 | 1977.01-1981.09 |
| VW (VOLKSWAGEN) | GOLF CABRIOLET | 1.1 | GG | 1.1 | 1979.01-1983.07 |
| VW (VOLKSWAGEN) | GOLF CABRIOLET | 1.3 | HK | 1.3 | 1983.08-1986.07 |
| VW (VOLKSWAGEN) | GOLF I | 1.1 | FA.FJ.GG | 1.1 | 1974.04-1983.07 |
| VW (VOLKSWAGEN) | GOLF I | 1.1Formel E | GG | 1.1 | 1981.07-1983.07 |
| VW (VOLKSWAGEN) | GOLF I | 1.3 | GF.GS | 1.3 | 1979.09-1983.07 |
| VW (VOLKSWAGEN) | GOLF II | 1.0 | GN | 1.0 | 1983.08-1985.07 |
| VW (VOLKSWAGEN) | GOLF II | 1.0 | HZ | 1.0 | 1985.10-1991.10 |
| VW (VOLKSWAGEN) | GOLF II | 1.3 | GT.HK.HW.MH.NZ.2C.2G | 1.3 | 1983.08-1992.07 |
| VW (VOLKSWAGEN) | GOLF II | 1.3 | NU | 1.3 | 1987.08-1987.12 |
| VW (VOLKSWAGEN) | GOLF III | 1.4 | ABD | 1.4 | 1991.11-1995.07 |
| VW (VOLKSWAGEN) | JETTA | 1.1 | GG | 1.1 | 1980.08-1982.07 |
| VW (VOLKSWAGEN) | JETTA | 1.0 | HZ | 1.0 | 1986.08-1991.10 |
| VW (VOLKSWAGEN) | JETTA | 1.1 Formel E | GG | 1.1 | 1981.01-1983.12 |
| VW (VOLKSWAGEN) | JETTA | 1.3 | GF.GS | 1.3 | 1979.08-1983.12 |
| VW (VOLKSWAGEN) | JETTA | 1.3 | GT.HK.HW.MH.NZ.2C.2G | 1.3 | 1984.01-1992.07 |
| VW (VOLKSWAGEN) | JETTA | 1.3 | NU | 1.3 | 1984.01-1987.12 |
| VW (VOLKSWAGEN) | PASSAT | 1.3 | FY.FZ | 1.3 | 1978.01-1981.07 |
| VW (VOLKSWAGEN) | POLO | 0.8 | HE | 0.8 | 1976.01-1977.05 |
| VW (VOLKSWAGEN) | POLO | 0.9 | HA | 0.9 | 1975.04-1981.09 |
| VW (VOLKSWAGEN) | POLO | 1.0 | AAK | 1.0 | 1990.01-1990.08 |
| VW (VOLKSWAGEN) | POLO | 1.0 | AAU.ACM | 1.0 | 1990.10-1994.09 |
| VW (VOLKSWAGEN) | POLO | 1.0 | GL | 1.0 | 1981.10-1986.10 |
| VW (VOLKSWAGEN) | POLO | 1.0 | HZ | 1.0 | 1985.08-1992.01 |
| VW (VOLKSWAGEN) | POLO | 1.1 | HB | 1.1 | 1975.04-1981.09 |
| VW (VOLKSWAGEN) | POLO | 1.1 | HC.HD | 1.1 | 1975.04-1978.07 |
| VW (VOLKSWAGEN) | POLO | 1.1 Formel E | HB | 1.1 | 1981.01-1981.09 |
| VW (VOLKSWAGEN) | POLO | 1.3 | AAV | 1.3 | 1991.01-1994.09 |
| VW (VOLKSWAGEN) | POLO | 1.3 | GK.GT | 1.3 | 1982.08-1990.08 |
| VW (VOLKSWAGEN) | POLO | 1.3 | HH.HJ | 1.3 | 1977.01-1981.09 |
| VW (VOLKSWAGEN) | POLO | 1.3 | HK | 1.3 | 1983.08-1985.07 |
| VW (VOLKSWAGEN) | POLO | 1.3 | HW | 1.3 | 1983.08-1985.07 |
| VW (VOLKSWAGEN) | POLO | 1.3 | MH.NU | 1.3 | 1985.08-1988.12 |
| VW (VOLKSWAGEN) | POLO | 1.3 | NZ.2G.3F | 1.3 | 1986.12-1994.09 |
| VW (VOLKSWAGEN) | POLO | 1.3 G40 | PY | 1.3 | 1987.01-1994.09 |
| VW (VOLKSWAGEN) | SCIROCCO | 1.1 | FA.FJ | 1.1 | 1974.04-1979.07 |
| VW (VOLKSWAGEN) | SCIROCCO | 1.3 | GF | 1.3 | 1979.08-1983.12 |
| VW (VOLKSWAGEN) | SCIROCCO | 1.3 | HK | 1.3 | 1983.08-1984.07 |
| VW (VOLKSWAGEN) | VENTO | 1.4 | ABD | 1.4 | 1991.11-1995.07 |
More Information
| Weight (kg) | 4.220000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 0.9 kW |
| Pinion teeth | 9 |
| Rotation direction | N/A |
| Notes | Noseless version of starter, Terminal 15a |
