24V 4.0kW z9 (IS0491, MS386)
Got Questions?
€474 €373
Available in 2-3 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

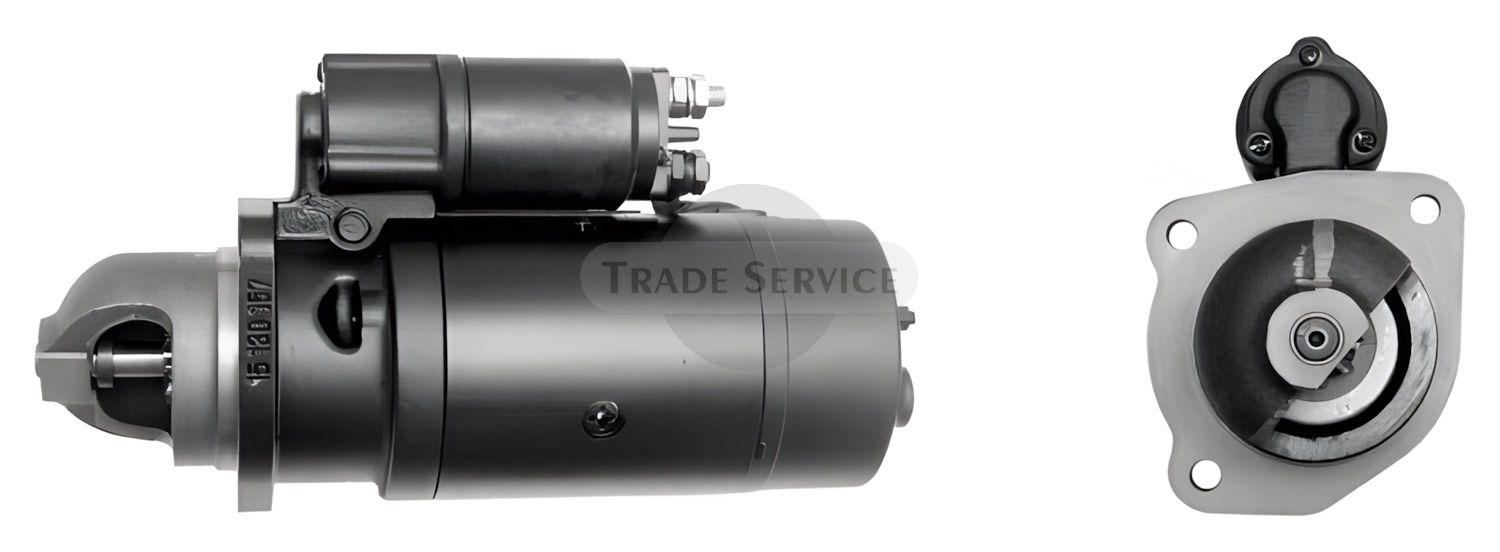

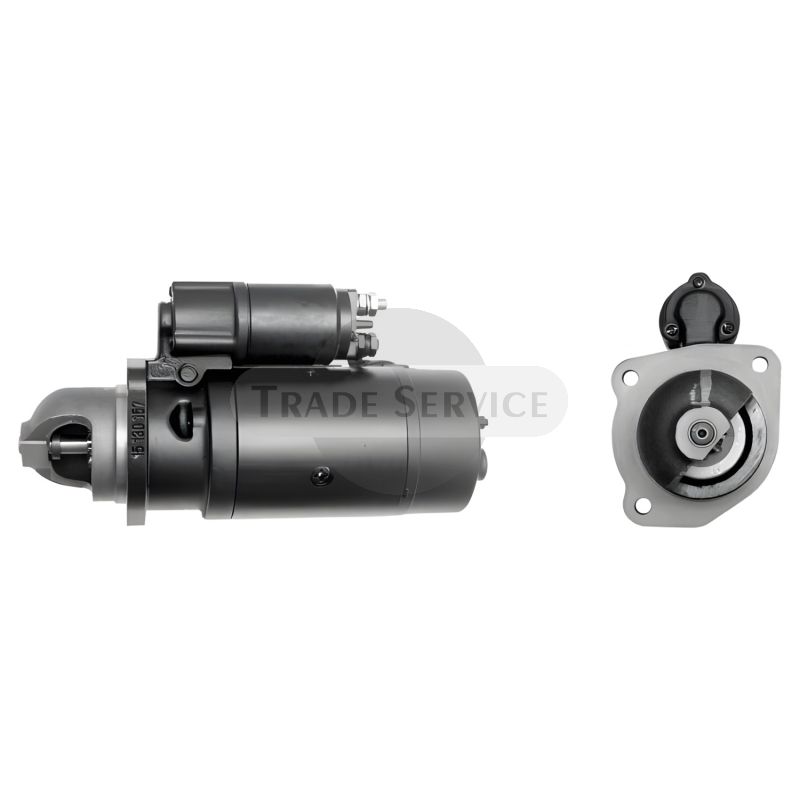

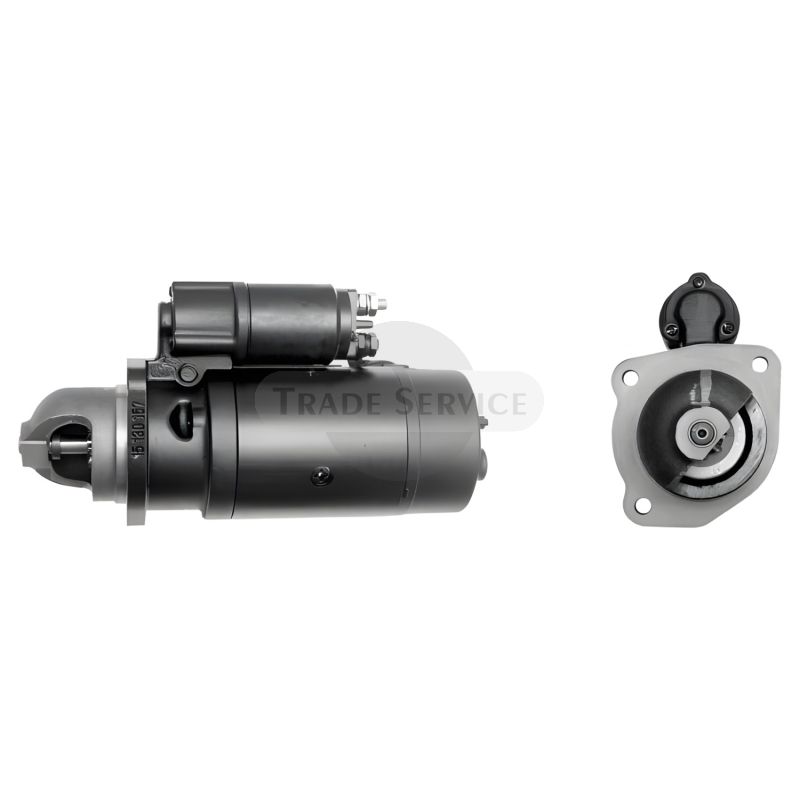

11.130.491 AZJ3132 MAHLE (Letrika, Iskra) starter motor MS386
Cross References
| AHLMANN (MECALAC) | 4188195A, 6929014 |
|---|---|
| ATLAS | 0892155 |
| BOMAG | 05710903 |
| BOSCH (USA) | SR913X |
| BOSCH | 0001360003, 0001360012, 0001360035, 0001368001, 0001368007, 0986011270 |
| DAF | 1516768R |
| DEUTZ AG (KHD) | 01161422, 01164995, 01173241, 01173820 |
| EFEL | 10460, 11580 |
| FAUN | 1701065 |
| HELLA | 8EA726170001, CS530 |
| IVECO | 42522653 |
| LESTER | 17045, 17073 |
| LIEBHERR | 42488477, 6200662, 6200827 |
| LUCAS | LRS00923 |
| MAGNETI MARELLI | 943252205, MSR698 |
| MAHLE (Letrika, Iskra) | IS0491, 11130491, AZJ3132, MS386, 11130141, AZJ3518 |
| NIKKO | E41565 |
| O&K | 744648 |
| PRESTOLITE | 859539 |
| SPAREX | 36128 |
| TORPEDO | 0212403 |
| VALEO | 455516 |
| VOLVO | 6209190 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| ABG | TITAN | 211 | KHD-F3L912 | 2.8 | 1968.02-1975.12 |
| ABG | TITAN | 350S | KHD-F4L912 | 3.8 | 1971.03-1991.12 |
| ABG | TITAN | 360 | KHD-F4L912 | 3.8 | 1972.05-1990.12 |
| ABG | TITAN | 410S | KHD-BF6L912 | 5.7 | 1972.03-1990.12 |
| AHLMANN (MECALAC) | A | 69 | KHD-F4L912 | 3.8 | 1968.06-1974.12 |
| AHLMANN (MECALAC) | FRONT LOADERS | AF10 | KHD-F4L912 | 3.8 | 1968.06-1980.12 |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AS7 | KHD-F4L912 | 3.8 | 1968.06-1979.12 |
| CASE | EXCAVATORS | B60CL | - | 1976.03-1988.01 | |
| CASE | EXCAVATORS | B75CL | - | 1975.06-1988.01 | |
| CASE | EXCAVATORS | B75P | - | 1975.09-1988.01 | |
| CASE | EXCAVATORS | LC80 | - | 1969.01-1976.06 | |
| CASE | EXCAVATORS | LY80 | - | 1969.01-1977.01 | |
| DEMAG | H | 15C.P | KHD-F4L912 | 3.8 | 1974.04-1978.12 |
| DEMAG | H | 21C.P | KHD-F5L912 | 4.7 | 1974.04-1978.12 |
| DEMAG | H | 23C.L | KHD-F6L912 | 5.6 | 1974.04-1978.12 |
| DEUTZ AG (KHD) | BF6L912 | - | 5.6 | 1973.01-1973.06 | |
| DEUTZ AG (KHD) | F3L911 | - | 2.5 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F3L912 | - | 2.8 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | F4L911 | - | 3.3 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F4L912 | - | 3.8 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | F5L912 | - | 1972.04-1975.12 | ||
| DEUTZ AG (KHD) | F6L911 | - | 4.9 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F6L912 | - | 1971.06-1975.12 | ||
| DEUTZ AG (KHD) | F6L912 | - | 5.6 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | FM1012 | - | - | ||
| DEUTZ AG (KHD) | FM1013 | - | - | ||
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M110 | D7/8/9FK | F6L912 | 5.6 | 1967.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M110 | D7/8/9FS | F6L912 | 5.6 | 1967.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M110 | D7/8FL | F6L912 | 5.6 | 1967.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M110 | D9/11FL | F6L912 | 5.6 | 1967.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D12AK | F6L912 | 5.7 | 1971.05-1973.08 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D12K | F6L912 | 5.7 | 1971.05-1973.08 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D7FA | F6L912 | 5.7 | 1969.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D7FK | F6L912 | 5.7 | 1969.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D7FL | F6L912 | 5.7 | 1969.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D7FS | F6L912 | 5.7 | 1969.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | R80 | F6L912 | 5.7 | 1973.01-1974.12 |
| EISENWERKE KAISERSLAUTERN | PL | 60R | KHD-F6L912 | 5.6 | 1968.01-1979.12 |
| FUCHS | 118 | M | KHD-F6L912 | 3.8 | 1975.06-1986.12 |
| IVECO | 110 | 13A.. | KHD-BF6L913T | 6.1 | 1986.03-1991.12 |
| IVECO | 110 | 16A.. | KHD-BF6L913 | 6.1 | 1986.03-1991.12 |
| IVECO | 120 | 13ANW | KHD-BF6L913T | 6.1 | 1983.08-1988.02 |
| IVECO | 120 | 13ANW | KHD-F6L913 | 6.1 | 1983.01-1986.02 |
| IVECO | 130 | 13A.. | KHD-BF6L913T | 6.1 | 1986.03-1989.05 |
| IVECO | 130 | 16A.. | KHD-BF6L913 | 6.1 | 1986.03-1991.10 |
| IVECO | 60 | 9A | KHD-BF4L913T | 4.1 | 1985.11-1988.04 |
| IVECO | 75 | 9A | KHD-BF4L913T | 4.1 | 1985.11-1989.05 |
| IVECO | 80 | 13A.. | BF6L913TVollkaps. | 6.1 | 1986.03-1991.12 |
| IVECO | 80 | 13A.. | KHD-BF6L913T. | 6.1 | 1986.03-1991.12 |
| IVECO | 80 | 16A.. | KHD-BF6L913 | 6.1 | 1986.03-1991.12 |
| IVECO | 90 | 13A.. | KHD-BF6L913T | 6.1 | 1986.03-1991.12 |
| MAGIRUS-DEUTZ | 130R | 81 | F6L913 | 6.1 | 1977.10-1979.12 |
| MAGIRUS-DEUTZ | M120 | R80 | F6L912 | 5.7 | 1975.01-1979.09 |
| MAGIRUS-DEUTZ | M90 | D5.2/5.6/6.5/7.5FK | F4L913 | 4.1 | 1976.05-1982.10 |
| MAGIRUS-DEUTZ | M90 | D5.2/5.6/6/6.5/7.5FL | F4L913 | 4.1 | 1976.05-1982.10 |
| MAGIRUS-DEUTZ | M90 | D5.2/5.6/6/6.5/7.5FV | F4L913 | 4.1 | 1976.05-1982.10 |
| O&K | G | 8 | KHD-F6L912 | 5.7 | 1974.01-1987.06 |
| O&K | L | 10 | KHD-F4L912 | 3.8 | 1974.01-1986.12 |
| O&K | L | 15 | KHD-F5L912 | 4.7 | 1974.01-1986.12 |
| O&K | MH | 4 | KHD-F3L912 | 2.8 | 1973.01-1976.08 |
| O&K | MH | 4 | KHD-F4L912 | 3.8 | 1976.09-1990.06 |
| O&K | MH | 6 | KHD-F4L912 | 3.8 | 1973.01-1976.08 |
| O&K | MH | 6 | KHD-F5L912 | 4.7 | 1976.09-1990.06 |
| O&K | MH | 6 | KHD-F6L912 | 5.7 | 1976.09-1990.06 |
| O&K | RH | 3 | KHD-F3L912 | 2.8 | 1976.01-1982.06 |
| O&K | RH | 4 | KHD-F3L912 | 2.8 | 1973.01-1976.08 |
| O&K | RH | 4 | KHD-F4L912 | 3.8 | 1976.09-1990.06 |
| O&K | RH | 6 | KHD-F4L912 | 3.8 | 1973.01-1976.08 |
| O&K | RH | 6 | KHD-F5L912 | 4.7 | 1976.09-1990.06 |
| O&K | RH | 6 | KHD-F6L912 | 5.7 | 1976.09-1990.06 |
| O&K | RH | 9 | KHD-F6L912 | 5.7 | 1973.01-1990.06 |
| POCLAIN | CRANES | 18.01 | KHD-F6L912 | 5.6 | 1969.01-1979.12 |
| POCLAIN | CRANES | 18.15 | KHD-F6L912 | 5.6 | 1969.01-1979.12 |
| POCLAIN | EXCAVATORS | 60CL | KHD-F4L912 | 3.8 | 1976.03- |
| POCLAIN | EXCAVATORS | 60P | KHD-F4L912 | 3.8 | 1988.03- |
| POCLAIN | EXCAVATORS | 75CL. 75P | KHD-F5L912 | 4.7 | 1975.06- |
| WESERHUETTE | RW | 1600A | KHD-F6L912 | 5.7 | 1973.05-1987.12 |
| WESERHUETTE | RW | 1700K | KHD-F6L912 | 5.7 | 1973.05-1987.12 |
| WESERHUETTE | RW | 2300K | KHD-BF6L913 | 6.1 | 1973.05-1987.12 |
| WESERHUETTE | W | 60 | KHD-F6L912 | 5.7 | 1973.01-1979.12 |
| WESERHUETTE | W | 80 | KHD-F6L912 | 5.7 | 1973.01-1979.12 |
| ZETTELMEYER | KL | 20 | KHD-F6L912 | 5.7 | 1973.02-1977.12 |
More Information
| Weight (kg) | 14.259000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 4.0 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
