24V 4.0kW z9 (IS0492, MS387)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

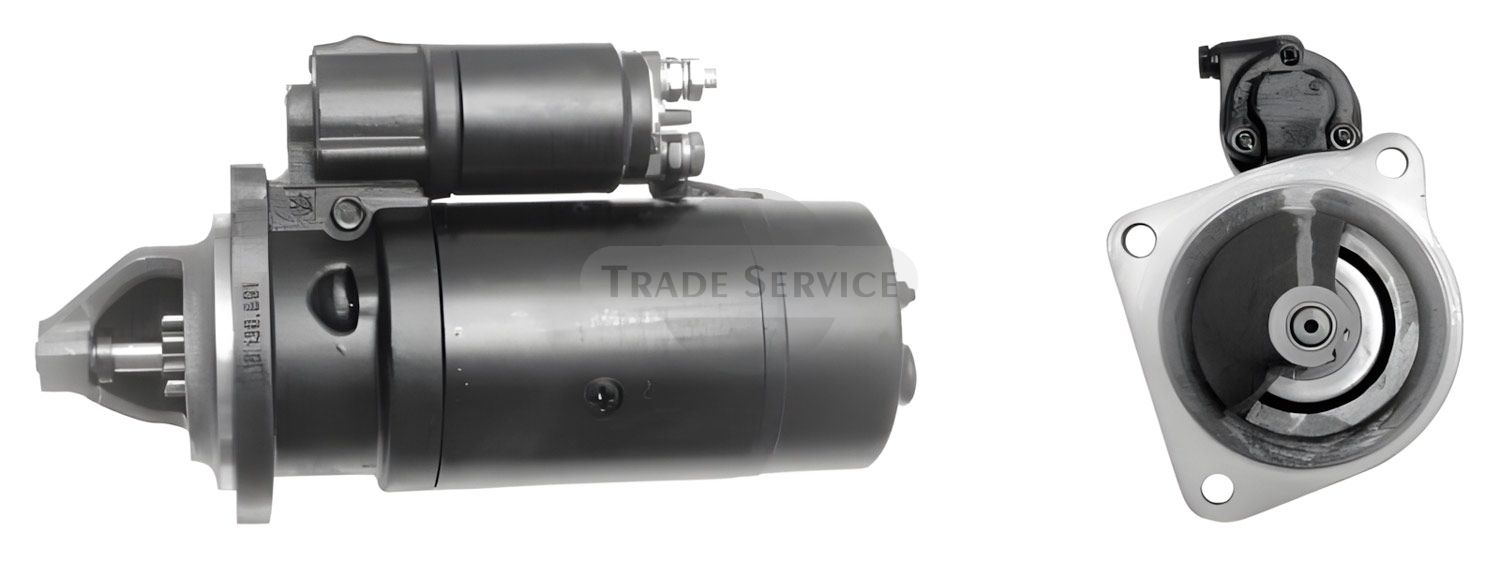

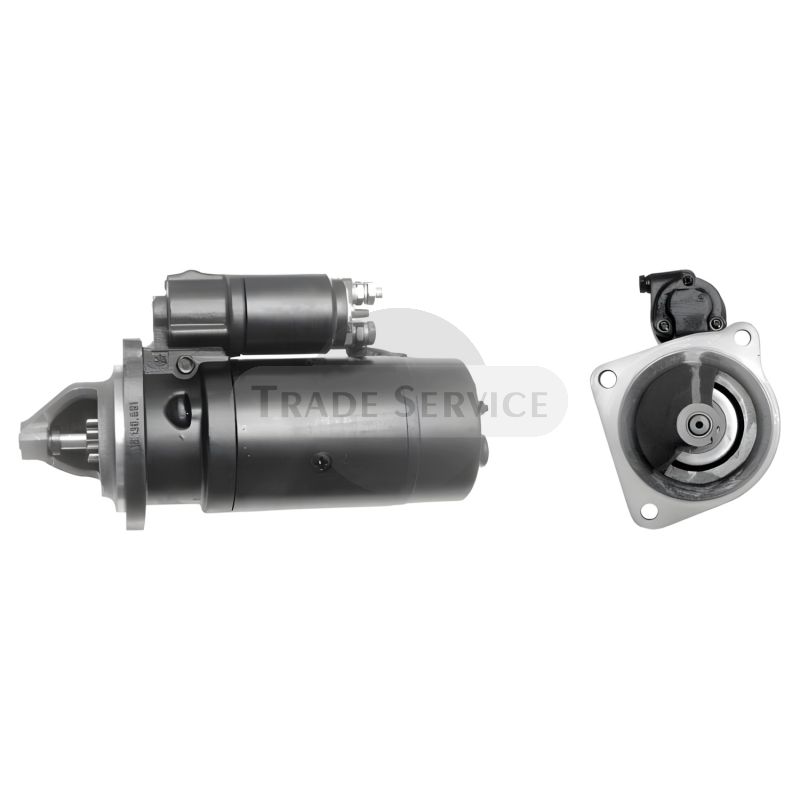

11.130.492 AZJ3133 MAHLE (Letrika, Iskra) starter motor MS387
Similar products
We found other products you might like!
-
861049 Prestolite starter motor24V 4kW z9 -
11.139.453 MAHLE (Letrika, Iskra) starter motor24V 4.0 kW z9
Information
This 11.130.492 AZJ3133 MAHLE (Letrika, Iskra) starter motor MS387 is a reliable spare part which is widely used on AIFO, BENFRA, FIAT, FIAT-ALLIS, FIAT-OM-CARELLI-ELEVATORI, IVECO, LORRAINE (PLAXTON), NEW HOLLAND ITALIA, OM (BRESCIA), UNIC engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH | 0001360015, 0001360043, 0001368019, 0986011310, 0986011311 |
|---|---|
| EFEL | 11380 |
| FIAT | 04763995, 4231018, 4269114, 4682999, 4692477, 4699704, 4701920, 4737754, 4755108, 4807378, 77040560, 77040561, 77080560, 7740560, 77414430, 77414431, 77444430, 77445430 |
| HELLA | 8EA726031001, CS232 |
| LESTER | 18030, 18092 |
| LUCAS | LRS00837 |
| MAGNETI MARELLI | 30281004, 30281013, 63216701, 63216725, 63216726, 63216727, 63216731, 943216731, MSN213, MT67A, MT67AA, MT67AB, MT67AC, MT67AD |
| MAHLE (Letrika, Iskra) | IS0492, 11130492, AZJ3133, MS387, 11130225, AZJ3546 |
| SPAREX | 36129 |
| UNIC | 004755108 |
| VALEO | 455517 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AIFO | 8060 | .02.800 | - | 5.2 | 1973.06-1981.10 |
| AIFO | 8060 | .02.811 | - | 5.2 | 1973.06-1980.12 |
| AIFO | 8061 | .04.000 | - | 5.5 | 1979.06-1983.06 |
| AIFO | 8061 | .04.050 | - | 5.5 | 1979.06-1983.06 |
| AIFO | 8061 | .04.051 | - | 5.5 | 1981.09-1983.06 |
| AIFO | 8061 | .04.060 | - | 5.5 | 1978.06-1983.06 |
| AIFO | 8061 | .04.061 | - | 5.5 | 1981.09-1983.06 |
| AIFO | 8065 | .02.000 | - | 5.2 | 1973.06-1980.12 |
| BENFRA | 1.25 | - | Aifo-8031I05 | 3.0 | 1985.07- |
| BENFRA | 1.35 | - | Aifo-8041I05 | 3.9 | 1985.07- |
| BENFRA | 10.451 | - | Aifo-8061I000 | 5.5 | 1982.10-1986.02 |
| BENFRA | 215 | I | Aifo-8031I05 | 2.9 | 1985.07- |
| BENFRA | 315 | - | Aifo-8041I05 | 3.9 | 1985.07- |
| BENFRA | 4.08 | - | Aifo-8041I05 | 3.9 | 1986.01- |
| BENFRA | 4.10 | - | Aifo-8051I05 | 4.9 | 1986.06- |
| BENFRA | 4.12 | - | Aifo-8061I005 | 5.9 | 1986.07-1991.06 |
| BENFRA | 415 | IB | Aifo-8051I05.00 | 4.6 | 1981.05- |
| BENFRA | 5 | RD | Aifo-8041I05 | 3.9 | 1985.02-1987.04 |
| BENFRA | 515 | I | Aifo-8061I000 | 5.5 | 1983.04-1985.06 |
| BENFRA | 515 | I | Aifo-8061I005 | 5.9 | 1985.07- |
| BENFRA | 6 | CH | Aifo-8051I000 | 4.6 | 1981.05-1985.05 |
| BENFRA | 7 | RD | Aifo-8051I05 | 4.9 | 1986.06-1988.04 |
| BENFRA | 7.08 | - | Aifo-8061I005 | 5.9 | 1987.12- |
| BENFRA | 8 | CH | Aifo-8061I000 | 5.5 | 1981.07-1984.12 |
| BENFRA | 9.07 | - | Aifo-8061I005 | 5.9 | 1986.01-1991.06 |
| BENFRA | 9.08 | - | Aifo-8061I005 | 5.9 | 1986.01- |
| BENFRA | 9.09 | CH | Aifo-8061SI25 | 5.9 | 1985.10-1991.04 |
| BENFRA | 9.10 | CH | Aifo-8061SI25 | 5.9 | 1985.02-1991.04 |
| BENFRA | 9531 | - | Aifo-8051I000 | 4.6 | 1981.11-1986.02 |
| FIAT | 100 | F13 | 8060.04.055.060.660 | 5.5 | 1978.04-1982.12 |
| FIAT | 100 | NC | 8060.02. | 5.2 | 1972.09-1980.05 |
| FIAT | 110 | NC.NR | 8060.02.000 | 5.2 | 1972.09-1982.02 |
| FIAT | 110 | NC.NT13 | 8060.04.000 | 5.5 | 1978.01-1982.10 |
| FIAT | 110 | NT | 8060.02.000 | 5.2 | 1972.09-1982.10 |
| FIAT | 314 | /3 | 8060.12 | 5.2 | 1967.01-1978.12 |
| FIAT | 315 | - | 8060.04.051 | 5.5 | 1977.12-1983.01 |
| FIAT | 40 | NC | 8040.02.360 | 3.5 | 1972.09-1977.12 |
| FIAT | 50 | NC | 8040.02. | 3.5 | 1972.09-1977.12 |
| FIAT | 55 | NC | 8040.02. | 3.5 | 1972.09-1977.12 |
| FIAT | 616 | - | 237AG | 2.1 | 1969.01-1977.12 |
| FIAT | 616 | N3 | 8030.02 | 2.6 | 1971.01-1979.05 |
| FIAT | 616 | N3/4 | 8040.02 | 3.5 | 1971.01-1974.10 |
| FIAT | 75 | PC | 8060.02.070 | 5.2 | 1976.01-1982.12 |
| FIAT | 79 | 13 | 8060.04.060 | 5.5 | 1979.11-1982.12 |
| FIAT | 79 | F13 | 8060.04.660 | 5.5 | 1979.01-1982.12 |
| FIAT | 80 | F13 | 8060.04 | 5.5 | 1978.04-1980.05 |
| FIAT | 80 | NC.NT | 8060.02. | 5.2 | 1972.09-1980.05 |
| FIAT | 90 | F13 | 8060.04.055 | 5.5 | 1978.04-1982.12 |
| FIAT | 90 | NC | 8060.02. | 5.2 | 1972.09-1980.05 |
| FIAT | 90 | PC | 8060.02.070 | 5.2 | 1976.01-1982.12 |
| FIAT | DI | 130C | 8061I25 | 5.9 | 1988.09-1990.12 |
| FIAT | DI | 150C | 8061I25 | 5.9 | 1988.09-1990.12 |
| FIAT-ALLIS | 65 | B | 8061I05A11017 | 5.9 | 1986.01- |
| FIAT-ALLIS | 655 | B | 8065.04.089 | 5.5 | 1978.01-1985.12 |
| FIAT-ALLIS | FE | 12.R | 8041.I005ALL | 3.7 | 1986.12-1988.12 |
| FIAT-ALLIS | FE | 16 | 8041I000ALL018 | 5.5 | 1983.10-1987.12 |
| FIAT-ALLIS | FR | 7 | 8041.I05 | 3.7 | 1985.04-1988.04 |
| FIAT-ALLIS | FR | 9 | 8051.I05 | 4.6 | 1985.04-1987.09 |
| FIAT-ALLIS | FR | 9 | 8051IA11012 | 4.6 | 1982.12-1985.03 |
| FIAT-OM-CARELLI-ELEVATORI | DI | 130C | 8061I25 | 5.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 150C | 8061I25 | 5.9 | 1990.12- |
| IVECO | 100 | -13 | Fiat-8060.04.660 | 5.5 | 1978.11-1985.06 |
| IVECO | 109 | 14 | Fiat-8060.04.689 | 5.5 | 1983.06-1985.12 |
| IVECO | 109 | 14 | Fiat-8060.05.289 | 5.9 | 1985.11-1991.06 |
| IVECO | 110 | 14 | Fiat-8060.04.639.675 | 5.5 | 1983.02-1984.12 |
| IVECO | 110 | NC.NR.NT.PC | Fiat-8060.02.001.003 | 5.2 | 1983.01-1986.06 |
| IVECO | 315 | .8.13 | Fiat-8060.04.051 | 5.5 | 1978.05-1986.02 |
| IVECO | 315 | .8.17 | Fiat-8060.24.652 | 5.5 | 1983.01-1991.06 |
| IVECO | 316 | .8.13 | Fiat-8060.04.052 | 5.5 | 1980.01- |
| IVECO | 79 | 13 | Fiat-8060.04.060.660 | 5.5 | 1983.01-1983.06 |
| IVECO | 79 | 14 | Fiat-8060.04.660 | 5.5 | 1983.07-1985.11 |
| IVECO | 79 | 14 | Fiat-8060.05.280 | 5.9 | 1985.12-1988.06 |
| IVECO | 80 | 16 | Fiat-8060.24.670.671 | 5.5 | 1982.12-1988.12 |
| IVECO | 80 | 17W | Fiat-8060.25.670 | 5.9 | 1986.01- |
| IVECO | 90 | 17W | Fiat-8060.25.670 | 5.5 | 1987.01- |
| IVECO | 95 | 14 | Fiat-8060.04.669 | 5.5 | 1983.07-1985.10 |
| IVECO | 95 | 14 | Fiat-8060.05.289 | 5.5 | 1985.11-1991.05 |
| IVECO | A | 90-13 | Fiat-8060.04. | 5.5 | 1983.01-1985.01 |
| IVECO | AIFO-8031 | 05.300 | - | 2.9 | 1985.01-1989.12 |
| IVECO | AIFO-8031 | I 05.00 | - | 2.9 | 1990.01- |
| IVECO | AIFO-8041 | 05.260 | - | 3.9 | 1986.06-1988.09 |
| IVECO | AIFO-8041 | 05.300 | - | 3.9 | 1985.01-1989.12 |
| IVECO | AIFO-8041 | I 05.00 | - | 3.9 | 1990.01- |
| IVECO | AIFO-8041 | SI 25.00 | - | 3.9 | 1990.01- |
| IVECO | AIFO-8051 | 04.100 | - | 4.6 | 1984.01-1984.12 |
| IVECO | AIFO-8051 | 05.200 | - | 4.9 | 1985.01-1989.12 |
| IVECO | AIFO-8051 | I 05.00 | - | 4.9 | 1990.01- |
| IVECO | AIFO-8061 | 04.000 | - | 5.5 | 1983.06-1984.12 |
| IVECO | AIFO-8061 | 04.001 | - | 5.5 | 1984.01-1984.12 |
| IVECO | AIFO-8061 | 04.060 | - | 5.5 | 1983.06-1984.12 |
| IVECO | AIFO-8061 | 04.061 | - | 5.5 | 1983.06-1983.07 |
| IVECO | AIFO-8061 | 05.000 | - | 5.9 | 1985.01-1989.12 |
| IVECO | AIFO-8061 | 05.260 | - | 5.9 | 1990.01- |
| IVECO | AIFO-8061 | 05.260 | - | 5.9 | 1986.06-1988.09 |
| IVECO | AIFO-8061 | 05.300 I 25 | - | 5.9 | 1986.01-1989.12 |
| IVECO | AIFO-8061 | 24.000 | - | 5.5 | 1984.01-1985.12 |
| IVECO | AIFO-8061 | 25.000 | - | 5.9 | 1986.01- |
| IVECO | AIFO-8061 | 25.010 | - | 5.9 | 1985.01- |
| IVECO | AIFO-8061 | 25.010 | - | 5.9 | 1986.01- |
| IVECO | AIFO-8061 | I 05.00 | - | 5.9 | 1990.01- |
| IVECO | AIFO-8061 | I 25.00 | - | 5.9 | 1990.01- |
| IVECO | AIFO-8061 | SI 35.05 | - | 5.9 | 1991.12- |
| IVECO | AIFO-8061 | SRI 25.00 | - | 5.9 | 1989.10- |
| LORRAINE (PLAXTON) | 170 | S.LS.TS | Fiat-8060.24.652 | 5.5 | 1988.06- |
| NEW HOLLAND ITALIA | 130 | C | 8061I25 | 5.9 | 1990.12- |
| NEW HOLLAND ITALIA | 150 | C | 8061I25 | 5.9 | 1990.12- |
| OM (BRESCIA) | 100 | N | Fiat-8060.02.. | 5.2 | 1973.01-1974.10 |
| OM (BRESCIA) | 110 | P.R.T | Fiat-8060.02.. | 5.2 | 1973.01-1974.10 |
| OM (BRESCIA) | 80 | OM13 | - | - | - |
| OM (BRESCIA) | 90 | OM13 | - | - | - |
| OM (BRESCIA) | N | 100 | - | - | - |
| UNIC | 100 | EC | 8060.02... | 5.2 | 1972.09-1980.05 |
| UNIC | 110 | NC.PC | 8060.02... | 5.2 | 1972.09-1982.02 |
| UNIC | 40 | /35OM | 8040.02... | 3.5 | 1972.09-1974.10 |
| UNIC | 50 | NC | 8040.02... | 3.5 | 1972.09-1974.10 |
| UNIC | 616 | N3/4 | 8040.02... | 3.5 | 1971.01-1974.10 |
| UNIC | 90 | NC | 8060.02... | 5.2 | 1972.09-1980.05 |
More Information
| Weight (kg) | 14.564000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 4.0 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
| Notes | Mass terminal 31 |
Spare Parts
-
-
-
-
-
Alternative:
-
-
-
-
-
-
-
-
