12V 3.1kW z9 (IS0567, MS308)
Got Questions?
€470 €370
Available in 2-3 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

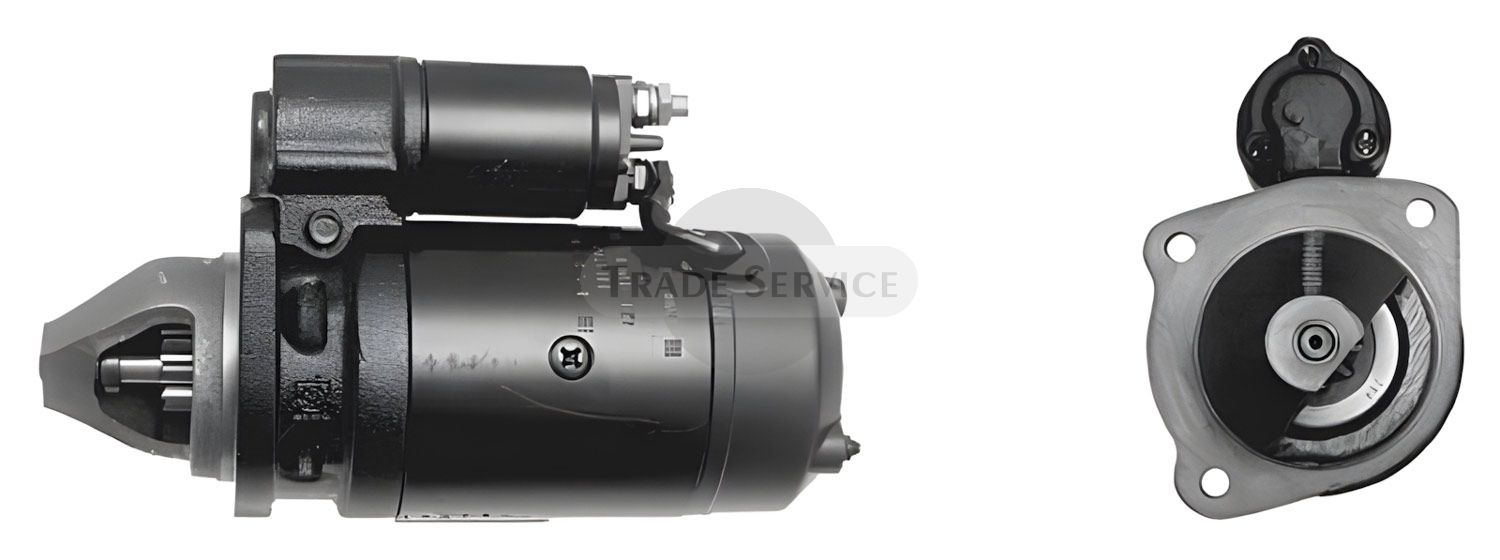

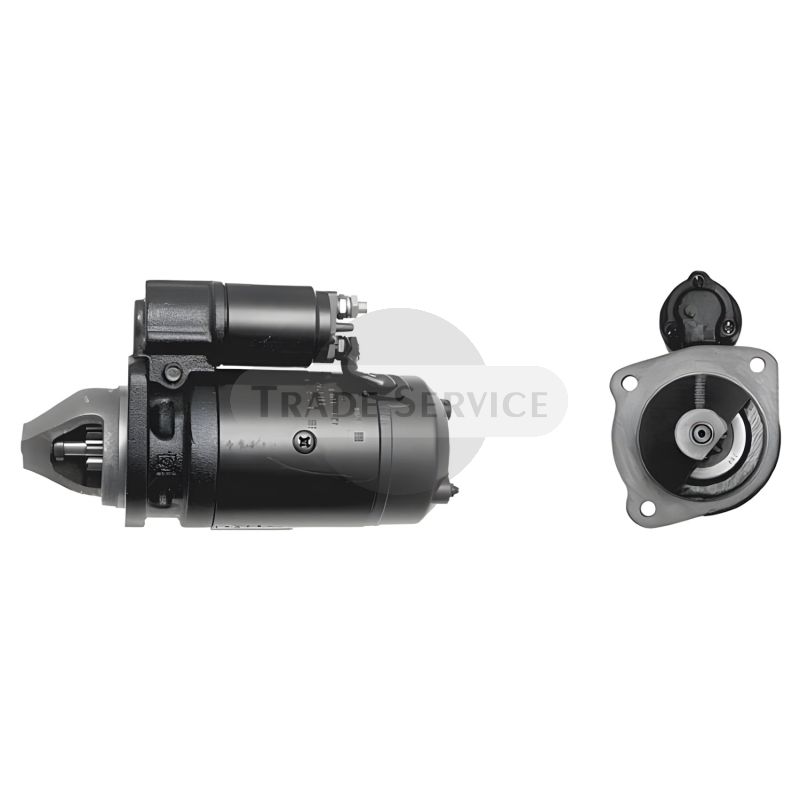

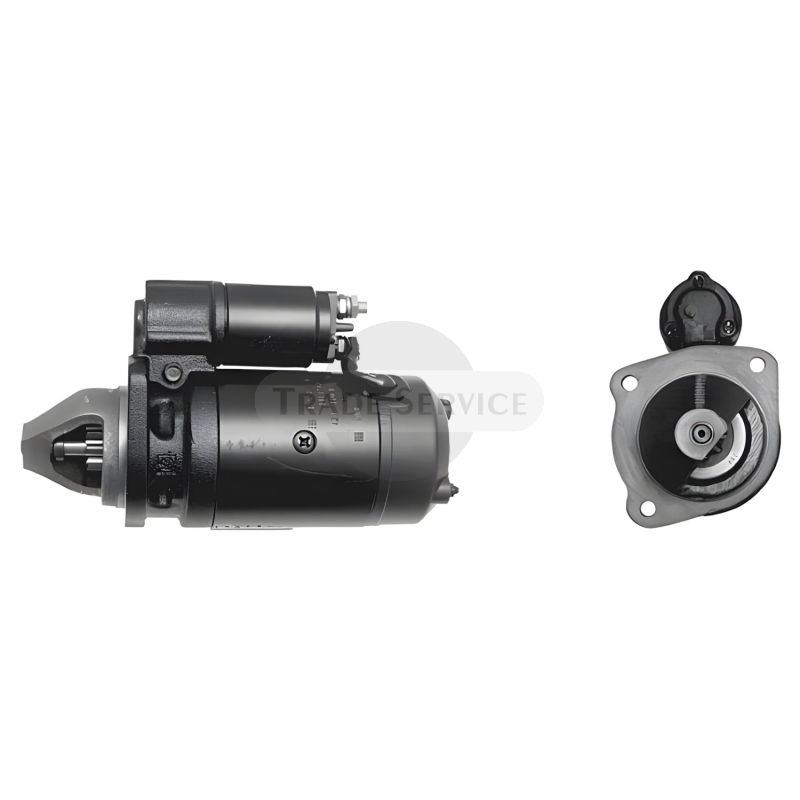

11.130.567 AZJ3179 MAHLE (Letrika, Iskra) starter motor MS308
Similar products
We found other products you might like!
-
9142802 Magneton starter motor12V 2.7kW z9 -
-
Cross References
| AGCO | C000900060120 |
|---|---|
| BOSCH (USA) | SR9942X |
| BOSCH | 0001369014, 0001369024, 0986016550 |
| CARGO | 112555 |
| DELCO REMY | DRS9020 |
| DEUTZ AG (KHD) | 01179318, 01179319, 01180805 |
| FENDT | F119900060010, F716903060040 |
| HELLA | 8EA737086001, CS887 |
| LESTER | 17074, 18026 |
| LUCAS | LRS00987 |
| MAHLE (Letrika, Iskra) | IS0567, 11130567, AZJ3179, MS308 |
| SPAREX | 36117 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| BOSCH | DDOD | 27 | KHD-F3L912 | 2.8 | 1992.01- |
| BOSCH | DDOD | 36 | KHD-F4L912 | 4.0 | 1992.01- |
| DEUTZ AG (KHD) | F3L911 | - | 2.5 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F3L912 | - | 2.8 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | F3L912.F | - | 2.8 | 1992.01- | |
| DEUTZ AG (KHD) | F4L911 | - | 3.3 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F4L912 | - | 3.8 | 1991.12- | |
| DEUTZ AG (KHD) | F4L912 | F | 3.8 | 1991.12- | |
| DEUTZ AG (KHD) | F5L912 | - | 1972.04-1975.12 | ||
| DEUTZ AG (KHD) | F6L911 | - | 4.9 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F6L912 | - | 1971.06-1975.12 | ||
| DEUTZ AG (KHD) | F6L912 | F | 5.7 | 1991.12- | |
| DEUTZ AG (KHD) | FM1012 | - | - | ||
| DEUTZ AG (KHD) | FM1013 | - | - | ||
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | D | 7007 | F4L912 | 3.8 | 1983.09-1994.01 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 3.10.A | F3L912 | 2.8 | 1988.09-1994.01 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 3.10.V/F | F3L912 | 2.8 | 1986.06-1994.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 3.30V/F | F3L912 | 2.8 | 1986.09-1994.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 3.50.A | F3L913 | 3.1 | 1986.09-1994.01 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 3.90.A | F4L913 | 4.1 | 1986.06-1994.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 4.30.A | F4L913 | 4.1 | 1986.01-1994.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 4.50.A | BF4L913T | 4.1 | 1988.09-1994.01 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 4.51 | BF4L913T | 4.1 | 1990.01-1994.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 4.70.A | BF4L913 | 4.1 | 1988.09-1994.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 6.05 | F6L912 | 5.7 | 1986.09-1994.01 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | DX | 6.60 | BF6L913 | 6.1 | 1988.01-1994.01 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | INTRAC | 6.30Turbo | BF6L913T | 6.0 | 1992.01- |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M | 1080 | F5L912 | 4.7 | 1992.01- |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M | 1202 | F6L912 | 5.7 | 1992.01- |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M | 2385 | F6L912 | 5.7 | 1992.01- |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M | 3330 | F3L912 | 2.8 | 1992.01- |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M | 3360 | F4L912 | 3.8 | 1992.01- |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M | 980 | F4L912 | 3.8 | 1992.01- |
| FENDT | F | 275GT | F4L912; 69HP | 3.8 | 1986.09-1994.12 |
| FENDT | F | 380GTA | BF4L913; 95HP | 4.1 | 1994.01-2004.12 |
| FENDT | F | 390GTA | F6L612; 100HP | 5.7 | 1985.01-1995.12 |
| FENDT | F | 395GTA | F6L613; 115HP | 6.1 | 1989.01-1998.12 |
| FENDT | FARMER | 204P/FL166 | KHD-F4L912 | 3.8 | 1992.01- |
| FENDT | FARMER | 204PA | KHD-F4L912; 65HP | 3.8 | - |
| FENDT | FARMER | 205P | KHD-F4L913; 72HP | 4.1 | 1983.01- |
| FENDT | FARMER | 205PA | KHD-F4L913; 72HP | 4.1 | 1983.01- |
| FENDT | FARMER | 206F | KHD-BF3L914; 65HP | 3.2 | 2003.01- |
| FENDT | FARMER | 206FA | KHD-BF3L914; 65HP | 3.2 | 2003.01- |
| FENDT | FARMER | 206V | KHD-BF3L914; 65HP | 3.2 | 2003.01- |
| FENDT | FARMER | 206VA | KHD-BF3L914; 65HP | 3.2 | 2003.01- |
| FENDT | FARMER | 207F | KHD-BF3L914; 65HP | 3.2 | 2003.01- |
| FENDT | FARMER | 207V | KHD-BF3L914; 65HP | 3.2 | 2003.01- |
| FENDT | FARMER | 207VA | KHD-BF3L914; 65HP | 3.2 | 2003.01- |
| FENDT | FARMER | 208FA | KHD-BF4L914; 86HP | 4.3 | 2003.01- |
| FENDT | FARMER | 208PA | KHD-BF4L914; 86HP | 4.3 | 2003.01- |
| FENDT | FARMER | 208VA | KHD-BF4L914; 86HP | 4.3 | 2003.01- |
| FENDT | FARMER | 270PA | KHD-F4L912; 70HP | 3.8 | 1988.01-1996.12 |
| FENDT | FARMER | 270V | KHD-F4L912; 70HP | 3.8 | 1988.01-1996.12 |
| FENDT | FARMER | 270VA | KHD-F4L912; 70HP | 3.8 | 1988.01-1996.12 |
| FENDT | FARMER | 275S | KHD-F4L913; 75HP | 4.1 | 1988.01-1996.12 |
| FENDT | FARMER | 275SA | KHD-F4L913; 75HP | 4.1 | 1988.01-1996.12 |
| FENDT | FARMER | 275V | KHD-F4L913; 75HP | 4.1 | 1988.01-1996.12 |
| FENDT | FARMER | 280P | KHD-F4L913; 80HP | 4.1 | 1996.01-2002.12 |
| FENDT | FARMER | 280S | KHD-F4L913; 80HP | 4.1 | 1996.01-2002.12 |
| FENDT | FARMER | 308C | Deutz BF4M 1012E; 86HP | 3.2 | 1997.01-2003.12 |
| FENDT | FARMER | 308CA | Deutz BF4M 1012E; 86HP | 3.2 | 1997.01-2003.12 |
| FENDT | FARMER | 309CA | Deutz BF4M 1012E; 95HP | 3.2 | 1997.01-2000.12 |
| FENDT | FARMER | 309LSA | Deutz BF4M 1012E; 95HP | 3.2 | 1989.08- |
| FENDT | FAVORIT | 711 | Deutz 6-cyl: 115HP | 5.7 | 1998.01-2003.12 |
| FENDT | FAVORIT | 711 Vario | Deutz 6-cyl: 115HP | 5.7 | 1998.01-2003.12 |
| FENDT | FAVORIT | 712 | Deutz 6-cyl: 140HP | 5.7 | 1999.01-2003.12 |
| FENDT | FAVORIT | 712NA | Deutz 6-cyl: 140HP | 5.7 | 1999.01-2003.12 |
| FENDT | FAVORIT | 714 | BF6M 2013 C: 140HP | 5.7 | 1999.01-2003.12 |
| FENDT | FAVORIT | 714NA | Deutz 6-cyl: 140HP | 5.7 | 1999.01-2003.12 |
| FENDT | FAVORIT | 716 | BF6M 2013 C: 160HP | 5.7 | 1999.01-2003.12 |
| FENDT | FAVORIT | 716 Vario | BF6M 2013 C: 160HP | 5.7 | 1993.01-2003.12 |
| HAMM | ALL WHEEL STEERED - DV | DV 10-C | KHD-F5L912 | 4.7 | 1992.01- |
| HAMM | STATIC ROLLERS GRW SERIES | GRW 10 | KHD-F6L912 | 5.7 | 1992.01- |
| IRMER U. ELZE | S551 | 7SL | KHD-F3L912 | 2.8 | 1992.01- |
| JW (JENBACHER WERKE) | JW | 1000 | KHD-F5L912 | 4.7 | 1992.01- |
| JW (JENBACHER WERKE) | JW | 550 | KHD-F3L912 | 2.8 | 1992.01- |
| JW (JENBACHER WERKE) | JW | 750 | KHD-F4L912 | 3.8 | 1992.01- |
| KRAMER | 400 | 416 S | KHD-F4L912-K41B | 2.8 | 1992.01- |
| KRAMER | 500 | 516 | KHD-F4L912-K41B | 3.8 | 1979.01-1999.01 |
| LINDE | H | 20 | KHD-F3L913G | 3.1 | 1992.01- |
| LINDE | H | 25 | KHD-F3L913G | 3.1 | 1992.01- |
| LINDE | H | 30 | KHD-F3L913G | 3.1 | 1992.01- |
| LINDE | H | 35 | KHD-F4L912 | 3.8 | 1992.01- |
| LINDE | H | 40 | KHD-F4L912 | 3.8 | 1992.01- |
| LINDE | H | 70 | KHD-F6L912 | 5.7 | 1992.01- |
| RENAULT AGRICULTURE | PALES | 210 | F3L912 | - | |
| RENAULT AGRICULTURE | PALES | 230 | F4L912 | - | |
| RENAULT AGRICULTURE | PALES | 240 | F4L13 | - |
More Information
| Weight (kg) | 13.029000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.1 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
