12V 3.1kW z9 (IS0695, MS271)
Got Questions?
€485 €382
Available in 2-3 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

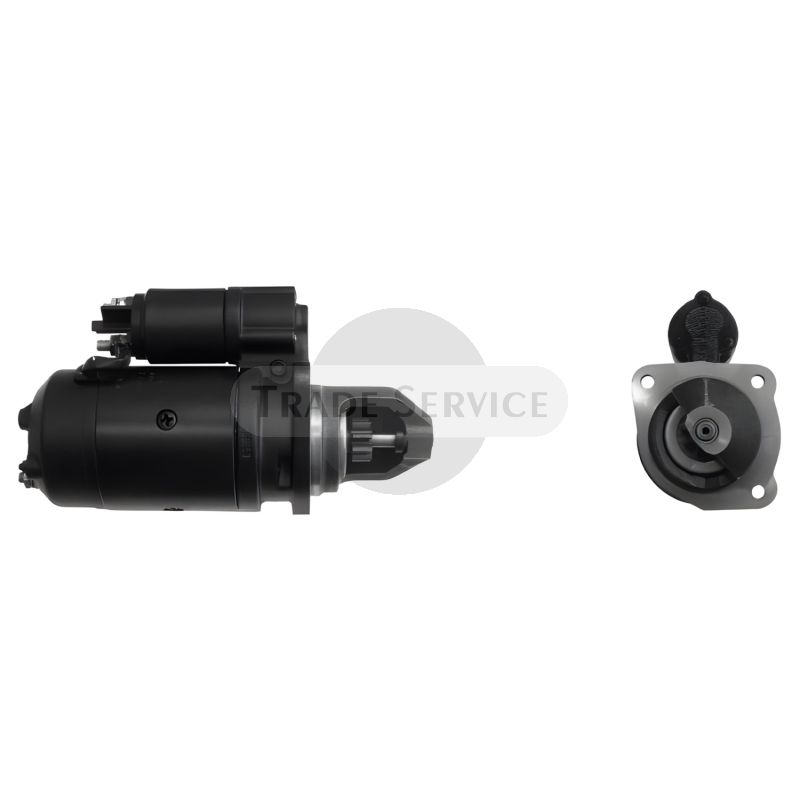

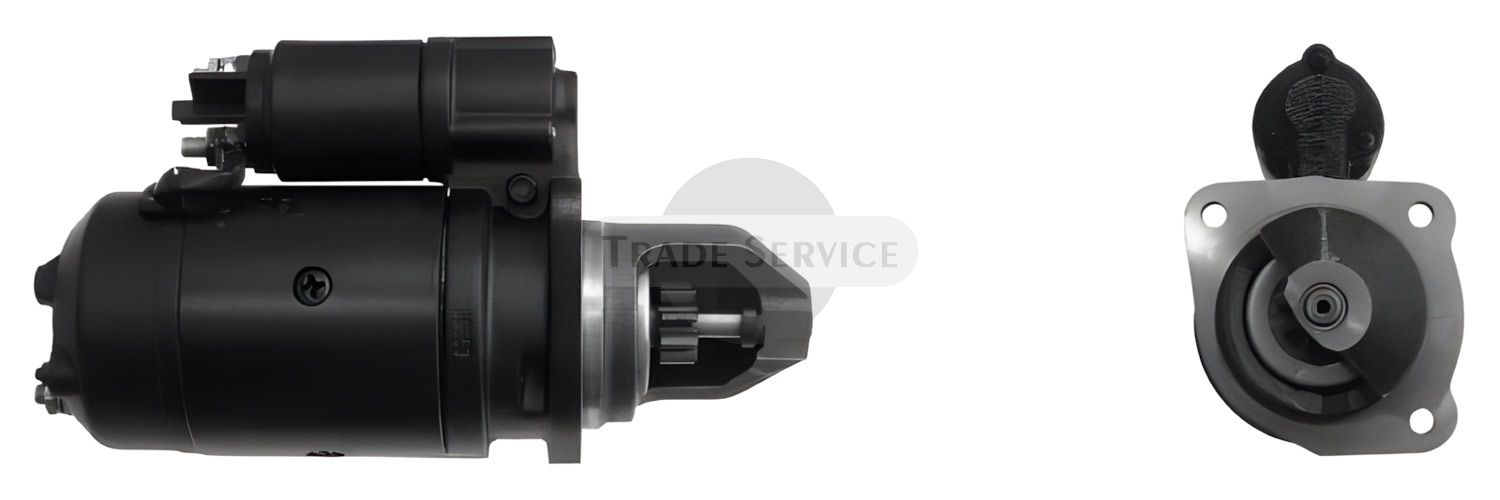

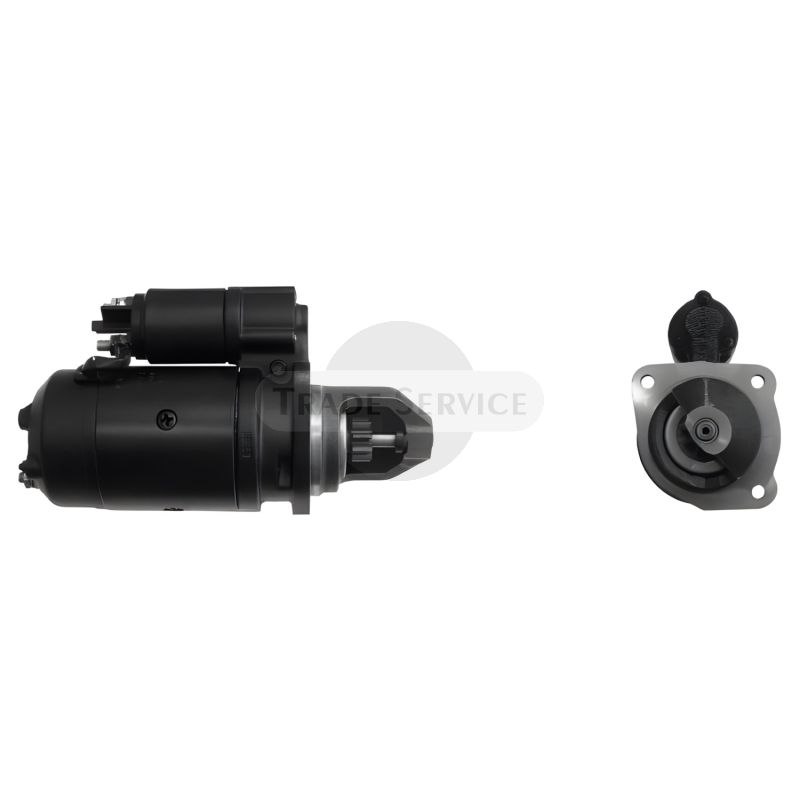

11.130.695 AZJ3236 MAHLE (Letrika, Iskra) starter motor MS271
Similar products
We found other products you might like!
-
20513045 Prestolite starter motor12V 3.1kW z9
Information
This 11.130.695 AZJ3236 MAHLE (Letrika, Iskra) starter motor MS271 is a reliable spare part which is widely used on CASE engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AGCO | C000900060210 |
|---|---|
| BOSCH (USA) | SR9940X |
| BOSCH | 0001367072, 0001369007, 0001369019, 0001369025 |
| CASE | 114799A1, 114800A1, A187597 |
| CUMMINS | 3283812 |
| HELLA | 8EA737443001, CS1069 |
| LESTER | 17307 |
| MAHLE (Letrika, Iskra) | IS0695, 11130695, AZJ3236, MS271, 11130694, AZJ3235, 11130664, AZJ3216 |
| PRESTOLITE | 20513045 |
| SPAREX | 36186 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| CASE | COMPACTORS | W602D | - | - | |
| CASE | FARM | 5420 | NCE engins | 1988.01-1994.01 | |
| CASE | MAXXUM | 5120 | NCE 4TA-390; 90HP | 3.9 | 1989.01-1999.01 |
| CASE | MAXXUM | 5130 | NCE 6-590; 100HP | 5.9 | 1988.01-1994.01 |
| CASE | MAXXUM | 5140 | NCE DT-590; 110HP | 5.9 | 1988.01-1994.01 |
| CASE | MAXXUM | 5150 | NCE engins | 1988.01-1994.01 | |
| CASE | MAXXUM | 5220 | NCE engines | 1996.01-1996.12 | |
| CASE | MAXXUM | 5230 | NCE engines | 1996.01- | |
| CASE | WINDROWERS | 6000 | 4-390 | 3.9 | 1985.01-1992.01 |
| CASE | WINDROWERS | 6500 | 4-390 | 3.9 | 1985.01-1992.01 |
More Information
| Weight (kg) | 13.110000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.1 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
| Notes | Off set drive end bracket, Oil sealed |
