12V 3.0kW z9 (IS0366, MS278)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

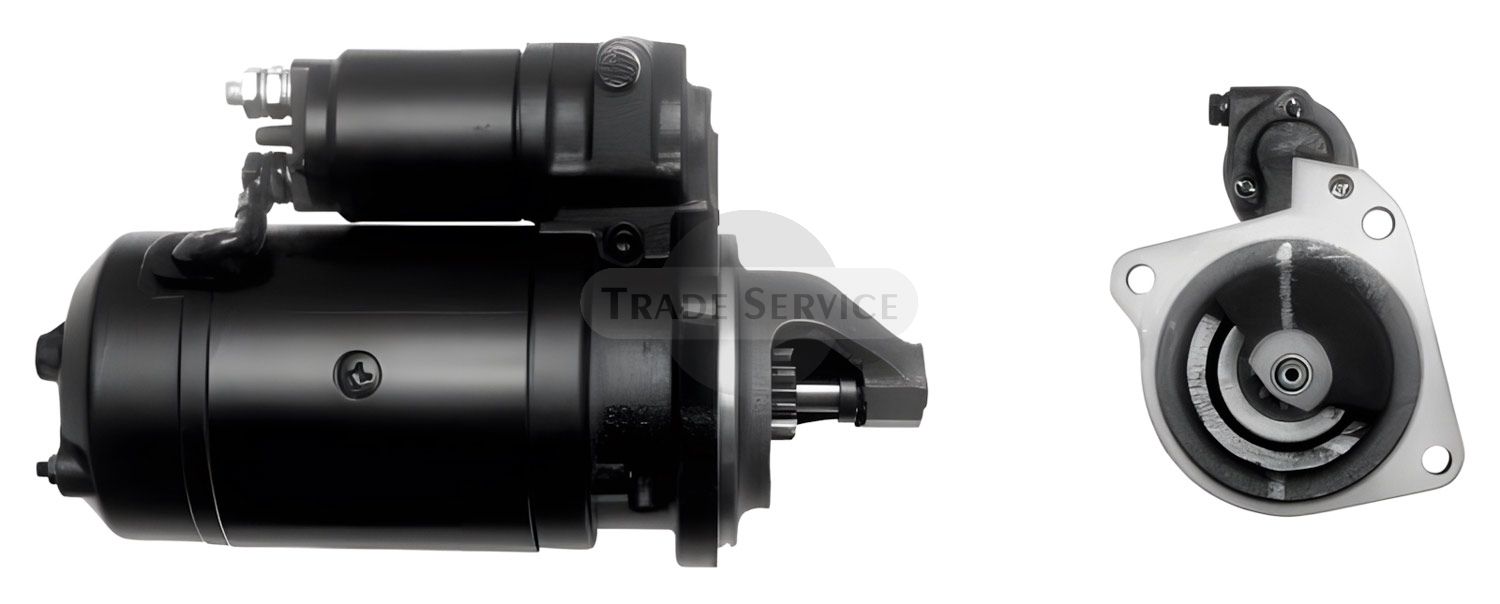

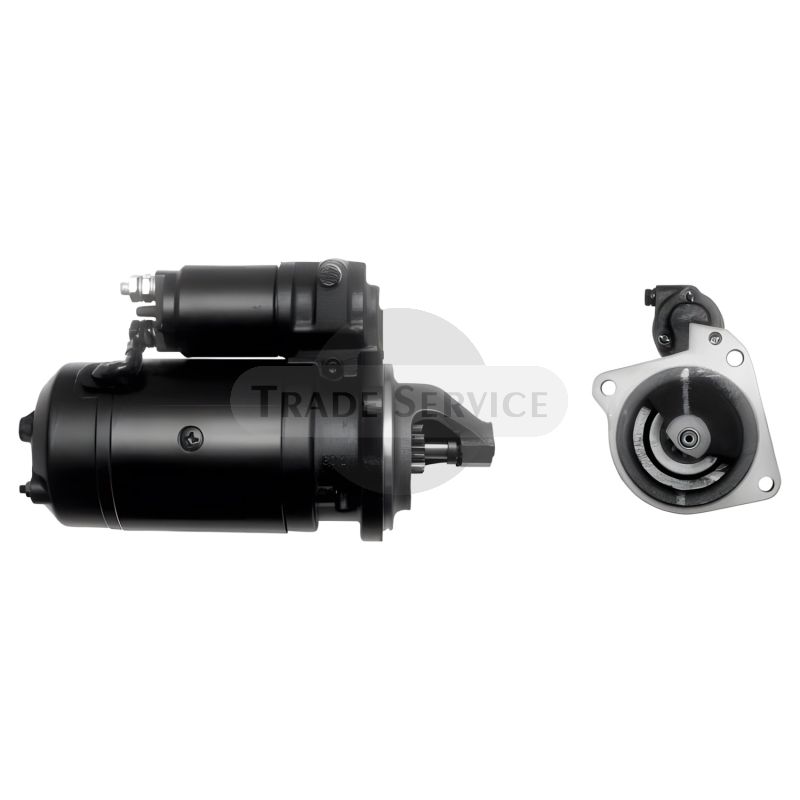

11.130.697 AZJ3237 MAHLE (Letrika, Iskra) starter motor MS278
Cross References
| BOSCH (USA) | SR911X |
|---|---|
| BOSCH | 0001359122, 0001367029, 0986012720 |
| CLAAS | 6005706619 |
| CNH / FIAT AGRI | 4755110 |
| EFEL | 11420, 14650 |
| FIAT NEW HOLLAND | 4719666, 4737759, 4807376, 9972215 |
| FIAT | 4713806, 4737759, 4755110 |
| HELLA | 8EA726118001, 8EA730198001, CS370, CS682 |
| IVECO | 4807376 |
| LESTER | 16559, 17092 |
| MAGNETI MARELLI | 63216873, 63216896, 943216896, MSN224, MT68L, MT68LA, MT68LB, MT68LC |
| MAHLE (Letrika, Iskra) | IS0366, 11132333, AZJ3477, 11130697, AZJ3237, MS278, 11130366, AZJ3594 |
| SPAREX | 359810 |
| UNIC | 4755110 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AGRIFULL | 100 | .DT | 8065.06.200.300 | 5.4 | 1985.05- |
| AGRIFULL | 110 | DT | 8065.05.220 | 5.9 | 1986.05- |
| AGRIFULL | 140 | .DT | 8065.25.000 | 5.9 | 1985.05- |
| AGRIFULL | 90 | .DT | 8055.05.200 | 4.9 | 1985.05- |
| AIFO | 8361 | .05.500 | 160PS | 8.1 | 1980.03-1983.06 |
| AIFO | 8361 | .25.500 | 175PS | 8.1 | 1980.03-1983.06 |
| AIFO | 8361 | 05.530 | 8.1 | 1978.01-1983.12 | |
| FIAT | 100 | F100 | 8065.06.230; 300; 98HP | 5.4 | 1984.06- |
| FIAT | 110 | 90 | 8065.05.220 | 5.9 | 1984.11- |
| FIAT | 115 | 90 | 8065.05.200 | 5.9 | 1984.01- |
| FIAT | 1180 | 8065.04.217 | 5.5 | 1980.09-1983.12 | |
| FIAT | 1280 | 8065.24.300 | 5.5 | 1981.04-1983.12 | |
| FIAT | 130 | 8365.05.555 | 8.1 | 1981.07- | |
| FIAT | 130 | 90 | 8065.25.010 | 5.9 | 1984.01- |
| FIAT | 1400 | 90 | 8065.25.000 | 5.9 | 1984.01- |
| FIAT | 1580 | 8365.05.500 | 8.0 | 1981.07-1983.12 | |
| FIAT | 1580 | Turbo | 8365.25.501 | 8.0 | 1983.01-1983.12 |
| FIAT | 160 | 90 | 8365.25.503 | 8.1 | 1984.01- |
| FIAT | 180 | 90 | 8365.25.502 | 8.1 | 1984.01- |
| FIAT | 1880 | 8365.25.500 | 8.0 | 1980.09-1983.12 | |
| FIAT | 880 | 5 | 8055.04.200 | 4.6 | 1982.09-1984.06 |
| FIAT | 90 | 90 | 8055.05.200 | 4.9 | 1984.06- |
| FIAT | 95 | 55 | 8055.05.205 | 4.9 | 1984.10- |
| FIAT | 955 | C | 8055.04.205 | 4.6 | 1981.02-1984.12 |
| FIAT | 980 | 8065.02.217 | 5.2 | 1980.09-1984.06 | |
| FIAT | 980 | DT | - | - | |
| FIAT | 980 | DT | 8065.02.217 | 5.2 | 1980.09-1984.06 |
| FIAT | DI | 130 | OM-8365.05.555 | 8.1 | 1981.07-1989.12 |
| FIAT GEOTECH | F100 | 8065.06A.330 | 5.9 | 1990.09- | |
| FIAT GEOTECH | F110 | 8065.05A.325 | 5.9 | 1990.09-1993.02 | |
| FIAT GEOTECH | F120 | 8065.05B.330 | 5.9 | 1990.09- | |
| FIAT GEOTECH | F130 | 8065.25A.220 | 5.9 | 1990.09- | |
| FIAT GEOTECH | F140 | 8065.25S.230 | 5.9 | 1993.03- | |
| FORD NEW HOLLAND | 8000 | 8430DT (AS.RCB.USA) | Unic | 8.1 | 1993.12- |
| FORD NEW HOLLAND | 8000 | 8630DT (AS.RCB.USA) | Unic | 8.1 | 1993.12- |
| FORD NEW HOLLAND | 8000 | 8830DT (AS.RCB.USA) | OM-8365.. | 8.1 | 1993.12- |
| IVECO | 160 | A13FL (USA) | OM-8360.05.673 | 8.1 | 1983.01-1984.11 |
| IVECO | AIFO-8361 | .25.510 | 8.1 | 1984.05-1989.12 | |
| IVECO | AIFO-8361 | 05.500 | 8.1 | 1983.06- | |
| IVECO | AIFO-8361 | 05.501 | 8.1 | 1984.01- | |
| IVECO | AIFO-8361 | 05.530 SRM37 | 8.1 | 1978.06- | |
| IVECO | AIFO-8361 | 25.500 | 8.1 | 1983.06-1985.12 | |
| IVECO | AIFO-8361 | 25.500 SRM37 | 8.1 | 1983.12-1987.09 | |
| IVECO | AIFO-8361 | 25.501 | 8.1 | 1984.01-1985.12 | |
| IVECO | AIFO-8361 | 25.530 SRM37 | 8.1 | 1984.10- | |
| IVECO | AIFO-8361 | 25.540 SRM38.10 | 8.0 | 1992.01- | |
| IVECO | AIFO-8361 | SI10.00 | 8.1 | 1990.01- | |
| IVECO | AIFO-8361 | SRI26 | 8.1 | 1989.12- | |
| IVECO | EURO 110 | Fiat-8060.05.661.663 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 120 | Fiat-8060.25.661.663 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 220 | Fiat-8060.05.662.673 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 220T | Fiat-8060.25.661 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 230T | Fiat-8060.25.662. 673 | 5.9 | 1987.01-1988.09 | |
| IVECO | EURO 335T | Fiat-8060.25.631 | 5.9 | 1987.01-1988.09 | |
| IVECO | EURO 340T | Fiat-8060.25.641 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 435T | Fiat-8060.25.631 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 450T | Fiat-8060.25.621 | 5.9 | 1987.01-1988.09 | |
| IVECO | EURO TURBO | 10-14 | Fiat-8060.25.243 | 6.0 | 1988.10-1990.12 |
| IVECO | EURO TURBO | 12-14 | Fiat-8060.25.241.246 | 6.0 | 1988.10-1990.09 |
| IVECO | EURO TURBO | 13-14 | Fiat-8060.25.243 | 6.0 | 1990.04-1990.12 |
| IVECO | EURO TURBO | 15-14 | Fiat-8060.25.241.246 | 6.0 | 1988.10-1990.12 |
| IVECO | EURO TURBO | 18-14 | Fiat-8060.25.243 | 6.0 | 1988.10-1990.09 |
| IVECO | EURO TURBO | 18-16 | Fiat-8060.25.221 | 6.0 | 1990.02-1990.12 |
| IVECO | EURO TURBO | 23-16 | Fiat-8060.25.221 | 6.0 | 1988.10-1990.12 |
| IVECO | Z 110 | Fiat-8060.05.661 | 5.9 | 1986.06-1986.12 | |
| IVECO | Z 120 | Fiat-8060.25.661 | 5.9 | 1986.02-1986.12 | |
| IVECO | Z 220 T | Fiat-8060.05.662 | 5.9 | 1986.06-1986.12 | |
| IVECO | Z 230 T | Fiat-8060.25.662 | 5.9 | 1986.07-1986.12 | |
| IVECO | Z 235 T | Fiat-8060.25.630.631 | 5.9 | 1986.10-1986.12 | |
| IVECO | Z 340 T | Fiat-8060.25.641 | 5.9 | 1986.06-1986.12 | |
| LAVERDA (FIATAGRI) | 3700 | OM-8361 | 8.1 | 1983.01-1985.12 | |
| LAVERDA (FIATAGRI) | 3790 | OM-8361 SI 10.00 | 8.1 | 1985.06- | |
| LAVERDA (FIATAGRI) | 3850 | OM-8361 S 10 | 8.1 | 1991.01- | |
| LAVERDA (FIATAGRI) | 3850 | OM-8361 SI 01 | 8.1 | 1985.04- | |
| LAVERDA (FIATAGRI) | 3890 | OM-8361 SI 10 | 8.1 | 1986.03- | |
| NEW HOLLAND (SPERRY NEW HOLL.) | 8000-SERIE | 8430 | 8065.25T | 5.9 | 1994.04- |
| NEW HOLLAND (SPERRY NEW HOLL.) | 8000-SERIE | 8630 | 8365.25T | 8.1 | 1994.04- |
| NEW HOLLAND (SPERRY NEW HOLL.) | 8000-SERIE | 8830 | 8365.25T | 8.1 | 1994.04- |
More Information
| Weight (kg) | 13.644000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.0 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
| Notes | Mass terminal 31 |
