Information

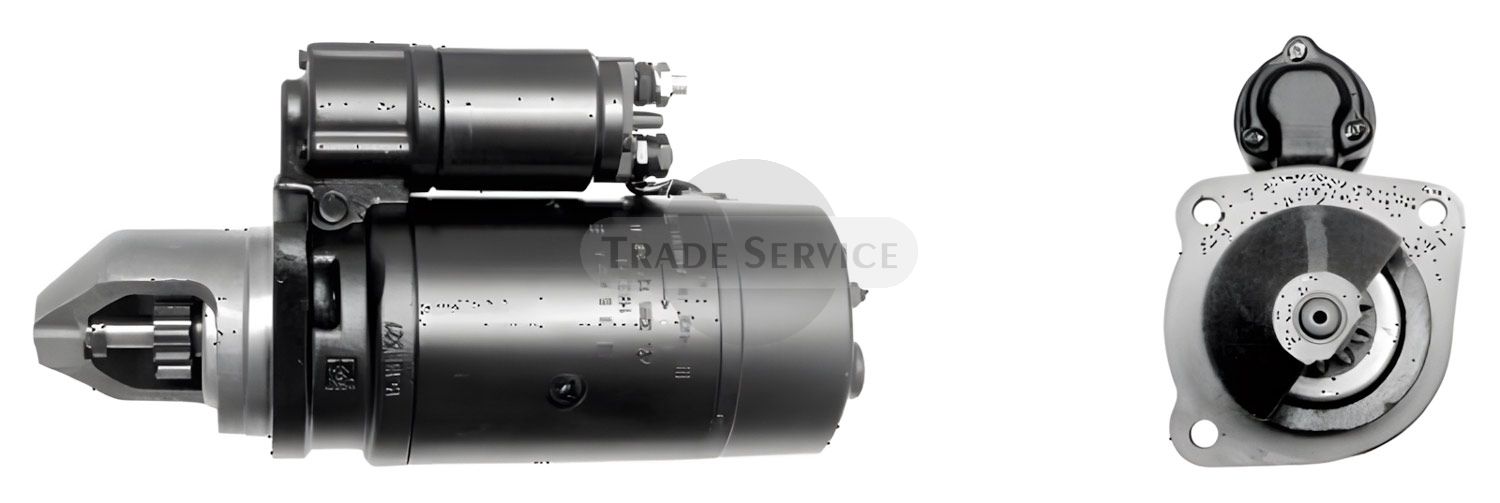

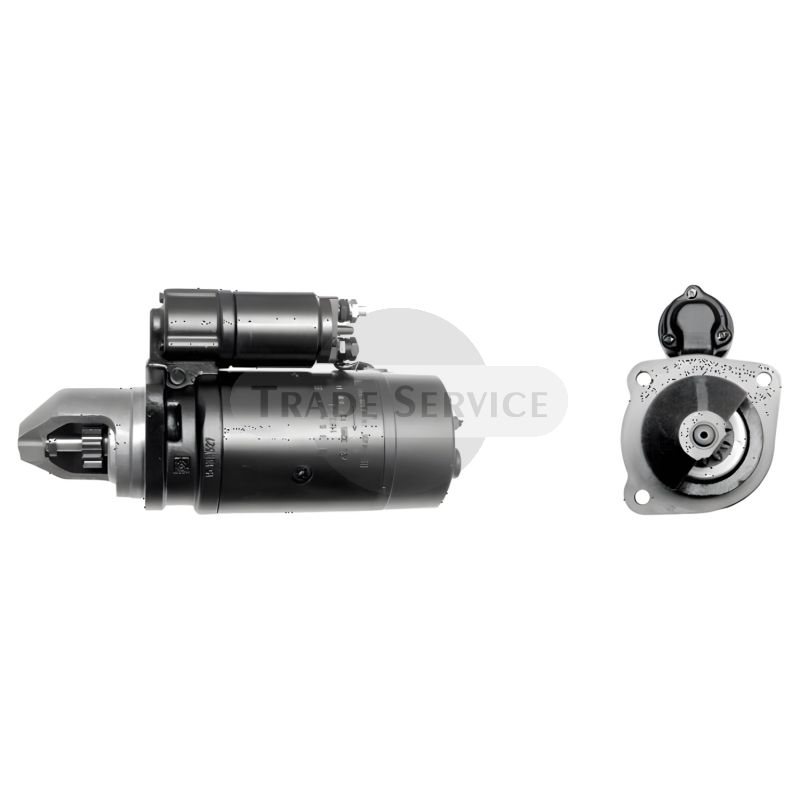

This 11.130.821 AZJ3285 MAHLE (Letrika, Iskra) starter motor MS309 is a reliable spare part which is widely used on AGRITALIA (CARRARO), LAMBORGHINI(SAME DEUTZ-FAHR GROUP), RENAULT AGRICULTURE, SAME (DEUTZ- FAHR GROUP), STEYR (STEYR-DAIMLER-PUCH AG), URSUS, ZETOR engines.

For exact models and reference numbers please check the lists below.

In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!

We are here to help to keep your business moving.

Cross References

BOSCH	0001359001, 0001359048, 0001359053, 0001359099, 0001367009
CARGO	110551
HELLA	8EA732654001, CS799
LESTER	16567
LUCAS	LRS01035
MAGNETON	443115144742, 9144742
MAHLE (Letrika, Iskra)	IS0821, 11130821, AZJ3285, MS309
RENAULT AGRICULTURE/CLAAS	7701013039
SAME (DEUTZ- FAHR GROUP)	296191100
SPAREX	36139
STEYR	409090001, 4090901
URSUS	80350911
ZETOR	80357918

Compatibility

Make	Model	Type	Engine	Power	Years
AGRITALIA (CARRARO)	425		-	4.3	1967.01-1978.09
AGRITALIA (CARRARO)	430		-	4.2	1973.06-1978.07
AGRITALIA (CARRARO)	652		430	4.2	1974.06-1978.07
AGRITALIA (CARRARO)	654		430	4.2	1974.06-1978.07
AGRITALIA (CARRARO)	655CL		430	4.2	1973.06-1981.11
AGRITALIA (CARRARO)	702		430	4.2	1973.06-1978.07
AGRITALIA (CARRARO)	704		430	4.2	1973.06-1978.07
AGRITALIA (CARRARO)	VICTORY	6500	375	3.8	1969.01-1972.01
AGRITALIA (CARRARO)	VICTORY	7000	425	4.3	1967.01-1978.09
AGRITALIA (CARRARO)	VICTORY	7000	425	4.3	1967.11-1978.09
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	704DT		FL1104/1	4.6	1973.06-1978.04
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	C	603 L	FL1053	3.1	1973.04-1976.06
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	LAMBORGHINETTA	R360DT	FL1153	3.7	1968.01-1971.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	LAMBORGHINETTA	R470.DT	FL1104	4.6	1968.01-1971.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	LAMBORGHINETTA	R480.DT	FL1154	5.0	1968.01-1971.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	R	704	1104/1	4.6	1973.06-1978.04
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	R	804	FL 1104/2	4.6	1973.02-1979.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	R	804 DT		4.6	1979.02-1979.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	R	904		-	1979.02-1979.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)	R	904 DT		5.0	1979.02-1979.12
RENAULT AGRICULTURE	571-4		CARRARO-430		-
SAME (DEUTZ- FAHR GROUP)	BUFFALO	120	DA1056(040-1056)	6.2	1974.07-1977.12
SAME (DEUTZ- FAHR GROUP)	DA	985		4.5	1974.07-1979.12
SAME (DEUTZ- FAHR GROUP)	DRAGO		037-986	5.4	1971.11-1977.12
SAME (DEUTZ- FAHR GROUP)	PANTHER		DA985(041-985)	4.5	1974.07-1977.12
STEYR (STEYR-DAIMLER-PUCH AG)	1090		WD610	6.0	1968.07-1972.12
STEYR (STEYR-DAIMLER-PUCH AG)	1100A		WD610.40	6.0	1971.07-1977.09
STEYR (STEYR-DAIMLER-PUCH AG)	1200	A	WD610.41	6.0	1972.11-1975.12
STEYR (STEYR-DAIMLER-PUCH AG)	1200	A	WD610.43	6.0	1972.11-1975.12
STEYR (STEYR-DAIMLER-PUCH AG)	870	A	WD410.40	4.0	1973.01-1976.01
URSUS	1012	1012	Z 8002.1 Turbo. 70.5kW	4.5	-
URSUS	1033	1033	Z 8002.13. 70.5kW	4.5	-
URSUS	1035	1035	Z 8002.13. 70.5kW	4.5	-
URSUS	1133	1133	Z 8002.12. 70.5kW	4.5	-
URSUS	1135	1135	Z 8002.12. 70.5kW	4.5	-
URSUS	904 B		Z9350; 4-cyl; 58kW		-
URSUS	912-1614	1114/1134	Z8401.1/134.Z8002.1/134		-
URSUS	912-1614	1114/1134	Z8701.1/Z8602.1		-
URSUS	913	913	Z8401.1. 59kW	4.5	-
URSUS	933	933	Z8401.12. 59kW	4.5	-
URSUS	935	935	Z8401.12. 59kW	4.5	-
ZETOR	10011.10045	Crystal model		-	-
ZETOR	10111.10145	Crystal model	Z8002.134		-
ZETOR	10211.10245		Z8002.1234		-
ZETOR	8011.8045	Crystal model		-	-
ZETOR	8111.8145	Crystal model	Z8401.1/Z8401.134		-
ZETOR	8211.8245		Z8401.1234		-
ZETOR	9211.9245		Z8002.1334	4.2	-
