12V 3.0kW z9 (IS0824, MS349)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Discontinued product i This product is no longer in production.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

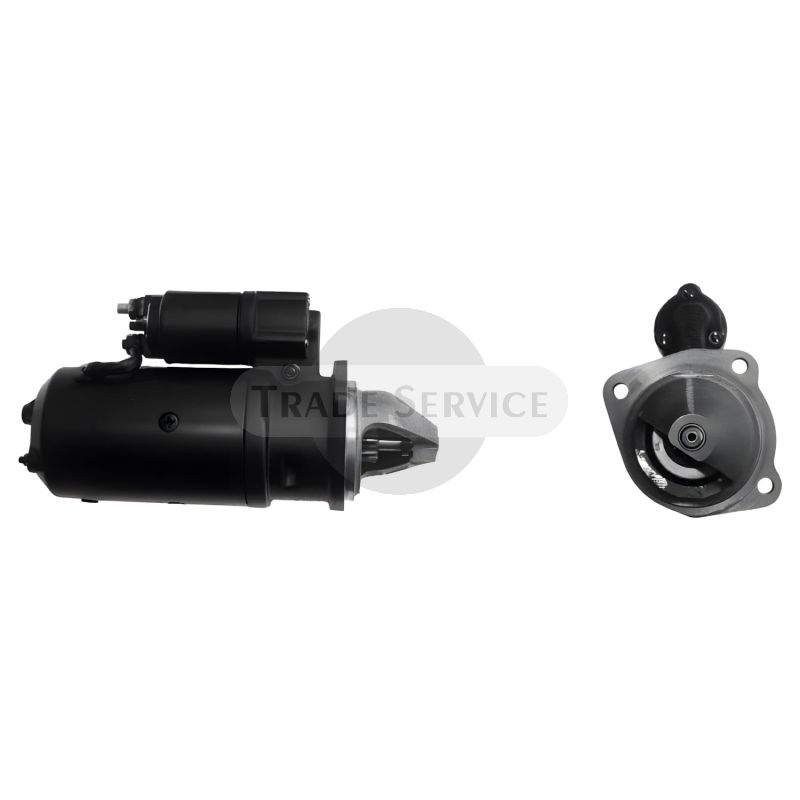

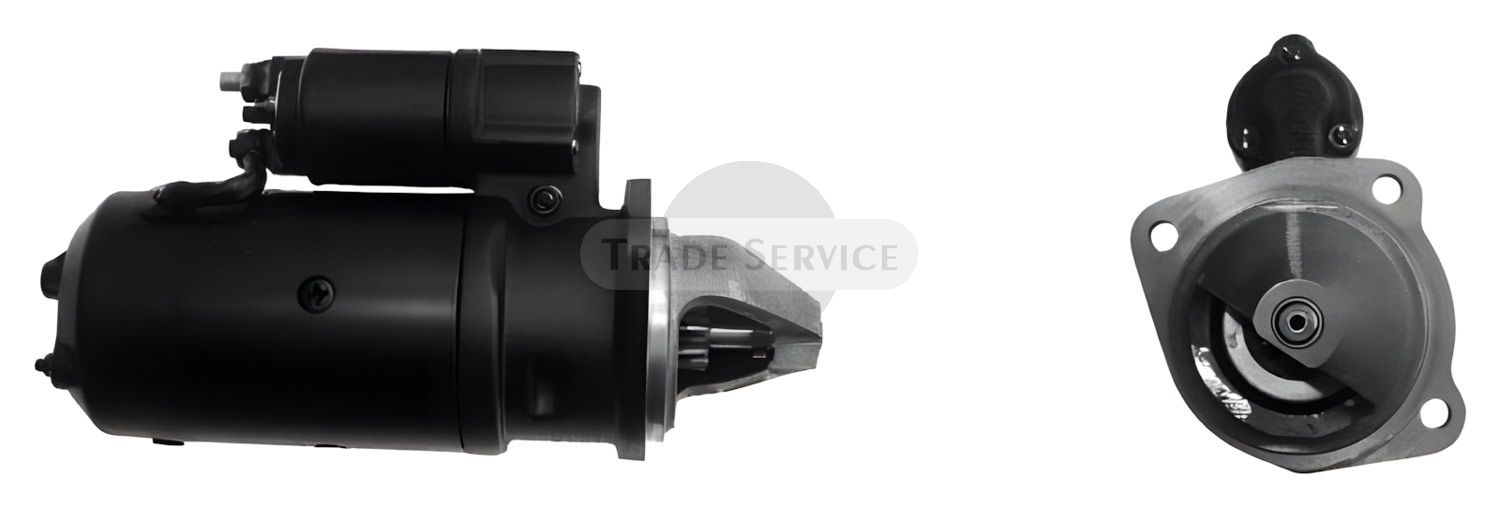

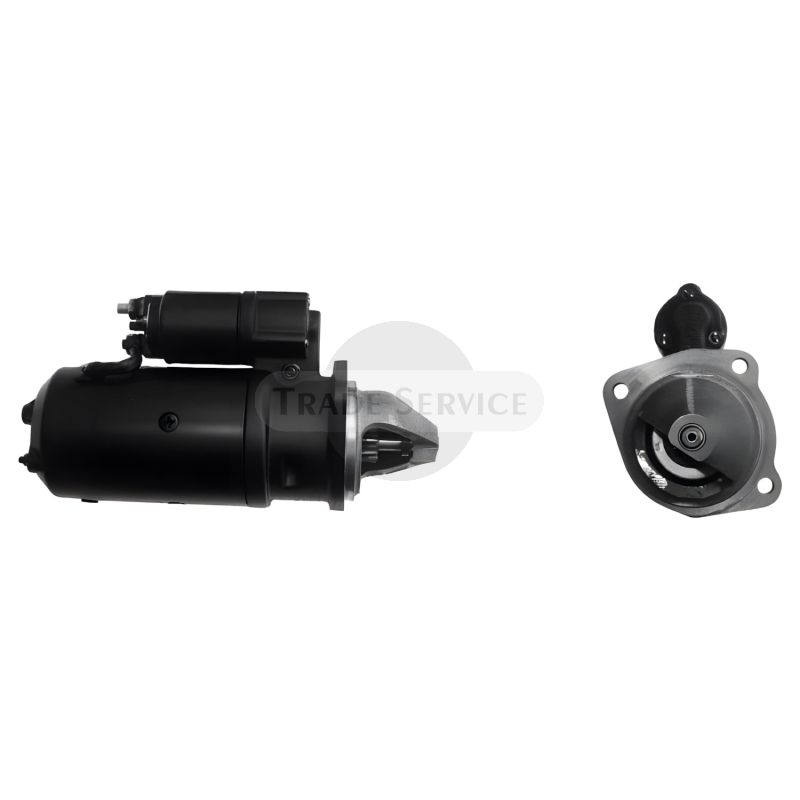

11.130.824 AZJ3287 MAHLE (Letrika, Iskra) starter motor MS349
Information
This 11.130.824 AZJ3287 MAHLE (Letrika, Iskra) starter motor MS349 is a reliable spare part which is widely used on AGRALE S.A. MAQUINARIO AGRICOLA, CASE, CBT, FIAT-ALLIS, MULLER, MWM-DIESEL, PUMA, SLC (JOHN DEERE), VALTRA DO BRASIL (VALMET), VW (VOLKSWAGEN) (BR) engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AGCO | 221561 |
|---|---|
| BOSCH | 0001453082, 9000083036, 9000083056, 9000453082 |
| CASE | 905720100074 |
| LESTER | 30004 |
| MAHLE (Letrika, Iskra) | IS0824, 11130824, AZJ3287, MS349 |
| MAXION | 2802734M91 |
| MWM-DIESEL | 905720100074 |
| VALTRA DO BRASIL | 221561 |
| VW (VOLKSWAGEN) | 004053778 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AGRALE S.A. MAQUINARIO AGRICOLA | 5000D | - | D229-4 | 4.0 | 1994.09- |
| AGRALE S.A. MAQUINARIO AGRICOLA | 6150 | - | TD 229-6 | - | 1999.08- |
| AGRALE S.A. MAQUINARIO AGRICOLA | 7000-SERIE | 7000D | D 229-4 | 4.0 | 1993.05- |
| AGRALE S.A. MAQUINARIO AGRICOLA | 7000-SERIE | 7500 TD | TD229 EC-4 | 4.0 | 1994.09- |
| AGRALE S.A. MAQUINARIO AGRICOLA | BX100 | - | TD229 EC-4 | 4.0 | 1990.08- |
| AGRALE S.A. MAQUINARIO AGRICOLA | BX130 | - | D229-06 | 6.0 | 1990.08- |
| AGRALE S.A. MAQUINARIO AGRICOLA | BX4.100 | - | TD229 EC 4 | 4.0 | 1990.08- |
| AGRALE S.A. MAQUINARIO AGRICOLA | BX4.110 | - | TD229 EC.04 | 4.0 | 1990.08- |
| AGRALE S.A. MAQUINARIO AGRICOLA | BX4.130 | - | D229.06 | 6.0 | 1990.08- |
| AGRALE S.A. MAQUINARIO AGRICOLA | BX4.150 | - | TD229 EC 6 | 6.0 | 1990.08- |
| AGRALE S.A. MAQUINARIO AGRICOLA | BX4.90 | - | D229-04 | 4.0 | 1990.08- |
| AGRALE S.A. MAQUINARIO AGRICOLA | BX90 | - | D229-04 | 4.0 | 1990.08- |
| CASE | 80 CR | - | D229-6 | 5.9 | 1983.11- |
| CASE | 80 P | - | D229-6 | 5.9 | 1983.11- |
| CBT | 8440 | - | D229-4 VT | 4.0 | 1984.01- |
| FIAT-ALLIS | FB 80 | - | D-229.4 | 4.0 | 1992.01- |
| MULLER | TM12 | - | TD229EC-6 | 6.0 | 1989.04- |
| MULLER | TM14 | - | TD229EC-4 | 6.0 | 1989.04- |
| MWM-DIESEL | D229 | -4 | - | 3.9 | 1981.01- |
| MWM-DIESEL | TD229 | -6 | - | 5.9 | 1981.01- |
| PUMA | 914 | - | D229-4 | 4.0 | 1995.09- |
| SLC (JOHN DEERE) | 7700Turbo | - | TD229EC-6 | 6.0 | 1993.03- |
| VALTRA DO BRASIL (VALMET) | 110 | ID | 225-6 | 5.7 | 1973.12- |
| VALTRA DO BRASIL (VALMET) | 118 | - | D229-6 | 5.9 | 1981.06- |
| VALTRA DO BRASIL (VALMET) | 118 | - | PID A 229-6 TV Alc. | 5.9 | 1983.06-1986.12 |
| VALTRA DO BRASIL (VALMET) | 118-4 | - | D229-6 | 5.9 | 1981.06- |
| VALTRA DO BRASIL (VALMET) | 118-4 | - | PID A 229-6 Alcool | 5.9 | 1983.06-1986.12 |
| VALTRA DO BRASIL (VALMET) | 128 | - | D229-6 VS | 5.9 | 1986.07- |
| VALTRA DO BRASIL (VALMET) | 128 | 4X4 | D 229-6 VS | 5.9 | 1986.07- |
| VALTRA DO BRASIL (VALMET) | 128 | 4X4 | PID A 229-6 Alcool | 5.9 | 1983.06-1983.12 |
| VALTRA DO BRASIL (VALMET) | 1280 | - | 81198200G | - | - |
| VALTRA DO BRASIL (VALMET) | 138 | Turbo | TD229-6 TV | 5.9 | 1980.01- |
| VALTRA DO BRASIL (VALMET) | 138-4 | Turbo | TD229-6 VS | 5.9 | 1982.10- |
| VALTRA DO BRASIL (VALMET) | 148 | 4X4 | TD229-6 VS | 5.9 | 1982.10- |
| VALTRA DO BRASIL (VALMET) | 148 | Turbo | TD229-6 TV | 5.9 | 1980.01- |
| VALTRA DO BRASIL (VALMET) | 1580 | - | D229 EC-6 VM | 6.0 | 1990.08- |
| VALTRA DO BRASIL (VALMET) | 1780 | - | 80511800 | - | - |
| VALTRA DO BRASIL (VALMET) | 68 | - | D229-3 VS | 3.0 | 1981.06- |
| VALTRA DO BRASIL (VALMET) | 68 | Cafeeiro | D229-3 VS | 3.0 | 1981.06- |
| VALTRA DO BRASIL (VALMET) | 78 | S | D229-4 | 4.0 | 1985.01- |
| VALTRA DO BRASIL (VALMET) | 78 | VE | D229-4 | 4.0 | 1985.01- |
| VALTRA DO BRASIL (VALMET) | 785 | - | 82605400 | - | - |
| VALTRA DO BRASIL (VALMET) | 88 | - | 229-4 | 4.0 | 1981.06- |
| VALTRA DO BRASIL (VALMET) | 880 | - | D229-4 | 4.0 | 1986.01- |
| VALTRA DO BRASIL (VALMET) | 880 | 4X4 | D229-4 | 4.0 | 1986.01- |
| VALTRA DO BRASIL (VALMET) | 885 | - | D 229-4 VM | 4.0 | 1989.08- |
| VALTRA DO BRASIL (VALMET) | 885 | 4X4 | D229-4 TM | 4.0 | 1989.08- |
| VALTRA DO BRASIL (VALMET) | 980 | 4X4Turbo | TD229-4 | 4.0 | 1986.02- |
| VALTRA DO BRASIL (VALMET) | 985 | - | D229 EC-4 VM | 4.5 | 1990.01- |
| VALTRA DO BRASIL (VALMET) | 985 | 4X4 | D229 EC-4 TA | 4.0 | 1990.01- |
| VW (VOLKSWAGEN) (BR) | 11.130 | - | D229-6 | 5.9 | 1981.03-1986.12 |
| VW (VOLKSWAGEN) (BR) | 13.130 | - | D229-6 | 5.9 | 1981.03-1986.12 |
| VW (VOLKSWAGEN) (BR) | 6.90 | - | D229-4 | 4.0 | 1983.01-1986.12 |
| VW (VOLKSWAGEN) (BR) | 7.110 | S Turbo Charge | TD229.EC4 | 4.0 | 1987.08- |
| VW (VOLKSWAGEN) (BR) | 7.90 | S | D229-4 | 4.0 | 1987.01- |
| VW (VOLKSWAGEN) (BR) | 7.90 | S CO/CE | D229-4 | 4.0 | 1987.01- |
More Information
| Weight (kg) | 14.217000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.0 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
