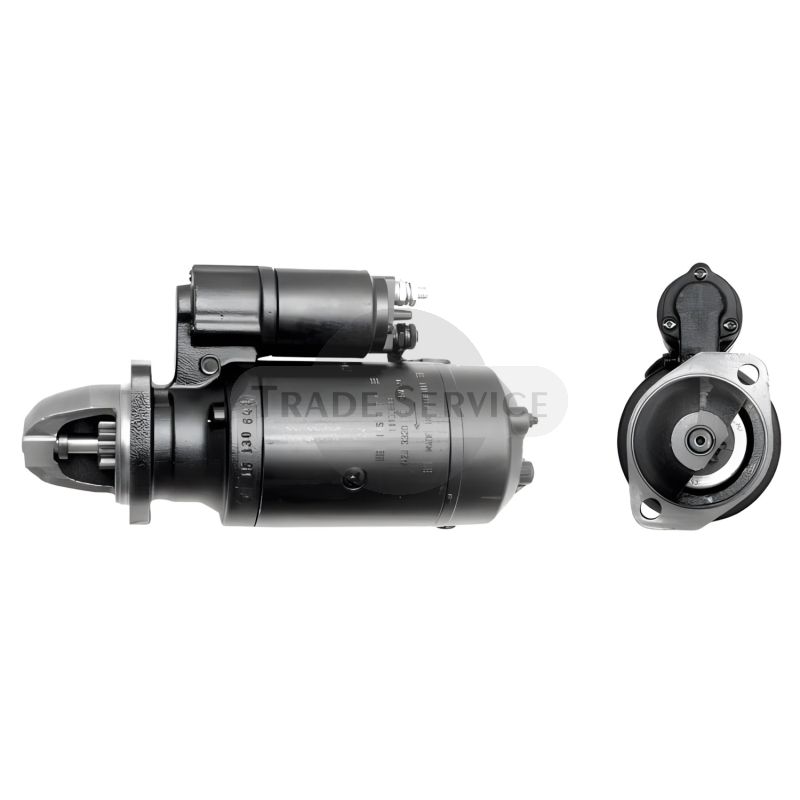

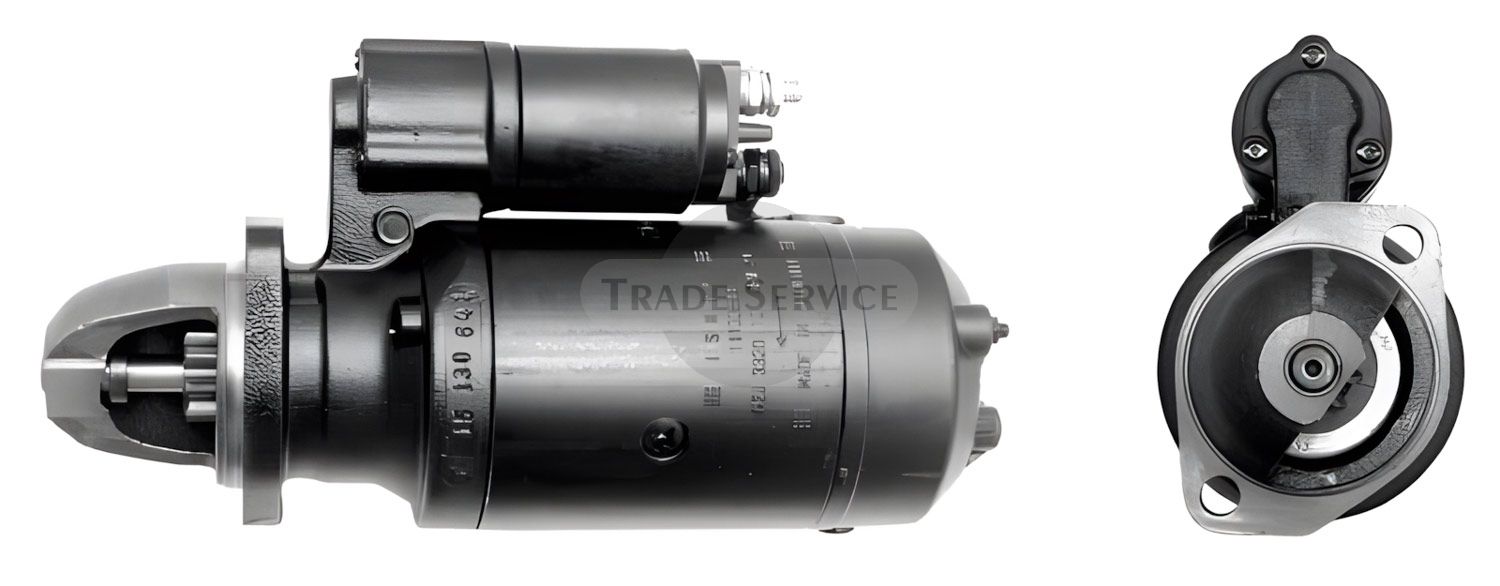

12V 3.0kW z9 (IS0254, MS354)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST
11.130.898 AZJ3320 MAHLE (Letrika, Iskra) starter motor MS354
Similar products
We found other products you might like!
-
11.131.829 AZF4220 MAHLE (Letrika, Iskra) starter motor MS42912V 3.4kW z9 (IS1249, MS429) -
9144820 Magneton starter motor12V 2.9kW z9
Cross References
| AGCO | C000900060040 |
|---|---|
| BOSCH | 0001359038, 0001359083, 0001359113, 0001367005 |
| CLAAS | 6005706618 |
| HELLA | 8EA731762001, CS718 |
| LESTER | 17136 |
| LUCAS | LRS01053 |
| MAGNETI MARELLI | 63216816, MT68R |
| MAHLE (Letrika, Iskra) | IS0254, 11130898, AZJ3320, MS354, 11130254, AZJ3557 |
| SAME (DEUTZ- FAHR GROUP) | 296192300, 296193500, 296193800 |
| SPAREX | 359840 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AGCO | ALLIS | 6670 | Same 1000.4A | 1991.01-1999.12 | |
| AGCO | ALLIS | 6680 | Same 1000.4A | 1991.01-1997.12 | |
| AGCO | ALLIS | 6690 | Same 1000.4AT | 1991.01-1997.12 | |
| CASE | FARM | 2140 | 4-244 | 1988.01-1992.12 | |
| CASE | FARM | 2150. E | 4-244 | 1990.01-1992.12 | |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | AGROCOMPACT | F 100 DT | 1000.4WT | - | |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | AGROCOMPACT | F 75 DT | 1000.4W | - | |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | AGROCOMPACT | F 90 DT | 1000.4WT | - | |
| HUERLIMANN | 6115-XB | Elite DT | 1000.6W | 6.0 | 1996.01-2000.12 |
| HUERLIMANN | 6135-XB | Elite /DT/ REV | 1000.6WT | 6.0 | 1996.01-2000.12 |
| HUERLIMANN | H 468 | Prestige DT/2RM | 1000.4W | 4.0 | 1989.01-1998.12 |
| HUERLIMANN | H 468.4 | Club DT/Basso | 1000.4W | - | |
| HUERLIMANN | H 476 | V | 1000.4W | 4.0 | 1988.12-1991.12 |
| HUERLIMANN | H 478 | Prestige | 1000.4W | 4.0 | 1989.01-1998.12 |
| HUERLIMANN | H 478.4 | DT | 1000.4W | 4.0 | 1989.01-1998.12 |
| HUERLIMANN | H 481 | XF DT | 1000.4W | - | |
| HUERLIMANN | H 488 | Prestige DT REV | 1000.4WT | 4.0 | 1986.01-1990.12 |
| HUERLIMANN | H 491 | XF DT | 1000.4WT | - | |
| HUERLIMANN | H 6130/ 6115 | Elite | 1000.6W | 6.0 | 1989.12- |
| HUERLIMANN | H 6135 | Elite | 1000.6WT | 6.0 | 1989.12-1996.12 |
| HUERLIMANN | H 6160/ 6165 | Master | 1000.6WTI | 6.0 | 1991.05-2001.12 |
| HUERLIMANN | H 6165 | Master DT | 1000.6WTI | 1991.05- | |
| HUERLIMANN | H 6190 | Master DT | 1000.6WTIR | 6.0 | 1992.01-2001.12 |
| HUERLIMANN | XA | 607 DT/2RM | 1000.4W | 4.0 | 1995.01-2000.12 |
| HUERLIMANN | XN | 708 | 1000.4W | 4.0 | - |
| HUERLIMANN | XN | 709 | 1000.4WT | 4.0 | - |
| HUERLIMANN | XT 908 | DT | 1000.4W | 4.0 | 1995.01-2005.01 |
| HUERLIMANN | XT 909 | DT | 1000.4WT | 4.0 | 1995.01-2004.12 |
| HUERLIMANN | XT 910.4 | DT | 1000.4WT | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 1000 | .4W | 4.0 | 1987.01- | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 1000 | .4WT | 4.0 | 1987.01- | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 105 | Formula | 1000.4W; 103HP | 4.0 | 1989.01-1995.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 115 | Formula | 1000.6W; 150HP | 6.0 | 1989.12-2001.01 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 115 | Formula DT | 1000.6W; 150HP | 6.0 | 1995.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 135 | Formula DT/DT REV | 1000.6WT; 132HP | 6.0 | 1998.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 150 | Racing DT | 1000.6WTI; 150HP | 6.0 | 1995.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 165 | Racing | 1000.6WTI; 163HP | 6.0 | 1991.05-2001.01 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 165 | Racing DT | 1000.6WTI; 163HP | 6.0 | 1991.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 190 | Racing /DT | 1000.6WTIR; 189HP | 6.0 | 1992.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | Gran Prix | 1000.4W | 4.0 | 1989.01-1998.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | N Cross 2RM | 1000.4W; 70HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | N Cross DT REV/Basso | 1000.4W; 70HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | Sprint | 1000.4W | 4.0 | 1995.01-2000.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | Sprint DT/2RM | 1000.4W; 70HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 775-V | Agile | 1000.4W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 775-V | DT | 1000.4W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 880 | Agile | 1000.4W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 880-F | Plus DT | 1000.4W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 990 | Agile | 1000.4WT | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 990-F | Plus DT | 1000.4WT | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 674 Ergomatic. 674 Largo | 1000.4W; 70HP | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 774 Ergomatic | 1000.4W; 80HP | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 874 Ergomatic | 1000.4WT; 90HP | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | GRAND PRIX | 674-70 DT/2RM | 1000.4W; 70HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | GRAND PRIX | 774-80 N DT | 1000.4W; 80HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | GRAND PRIX | 874-90 | 1000.4WT | 4.0 | 1989.01-1998.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | GRAND PRIX | 874-90 DT REV | 1000.4WT; 90HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | PREMIUM | 1050 DT | 1000.4WT; 103HP | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | PREMIUM | 1060 DT | 1000.4WT; 105HP | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | PREMIUM | 850 DT/2RM | 1000.4W; 85HP | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | PREMIUM | 950 DT | 1000.4WT; 95HP | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 1106/1306/1506 | 916.6W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 1306 | 916.6WT | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 1706 | - | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 674-70. 774-80. 874-90 | - | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 956 | 916.6W | - | |
| SAME (DEUTZ- FAHR GROUP) | ANTARES | 100 | 1000.6A | 1989.03-2004.03 | |
| SAME (DEUTZ- FAHR GROUP) | ANTARES II | 110 DT | 1000.6A | - | |
| SAME (DEUTZ- FAHR GROUP) | ANTARES II | 130 DT/REV | 1000.6A | - | |
| SAME (DEUTZ- FAHR GROUP) | DORADO | 70 DT/2RM | 1000.4A | 4.0 | - |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 65C | 916.4A | 3.7 | 1984.01-1986.09 |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 70 II DT/2RM | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 70 SPL | 1000.4 | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 80 | 1000.4.A | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 80 II Sp.DT Basso | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 90 II DT REV | 1000.4AT | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 90C Ergomatic | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | FRUTTETO | 75 II 2RM/DT/REV | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | FRUTTETO | 85 II DT/REV | 1000.4AT | - | |
| SAME (DEUTZ- FAHR GROUP) | GOLDEN | 65 | 1000.4W | - | |
| SAME (DEUTZ- FAHR GROUP) | GOLDEN | 75 | 1000.4A.W | - | |
| SAME (DEUTZ- FAHR GROUP) | GOLDEN | 85 | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | LASER | 110 | 1006PA | - | |
| SAME (DEUTZ- FAHR GROUP) | LASER | 130 | 105.6PA | - | |
| SAME (DEUTZ- FAHR GROUP) | LASER | 150 | 105.6PS | 6.2 | 1988.03-1998.12 |
| SAME (DEUTZ- FAHR GROUP) | LASER | 85 Transporter | 105.4PA | - | |
| SAME (DEUTZ- FAHR GROUP) | ROW CROP | 90 | 1000.4AT | - | |
| SAME (DEUTZ- FAHR GROUP) | SILVER | 100.4 DT | 1000.4ATI | - | |
| SAME (DEUTZ- FAHR GROUP) | SILVER | 100.6 DT | 1000.4ATI | - | |
| SAME (DEUTZ- FAHR GROUP) | SILVER | 80 DT/2RM | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | SILVER | 90 DT/2RM | 1000.4AT | - | |
| SAME (DEUTZ- FAHR GROUP) | SOLAR | 60 C | 105.3P | 3.1 | 1986.06-1987.12 |
| SAME (DEUTZ- FAHR GROUP) | TITAN | 145 DT | 1000.6ATI | - | |
| SAME (DEUTZ- FAHR GROUP) | TITAN | 160 DT | 1000.6WTI | 6.0 | 1991.05- |
| SAME (DEUTZ- FAHR GROUP) | TITAN | 190 DT | 1000.6WTIR | 6.0 | 1992.01- |
| SAME (DEUTZ- FAHR GROUP) | VIGNERON | 75 DT | 1000.4AT | 1988.03-2003.03 | |
| STEYR (STEYR-DAIMLER-PUCH AG) | 8100 | WD411 | - | ||
| STEYR (STEYR-DAIMLER-PUCH AG) | 8100 | A | WD611.40 | 5.2 | 1978.12-1988.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 8110 | - | 1978.12- | ||
| STEYR (STEYR-DAIMLER-PUCH AG) | 8120 | WD411 | - | ||
| STEYR (STEYR-DAIMLER-PUCH AG) | 8130 | A | WD611.87.88 | 1992.10- | |
| STEYR (STEYR-DAIMLER-PUCH AG) | 8130 | A | WD611.87.88 | 5.2 | 1984.07- |
More Information
| Weight (kg) | 13.764000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.0 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
Spare Parts
-
-
-
-
-
-
-
-
-
-
-
-
-
