24V 5.5kW z10 (IS1081, MS286)
Got Questions?
€559 €440
In stock i Available in our store from stock. Update frequency: 5 minutes
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

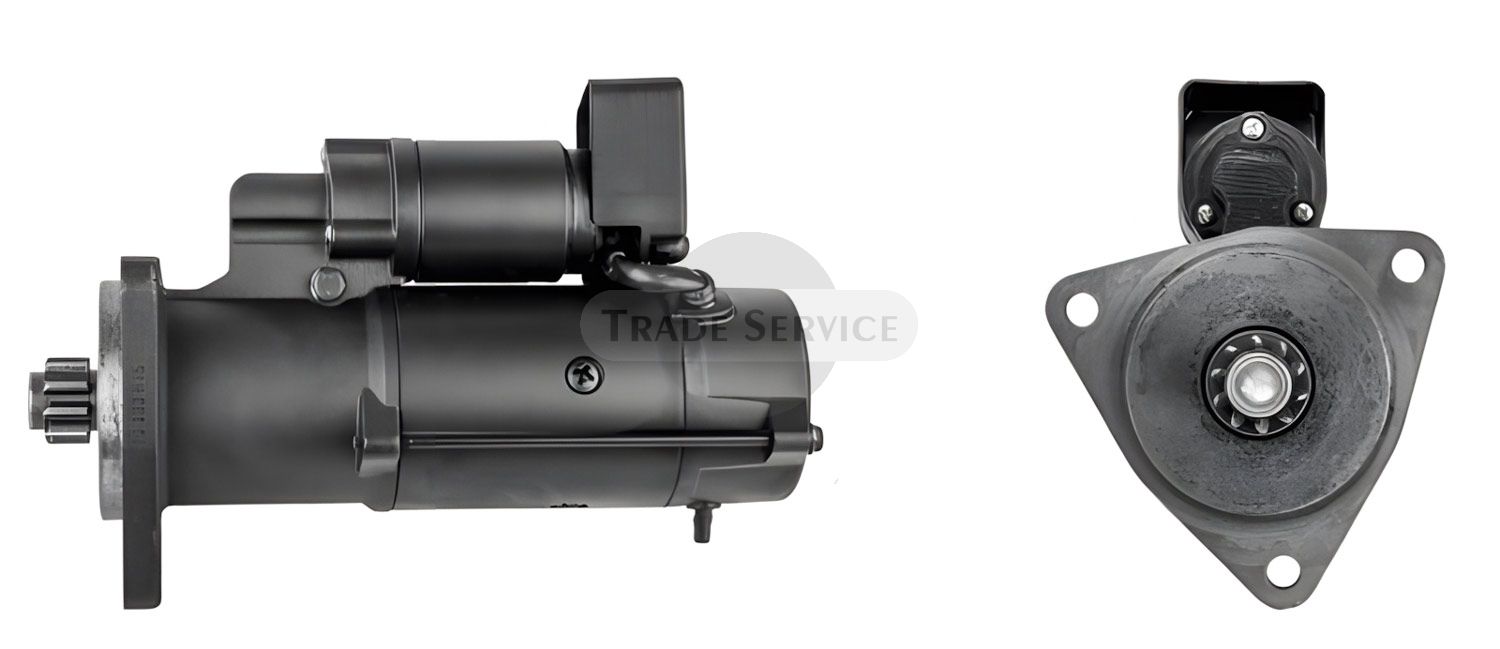

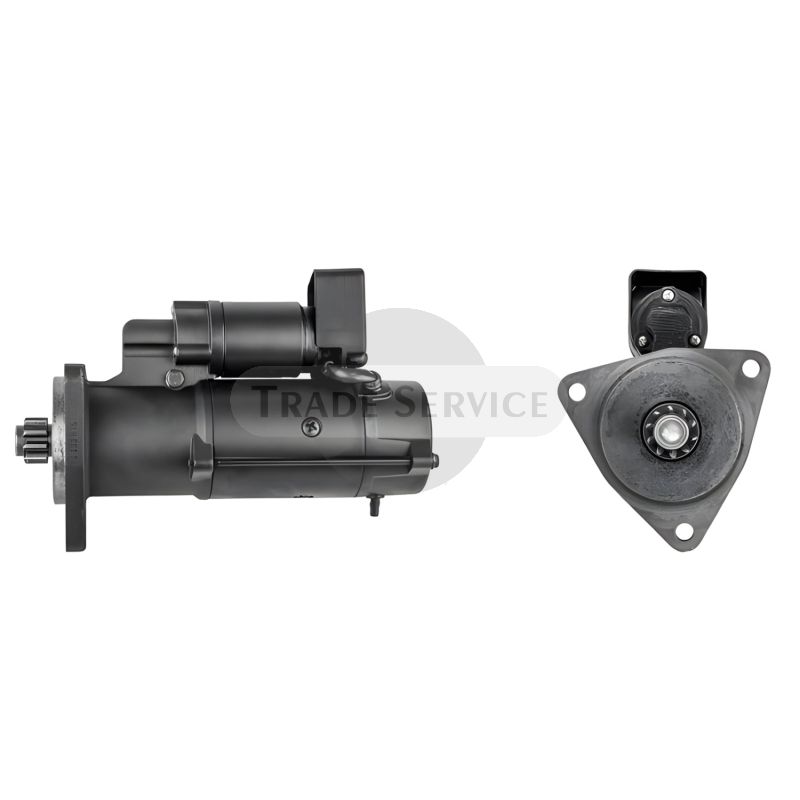

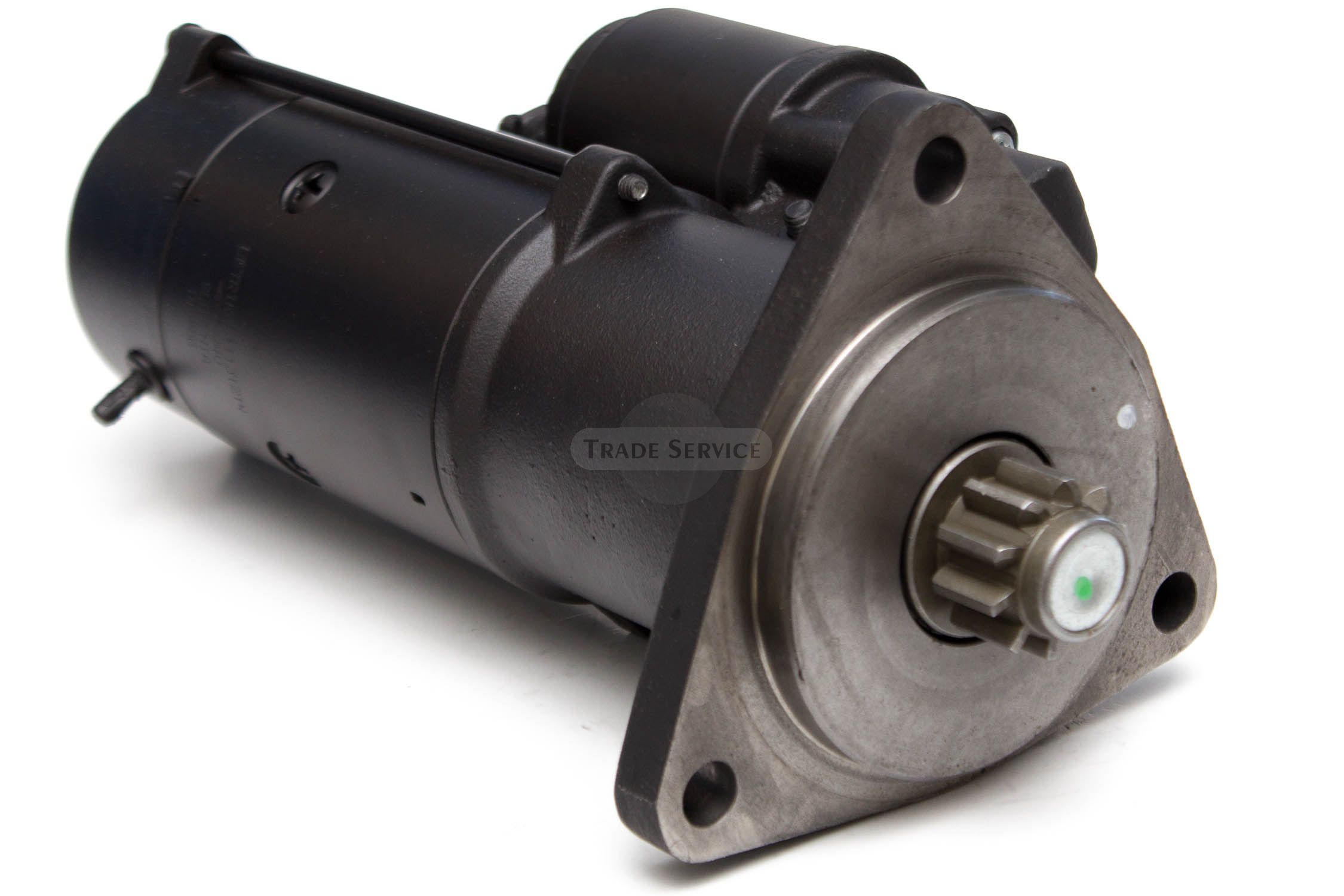

11.131.214 AZF4617 MAHLE (Letrika, Iskra) starter motor MS286
Cross References
| KRAUF | STI4617UL |
|---|---|
| MAHLE (Letrika, Iskra) | IS1081, 11131214, AZF4617, MS286 |
| PRAMO | 64413708000 |
| ZIT | CT243708 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| MINSK TRACTORS (BELARUS) | BELARUS | 1021.4-10/91 | MMZ D-245 S3A; 4-cyl; 110HP | 4.8 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221 Turbo | D-260.2; 6-cyl; 130HP | 4.8 | 1994.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221.2 | MMZ D-260.2; 6-cyl; 130HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221.2-51.55 | MMZ D-260.2; 6-cyl; 130HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221.3 T | D-260.2 S2; 6-cyl; 130HP | 7.1 | 2004.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221.3 T | MMZ D-260.2; 6-cyl; 130HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221.4-10/91 | MMZ D-260.2 S3A; 6-cyl; 136HP | 7.1 | 2008.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221.4-10/99 | MMZ D-260.2 S3A; 6-cyl; 136HP | 7.1 | 2008.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221.6 | MMZ D-260.2S4 StufeIV;100kW | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221T.2 | MMZ D-260.2; 6-cyl; 130HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221V.2 | MMZ D-260.2; 6-cyl; 130HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1221V.2-51.55 | MMZ D-260.2; 6-cyl; 130HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1222.3 T | D-260.2 S2; 6-cyl; 130HP | 7.1 | 2002.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1222.4-10/91 | MMZ D-260.2 S3A. 6-cyl; 136HP | 7.1 | 2008.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1222.4-10/91-17/210 | MMZ D-260.2 S3A; 6-cyl. 136HP | 7.1 | 2008.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1522 T | D-260.1 S2; 6-cyl; 155HP | 7.1 | 1999.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1523 | MMZ D-260.15; 6-cyl; 153HP | 7.1 | 2019.02- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1523.3 T | MMZ D-260.152; 6-cyl; 158HP | 7.1 | 2006.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1523.4-10/91 | MMZ D-260.1S3A; 6-cyl; 158HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1523.4-10/91-17/210 | MMZ D-260.4S3A; 6-cyl; 158HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1523.5 | D-260.1S3B | 7.1 | 2013.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 1523.6 | MMZ D-260.1S4 StufeIV;116kW | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 1523V | MMZ D-260.15; 6-cyl; 153HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 2022.3 | MMZ D-260.4 S2; 6-cyl; 212HP | 7.1 | 2006.01- |
| MINSK TRACTORS (BELARUS) | BELARUS | 2022.4-10/91 | MMZ D-260.4S3A; 6-cyl; 212HP | 7.1 | - |
| MINSK TRACTORS (BELARUS) | BELARUS | 923.4-10/99 | MMZ D-245.5 S3A; 4-cyl; 94HP | 4.8 | - |
More Information
| Weight (kg) | 11.190000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.5 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
| Notes | Noseless version of starter, With reduction gear |
