12V 4.2kW z10 (IS1089, MS117)
Got Questions?
€641 €505
Available in 2 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

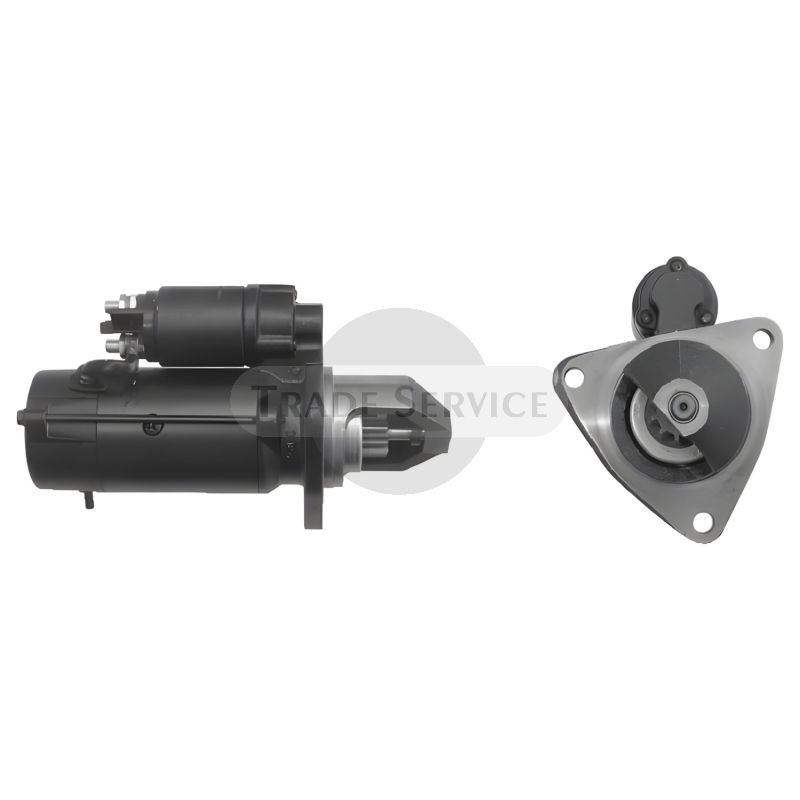

11.131.300 AZF4577 MAHLE (Letrika, Iskra) starter motor MS117
Similar products
We found other products you might like!
-
DEM608910 ADI starter motor12V 4.0 kW z10
Information
This 11.131.300 AZF4577 MAHLE (Letrika, Iskra) starter motor MS117 is a reliable spare part which is widely used on CASE, DAEWOO engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| CASE | 91902C1, A162469, A187728 |
|---|---|
| CUMMINS | 01912347, 2347, 3920328 |
| DELCO REMY | 10461645 |
| DENSO | 1280004340, 1280005330, 1280005331, 1280009800, 1280009801, 280007430, 280007431 |
| DIXIE | S8098 |
| LESTER | 17353, 17634 |
| MAHLE (Letrika, Iskra) | IS1089, 11131532, AZF4138, 11131300, AZF4577, MS117 |
| SPAREX | 36209 |
| WILSON | 91295060 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| CASE | COMBINES | 1620 | D358/436/466 | - | 1985.01-1992.01 |
| CASE | COMBINES | 1640 | D436/466 | - | 1985.01-1992.01 |
| CASE | COMBINES | 1644 | All | - | 1993.01-1995.01 |
| CASE | COMBINES | 1666 | All | - | 1993.01-1997.01 |
| CASE | COMBINES | 1668 | All | - | 1993.01-1997.01 |
| CASE | COMBINES | 1670 | DT466C | - | 1989.01-1991.01 |
| CASE | COMBINES | 1680 | D436/DT466 | - | 1985.01-1992.01 |
| CASE | COMBINES | 1688 | - | - | 1992.01-1994.01 |
| CASE | COMBINES | 1690 | DT466C | - | 1985.01-1992.01 |
| CASE | COMBINES | 2144 | - | - | 1994.01-1996.01 |
| CASE | COMBINES | 2166 | - | - | 1994.01-1996.01 |
| CASE | COMBINES | 2188 | - | - | 1994.01-1996.01 |
| CASE | COMBINES | 2366 | - | - | 1997.01- |
| CASE | COTTON PICKERS | 1822 | 6-590/6-830 | - | 1986.01-1992.01 |
| CASE | COTTON PICKERS | 1844 | 6-590/6-830 | - | 1986.01-1992.01 |
| CASE | COTTON PICKERS | 2055 | 6TA-830 | - | 1996.01-1998.01 |
| CASE | COTTON PICKERS | 2155 | 6TA-830 | - | 1996.01-1998.01 |
| CASE | TRACTORS | 1896 | 6-590/6-359 Diesel | - | 1984.01-1989.01 |
| CASE | TRACTORS | 2055 | - | - | 1990.01- |
| CASE | TRACTORS | 2090 | 6-504 Diesel | - | 1978.01-1988.01 |
| CASE | TRACTORS | 2094 | 6-504 Diesel | - | 1983.01-1988.01 |
| CASE | TRACTORS | 2096 | 6-359 Diesel | - | 1985.01-1990.01 |
| CASE | TRACTORS | 2290 | 6-504 Diesel | - | 1978.01-1988.01 |
| CASE | TRACTORS | 2294 | 504BD/6T-590 Diesel | - | 1983.01-1987.01 |
| CASE | TRACTORS | 2390 | 504 Diesel | - | 1978.01-1988.01 |
| CASE | TRACTORS | 2394 | 504BD/6T-590 Diesel | - | 1983.01-1987.01 |
| CASE | TRACTORS | 2470 | 504 Diesel | - | 1979.01-1988.01 |
| CASE | TRACTORS | 2590 | 504 Diesel | - | 1980.01-1983.01 |
| CASE | TRACTORS | 2594 | 504BD/6T-590 Diesel | - | 1983.01-1987.01 |
| CASE | TRACTORS | 2670 | 504 Diesel | - | 1979.01-1988.01 |
| CASE | TRACTORS | 2870 | 6-674 Diesel | - | 1979.01-1988.01 |
| CASE | TRACTORS | 3294 | 6-504 Diesel | - | 1983.01-1985.01 |
| CASE | TRACTORS | 3394 | 6-504 Diesel | - | 1985.01-1988.01 |
| CASE | TRACTORS | 3594 | 6-504 Diesel | - | 1986.01-1988.01 |
| CASE | TRACTORS | 4490 | 6-504 Diesel | - | 1984.01-1988.01 |
| CASE | TRACTORS | 4494 | 6-504 Diesel | - | 1984.01-1987.01 |
| CASE | TRACTORS | 4690 | 6-504 Diesel | - | 1984.01-1988.01 |
| CASE | TRACTORS | 4694 | 6-504 Diesel | - | 1984.01-1990.01 |
| CASE | TRACTORS | 4890 | 6-674 Diesel | - | 1984.01-1988.01 |
| CASE | TRACTORS | 4894 | 6-674 Diesel | - | 1986.01-1990.01 |
| CASE | TRACTORS | 4994 | - | - | 1986.01-1990.01 |
| CASE | TRACTORS | 7110 | 6-505 | - | 1987.01-1993.01 |
| CASE | TRACTORS | 7120 | 6-505 | - | 1987.01-1993.01 |
| CASE | TRACTORS | 7130 | 6-505 | - | 1987.01-1993.01 |
| CASE | TRACTORS | 7140 | 6-505 | - | 1987.01-1993.01 |
| CASE | TRACTORS | 7210 | 6-505 Diesel | - | 1993.01-1996.01 |
| CASE | TRACTORS | 7220 | 6-505 Diesel | - | 1993.01-1996.01 |
| CASE | TRACTORS | 7230 | 6-505 Diesel | - | 1993.01-1996.01 |
| CASE | TRACTORS | 7240 | 6-505 Diesel | - | 1993.01-1996.01 |
| CASE | TRACTORS | 7250 | 6-505 Diesel | - | 1993.01-1996.01 |
| CASE | TRACTORS | 8930 | 505 | - | 1996.01- |
| CASE | TRACTORS | 9110 | - | - | 1986.01-1993.01 |
| CASE | TRACTORS | 9130 | - | - | 1986.01-1993.01 |
| CASE | TRACTORS | 9210. 9230. 9240 | - | 8.3 | 1990.01-1996.01 |
| CASE | TRACTORS | 9310 | - | 8.3 | 1995.01-2000.12 |
| CASE | TRACTORS | 9330 | - | 8.3 | 1995.01-2000.12 |
| DAEWOO | V158T1 | 8 cyl. 500kW | - | 14.6 | - |
More Information
| Weight (kg) | 11.055000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 4.2 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
| Notes | Off set drive end bracket, With reduction gear |
Spare Parts
-
-
-
-
-
Alternative:
-
-
-
-
-
-
-
-
