24V 4.0kW z9 (IS1169, MS248)
Got Questions?
€207 €163
In stock i Available in our store from stock. Update frequency: 5 minutes
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

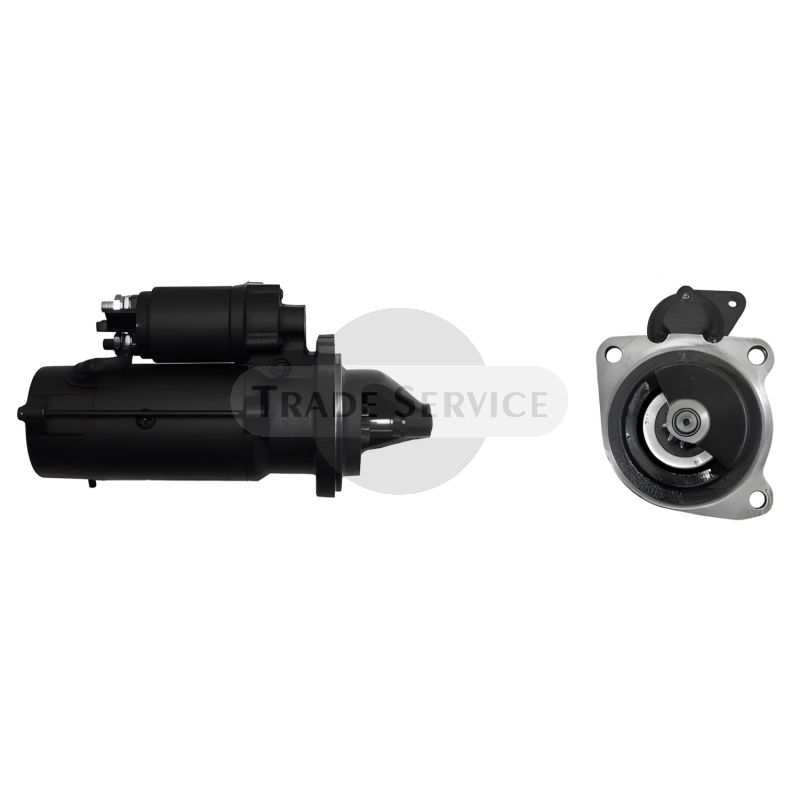

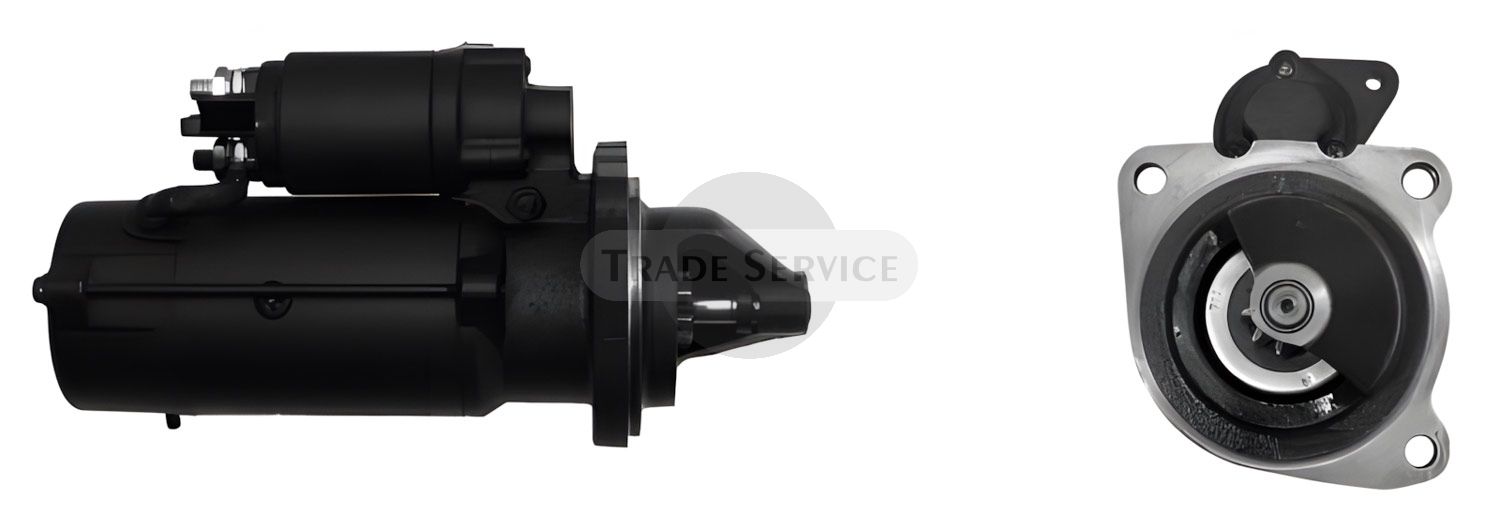

11.131.452 AZF4121 MAHLE (Letrika, Iskra) starter motor MS248
Similar products
We found other products you might like!
-
860817 Prestolite starter motor24V 4kW z9
Information
This 11.131.452 AZF4121 MAHLE (Letrika, Iskra) starter motor MS248 is a reliable spare part which is widely used on IVECO, NEW HOLLAND engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH | 0001231011, 0986019010 |
|---|---|
| DAF | 1516696R |
| HELLA | 8EA737936001, CS1248 |
| IVECO | 2997760, 4716026, 4755111, 500325137, 7141986 |
| LESTER | 18959 |
| LUCAS | LRS01942 |
| MAGNETI MARELLI | 063522310110, MSN2045 |
| MAHLE (Letrika, Iskra) | IS1169, 11131452, AZF4121, MS248 |
| PRESTOLITE | 860817 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| IVECO | EUROCARGO | 100E15 | 8060.45R.5001/5000/5003/5005 | 5.9 | 1991.09- |
| IVECO | EUROCARGO | 120 E 15. E 18 | 8060.25R.4... | 8060.25V.4... | 6.0 |
| IVECO | EUROCARGO | 120 E 15. E 18 | 8060.45R.50... | 6.0 | 1991.09-2000.07 |
| IVECO | EUROCARGO | 120 E 23 | 8060.45K.6090 | 6.0 | 1992.02-2000.07 |
| IVECO | EUROCARGO | 120 E 23 | 8060.45S.60... | 8060.45S.72... | 6.0 |
| IVECO | EUROCARGO | 130 E 15. E 18 | 8060.25R.4... | 8060.25V.4... | 6.0 |
| IVECO | EUROCARGO | 130 E 15. E 18 | 8060.45R.50... | 6.0 | 1991.11-2000.07 |
| IVECO | EUROCARGO | 130 E 18 | 8060.45B.51... | 6.0 | 1991.09-2000.07 |
| IVECO | EUROCARGO | 130 E 23 | 8060.45K.6090 | 6.0 | 1991.11-2000.07 |
| IVECO | EUROCARGO | 130 E 23 | 8060.45S.60... | 8060.45S.72... | 6.0 |
| IVECO | EUROCARGO | 135 E 18 | 8060.25V.47... | 5.8 | 1994.01-2000.07 |
| IVECO | EUROCARGO | 135 E 18 | 8060.45B.51... | 5.8 | 1994.01-2000.07 |
| IVECO | EUROCARGO | 135 E 23 | 8060.45S.67... | 8060.45S.725... | 5.8 |
| IVECO | EUROCARGO | 150 E 15. E 18 | 8060.25R.4... | 8060.25V.4... | 6.0 |
| IVECO | EUROCARGO | 150 E 15. E 18 | 8060.45R.50... | 6.0 | 1991.09-2000.07 |
| IVECO | EUROCARGO | 150 E 18 | 8060.45B.51... | 6.0 | 1991.09-2000.07 |
| IVECO | EUROCARGO | 150 E 21 | 8060.45.52... | 6.0 | 1991.01-2000.08 |
| IVECO | EUROCARGO | 150 E 23 | 8060.45K.6090 | 6.0 | 1992.02-2000.07 |
| IVECO | EUROCARGO | 150 E 23 | 8060.45S.6... | 8060.45S.720... | 6.0 |
| IVECO | EUROCARGO | 170 E 18 | 8060.25V... | 5.8 | 1994.01-2000.07 |
| IVECO | EUROCARGO | 170 E 18 | 8060.45B.51... | 6.0 | 1991.09-2000.07 |
| IVECO | EUROCARGO | 170 E 23 | 8060.45S.6... | 8060.45S.72... | 5.8 |
| IVECO | EUROCARGO | 180 E 21 | 8060.45.41... | 6.0 | 1992.04-2000.07 |
| IVECO | EUROCARGO | 180 E 21 | 8060.45.4403 | 6.0 | 1992.04-2000.07 |
| IVECO | EUROCARGO | 180 E 21 | 8060.45.52... | 6.0 | 1992.04-2000.07 |
| IVECO | EUROCARGO | 260 E 23 | 8060.45S.6... | 8060.45S.7... | 6.0 |
| IVECO | EUROCARGO | 280 E 23 | 8060.45S.6...-Euro1 | 6.0 | 1991.12-2000.11 |
| IVECO | EUROCARGO | 280 E 23 | 8060.45S.7...-Euro2 | 6.0 | 1991.12-2000.11 |
| IVECO | EUROCARGO | 75 E 15 | 8060.25R.4... LTC | 6.0 | 1991.01-2000.08 |
| IVECO | EUROCARGO | 75 E 15 | 8060.45R.50... | 6.0 | 1991.01-2000.08 |
| IVECO | EUROCARGO | 80 E 15. E 18 | 8060.25V.40... | 6.0 | 1991.01-2000.08 |
| IVECO | EUROCARGO | 80 E 15. E 18 | 8060.45R.50... | 6.0 | 1991.01-2000.08 |
| IVECO | EUROCARGO | 80 E 18 | 8060.45B.51... | 6.0 | 1991.09-2000.07 |
| IVECO | EUROCARGO | 80 E 21 | 8060.45.41... | 6.0 | 1991.01-2000.08 |
| IVECO | EUROCARGO | 80 E 21 | 8060.45.4403 | 6.0 | 1991.01-2000.08 |
| IVECO | EUROCARGO | 80 E 21 | 8060.45.52... | 6.0 | 1991.01-2000.08 |
| IVECO | EUROCARGO | 80 E 21 | 8060.45X.4180 | 6.0 | 1992.01-2000.06 |
| IVECO | EUROCARGO | 80 E18. E21 | F4AE0681D*C/E*C | 5.9 | 2000.09-2005.08 |
| IVECO | EUROCARGO | 95 E 15 | 8060.25R.47... | 8060.45R.50... | 6.0 |
| IVECO | EUROCARGO | 95 E 21 | 8060.45.47... | 8060.45.52... | 6.0 |
| NEW HOLLAND | WHEEL LOADER | LW110 | - | - | 1999.01- |
| NEW HOLLAND | WHEEL LOADER | LW130 | - | - | 1999.01- |
| NEW HOLLAND | WHEEL LOADER | LW130TC | - | - | 2000.01- |
| NEW HOLLAND | WHEEL LOADER | LW90 | - | - | 1999.01- |
More Information
| Weight (kg) | 10.992000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 4.0 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
| Notes | Mass terminal 31, With reduction gear |
