12V 2.6kW z10 (IS1145)
Got Questions?
€113 €89
In stock i Available in our store from stock. Update frequency: 5 minutes
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

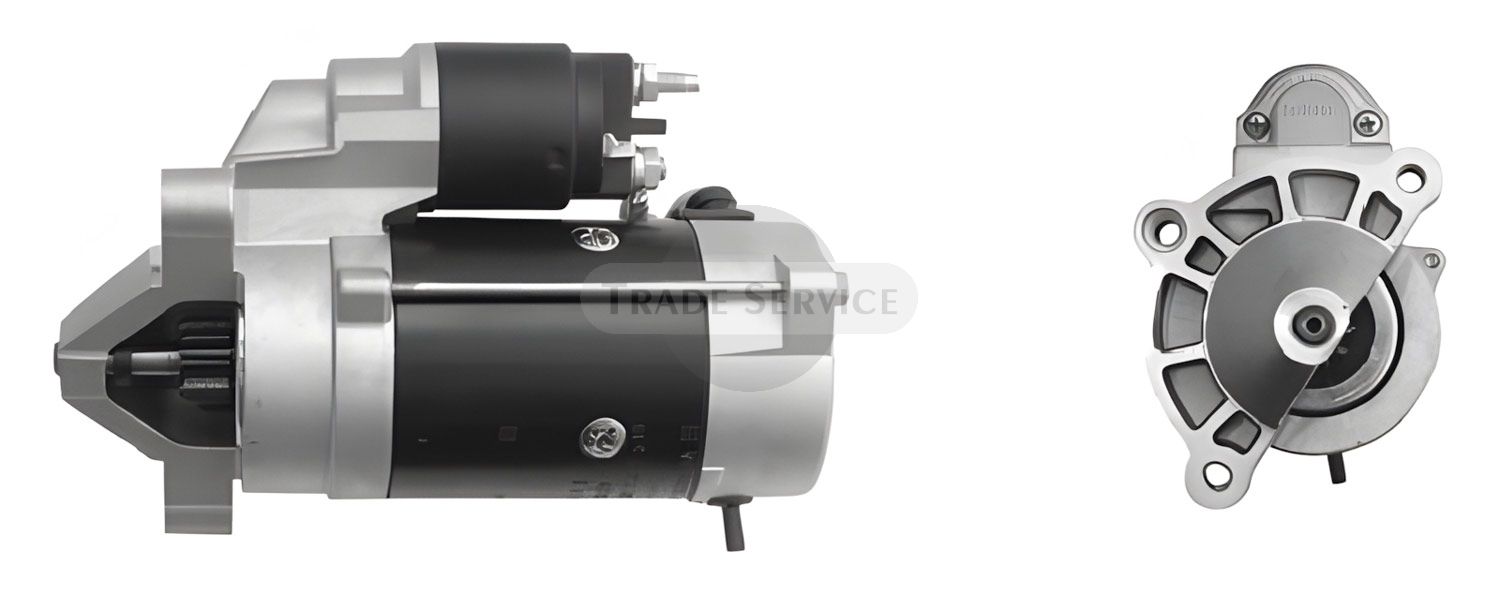

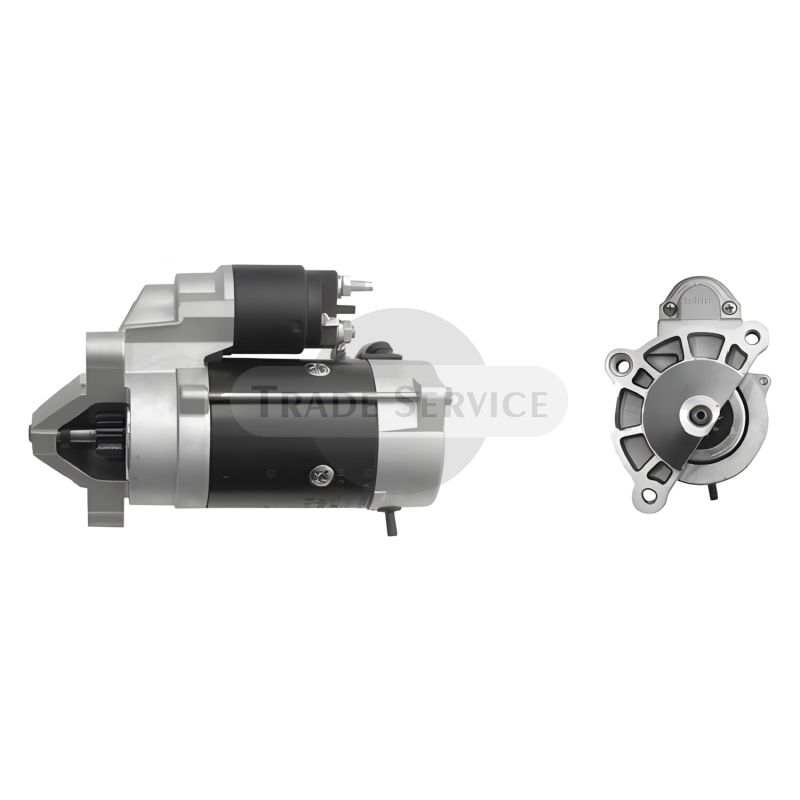

11.131.478 AZE6515 MAHLE (Letrika, Iskra) starter motor
Similar products
We found other products you might like!
-
11.131.986 AZE6559 MAHLE (Letrika, Iskra) starter motor MS3212V 2.6kW z10 (IS1145, MS32)
Information
This 11.131.478 AZE6515 MAHLE (Letrika, Iskra) starter motor is a reliable spare part which is widely used on CITROEN, FIAT, PEUGEOT engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH | 0001223014, 0986018970 |
|---|---|
| CITROEN | 5802W7, 96356597, 96398467 |
| FIAT | 96253824, 96356595, 9635659780 |
| HELLA | 8EA738174001, CS1326 |
| LESTER | 30477 |
| MAHLE (Letrika, Iskra) | IS1145, 11131986, AZE6559, MS32, 11131478, AZE6515 |
| PEUGEOT | 5802W7, 96356597, 96398467 |
| VALEO | 458548 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| CITROEN | C5 | 2.0HDI. HDI Break | RHS;RHY;RHZ | 2.0 | 2001.03-2004.09 |
| CITROEN | C5 | 2.2HDI. HDI Break | 4HP(DW12BTED4); 120kW | 2.2 | 2006.05- |
| CITROEN | C5 | 2.2HDI. HDI Break | 4HR(DW12TED4); 120kW | 2.2 | 2004.09- |
| CITROEN | C5 | 2.2HDI. HDI Break | 4HT(DW12BTED4); 125kW | 2.2 | 2001.03-2004.09 |
| CITROEN | C5 | 2.2HDI. HDI Break | 4HX(DW12TED); 98kW | 2.2 | 2001.03-2004.09 |
| CITROEN | C8 | 2.0HDI | RHT/RHM;RHW | 2.0 | 2001.03- |
| CITROEN | C8 | 2.2HDI | 4HW(DW12TED); 128kW | 2.2 | 2001.03- |
| CITROEN | JUMPER | 2.2HDI | 4HY(DW12TED); 74kW | 2.2 | 2002.02- |
| FIAT | ULYSSE | 2.0JTD | RHW.RHZ | 2.0 | 1999.07-2002.09 |
| PEUGEOT | 406 | 2.2HDI COUPÉ | 4HX(DW12TED) | 2.2 | 2000.03-2005.02 |
| PEUGEOT | 607 | 2.0HDI | RHS;RHZ | 2.0 | 2000.03-2004.11 |
| PEUGEOT | 607 | 2.2HDI | 4HX(DW12TED4) | 2.2 | 2000.03-2004.11 |
| PEUGEOT | 807 | 2.0HDI | RHT/RHM;RHW | 2.0 | 2002.06- |
| PEUGEOT | 807 | 2.2HDI | 4HW(DW12TED4/FAP)) | 2.2 | 2002.06- |
| PEUGEOT | BOXER | 2.0HDI | RHV(DW10TD) | 2.0 | 2002.02- |
| PEUGEOT | BOXER | 2.2HDI | 4HY(DW12TED) | 2.2 | 2002.02- |
More Information
| Weight (kg) | 6.180000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 2.6 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
| Notes | Off set drive end bracket, With reduction gear |
