24V 9.0kW z12 (IS1179)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

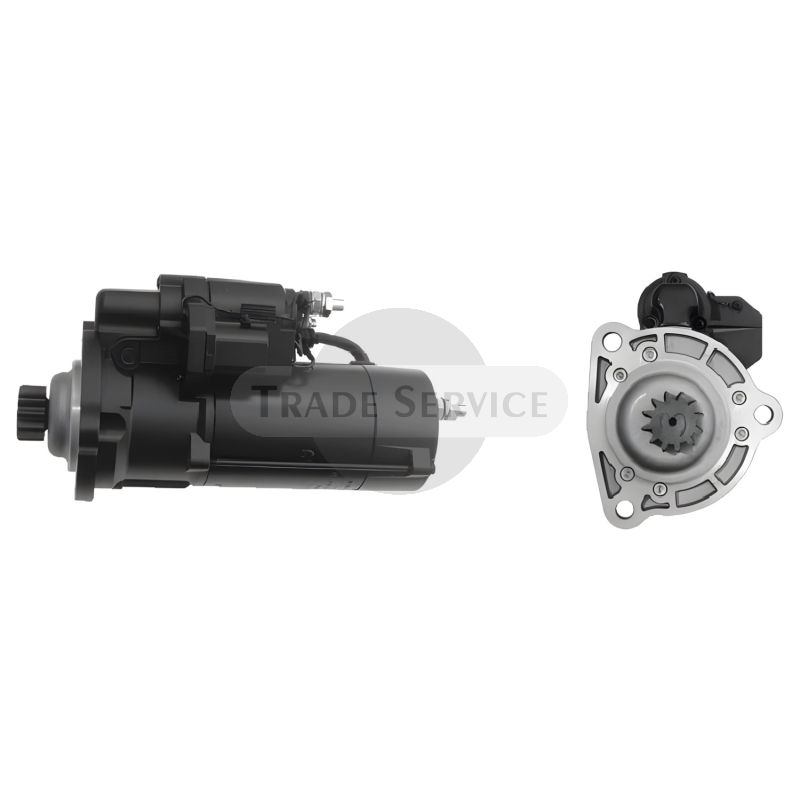

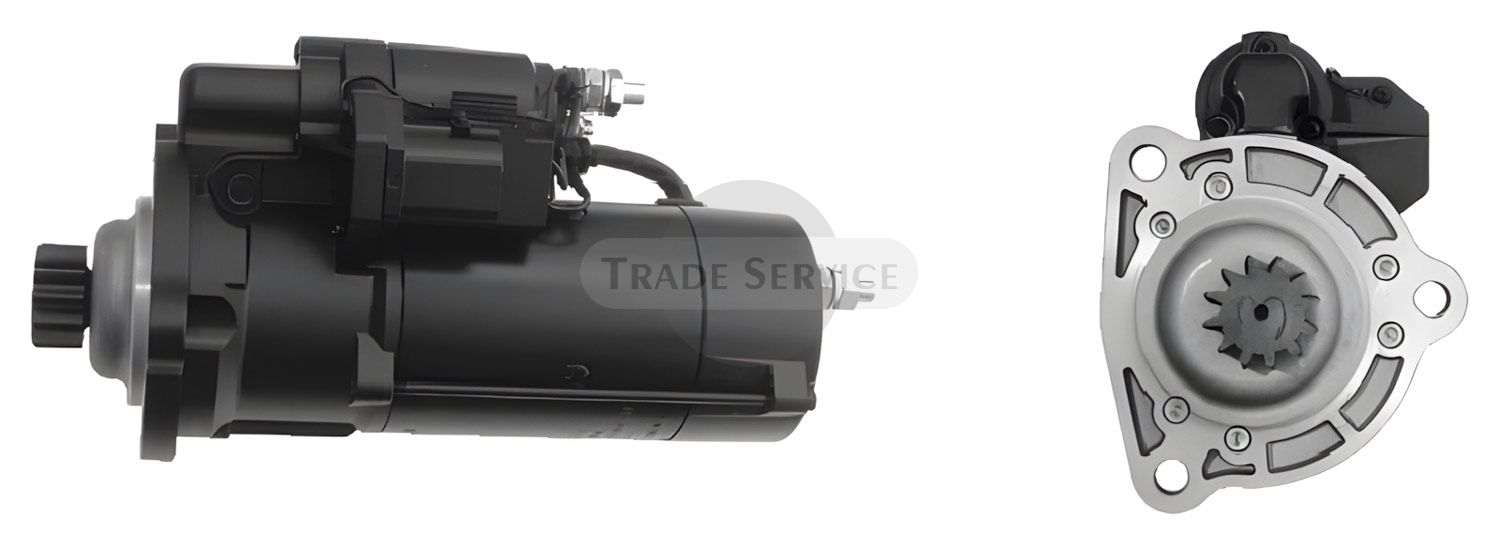

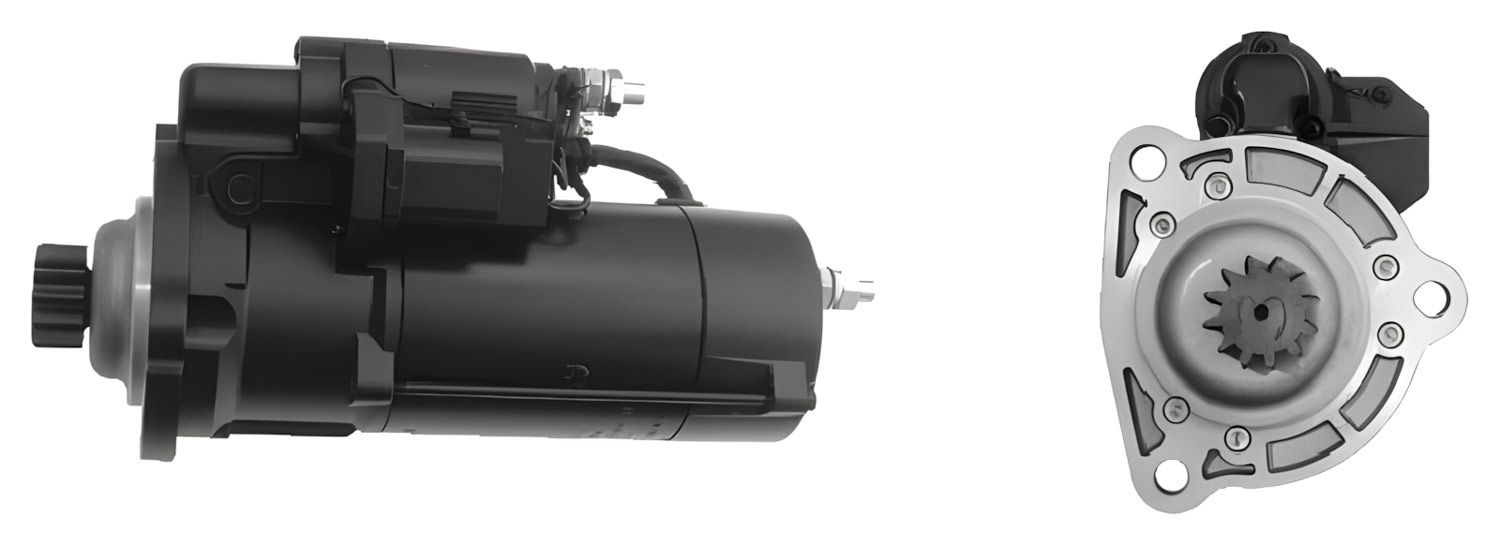

11.131.481 AZG4643 MAHLE (Letrika, Iskra) starter motor
Similar products
We found other products you might like!
-
11.131.905 AZG4687 MAHLE (Letrika, Iskra) starter motor MS7524V 9.0kW z12 (IS1179, MS75)
Information
This 11.131.481 AZG4643 MAHLE (Letrika, Iskra) starter motor is a reliable spare part which is widely used on CATERPILLAR, CUMMINS, JOHN DEERE, VOLVO (BM) engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| CATERPILLAR | 0R2186, 3A1872, 3A1872H, 3P0007, 3T2371, 3T2579, 3T2764, 3T4583, 3T4586, 3T6305, 4N3181, 4N7752, 6V5227, 8N2145, OR2186 |
|---|---|
| CUMMINS | 3011895, 3604484RX, 3604784RX, 39002661, 3907821, 3910646, 3938502 |
| DELCO REMY | 10461025, 10461136, 10461533, 10478942, 1113827, 1113923, 1113928, 1113942, 1113950, 1113951, 1113959, 1113960, 1113967, 1113969, 1113982, 1113990, 1113992, 1113993, 1113998, 1114706, 1114711, 1114712, 1114729, 1114735, 1114740, 1114767, 1114776, 1114793, 1114805, 1114843, 1114845, 1114859, 1114860, 1114862, 1114863, 1114864, 1114905, 1114910, 1114914, 1114917, 1114945, 1114949, 1114953, 1114968, 1114980, 1990204, 1990297, 1990343, 1990357, 1990359, 1990360, 1990364, 1990373, 1990412, 1990453, 1990455, 1990474, 1990497, 1993704, 1993796, 1993804, 1993815, 1993833, 1993929 |
| FIAT | 4816170 |
| FORD | F6HT110001EA, F6HZ11002EA |
| HELLA | 8EA732855001, 8EA738258001, US863 |
| JOHN DEERE | RE28782 |
| KOMATSU | 1219520H92, 1219521H92, 1219526H92, 1221592H91, 1243215H92, 6742014240, 690644C91, R6742014240, STR1016, STR1019 |
| LESTER | 17402, 18005, 18020, 18021, 3370, 3710, 3948, 3955, 4746, 4987, 5601, 6226, 6232, 6355, 6361, 6369, 6544, 6779, 6780 |
| MAHLE (Letrika, Iskra) | IS1179, 11131905, AZG4687, MS75, 11131481, AZG4643 |
| MITSUBISHI | M7T03774, M7T03777 |
| SCANIA | 571468 |
| VOLVO | 11030394 |
| WILSON | 91014158 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| CATERPILLAR | ENGINES | 3306 | 3306 | - | - |
| CUMMINS | V SERIES | - | - | 9.1 | 1983.01-1985.01 |
| JOHN DEERE | ENGINES | 6619 | - | - | - |
| JOHN DEERE | ENGINES | 6619 | - | - | - |
| JOHN DEERE | GRADERS | 770A | - | - | 1984.01-1985.01 |
| JOHN DEERE | GRADERS | 772A | - | - | 1984.01-1985.01 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC460 / EC460B | Cummins M11-C | 6-Cyl. 221kW | 10.8 |
More Information
| Weight (kg) | 14.780000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 9.0 kW |
| Pinion teeth | 12 |
| Rotation direction | CW |
| Notes | Insulated ground, Noseless version of starter, Soft start relay, With reduction gear |
Spare Parts
-
-
-
-
-
-
-
-
-
Alternative:
-
-
-
-
-
