12V 3.2kW z10 (IS1201, MS399)
Got Questions?
€387 €305
In stock i Available in our store from stock. Update frequency: 5 minutes
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

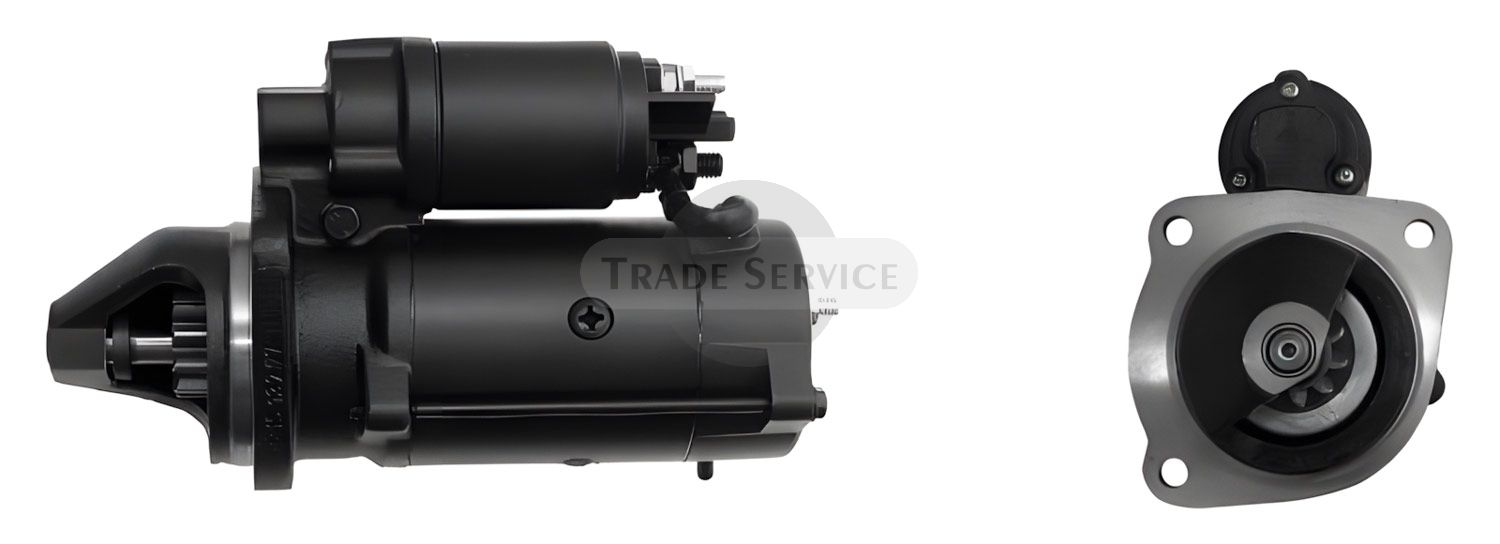

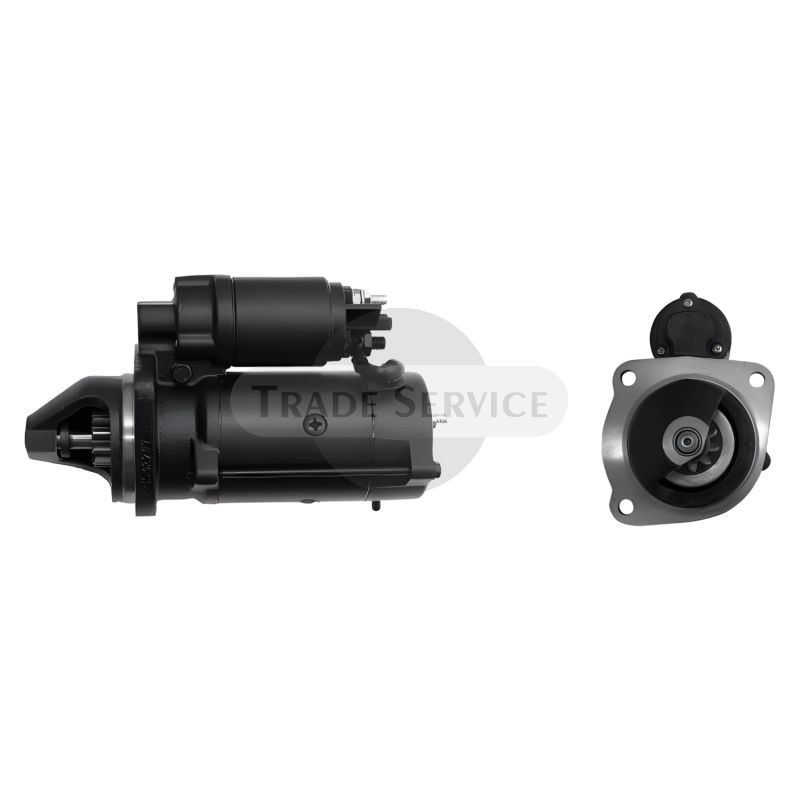

11.131.781 AZE4173 MAHLE (Letrika, Iskra) starter motor MS399
Similar products
We found other products you might like!
-
860715 Prestolite starter motor12V 3.0kW z10
Information
This 11.131.781 AZE4173 MAHLE (Letrika, Iskra) starter motor MS399 is a reliable spare part which is widely used on AGCO, BASAK, BOBCAT, ERKUNT TRACTOR, FARMTRAC, HATTAT, HIDROMEK, MANITOU, MASSEY-FERGUSON, PERKINS, URSUS engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AGCO | 26194600, 29194800 |
|---|---|
| BOBCAT | 7169477 |
| BOSCH | 0001369002 |
| CARGO | 114388 |
| CATERPILLAR | 2253149, 3127540, 3290290, 3653422 |
| HATTAT | 9HT12010A6A |
| HIDROMEK | F0128690 |
| JCB | 71440159, 71440159R, 71440231, 71440531, 71440536 |
| LESTER | 18940 |
| MAGNETI MARELLI | 63280041, MSN8041 |
| MAHLE (Letrika, Iskra) | IS1201, 11132036, AZE4220, 11131989, AZE4215, 11131956, AZE4204, 11131947, AZE4201, 11131942, AZE4197, 11131793, AZE4175, 11131781, AZE4173, MS399, 11131761, AZE4170, 11131605, AZE4150 |
| MANITOU | 605002 |
| PERKINS | 2873K405, 2873K624, 2873K625, 2873K626, 2873K634, 3586849, 3873K627, T410865, T412689 |
| PRESTOLITE | 860715 |
| SPAREX | 68296 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AGCO | TRACTORS | Perkins 1103. 1104 | - | ||
| BASAK | BASAK | 2080 | 1104D-44TA; 60kW; Euro IIIA | 4.4 | - |
| BASAK | BASAK | 2090 | 1104D-44TA; 68kW;Euro IIIA | 4.4 | - |
| BASAK | BASAK | 2100 | 1104D-44TA; 74kW;Euro IIIA | 4.4 | - |
| BASAK | BASAK | 2110 S | 1104D-44TA; 81kW; Stage IIIA | 4.4 | - |
| BASAK | TELEHANDLERS | ST 17.30 | 1104D-44TA; 74kW;Euro IIIA | 4.4 | - |
| BASAK | TELEHANDLERS | ST 9.35 | 1104D-44TA; 74kW;Euro IIIA | 4.4 | - |
| BOBCAT | SKID STEER L. | TL360 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T2256 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T2566 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T35100 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T35100L | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T35100SL | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T35120 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T35120L | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T35120SL | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T35120SL MP | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T3571 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T3571L | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T40140 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | T40170 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | TL360 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | TL470 | Perkins 1104D-44TA; 100HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | TL470HF | 1104D-E44TA; 4cyl; 130hp | 4.4 | 2012.01- |
| BOBCAT | TELESCOPIC HANDLERS | TL470HP | Perkins 1104D-E44TA; 130HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | TR40250 | Perkins 1104D-ETA; 144HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | TR45190 | Perkins 1104D-ETA; 144HP | 4.4 | - |
| BOBCAT | TELESCOPIC HANDLERS | TR50210 | Perkins 1104D-ETA; 144HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 1004 | 1104-44TA; Tier 3; 102HP | 4.4 | 2012.01- |
| ERKUNT TRACTOR | ARMA TRAC | 1104 | 1104-44TA; Tier 3; 110HP | 4.4 | 2012.01- |
| ERKUNT TRACTOR | ARMA TRAC | 1504e | 1104D-44TA; 75kW. Tier 3 | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 602e | 1104A-44; 4-cyl; 66HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 604e | 1104A-44; 4-cyl; 66HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 702 | 1104A-44; 4-cyl; 73HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 702e | 1104A-44; 4-cyl; 73HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 704 | 1104A-44; 4-cyl; 73HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 704e | 1104A-44; 4-cyl; 73HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 752e | 1104D-44TA; 4-cyl; 56kW. | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 802 | 1104D-44T; Tier 3; 76HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 804 | 1104D-44T; Tier 3; 76HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 804 Fruit Garden | 1104D-44T; Stage IIIA; 58kW | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 804 LuxCRD | 854F-E34T; Tier 4; 75HP; 4-cyl | 3.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 804.4 Lux | 1104D-44TA; 55kW. Tier 3 | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 804.4e | 1104D-44TA; 55.5kW. Tier 3 | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 852 | 1104D-44; Tier 3; 76HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 852e | 1104A-44; 4-cyl; 83HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 854e | 1104A-44; 4-cyl; 83HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 854e+ | 1104D-44TA; 4-cyl; 61.5kW | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 904e | 1104-44TA; Tier 3; 92.5HP | 4.4 | - |
| ERKUNT TRACTOR | ARMA TRAC | 904e | 1104D-44TA; 68kW. Tier 3 | 4.4 | - |
| FARMTRAC | 675 | Perkins 1104D-44T; 75HP | 4.4 | - | |
| FARMTRAC | 675 DT | Perkins 1104D-44T; 75HP | 4.4 | - | |
| FARMTRAC | 685 DT | Perkins 1104D-44T; 83HP | 4.4 | - | |
| FARMTRAC | 690 DT | Perkins 1104D-44T; 88HP | 4.4 | - | |
| FARMTRAC | 7100 DT | Perkins 1104DT-44T; 98HP | 4.4 | - | |
| FARMTRAC | 7110 DT | Perkins 1104D-44TA; 110HP | 4.4 | - | |
| HATTAT | 240S | 1103D-33; 40kW | 3.3 | - | |
| HATTAT | 266G | 266G | 1103D-33TA; 50kW | 3.3 | 2015.02- |
| HATTAT | 275 S | 275 S | 1104D-44TA; 55kW; Euro III | 4.4 | - |
| HATTAT | 285 S | 285 S | 1103D-33TA; 61kW | 3.3 | 2015.02- |
| HATTAT | 285 S | 285 S | 1104D-44T; 60kW. Euro III | 4.4 | - |
| HATTAT | 290 | 1104A-44; 61.5kW | 4.4 | - | |
| HATTAT | 295 | 295 | 1104D-44T; 68kW; Euro III | 4.4 | - |
| HATTAT | 398 | 398 | 1104D-44TA; 81kW; Euro III | 4.4 | - |
| HATTAT | A SERIE | A080 2WD/4WD | 1103D-33TA; 58kW | 3.3 | - |
| HATTAT | A SERIE | A100 4WD | 1104D-44TA; Euro 3; 68kW | 4.4 | - |
| HATTAT | A SERIE | A110 4WD | 1104D-44TA; Euro 3; 75kW | 4.4 | - |
| HATTAT | A SERIE | A55B 2WD/4WD | 1103D-33; 40kW | 3.3 | 2010.01- |
| HATTAT | A SERIE | A55C 2WD/4WD | 1103D-33; 40kW | 3.3 | 2010.01- |
| HATTAT | A SERIE | A60B 2WD/4WD | 1103D-33TA; 47kW | 3.3 | - |
| HATTAT | A SERIE | A60C 2WD/4WD | 1103D-33TA; 47kW | 3.3 | - |
| HATTAT | A SERIE | A65B 2WD/4WD | 1103D-33TA; 50kW | 3.3 | - |
| HATTAT | A SERIE | A65C 2WD/4WD | 1103D-33TA; 50kW | 3.3 | - |
| HATTAT | A SERIE | A70 2WD/4WD | 1103D-33TA; 50kW | 3.3 | - |
| HATTAT | A SERIE | A80 4WD | 1103 -D-33TA; 58kW | 3.3 | - |
| HATTAT | A SERIE | A80B 2WD/4WD | 1103D-33TA; 58kW | 3.3 | - |
| HATTAT | A SERIE | A90 4WD | 1104D-44TA; Euro 3; 60.5kW | 4.4 | - |
| HATTAT | B SERIE | B 3050 | 1103D-33; 37kW | 3.3 | 2014.01- |
| HATTAT | B SERIE | B 3055 | 1103D-33; 40kW | 3.3 | 2014.01- |
| HATTAT | B SERIE | B 3065 | 1103D-33TA; 50kW | 3.3 | 2014.01- |
| HATTAT | B SERIE | B 3080 | 1103D-33TA; 56kW | 3.3 | 2014.01- |
| HATTAT | C SERIE | C 3050 | 1103D-33; 37kW | 3.3 | 2014.01- |
| HATTAT | C SERIE | C 3065 | 1103D-33TA; 50kW | 3.3 | 2004.01- |
| HATTAT | C SERIE | C 3080 | 1103D-33TA; 56kW | 3.3 | 2004.01- |
| HATTAT | C SERIE | C 3080 | 854F-E34T; 55kW | 3.3 | - |
| HATTAT | T SERIE | T 4065 | 1103D-33TA; 50kW; Euro III | 3.3 | 2015.08- |
| HATTAT | T SERIE | T 4075 | 1104D-44TA; 56kW; Euro III | 4.4 | 2015.08- |
| HATTAT | T SERIE | T 4075 | 854F-E34T; 55kW; Stage 3B | 3.4 | - |
| HATTAT | T SERIE | T 4080 | 1104D-44TA; 60.5kW; Euro III | 4.4 | 2015.08- |
| HATTAT | T SERIE | T 4080 | 854F-E34TA; 63kW; Stage 3B | 3.4 | - |
| HATTAT | T SERIE | T 4090 | 1104D-44TA; 68kW; Euro III | 4.4 | 2015.05- |
| HATTAT | T SERIE | T 4090 | 854F-E34TA; 70kW; Stage 3B | 3.4 | - |
| HATTAT | T SERIE | T 4100 | 1104D-44TA; 75kW; Euro III | 4.4 | 2015.08- |
| HATTAT | T SERIE | T 4100 | 854F-E34TA; 75kW; Stage 3B | 3.4 | - |
| HIDROMEK | BACKHOE LOADERS | HMK 102B | 1104D-E44TA; 74.5kW; Tier 3 | 4.4 | - |
| HIDROMEK | BACKHOE LOADERS | HMK 102B Supra | 1104D-E44TA; 74.5kW; Tier 3 | 4.4 | - |
| HIDROMEK | BACKHOE LOADERS | HMK 102S | 1104D-E44TA; 74.5kW; Tier 3 | 4.4 | - |
| MANITOU | MASTER FORKLIFT TRUCKS | MI 60 H | 1104C 44 T; 74.5kW; Tier 4 | 4.4 | - |
| MANITOU | MASTER FORKLIFT TRUCKS | MI 70 H | 1104C-44T; 74.5kW; Tier 4 | 4.4 | - |
| MANITOU | MASTER FORKLIFT TRUCKS | MSI 40 T | 1104D-44T; 65kW; Tier 3 | 4.4 | - |
| MANITOU | MASTER FORKLIFT TRUCKS | MSI 50 T | 1104D-44T; 70kW; Tier 3 | 4.4 | - |
| MANITOU | ROTATING TELEHANDLERS | MRT 1840 | Perkins 854E-E34TA | 3.4 | - |
| MANITOU | TELEHANDLERS | MT 1135 /H/HA | 854E-34TA; 75kW; Tier 4 | 3.4 | - |
| MANITOU | TELEHANDLERS | MT 1335 H/HA | 854E-34TA; 75kW; Tier 4 | 3.4 | - |
| MANITOU | TELEHANDLERS | MT 1440 /A/H/HA | 854-E34TA; 75kW; Tier 4 | 3.4 | - |
| MANITOU | TELEHANDLERS | MT 1840 | 1104D-44TA; 74.5kW. Tier 3 | 4.4 | - |
| MANITOU | TELEHANDLERS | MT 835 /H | 854-E34TA; 75kW; Tier 4 | 3.4 | - |
| MANITOU | TELEHANDLERS MHT | MHT 780 | 1104D-E44TA; 106kW. Tier 3 | 4.4 | - |
| MANITOU | TELEHANDLERS MHT | MHT 860 | 1104D-E44TA; 106kW. Tier 3 | 4.4 | - |
| MANITOU | TELEHANDLERS MRT | MRT 1440 | 1104D-44T; 74.5kW; Tier 3 | 4.4 | - |
| MANITOU | TELEHANDLERS MRT | MRT 1640 | 1104D-44T; 74.5kW; Tier 3 | 4.4 | - |
| MANITOU | TELEHANDLERS MRT | MRT 1840 | 1104D-44T; 74.5kW; Tier 3 | 4.4 | - |
| MASSEY-FERGUSON | MF 290 | Perkins A4.248 | 1979.01-1986.01 | ||
| MASSEY-FERGUSON | MF 3425 | Perkins 1103C33T | - | ||
| MASSEY-FERGUSON | MF 3435 | Perkins 1104C44 | - | ||
| MASSEY-FERGUSON | MF 3445 | Perkins 1104C44T | - | ||
| MASSEY-FERGUSON | MF 3455 | Perkins 1104C44T | - | ||
| PERKINS | 1006-6 | .T.TW | 6 cyl | 6.6 | - |
| PERKINS | 1006-60 | .T.TW.TA | 6.6 | - | |
| PERKINS | 1006-60 | .TA.TW | 6.6 | - | |
| PERKINS | 1103D | 33T/TA | 3.3 | - | |
| PERKINS | 1104D | 44T/E44T/E44TA; | Perkins: 4-cyl; Tier 3 | 4.4 | - |
| PERKINS | 1104D | E44TA | Perkins 4-cyl; 117HP | 4.4 | - |
| PERKINS | 854 | E-E34TA | 854F-E34T/TA/TATF/TWF/TTF | 3.4 | - |
| PERKINS | A4.248 | - | - | ||
| PERKINS | T4.248 | - | - | ||
| URSUS | 11054 | 1104D; 81kW; Euro IIIA | 4.4 | - | |
| URSUS | 11054 Power | 854E-E34TA. 83kW. Euro IIIB | 4.4 | - | |
| URSUS | C SERIE | C-3102 | 1104D; 75kW; Tier III | 4.4 | 2016.01- |
| URSUS | C SERIE | C-3110 | 1104D; Tier III | 4.4 | 2016.01- |
| URSUS | C SERIE | C-380 M | 1104D; 55kW; Tier III | 4.4 | 2014.01- |
| URSUS | C SERIE | C-382 | 1104D; 60.5kW; Tier III | 4.4 | 2014.01- |
More Information
| Weight (kg) | 9.000000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.2 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
| Notes | Mass terminal 31, With reduction gear |
