12V 3.2kW z10 (IS1103, MS292)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

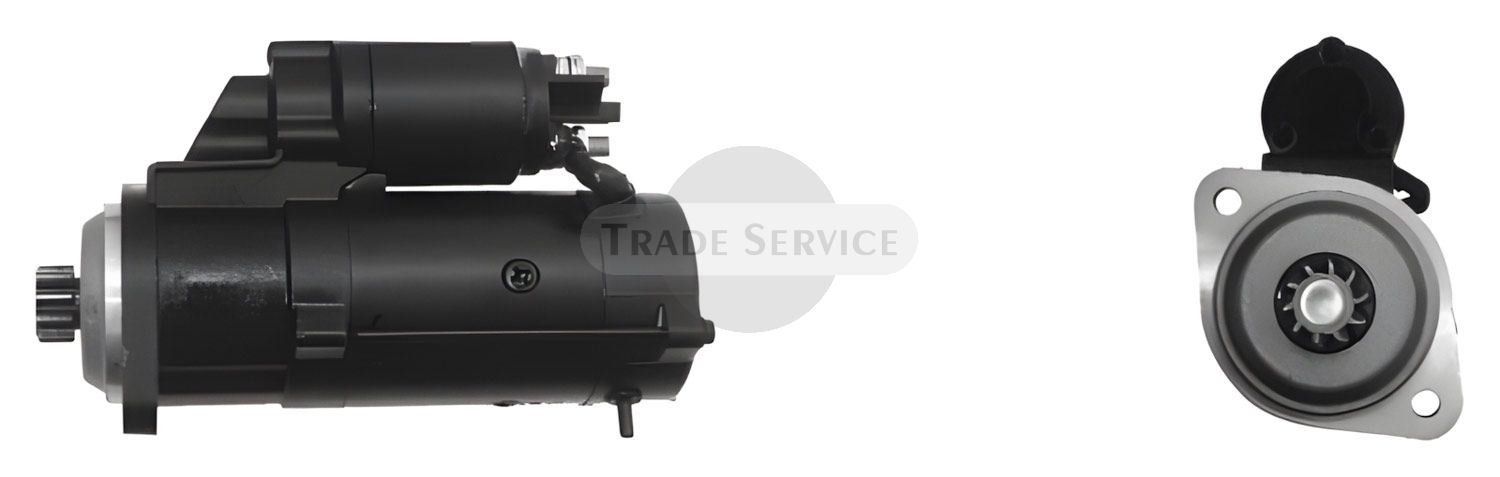

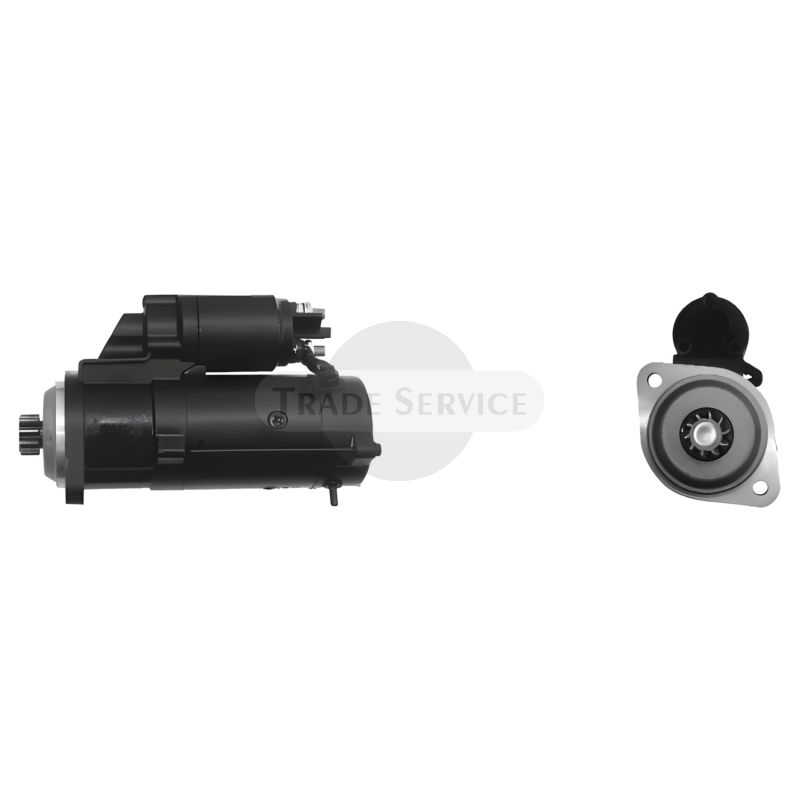

11.131.788 AZE4654 MAHLE (Letrika, Iskra) starter motor MS292
Information
This 11.131.788 AZE4654 MAHLE (Letrika, Iskra) starter motor MS292 is a reliable spare part which is widely used on JOHN DEERE engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| JOHN DEERE | RE521488, RE543483, RE551446, SE502913 |
|---|---|
| LESTER | 18488 |
| MAHLE (Letrika, Iskra) | IS1103, 11131788, AZE4654, MS292, 11131772, AZE4653, 11131753, AZE4649, MS635, 11131294, AZE4625 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| JOHN DEERE | ENGINES | 4045... | 4-cyl | 4.5 | - |
| JOHN DEERE | ENGINES | 6068DF/HF/TF | 6-cyl | 6.8 | - |
| JOHN DEERE | FARM | 5070 M | 4045 | 69HP | 4.5 |
| JOHN DEERE | FARM | 5080 G | 4045FL | 74HP | Tier III |
| JOHN DEERE | FARM | 5080 M | 4045HL286 (EU) | 4.5 | 2011.03- |
| JOHN DEERE | FARM | 5080 R/RN | 4045HL284 (EU) | 4.5 | - |
| JOHN DEERE | FARM | 5083 E | John Deere | 83HP | 4.5 |
| JOHN DEERE | FARM | 5085 M | JD4045 | 85HP | Stage IIIA |
| JOHN DEERE | FARM | 5090 G | 4045HAT81 | 91HP | Stage IIIA |
| JOHN DEERE | FARM | 5090 M | 4045HL286 (EU) | 4.5 | 2011.03- |
| JOHN DEERE | FARM | 5090 R/RN | 4045HL284 (EU) | 4.5 | - |
| JOHN DEERE | FARM | 5093 E | John Deere | 93HP | 4.5 |
| JOHN DEERE | FARM | 5100 M/MH | 4045HL286 (EU) | 75kW | 4.5 |
| JOHN DEERE | FARM | 5100 R | 4045HL286 (EU) | 75kW | 4.5 |
| JOHN DEERE | FARM | 5115 M | 4045 PWL | 86kW | - |
| JOHN DEERE | FARM | 5425. 5425N | 4045 TLV | -81HP | 4.5 |
| JOHN DEERE | FARM | 5425 | 5425 N | JD PowerTech | 81HP |
| JOHN DEERE | FARM | 5525 | 5525 N | JD PowerTech | 91 HP |
| JOHN DEERE | UTILITY | 5083 Limited | JD PT | 83HP | 4.5 |
| JOHN DEERE | UTILITY | 5093 Limited | JD PT | 93HP | 4.5 |
| JOHN DEERE | UTILITY | 5101 Limited | JD PT | 101HP | 4.5 |
More Information
| Weight (kg) | 7.358000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.2 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
| Notes | Noseless version of starter, Oil sealed, With reduction gear |
