12V 3.2kW z10 (IS1059, MS430)
Got Questions?
€400 €315
Available in 2-3 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

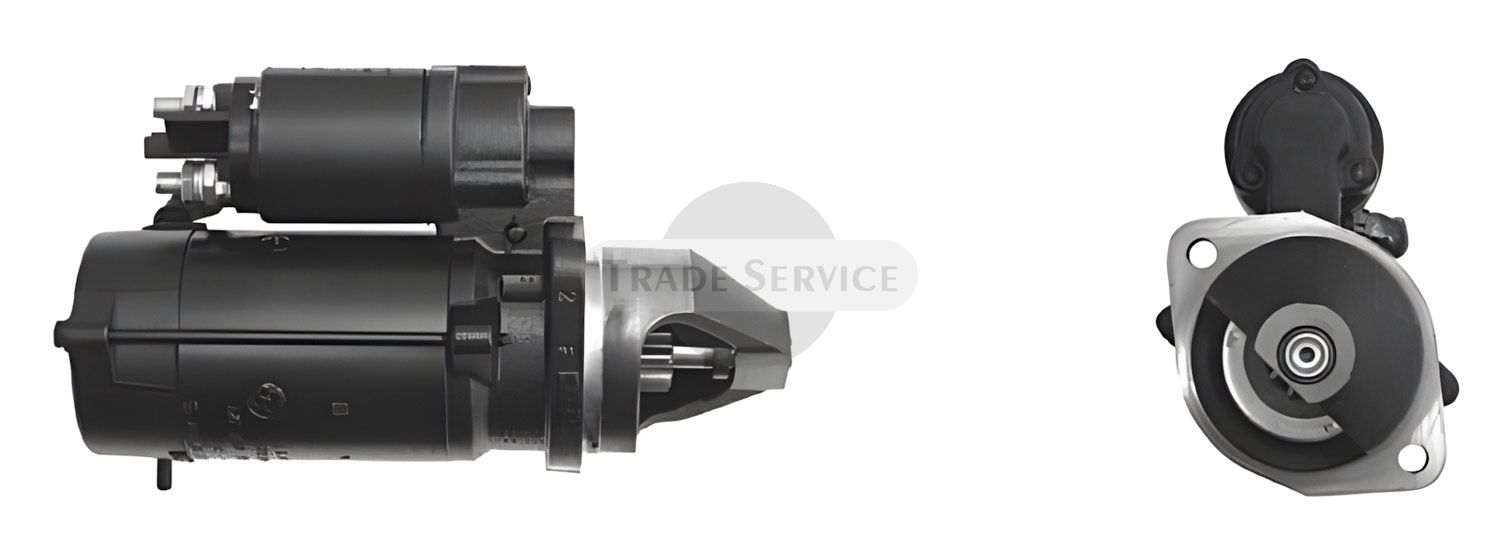

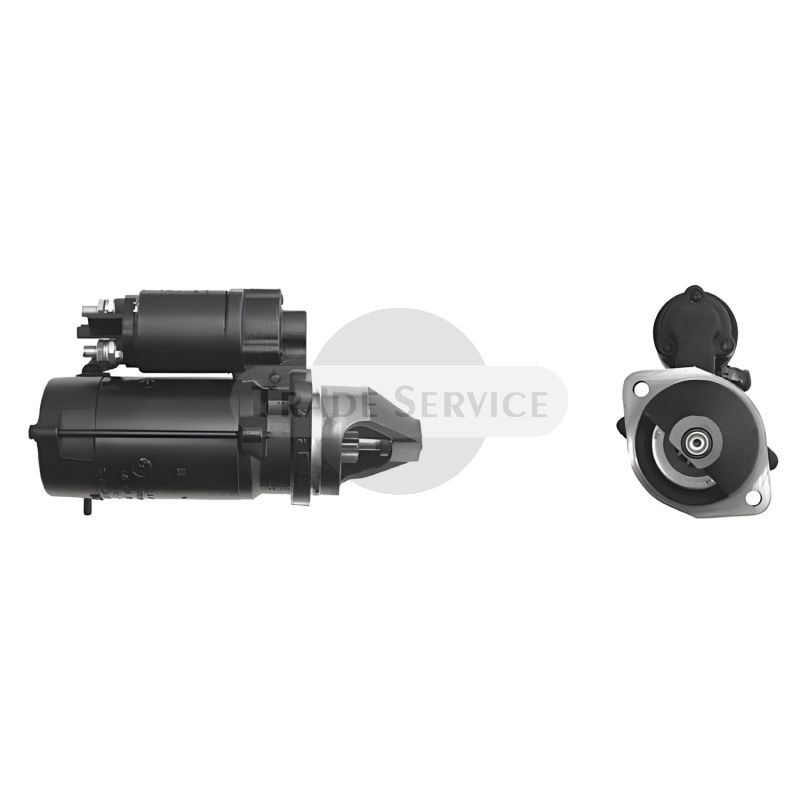

11.131.833 AZE4185 MAHLE (Letrika, Iskra) starter motor MS430
Information
This 11.131.833 AZE4185 MAHLE (Letrika, Iskra) starter motor MS430 is a reliable spare part which is widely used on JOHN DEERE engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH | 0001223502, 0986022520, F002G20658 |
|---|---|
| JOHN DEERE | RE501347, RE501680, RE501689, RE501693, RE501713, RE502156, RE502196, RE508736, RE516455, RE519568, RE551444, RE60641, RE62916, RE63010, SE501869 |
| LESTER | 17086, 18476, 18526, 18529 |
| MAHLE (Letrika, Iskra) | IS1059, 11132227, AZE4261, 11131833, AZE4185, MS430, 11131751, AZE4169, 11131384, AZE4589, 11131108, AZE4534 |
| PARIS-RHONE | D7R14 |
| VALEO | 438012, 455735 |
| WAI | 17086N |
| WILSON | 91157168 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| JOHN DEERE | COMBINES | 1032 | - | - | - |
| JOHN DEERE | COMBINES | 1042 | - | - | - |
| JOHN DEERE | COMBINES | 1052 | - | - | - |
| JOHN DEERE | COMBINES | 1055 | - | - | - |
| JOHN DEERE | COMBINES | 1068 | - | - | - |
| JOHN DEERE | COMBINES | 1085 | - | - | - |
| JOHN DEERE | COMBINES | 1144 | - | - | - |
| JOHN DEERE | COMBINES | 1155 | - | - | - |
| JOHN DEERE | COMBINES | 1157 | - | - | - |
| JOHN DEERE | COMBINES | 1158 | - | - | - |
| JOHN DEERE | COMBINES | 1166 | - | - | - |
| JOHN DEERE | COMBINES | 1169 | - | - | - |
| JOHN DEERE | COMBINES | 1174 | - | - | - |
| JOHN DEERE | COMBINES | 1177 | - | - | - |
| JOHN DEERE | COMBINES | 4425 | 539. 6539 | - | 1986.01-1988.12 |
| JOHN DEERE | COMBINES | 4435 | 539. 6539 | - | 1989.01-1994.12 |
| JOHN DEERE | COMBINES | 925 | - | - | - |
| JOHN DEERE | COMBINES | MD330 | 164D27Z | 2.7 | 1972.01-1974.10 |
| JOHN DEERE | COMBINES | MD930 | 4.219DZ-05 | 3.6 | 1972.08-1974.10 |
| JOHN DEERE | COMBINES | MD932 | 4.239DZ-04 | 3.9 | 1979.10-1983.10 |
| JOHN DEERE | COMBINES | MD935 | 4.219DZ-05 | 3.6 | 1975.07-1979.06 |
| JOHN DEERE | COMBINES | MD940 | 4.239DZ-01 | 3.9 | 1972.08-1975.07 |
| JOHN DEERE | COMBINES | MD942 | 4.239DZ-03 | 3.9 | 1979.10-1983.10 |
| JOHN DEERE | COMBINES | MD945 | 4.239TZ-01 | 3.9 | 1975.08-1977.10 |
| JOHN DEERE | COMBINES | MD950 | 6.329DZ-02 | 5.4 | 1974.09-1975.07 |
| JOHN DEERE | ENGINES | 3029 | 3-cyl | 2.9 | - |
| JOHN DEERE | FARM | 1020. OU. VU | 3.164 | 5.8 | 1981.01-1983.01 |
| JOHN DEERE | FARM | 1630. OU. VU | 3.179DL-01 | 2.9 | 1973.08-1982.08 |
| JOHN DEERE | FARM | 1640. 1640F | 4.239DL-03 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 1830 | 4.219DL-03 | 3.6 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 1840. 1840F | 4.239DL-04 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 1845F | - | - | - |
| JOHN DEERE | FARM | 1850. 1850F.V | 3.179DL | 2.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 1950. 1950F | 3.179TL | 2.9 | 1988.01-1994.12 |
| JOHN DEERE | FARM | 2030. OU | 4.219DL-03 | 3.6 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 2035. 2035EF | - | - | - |
| JOHN DEERE | FARM | 2040. F. S | 4.239DL-04 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 2130 | 4.239DL-01 | 3.9 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 2140 | 4.239TL-02 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 2150 | 3.179DL-01 | 2.9 | 1982.05- |
| JOHN DEERE | FARM | 2155 | - | - | - |
| JOHN DEERE | FARM | 2240 | 3.179DL-01 | 2.9 | 1979.09- |
| JOHN DEERE | FARM | 2250. 2250F | 4.239DL | 3.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 2350 | 4.239DL-07 | 3.9 | 1982.05- |
| JOHN DEERE | FARM | 2450. 2450F | 4.239DL | 3.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 2550 | 4.239DL-06 | 3.9 | 1982.05- |
| JOHN DEERE | FARM | 2750 | 4.239TL-04 | 3.9 | 1982.05- |
| JOHN DEERE | FARM | 2755 | 4-239 | - | 1987.01-1992.12 |
| JOHN DEERE | FARM | 2855 N | 4-239 | - | 1987.01-1993.12 |
| JOHN DEERE | FARM | 2940 | 6.359DL-03 | 5.9 | 1982.05- |
| JOHN DEERE | FARM | 2950 | 6.359DL-04 | 5.9 | 1982.05- |
| JOHN DEERE | FARM | 2955 | 6.359 | 5.9 | 1987.01-1992.12 |
| JOHN DEERE | FARM | 3050 | 6.359DL | 5.9 | 1986.01-1993.12 |
| JOHN DEERE | FARM | 3055 | 6-359 | 5.9 | 1992.01- |
| JOHN DEERE | FARM | 3100 | 3029D | 2.9 | 1995.01-1998.12 |
| JOHN DEERE | FARM | 3120 | - | - | 1972.01- |
| JOHN DEERE | FARM | 3155 | 6-359 | 5.9 | 1987.01-1992.12 |
| JOHN DEERE | FARM | 5055 E | 3029HPY40/TPY24 | 2.9 | 2013.01- |
| JOHN DEERE | FARM | 5065 E | 3029HPY40/TPY24 | 2.9 | 2013.01- |
| JOHN DEERE | FARM | 5075 E | 3029HPY40/TPY24 | 2.9 | 2013.01- |
| JOHN DEERE | FARM | 5080 G | 4045FL | 74HP | Tier III |
| JOHN DEERE | FARM | 5090 G | 4045HAT81 | 91HP | Stage IIIA |
| JOHN DEERE | FARM | 5103 | - | - | - |
| JOHN DEERE | FARM | 5203 | - | - | - |
| JOHN DEERE | FARM | 5210 | 320 | 2.9 | 1995.01- |
| JOHN DEERE | FARM | 5303 | - | - | - |
| JOHN DEERE | FARM | 5310. 5310N | 320 | 2.9 | 1995.01-2000.12 |
| JOHN DEERE | FARM | 5410. 5410N | 320 | 2.9 | 1995.01- |
| JOHN DEERE | FARM | 5415. 5415N. 5415H | 4.045T | 4.5 | 2003.01-2008.12 |
| JOHN DEERE | FARM | 5615 | - | - | - |
| JOHN DEERE | FARM | 5620 | 4.045 | 4.5 | 2003.01-2009.12 |
| JOHN DEERE | FARM | 6100. 6100L | 4-239 | 3.9 | 1992.01-1996.01 |
| JOHN DEERE | FARM | 6200-2. | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6200-4 | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6300. 6300L | 4-239 | 3.9 | 1993.01- |
| JOHN DEERE | FARM | 6300-2 | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6300-4 | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6400 | 4-276 | - | 1993.01- |
| JOHN DEERE | FARM | 6400. L. SP | 4045T | 4.5 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6400-2.-4 | 4-239 | 4.5 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6405 | 4045T | 4.5 | 1998.01-2001.01 |
| JOHN DEERE | FARM | 6410. L. S. SE | 4045T | 4.5 | 1998.01-2001.01 |
| JOHN DEERE | FARM | 6500. 6500L | - | - | 1993.01- |
| JOHN DEERE | FARM | 6510. 6510L. 6510S | 4045T | 4.5 | 1998.01-2001.01 |
| JOHN DEERE | FARM | 820. 820VU | 3.152 | - | 1971.01-1975.12 |
| JOHN DEERE | FARM | 840 | 3.179 | 2.9 | 1979.01-1986.12 |
| JOHN DEERE | FARM | 920 | 3.152 | - | 1971.01-1975.12 |
| JOHN DEERE | TRACTORS | 2150 | - | - | 1983.01-1986.12 |
| JOHN DEERE | TRACTORS | 2155 | 3-179 | - | 1987.01-1992.12 |
| JOHN DEERE | TRACTORS | 2255 | 3-179 | - | 1983.01-1986.12 |
| JOHN DEERE | TRACTORS | 3055 | 359 | - | 1992.01- |
| JOHN DEERE | TRACTORS | 3155 | 6-359 | - | 1987.01-1991.12 |
| JOHN DEERE | TRACTORS | 3255 | 359 | - | 1992.01- |
| JOHN DEERE | TRACTORS | 5045 D | PowerTech M-Tier 3 | 3cyl 33kW | 2.9 |
| JOHN DEERE | TRACTORS | JD300. JD300A | 3.152DL-05 | 2.5 | 1971.03-1974.04 |
| JOHN DEERE | TRACTORS | JD310 | 3.179DL-03 | 2.9 | 1974.03-1988.10 |
| JOHN DEERE | TRACTORS | JD350. JD350A | 3.152DL-10 | 2.5 | 1971.03-1988.10 |
| JOHN DEERE | TRACTORS | JD400. JD400A | 4202. 4219 | - | 1971.01-1979.12 |
| JOHN DEERE | TRACTORS | JD410 | 4.219DL-09 | 3.6 | 1974.03-1988.10 |
| JOHN DEERE | TRACTORS | JD450A/B/C | 4202. 4219 | - | 1971.01-1979.12 |
| JOHN DEERE | UTILITY | 2040 | 152 Dsl | - | 1980.12-1985.12 |
| JOHN DEERE | UTILITY | 2150 | 3-179 | - | 1982.01-1982.12 |
| JOHN DEERE | UTILITY | 2155 | 3-179 | - | 1987.01-1992.12 |
| JOHN DEERE | UTILITY | 2240 | 164 | - | 1976.01-1982.12 |
| JOHN DEERE | UTILITY | 2255 | 3-179 Dsl | - | 1983.01-1987.12 |
| JOHN DEERE | UTILITY | 2350 | 4-239 | - | 1983.01-1986.12 |
| JOHN DEERE | UTILITY | 2355. 2355N | 4-239 Dsl | - | 1986.01-1992.12 |
| JOHN DEERE | UTILITY | 2550 | 4-239 | - | 1982.01-1987.12 |
| JOHN DEERE | UTILITY | 2555 | 4-239 | - | 1987.01-1992.12 |
| JOHN DEERE | UTILITY | 5103 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5105 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5200 | 3-179 Diesel | - | 1992.01- |
| JOHN DEERE | UTILITY | 5203 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5220 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5300. 5300N | 3-179 Diesel | - | 1992.01- |
| JOHN DEERE | UTILITY | 5303 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5310. 5310N | 3-029 | 2.9 | 1997.01- |
| JOHN DEERE | UTILITY | 5310N | 4045 | - | 2002.01- |
| JOHN DEERE | UTILITY | 5320. 5320N | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5400. 5400N | 3-179 Diesel | - | 1992.01- |
| JOHN DEERE | UTILITY | 5500. 5500N | 4-239 Diesel | 3.9 | 1992.01- |
| JOHN DEERE | UTILITY | 820 | 830 | 3-cyl | - |
| JOHN DEERE | UTILITY | 840 | 3.179DL-04 | 2.9 | 1979.09-1984.01 |
| JOHN DEERE | UTILITY | 920 | 3.152DL-02 | 2.5 | 1971.04-1975.07 |
| JOHN DEERE | UTILITY | 930 | 3.164DL-15 | 2.7 | 1975.08-1979.08 |
| JOHN DEERE | UTILITY | 940 | 3.179DL-05 | 5.9 | 1979.09-1986.10 |
More Information
| Weight (kg) | 8.248000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.2 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
| Notes | With reduction gear |
