24V 4.0kW z9 (IS1236, MS68)
Got Questions?
€455 €358
In stock i Available in our store from stock. Update frequency: 5 minutes
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

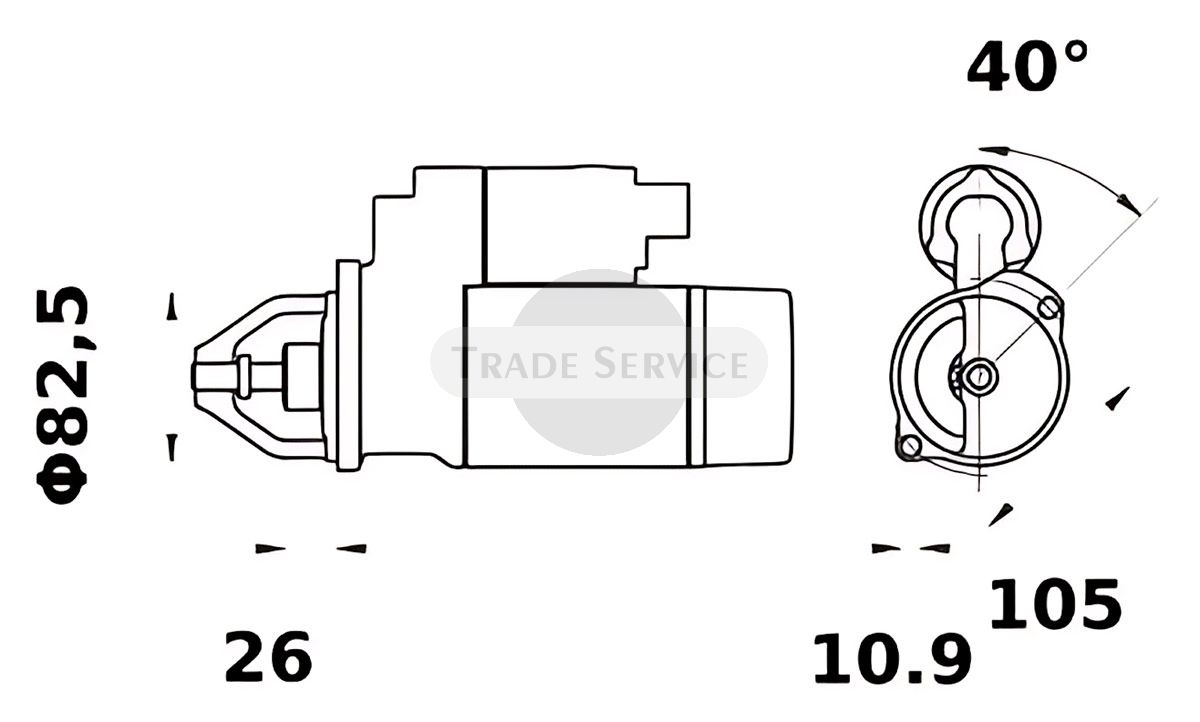

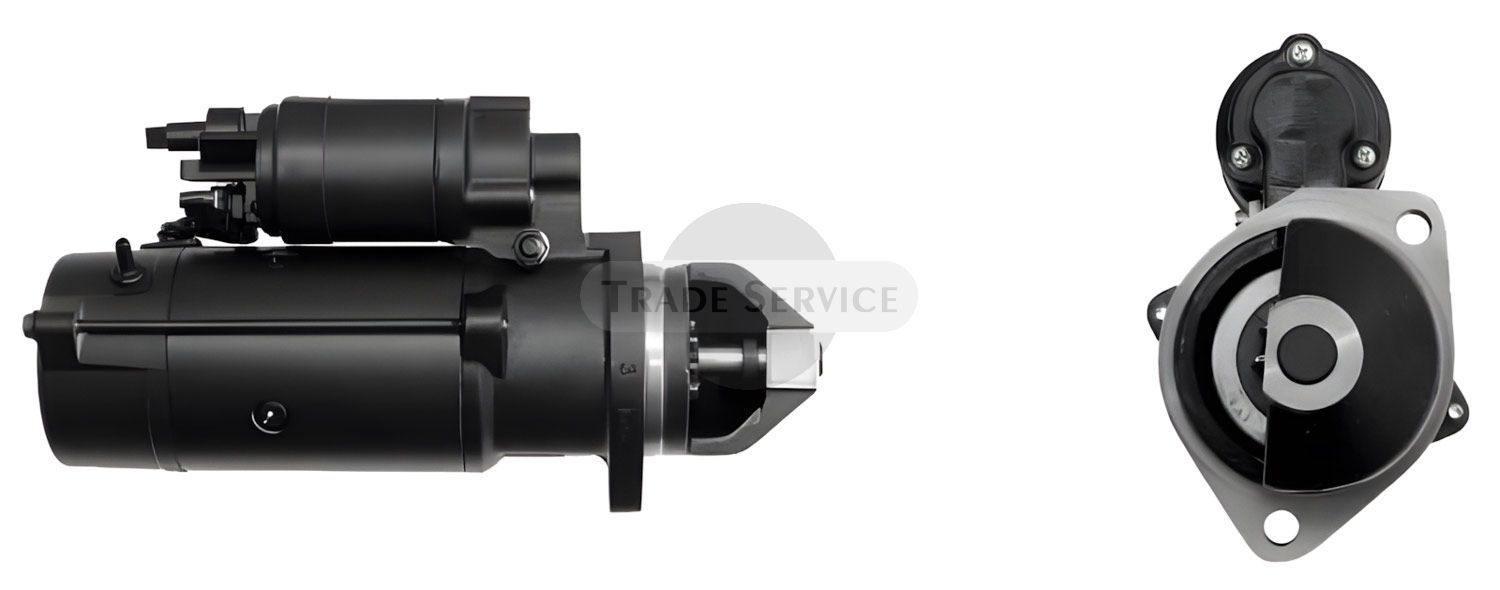

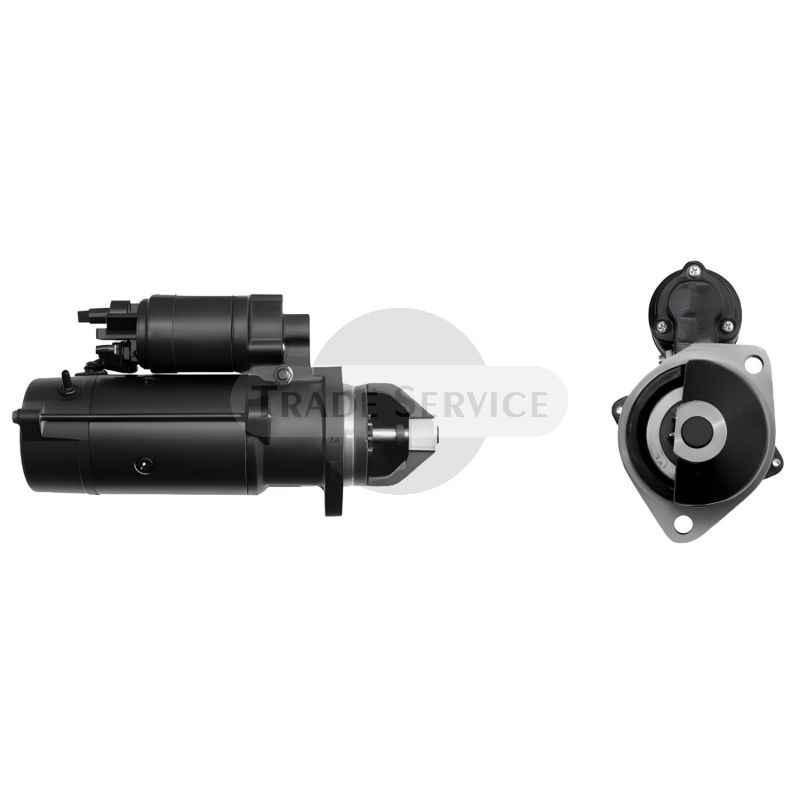

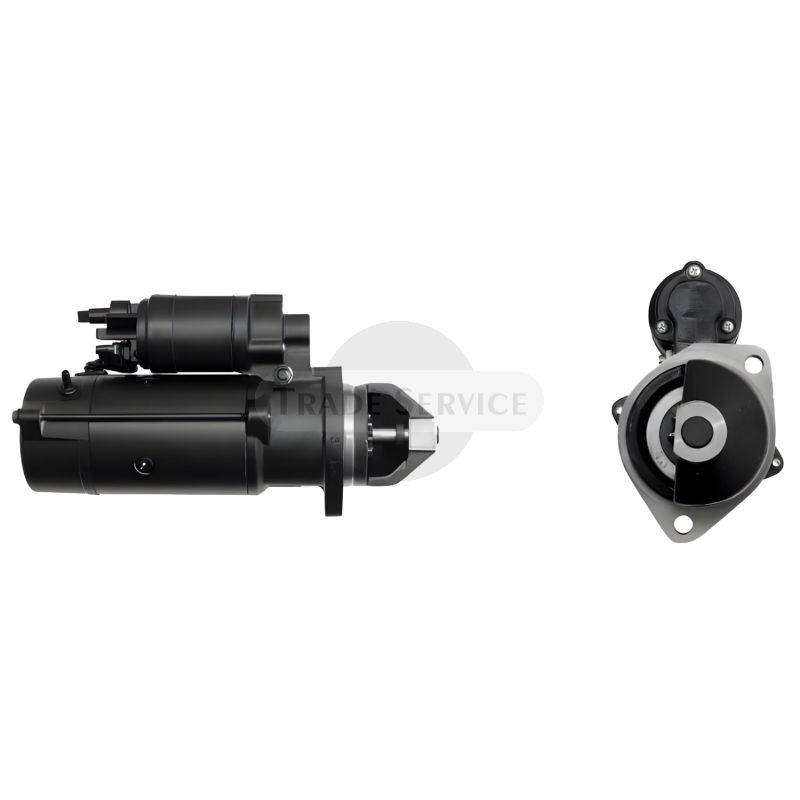

11.131.863 AZF4230 MAHLE (Letrika, Iskra) starter motor MS68
Information
This 11.131.863 AZF4230 MAHLE (Letrika, Iskra) starter motor MS68 is a reliable spare part which is widely used on AHLMANN (MECALAC), DEUTZ AG (KHD), DYNAPAC (ATLAS COPCO GROUP), VÖGELE, WIRTGEN engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH | 0001101110, 0001231018 |
|---|---|
| DEUTZ AG (KHD) | 01171750, 01181753, 01182126, 01182390, 04300286 |
| LESTER | 19724 |
| LUCAS | LRS01947 |
| MAGNETI MARELLI | 063522310180, 63522310, MSN2046 |
| MAHLE (Letrika, Iskra) | IS1236, 11131863, AZF4230, MS68, 11131607, AZF4156 |
| WIRTGEN | 179901 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AHLMANN (MECALAC) | AS | 11 | BF4M1012EC | 79kW | - |
| AHLMANN (MECALAC) | AS | 11S | BF4L1012EC | 61kW | - |
| AHLMANN (MECALAC) | AS | 14 | BF4M1012E | 61kW | - |
| AHLMANN (MECALAC) | AS | 14 | BF4M1012EC | 79kW | - |
| DEUTZ AG (KHD) | 1011 D 2011 L4W | - | - | - | - |
| DEUTZ AG (KHD) | BF4M2011 | - | - | - | - |
| DEUTZ AG (KHD) | D2011 | L4 | D2011 L4 | 4-cyl | - |
| DEUTZ AG (KHD) | TCD2011 L4 | - | 4 cyl | 3.6 | - |
| DEUTZ AG (KHD) | TD2011 | L2 | TD2011 2-cyl | - | - |
| DEUTZ AG (KHD) | TD2011 | L3 | TD2011 3-cyl | 2.3 | - |
| DEUTZ AG (KHD) | TD2011 | L4 | TD2011 4-cyl | 3.6 | - |
| DEUTZ AG (KHD) | TD2011 L4W | - | - | 3.6 | - |
| DYNAPAC (ATLAS COPCO GROUP) | PAWERS | F5CS | Deutz BF3M 2011 | 3-cyl | 39kW |
| VÖGELE | MINI AND SMALL PAVERS | SUPER 600 | BF3M2011 | 3-cyl | 46kW |
| VÖGELE | MINI AND SMALL PAVERS | SUPER 700 | TCD2011 L03 | 45kW | - |
| VÖGELE | MINI AND SMALL PAVERS | SUPER 800 | TCD2011 L03 | 45kW | - |
| VÖGELE | PAVERS ON CRAWLERS | SUPER 1100-2 | TCD2011 L04W | 4-cyl | 58kW |
| VÖGELE | PAVERS ON CRAWLERS | SUPER 1300-2 | TCD2011 L04W | 4-cyl | 75kW |
| VÖGELE | PAVERS ON WHEELS | SUPER 1103-2 | TCD2011 L04W | 4-cyl | 58kW |
| VÖGELE | PAVERS ON WHEELS | SUPER 1303-2 | TCD2011 L04W | 4-cyl | 75kW |
| WIRTGEN | COLD MILLING MACHINES | W 35 | D2011 L04 W | 43kW | Tier 2 |
| WIRTGEN | COLD MILLING MACHINES | W 35 DC | D2011 L04 W | 43kW | Tier 3 |
| WIRTGEN | COLD MILLING MACHINES | W 50 | TD2011 L04 W | 70kW | Tier 3 |
| WIRTGEN | TEXTURE CURING MACHINES | TCM 1800 | D2011 L04i | 41kW | 3.6 |
| WIRTGEN | TEXTURE CURING MACHINES | TCM 950 | D2011 L04i | 41kW | 3.6 |
More Information
| Weight (kg) | 10.476000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 4.0 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
| Notes | Dust-proof, Terminal 45, With reduction gear |
