24V 5.5kW z12 (IS1211, MS63)
Got Questions?
€803 €632
Available in 1-2 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

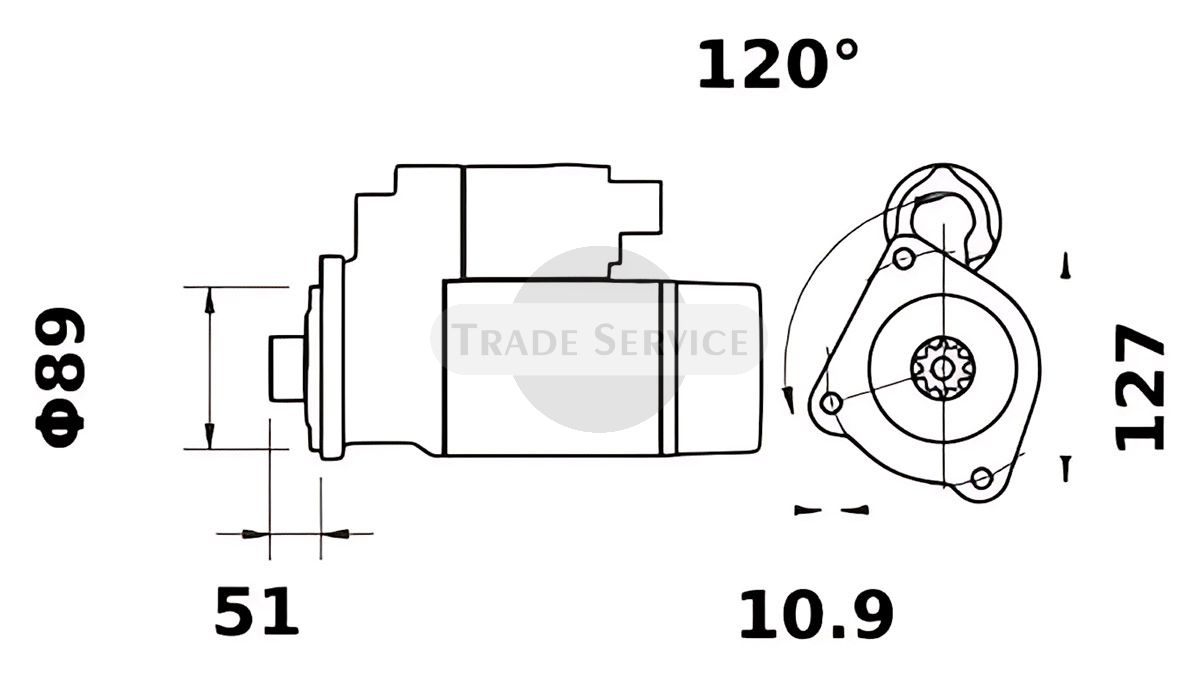

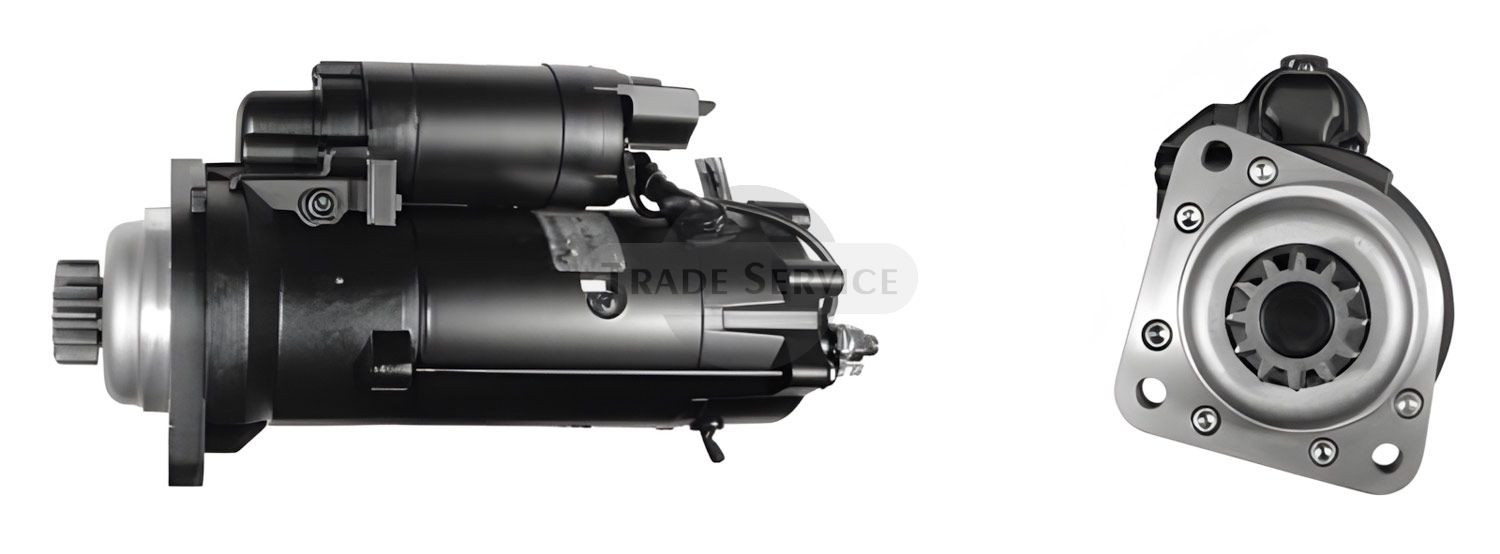

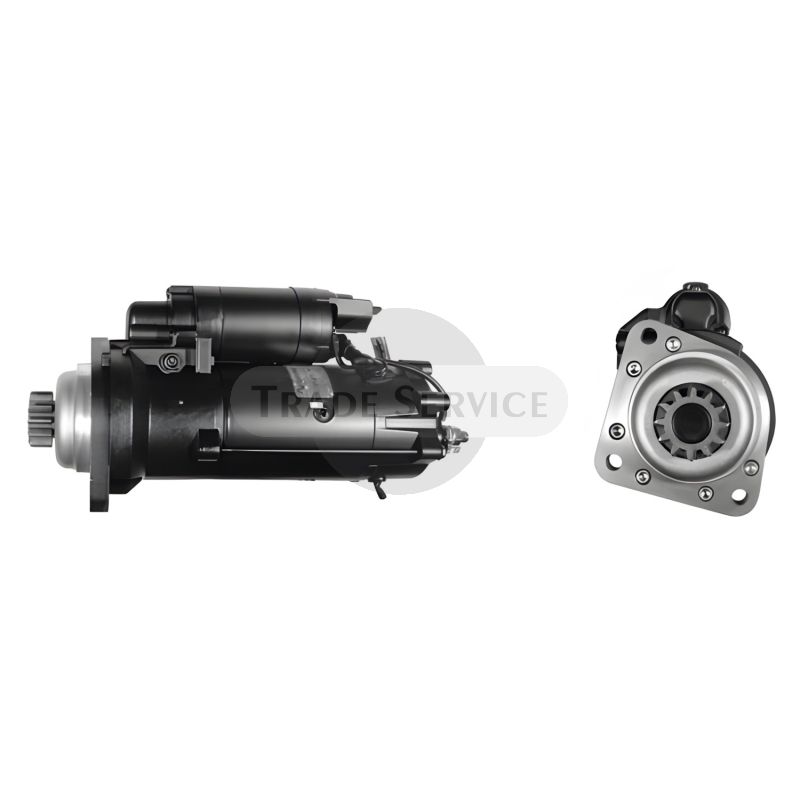

11.131.871 AZF4698 MAHLE (Letrika, Iskra) starter motor MS63
Information
This 11.131.871 AZF4698 MAHLE (Letrika, Iskra) starter motor MS63 is a reliable spare part which is widely used on BOMAG, DEUTZ AG (KHD), DEUTZ-FAHR (SAME DEUTZ-FAHR GR.), MATROT, PRINOTH, SENNEBOGEN, WIRTGEN engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| DEUTZ AG (KHD) | 01183035 |
|---|---|
| MAHLE (Letrika, Iskra) | IS1211, 11131871, AZF4698, MS63, 11131609, AZF4657 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| BOMAG | ASPHALT RECYCLER | MPH 122-2 | TCD2015 V06 4V | 360kW | Tier 3 |
| BOMAG | ASPHALT RECYCLER | MPH 125 | TCD2015 | 440kW | 15.9 |
| BOMAG | ASPHALT RECYCLER | MPH 600 | TCD 2015 | 440kW | 15.9 |
| BOMAG | ASPHALT RECYCLER | MPH 600 | TCD16.0 | 440kW. Tier 4i | 15.9 |
| BOMAG | COMPACTORS | BC 772 EB-2 | TCD2015 V06 4V | 330kW | Tier 3 |
| DEUTZ AG (KHD) | BF8M1015 | - | - | 15.9 | - |
| DEUTZ AG (KHD) | BFM1015 M | - | - | 15.9 | - |
| DEUTZ AG (KHD) | TCD 12.0 V6 | - | 6-Cyl. | 11.9 | - |
| DEUTZ AG (KHD) | TCD2015 V06 | - | 6-Cyl. 4-Valve | 11.9 | - |
| DEUTZ AG (KHD) | TCD2015 V08 | - | - | - | - |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | COMBINES 7000 | 7545RTS | Deutz TCD2015 V6 | 331kW | 11.9 |
| MATROT | SUGAR BEET HARVSTER | M41H | BF6M1015 | 260kW | 11.9 |
| MATROT | SUGAR BEET HARVSTER | M41H | TCD2015 | 260kW | Tier 4 |
| PRINOTH | RT 400 | RT 400 | TCD 2015. 6cyl. 300kW | 11.9 | - |
| SENNEBOGEN | TELESCOPIC/MULTIHANDLER | 870 M | TCD2015 V06 4V | 300kW | 11.9 |
| SENNEBOGEN | TELESCOPIC/MULTIHANDLER | 870 R | TCD2015 V06 4V | 300kW | 11.9 |
| WIRTGEN | DINTING MACHINES | SF 2600i | TCD12.0 V6 | 273kW | Tier 4 |
| WIRTGEN | HOT RECYCLERS | REMIXER RX 4500 | TCD2015 V06 4V | 240kW | Tier 4 |
More Information
| Weight (kg) | 10.917000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.5 kW |
| Pinion teeth | 12 |
| Rotation direction | CW |
| Notes | Insulated ground, Noseless version of starter, Off set drive end bracket, Oil sealed, Soft start relay, Terminal 85, With reduction gear |
