24V 4.0kW z11 (IS1106, MS5)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

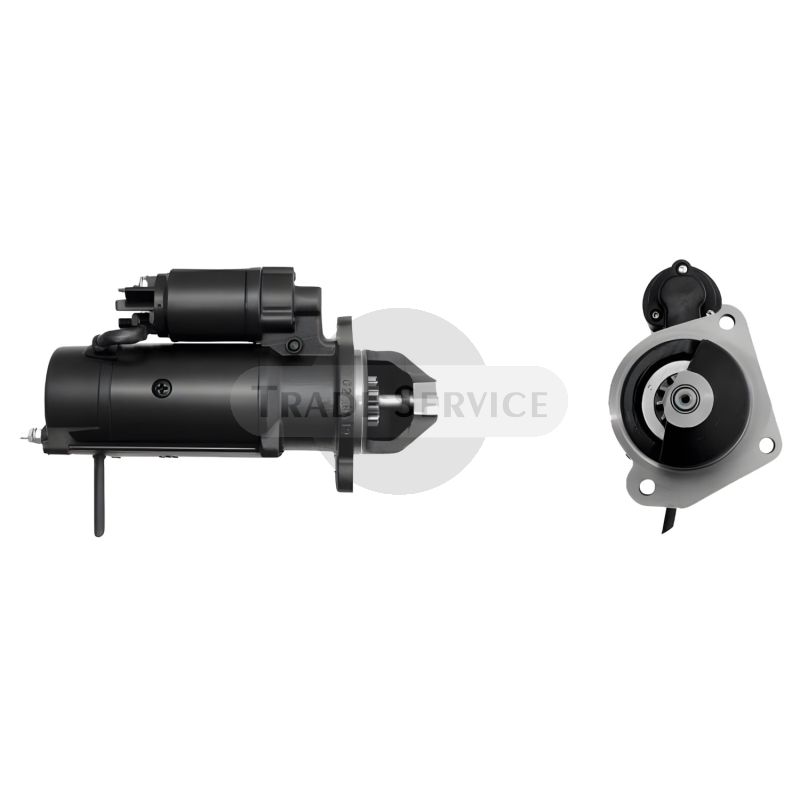

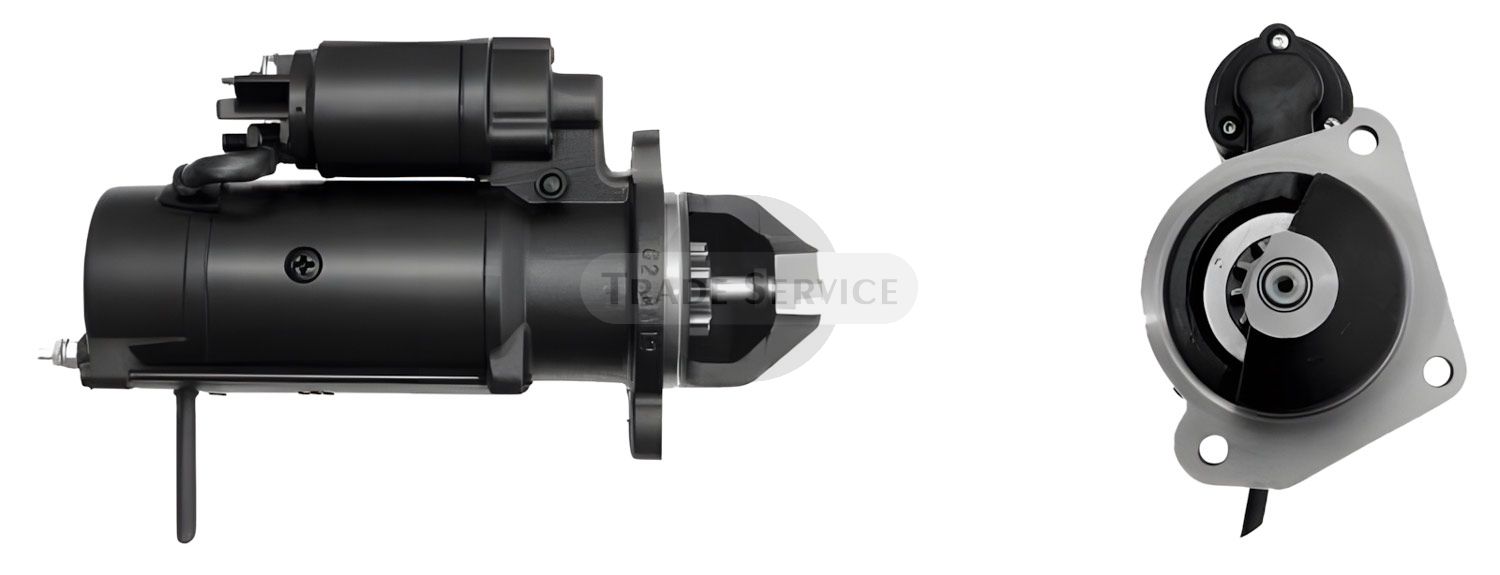

11.131.995 AZF4267 MAHLE (Letrika, Iskra) starter motor MS5
Information
This 11.131.995 AZF4267 MAHLE (Letrika, Iskra) starter motor MS5 is a reliable spare part which is widely used on GEAX, JCB engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| CARGO | 115766 |
|---|---|
| JCB | 32009023, 32009033, 32009347, 32009453, 320A9080 |
| MAHLE (Letrika, Iskra) | IS1106, 11132230, AZF4338, 11131995, AZF4267, MS5, 11131849, AZF4225, 11131805, AZF4211, 11131303, AZF4579 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| GEAX | DTC80 | JCB JS160NLC | JCB 444. 93kW. tier 4i | 4.4 | - |
| GEAX | EK110CFA | JCB JS210LC | JCB 448. 126kW. tier 4i | 4.8 | - |
| GEAX | EK110P | JCB JS210LC | JCB 448. 126kW. tier 4i | 4.8 | - |
| GEAX | EK60CFA | JCB JS130NLC | JCB 444. 81kW. tier 4i | 4.4 | - |
| GEAX | EK60D | JCB JS130NL/NLC | JCB 444. 81kW. tier 4i | 4.4 | - |
| GEAX | EK60P | JCB JS130NL/NLC | JCB 444. 81kW. tier 4i | 4.4 | - |
| GEAX | EK90CFA | JCB JS160NLC | JCB 444. 93kW. tier 4i | 4.4 | - |
| GEAX | EK90D | JCB JS160NLC | JCB 444. 93kW. tier 4i | 4.4 | - |
| GEAX | EK90P | JCB JS160NLC | JCB 444. 93kW. tier 4i | 4.4 | - |
| JCB | DIESELMAX | NA.TC.TCA | Ind. EPA Tier 2/Stage 2 | 4.4 | - |
| JCB | DIESELMAX | NA.TC.TCA | Power Generation | 4.4 | - |
| JCB | DIESELMAX | TC.TCA | Ind. EPA Tier 3/Stage 3A | 4.4 | - |
| JCB | DIESELMAX | TCA | Stage 3A; 100-120HP | 4.8 | - |
| JCB | ECOMAX | TCAE | Tier 4. 74-125HP | 4.4 | - |
| JCB | ECOMAX | TCAE | Tier 4; 145-173HP | 4.8 | - |
| JCB | EXCAVATORS | JS130NL/NLC | JCB 444. 81kW. tier 4i | 4.4 | - |
| JCB | EXCAVATORS | JS210LC | JCB 448. 126kW. tier 4i | 4.8 | - |
| JCB | EXCAVATORS | JS220 | JCB Exomax; 129kW | - | |
| JCB | EXCAVATORS | JS235 | JCB Exomax; 129kW | - |
More Information
| Weight (kg) | 10.796000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 4.0 kW |
| Pinion teeth | 11 |
| Rotation direction | CW |
| Notes | Mass terminal 31, With reduction gear |
