12V 3.2kW z9 (IS1386, MS207)
Got Questions?
€322
Available in 1-2 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
from external warehouse
from external warehouse
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST
Note: only Business (B2B) customers are served via this website.

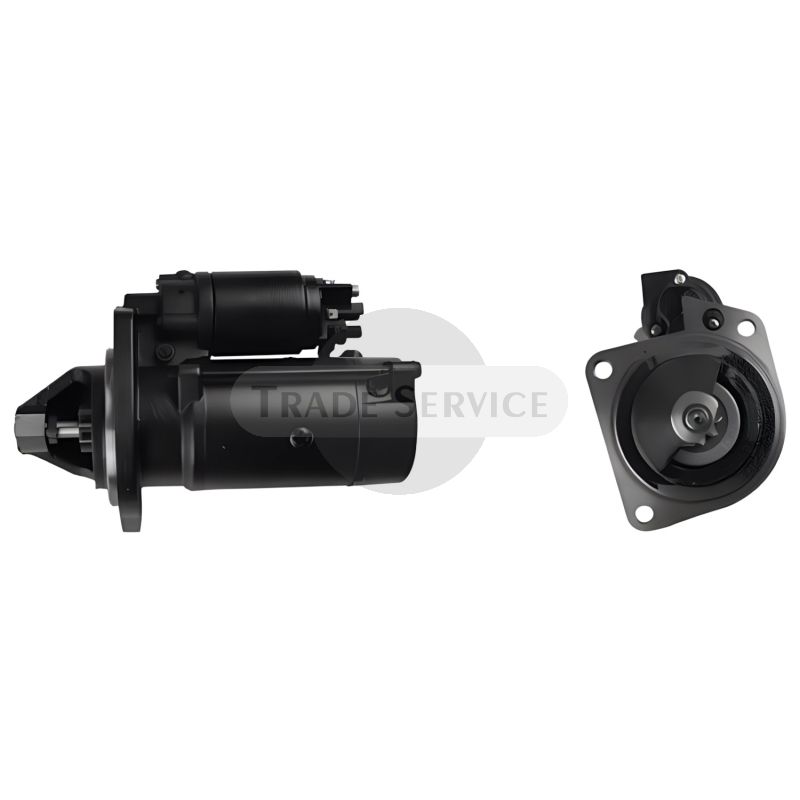

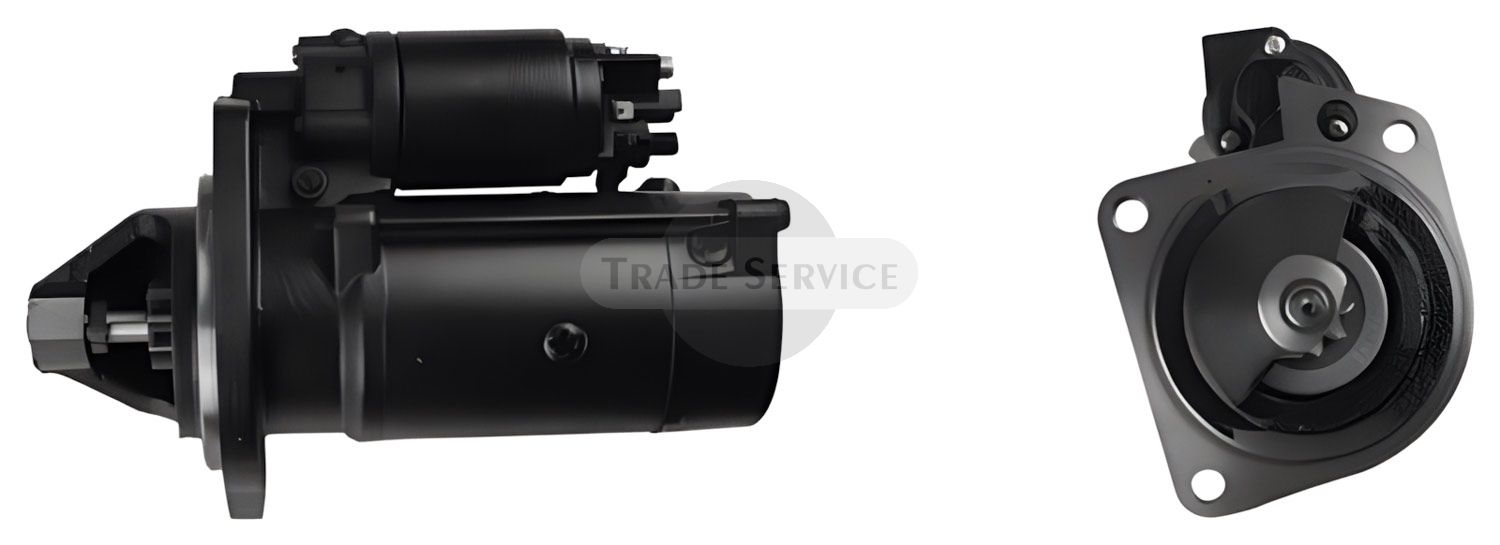

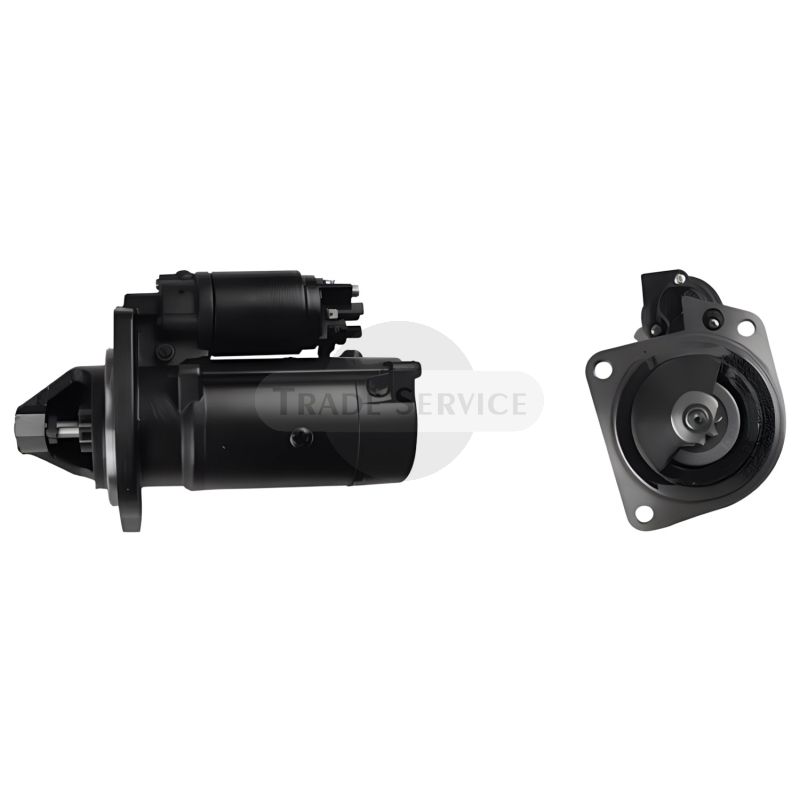

11.132.156 AZE4241 MAHLE (Letrika, Iskra) starter motor MS207
Information
This 11.132.156 AZE4241 MAHLE (Letrika, Iskra) starter motor MS207 is a reliable spare part which is widely used on AGRIFULL, AIFO, BENFRA, CASE, FIAT, FIAT-ALLIS, FIAT-OM-CARELLI-ELEVATORI, IVECO, LAVERDA (FIATAGRI), NEW HOLLAND ITALIA, VM MOTORI, WHITE engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH (USA) | SR914X |
|---|---|
| BOSCH | 0001359021, 0001359102, 0001367028, 0001367082, 0986011220, 0986011221 |
| CNH / FIAT AGRI | 87376493 |
| EFEL | 11370 |
| FIAT NEW HOLLAND | 4169093, 4692478, 4702248, 4832942 |
| FIAT | 2022506, 4699705, 4737755, 4755109, 4763996, 4807375, 88205006, 9972215 |
| HELLA | 8EA726032001, CS240 |
| IVECO | 500333271, 504059251 |
| LANCIA | 2022507, 4699705, 88205006 |
| LESTER | 16659, 17111, 18029 |
| LUCAS | LRS00847 |
| MAGNETI MARELLI | 30380301, 63213815, 63216825, 63216826, 63216827, 63216831, 63296865, 943216831, MSN219, MT38QA, MT38TB, MT68A, MT68AA, MT68AB, MT68AC, MT68AD |
| MAHLE (Letrika, Iskra) | IS1386, 11132156, AZE4241, MS207 |
| PRESTOLITE | 20500847 |
| TUMOSAN | 7151387 |
| VALEO | 436073, 458297 |
| WILSON | 91157010 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AGRIFULL | 65 | 8045.06.320 | 3.6 | 1985.03-1989.12 | |
| AGRIFULL | 65 | DT | 8045.06.220 | 3.6 | 1985.03- |
| AGRIFULL | 65 | LM | 8045.06.321 | 3.6 | 1990.01- |
| AGRIFULL | 670 | Fiat-8045.02.378 | 3.5 | 1980.09-1984.12 | |
| AGRIFULL | 70 | 8045.06.206 | 3.6 | 1984.10- | |
| AGRIFULL | 70 | 8045.06.307 | 3.6 | 1990.01- | |
| AGRIFULL | 70 | .86F.V | 8045.06.208.309 | 3.6 | 1992.09- |
| AGRIFULL | 70 | C | 8045.06.306 | 3.6 | 1985.03-1989.12 |
| AGRIFULL | 70 | C | 8045.06.307 | 3.6 | 1990.01- |
| AGRIFULL | 70 | C-L | 8045.06.206 | 3.6 | 1985.03- |
| AGRIFULL | 70 | DT Frutteto | 8045.06.208 | 3.6 | 1985.03- |
| AGRIFULL | 70 | Frutteto | 8045.06.308 | 3.6 | 1985.03-1989.12 |
| AGRIFULL | 70 | Frutteto | 8045.06.309 | 3.6 | 1990.01- |
| AGRIFULL | 80 | 8045.05.206.306 | 3.9 | 1984.10-1989.12 | |
| AGRIFULL | 80 | 8045.05.207.307 | 3.9 | 1990.01- | |
| AGRIFULL | 80 | .66 | 8045.02.276 | 3.5 | 1984.03-1984.12 |
| AGRIFULL | 80 | .70C | Fiat-8045.02.211 | 3.5 | 1980.09-1983.03 |
| AGRIFULL | 80 | .70F | Fiat-8045.02.278 | 3.5 | 1980.09-1984.12 |
| AGRIFULL | 80 | .76 | 8045.04.276 | 3.7 | 1984.03-1984.12 |
| AGRIFULL | 80 | C | 8045.05.206.306 | 3.9 | 1985.03-1989.12 |
| AGRIFULL | 80 | C | 8045.05.207.307 | 3.9 | 1990.01- |
| AGRIFULL | 80 | DTF | 8045.05.308 | 3.9 | 1986.09-1989.12 |
| AGRIFULL | 80 | DTF | 8045.05.309 | 3.9 | 1990.01- |
| AGRIFULL | 80 | F | 8045.05.208 | 3.9 | 1986.09-1989.12 |
| AGRIFULL | 80 | F | 8045.05.209 | 3.9 | 1990.01- |
| AGRIFULL | 82 | .86F | 8045.05.208.309 | 3.9 | 1992.06- |
| AGRIFULL | A | 70LM | 8045.06.206.307 | 3.6 | 1990.01- |
| AIFO | 8031 | .04.300 | 2.8 | 1979.06-1983.06 | |
| AIFO | 8041 | .04.200 | 3.7 | 1980.03-1980.12 | |
| AIFO | 8041 | .04.300 | 3.7 | 1979.06-1983.06 | |
| AIFO | 8060 | .02.800 | 5.2 | 1973.06-1981.10 | |
| AIFO | 8060 | .02.811 | 5.2 | 1973.06-1980.12 | |
| AIFO | 8061 | .04.000 | 5.5 | 1979.06-1983.06 | |
| AIFO | 8061 | .04.050 | 5.5 | 1979.06-1983.06 | |
| AIFO | 8061 | .04.051 | 5.5 | 1981.09-1983.06 | |
| AIFO | 8061 | .04.060 | 5.5 | 1978.06-1983.06 | |
| AIFO | 8061 | .04.061 | 5.5 | 1981.09-1983.06 | |
| AIFO | 8065 | .02.000 | 5.2 | 1973.06-1980.12 | |
| BENFRA | 1.45 | Aifo-8041SI25 | 3.9 | 1989.06- | |
| BENFRA | 215 | I | Aifo-8031I002 | 2.8 | 1979.01-1985.06 |
| BENFRA | 4.11 | Aifo-8041SI25 | 3.9 | 1989.01- | |
| BENFRA | 7.07 | Aifo-8041SI25 | 3.9 | 1989.01-1991.04 | |
| BENFRA | 9.09 | CH | Aifo-8061SI25 | 5.9 | 1985.10-1991.04 |
| BENFRA | 9.10 | CH | Aifo-8061SI25 | 5.9 | 1985.02-1991.04 |
| CASE | JX | 1095 C/N/U | NEF | 2005.10- | |
| FIAT | 65 | 90 | 8045.06.225 | 3.6 | 1987.09-1992.12 |
| FIAT | 66 | .80S | 8045.05.000; 80HP | 3.9 | 1992.01-1996.12 |
| FIAT | 780 | DT | 8045.04.270 | 3.7 | 1975.01-1984.02 |
| FIAT | L | L85 | 8045.25.210; 310; 85HP | 3.9 | 1996.03-1998.12 |
| FIAT | L | L95 | 8045.25.380; 382; 95HP | 3.9 | 1996.03-1998.12 |
| FIAT | TL | TL90 | 8045.25.375; 90HP | 3.9 | 1998.03-2004.12 |
| FIAT-ALLIS | 545 | B | 8061.I000Alles.009 | 5.5 | 1981.09-1982.12 |
| FIAT-ALLIS | FG | 65A | 8041.04.300 | 3.7 | 1984.03-1988.01 |
| FIAT-ALLIS | FL | 4C | 8035.02.261 | 2.6 | 1970.11-1978.07 |
| FIAT-ALLIS | FL | 4C | 8035.02.361 | 2.6 | 1970.11-1978.07 |
| FIAT-ALLIS | FL | 4D | 8035.02.365 | 2.6 | 1970.11-1978.07 |
| FIAT-OM-CARELLI-ELEVATORI | DI | 20C | 8035.05.359 | 2.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 25C | 8035.05.359 | 2.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 30C | 8035.05.359 | 2.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 30CH | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 35C | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 40C | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 45C | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 50CH | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 60C | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 70C | 8055.05.250 | 4.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 80C | 8055.05.250 | 4.9 | 1990.12- |
| IVECO | AIFO-8031 | 04.300 | 2.8 | 1983.06-1984.12 | |
| IVECO | AIFO-8031 | 05.300 | 2.9 | 1985.01-1989.12 | |
| IVECO | AIFO-8031 | I 05.00 | 2.9 | 1990.01- | |
| IVECO | AIFO-8041 | 04.300 | 3.7 | 1983.06-1984.12 | |
| IVECO | AIFO-8041 | 05.260 | 3.9 | 1986.06-1988.09 | |
| IVECO | AIFO-8041 | 05.300 | 3.9 | 1985.01-1989.12 | |
| IVECO | AIFO-8041 | I 05.00 | 3.9 | 1990.01- | |
| IVECO | AIFO-8041 | I 05.50 | 3.9 | 1990.01- | |
| IVECO | AIFO-8041 | SI 25.00 | 3.9 | 1990.01- | |
| IVECO | AIFO-8051 | 04.100 | 4.6 | 1984.01-1984.12 | |
| IVECO | AIFO-8051 | 05.200 | 4.9 | 1985.01-1989.12 | |
| IVECO | AIFO-8051 | I 05.00 | 4.9 | 1990.01- | |
| IVECO | AIFO-8061 | 04.000 | 5.5 | 1983.06-1984.12 | |
| IVECO | AIFO-8061 | 04.001 | 5.5 | 1984.01-1984.12 | |
| IVECO | AIFO-8061 | 04.060 | 5.5 | 1983.06-1984.12 | |
| IVECO | AIFO-8061 | 04.061 | 5.5 | 1983.06-1983.07 | |
| IVECO | AIFO-8061 | 05.000 | 5.9 | 1985.01-1989.12 | |
| IVECO | AIFO-8061 | 05.260 | 5.9 | 1990.01- | |
| IVECO | AIFO-8061 | 05.260 | 5.9 | 1986.06-1988.09 | |
| IVECO | AIFO-8061 | 05.300 I 25 | 5.9 | 1986.01-1989.12 | |
| IVECO | AIFO-8061 | 24.000 | 5.5 | 1984.01-1985.12 | |
| IVECO | AIFO-8061 | 25.000 | 5.9 | 1986.01- | |
| IVECO | AIFO-8061 | 25.010 | 5.9 | 1985.01- | |
| IVECO | AIFO-8061 | I 05.00 | 5.9 | 1990.01- | |
| IVECO | AIFO-8061 | I 25.00 | 5.9 | 1990.01- | |
| IVECO | AIFO-8061 | SI 35.05 | 5.9 | 1991.12- | |
| IVECO | AIFO-8061 | SRI 25.00 | 5.9 | 1989.10- | |
| IVECO | DI | 20C. 25C. 30C | 8035.05.359 | 2.9 | 1986.02-1990.12 |
| LAVERDA (FIATAGRI) | 3300 | 8051.04.100 | 4.6 | 1983.01-1986.12 | |
| LAVERDA (FIATAGRI) | 3300 | AL | 8051I005 | 4.9 | 1983.04- |
| LAVERDA (FIATAGRI) | 3350 | 8065I | 5.2 | 1983.01-1986.06 | |
| LAVERDA (FIATAGRI) | 3350 | AL | 8061SI | 5.5 | 1983.01-1986.12 |
| LAVERDA (FIATAGRI) | 3400 | 8061I005 | 5.9 | 1986.05- | |
| LAVERDA (FIATAGRI) | 3450 | 8065I | 5.2 | 1983.01-1984.12 | |
| LAVERDA (FIATAGRI) | 3500 | 8061I05 | 5.5 | 1985.01- | |
| LAVERDA (FIATAGRI) | 3550 | 8061SI05 | 5.9 | 1985.03- | |
| LAVERDA (FIATAGRI) | 3600 | 8061SI | 5.5 | 1983.01-1986.06 | |
| LAVERDA (FIATAGRI) | 3650 | 8061I05 | 5.9 | 1985.06- | |
| LAVERDA (FIATAGRI) | 3750 | 8061SI25 | 5.5 | 1985.06- | |
| NEW HOLLAND ITALIA | 3500 | 8061I05 | 5.5 | 1985.03- | |
| NEW HOLLAND ITALIA | 3550 | 8061SI05 | 5.9 | 1985.03- | |
| NEW HOLLAND ITALIA | 3750 | 8061SI25 | 5.9 | 1985.06- | |
| NEW HOLLAND ITALIA | 517 | H | 8061SI35 | 5.9 | 2039.02- |
| NEW HOLLAND ITALIA | 517 | I | 8061SI35 | 5.9 | 2039.02- |
| NEW HOLLAND ITALIA | 517 | M | 8061SI35 | 5.9 | 2039.02- |
| NEW HOLLAND ITALIA | 65 | 56 | 8045.06.220.321 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 65 | 66 | 8045.06.220.321 | 3.6 | 1987.06- |
| NEW HOLLAND ITALIA | 65 | 88 | 8045.06.319 | 3.6 | 1989.11- |
| NEW HOLLAND ITALIA | 65 | 90 | 8045.06.225 | 3.6 | 1987.09- |
| NEW HOLLAND ITALIA | 70 | 56 | 8045.06.206 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 56 | 8045.06.307 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 66 | 8045.06.206 | 3.6 | 1984.09- |
| NEW HOLLAND ITALIA | 70 | 66DT.LP | 8045.06.307 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 66F.DT.LP | 8045.06.208.309 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 75 | 8045.06.206.307 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 76V | 8045.06.208 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 76V | 8045.06.309 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 86F.V | 8045.06.208.309 | 3.6 | 1992.09- |
| NEW HOLLAND ITALIA | 70 | 88 | 8045.06.317 | 3.6 | 1989.11- |
| NEW HOLLAND ITALIA | 70 | 90 | 8045.06.200 | 3.6 | 1984.03- |
| NEW HOLLAND ITALIA | 80 | 88 | 8045.05.216.317 | 3.9 | 1989.11- |
| NEW HOLLAND ITALIA | 82 | 86F | 8045.05.208.309 | 3.9 | 1992.06- |
| NEW HOLLAND ITALIA | L | 517H.I.M | 8061SI35 | 5.9 | 1992.03- |
| VM MOTORI | HR | 329SHTR | 1.8 | 1986.01- | |
| WHITE | TRACTORS | 2-50 | Fiat Engine | 1976.01-1980.01 | |
| WHITE | TRACTORS | 2-60 | 4-211 | 1976.01-1984.01 |
More Information
| Weight (kg) | 9.300000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.2 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
