12V 3.2kW z10 (IS1394, MS205)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

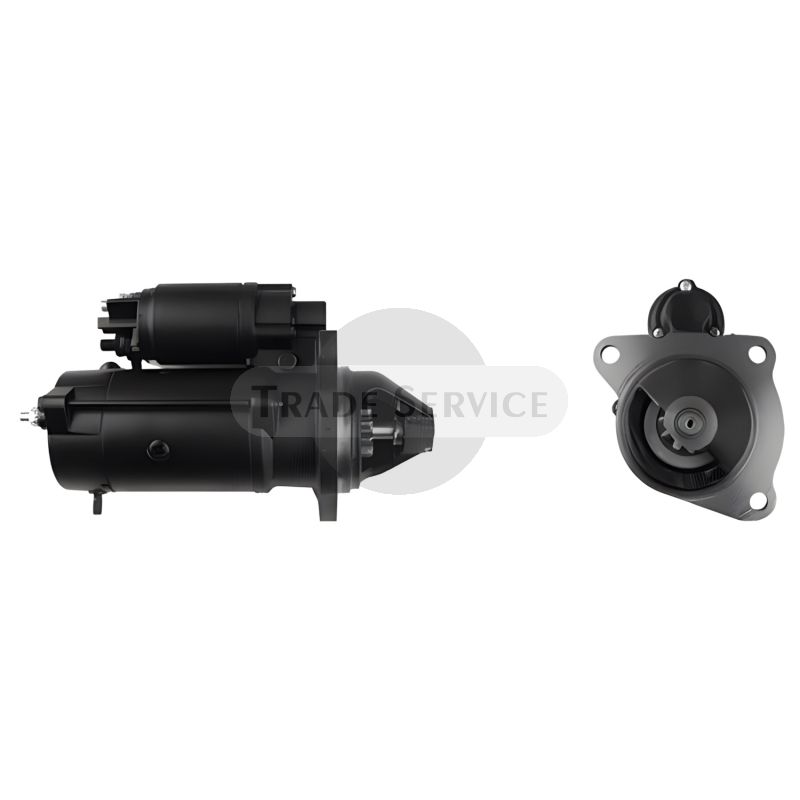

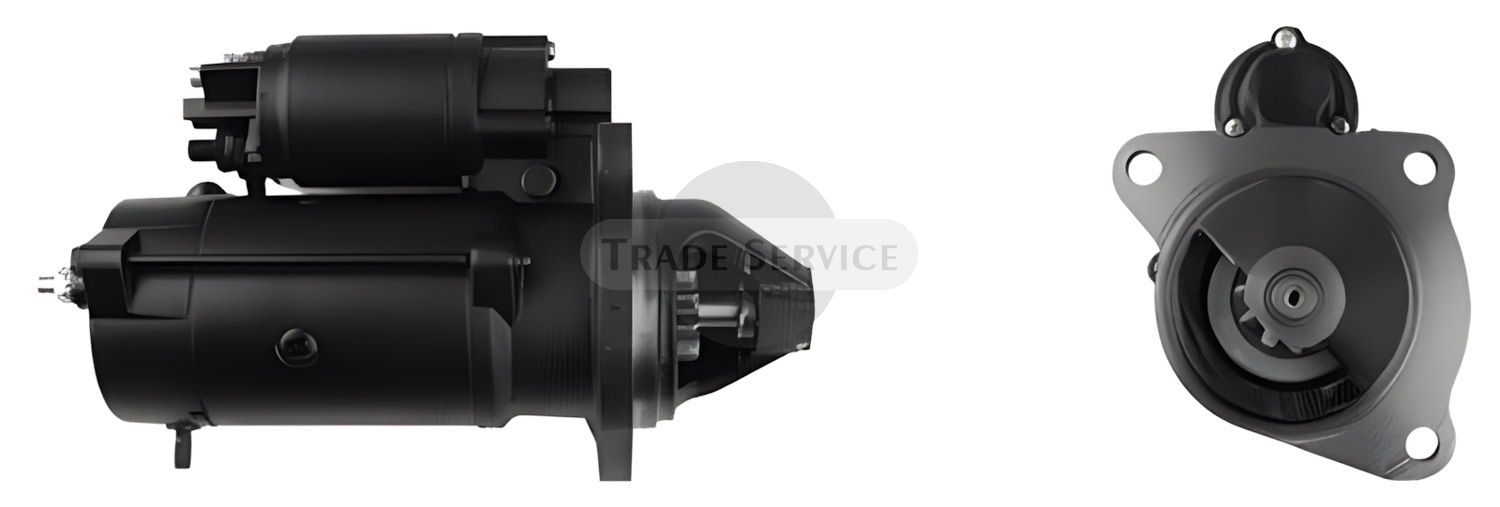

11.132.166 AZE4248 MAHLE (Letrika, Iskra) starter motor MS205
Similar products
We found other products you might like!
-
11.130.408 AZJ3114 MAHLE (Letrika, Iskra) starter motor12V 3.0kW z10 (IS0408)
Information
This 11.132.166 AZE4248 MAHLE (Letrika, Iskra) starter motor MS205 is a reliable spare part which is widely used on IMR, IMT, PERKINS, STORE, TAFE, TAM, URSUS engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| HELLA | 8EA725965001, CS109 |
|---|---|
| IMR | 702130, 815969 |
| LESTER | 19658 |
| LUCAS | 27432 |
| MAHLE (Letrika, Iskra) | IS1394, 11132166, AZE4248, MS205, 11130408, AZJ3114, 11130194, AZJ3531, 11130074, AZJ0404, 10130141, AZK5111 |
| PERKINS | 2873A104 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| IMR | DM34 | T | - | - | - |
| IMR | M33 | - | - | - | - |
| IMR | M34 | B | - | - | - |
| IMR | M34 | I | - | - | - |
| IMR | M34 | T | - | - | - |
| IMR | M34 | V | - | - | - |
| IMR | R120 | - | - | - | - |
| IMR | R60 | - | - | - | - |
| IMR | R65 | - | - | - | - |
| IMR | S46 | B | - | - | - |
| IMR | S46 | T | - | - | - |
| IMR | T6.354.4 | - | - | - | - |
| IMR | TS46 | B | - | - | - |
| IMR | TS46 | T | - | - | - |
| IMT | 539 SERIE | 539 | M 33/T | 2.5 | 1980.01-1998.12 |
| IMT | 539 SERIE | 539.2 DI | Simpsons S325 | 35kW | T II |
| IMT | 539 SERIE | 539.3 DI | Simpsons S325 | 35kW | T III |
| IMT | 540 SERIE | 540 | M 33/T | 2.5 | 1975.01-1986.12 |
| IMT | 558 | - | M 34/T | 3.3 | 1963.01- |
| IMT | 560 | - | M 34/T | 3.3 | 1975.01- |
| IMT | 561 | - | - | - | - |
| PERKINS | 33 | - | - | - | - |
| PERKINS | 34 | - | - | - | - |
| STORE | 502.504 | IMR engine | - | - | - |
| TAFE | SERIES 2 | 241 DI | Simpsons S325 | 32kW | T III |
| TAFE | SERIES 4 | 42DI-2WD | Simpsons S325 | 35kW | 2.5 |
| TAFE | SERIES 5 | 5450 DI | Simpsons S327 | 40kW | T III |
| TAFE | SERIES 5 | 5900 DI-4WD | Simpsons S325 | 45kW | T III |
| TAFE | SERIES 6 | 6015-4WD | Simpsons S433 | 45kW | TIII |
| TAFE | SERIES 6 | 6530DI-4WD | Simpsons SJ436E | 46.5kW | EUII |
| TAM | TAM-2001 | - | - | - | - |
| URSUS | 2802 | - | 3250/AD3.152VR | 35kW | 2.5 |
| URSUS | 2812 | - | 3250/AD3.152VR | - | - |
| URSUS | 3512/3514 | - | 3250/AD3.152VR | - | - |
| URSUS | C SERIE | C 360-P | AD3.151VR | - | - |
| URSUS | MF235/255 | - | 3250/AD3.152VR | - | - |
More Information
| Weight (kg) | 9.185000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.2 kW |
| Pinion teeth | 10 |
| Rotation direction | N/A |
| Notes | Mass terminal 31, Off set drive end bracket, With reduction gear |
Spare Parts
-
-
-
-
-
-
-
-
- 16917348
-
-
-
