24V 5.5kW z10 (IS1294, MS147)
Got Questions?
€989 €779
Available in 1-2 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

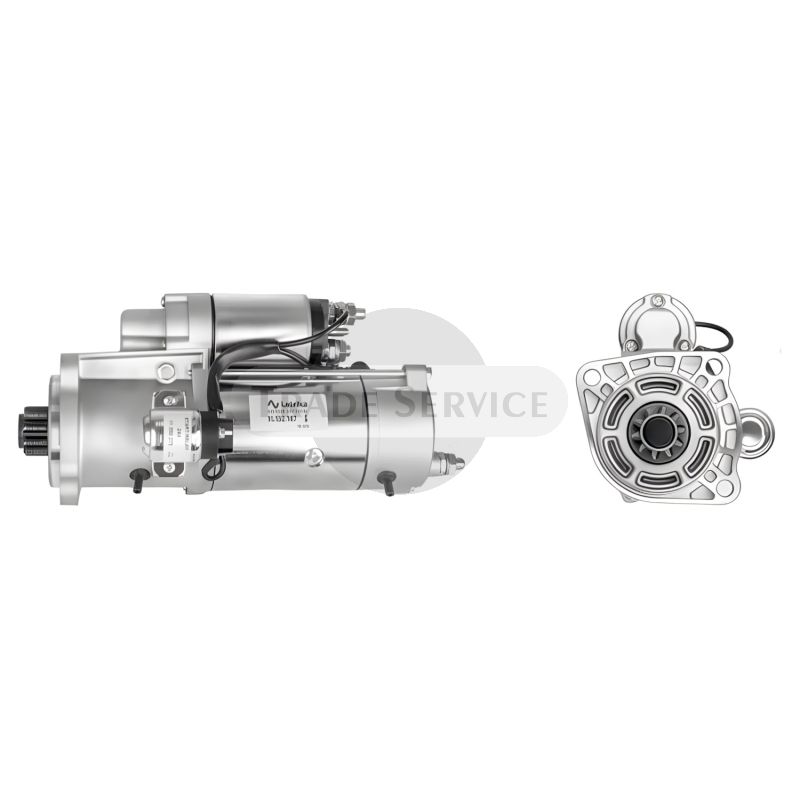

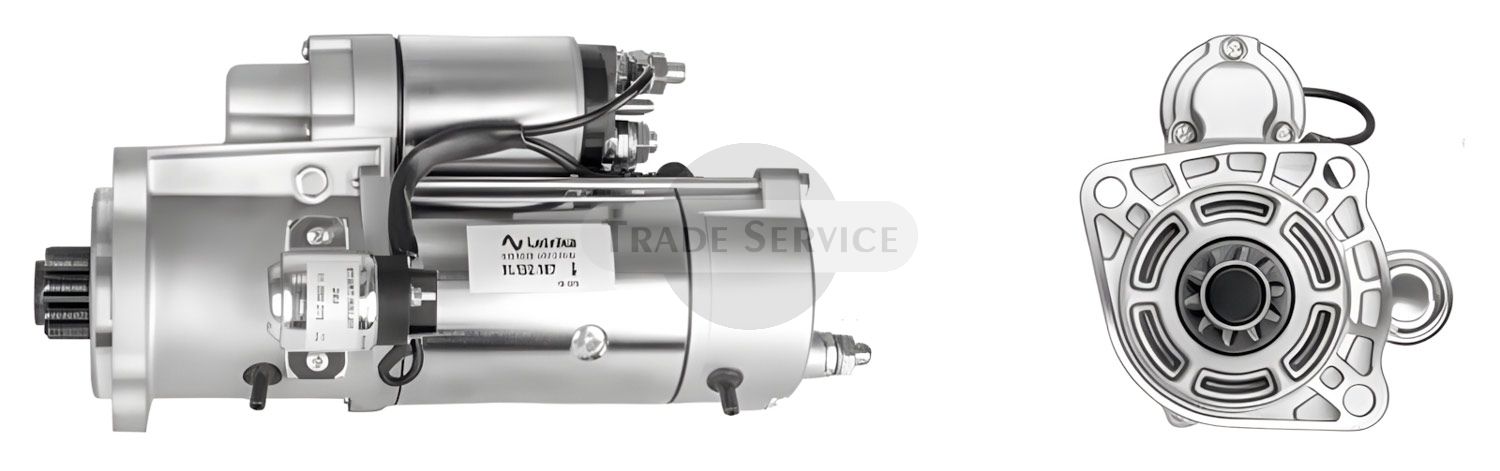

11.132.187 AZF4839 MAHLE (Letrika, Iskra) starter motor MS147
Information
This 11.132.187 AZF4839 MAHLE (Letrika, Iskra) starter motor MS147 is a reliable spare part which is widely used on CATERPILLAR engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| MAHLE (Letrika, Iskra) | IS1294, 11132187, AZF4839, MS147, 11131899, AZF4699 |
|---|---|
| PERKINS | 3218968, 3826587, T411409 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| CATERPILLAR | ENGINES | 4.4 T/TA/TTA ACERT | 4-cyl | 61-130HP | Tier 4 |
| CATERPILLAR | ENGINES | 7.1 TA ACERT | 6-1cyl | 188-302HP | Teir 4 |
| CATERPILLAR | VIBRATORY SOIL COMPACTORS | CP56B | CAT C4.4 ACERT | 157HP. Tier 4 | 4.4 |
| CATERPILLAR | VIBRATORY SOIL COMPACTORS | CS45B | CP45B | CAT C4.4 ACERT. 131HP. Tier 4 | 4.4 |
| CATERPILLAR | VIBRATORY SOIL COMPACTORS | CS64B | CAT C4.4 ACERT | 131HP. Tier 4 | 4.4 |
| CATERPILLAR | VIBRATORY SOIL COMPACTORS | CS66B | CAT C4.4 ACERT | 157HP. Tier 4 | 4.4 |
| CATERPILLAR | VIBRATORY SOIL COMPACTORS | CS68B. CP68B | CAT C4.4 ACERT | 157HP. Tier 4 | 4.4 |
| CATERPILLAR | VIBRATORY SOIL COMPACTORS | CS74B. CP74B | CAT C4.4 ACERT | 173HP. Tier 4 | 4.4 |
| CATERPILLAR | VIBRATORY SOIL COMPACTORS | CS76B | CAT C4.4 ACERT | 173HP. Tier 4 | 4.4 |
| CATERPILLAR | VIBRATORY SOIL COMPACTORS | CS78B | CAT C4.4 ACERT | 173HP. Tier 4 | 4.4 |
More Information
| Weight (kg) | 10.693000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.5 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
| Notes | Mass terminal 31, Noseless version of starter, Soft start relay, Terminal 50a, With reduction gear |
