SKU
11132325
Condition
New
Brand
MAHLE - Letrika - Iskra
MAHLE - Letrika - Iskra
12V 4.2kW z9 (IS1434, MS176)
MAHLE WebCatalog
Letrika WebCatalog
MAHLE Spare parts
Letrika Spare parts
User Manual

Got Questions?

E-mail
trade@tradeservice.eu
€518 €408
In stock i Available in our store from stock. Update frequency: 5 minutes
Shipping Cost Calculator

Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

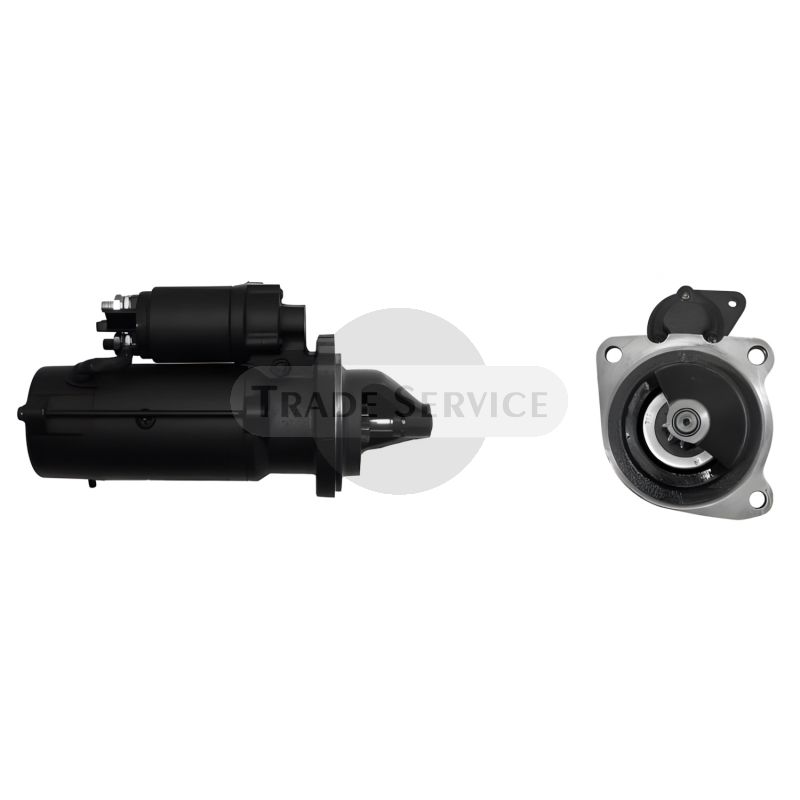

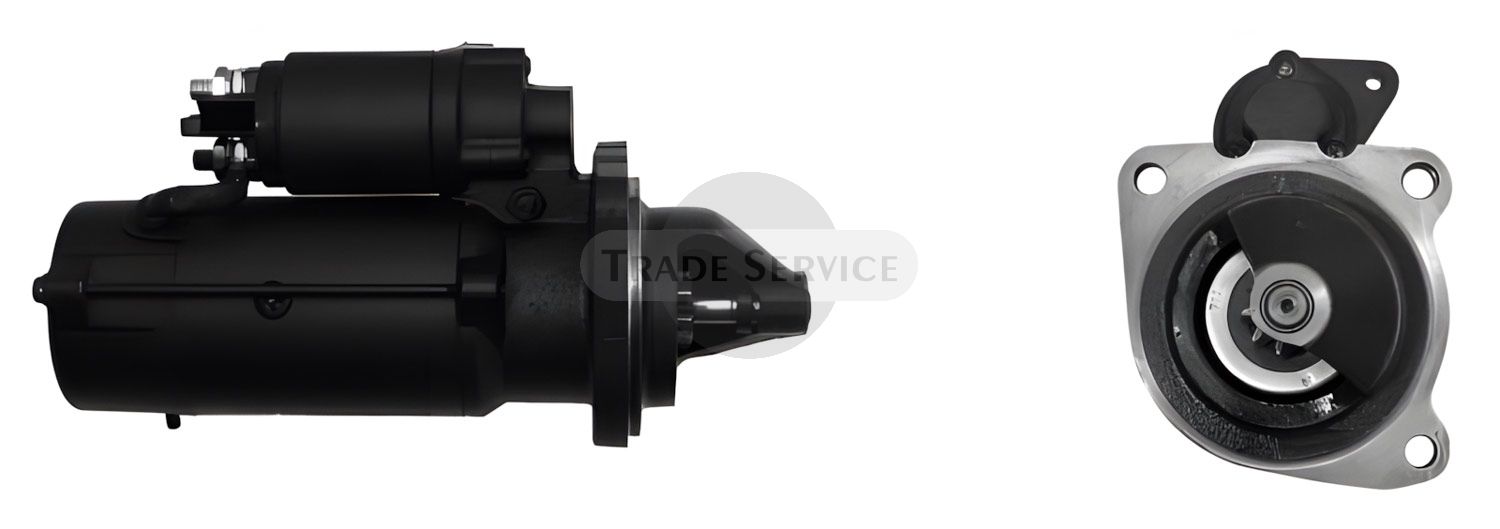

11.132.325 AZF4362 MAHLE (Letrika, Iskra) starter motor MS176

11.132.325 AZF4362 MAHLE (Letrika, Iskra) starter motor MS176
Image Image
Information Cross References Compatibility More Information Spare Parts

Information

This 11.132.325 AZF4362 MAHLE (Letrika, Iskra) starter motor MS176 is a reliable spare part which is widely used on AGRIFULL, AIFO, FIAT, FIAT GEOTECH, FORD NEW HOLLAND, IVECO, LAVERDA (FIATAGRI), NEW HOLLAND (SPERRY NEW HOLL.) engines.

For exact models and reference numbers please check the lists below.

In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!

We are here to help to keep your business moving.

Cross References

BOSCH (USA)SR911X
BOSCH0001230009, 0001359122, 0001367029, 0986012720
CARGO110522
CNH / FIAT AGRI500325146
DELCO REMYDRS0025
EFEL11420, 14650
FIAT NEW HOLLAND4719666, 4737759, 4807376, 9972215
FIAT4713806, 4737759, 4755110
HELLA8EA726118001, 8EA730198001, CS370, CS682
IVECO4807376, 500325146
LESTER16559, 17092, 33303
MAGNETI MARELLI06352230090, 63216873, 63216896, 63522300, 943216896, MSN224, MT68L, MT68LA, MT68LB, MT68LC
MAHLE (Letrika, Iskra)IS1434, 11132325, AZF4362, MS176
NEW HOLLAND500325146
SPAREX359810
UNIC4755110

Compatibility

MakeModelTypeEnginePowerYears
AGRIFULL 100 .DT 8065.06.200.300 5.4 1985.05-
AGRIFULL 110 DT 8065.05.220 5.9 1986.05-
AGRIFULL 140 .DT 8065.25.000 5.9 1985.05-
AGRIFULL 90 .DT 8055.05.200 4.9 1985.05-
AIFO 8361 .05.500 160PS 8.1 1980.03-1983.06
AIFO 8361 .25.500 175PS 8.1 1980.03-1983.06
AIFO 8361 05.530 - 8.1 1978.01-1983.12
FIAT 100 .90.DT 8065.06.200 - 1987.05-1988.08
FIAT 100 F100 8065.06.230 300 98HP
FIAT 110 90 8065.05.220 5.9 1984.11-
FIAT 1100 TN 1 8065.. - -
FIAT 115 90 8065.05.200 5.9 1984.01-
FIAT 115.9 - 8065.05.000 - -
FIAT 1180 - 8065.04.217 5.5 1980.09-1983.12
FIAT 120 - 8065.05 - 1984.01-
FIAT 1280 - 8065.24.300 5.5 1981.04-1983.12
FIAT 130 - 8365.05.555 8.1 1981.07-
FIAT 130 90 8065.25.010 5.9 1984.01-
FIAT 1380 - 8065.24.000 5.5 1980.09-1983.12
FIAT 140 .90.DT 8065.25.000 - 1985.05-1988.08
FIAT 1400 90 8065.25.000 5.9 1984.01-
FIAT 1580 - 8365.05.500 8.0 1981.07-1983.12
FIAT 1580 Turbo 8365.25.501 8.0 1983.01-1983.12
FIAT 160 90 8365.25.503 8.1 1984.01-
FIAT 180 90 8365.25.502 8.1 1984.01-
FIAT 1880 - 8365.25.500 8.0 1980.09-1983.12
FIAT 880 5 8055.04.200 4.6 1982.09-1984.06
FIAT 90 90 8055.05.200 4.9 1984.06-
FIAT 95 55 8055.05.205 4.9 1984.10-
FIAT 955 C 8055.04.205 4.6 1981.02-1984.12
FIAT 980 - 8065.02.217 5.2 1980.09-1984.06
FIAT 980 DT - - -
FIAT 980 DT 8065.02.217 5.2 1980.09-1984.06
FIAT DI 130 OM-8365.05.555 8.1 1981.07-1989.12
FIAT GEOTECH F100 - 8065.06A.330 5.9 1990.09-
FIAT GEOTECH F110 - 8065.05A.325 5.9 1990.09-1993.02
FIAT GEOTECH F120 - 8065.05B.330 5.9 1990.09-
FIAT GEOTECH F130 - 8065.25A.220 5.9 1990.09-
FIAT GEOTECH F140 - 8065.25S.230 5.9 1993.03-
FORD NEW HOLLAND 8000 8430DT (AS.RCB.USA) Unic 8.1 1993.12-
FORD NEW HOLLAND 8000 8630DT (AS.RCB.USA) Unic 8.1 1993.12-
FORD NEW HOLLAND 8000 8830DT (AS.RCB.USA) OM-8365.. 8.1 1993.12-
IVECO 160 A13FL (USA) OM-8360.05.673 8.1 1983.01-1984.11
IVECO AIFO-8361 .25.510 - 8.1 1984.05-1989.12
IVECO AIFO-8361 05.500 - 8.1 1983.06-
IVECO AIFO-8361 05.501 - 8.1 1984.01-
IVECO AIFO-8361 05.530 SRM37 - 8.1 1978.06-
IVECO AIFO-8361 25.500 - 8.1 1983.06-1985.12
IVECO AIFO-8361 25.500 SRM37 - 8.1 1983.12-1987.09
IVECO AIFO-8361 25.501 - 8.1 1984.01-1985.12
IVECO AIFO-8361 25.530 SRM37 - 8.1 1984.10-
IVECO AIFO-8361 25.540 SRM38.10 - 8.0 1992.01-
IVECO AIFO-8361 SI10.00 - 8.1 1990.01-
IVECO AIFO-8361 SRI26 - 8.1 1989.12-
IVECO EURO 110 - Fiat-8060.05.661.663 5.9 1987.01-1988.08
IVECO EURO 120 - Fiat-8060.25.661.663 5.9 1987.01-1988.08
IVECO EURO 220 - Fiat-8060.05.662.673 5.9 1987.01-1988.08
IVECO EURO 220T - Fiat-8060.25.661 5.9 1987.01-1988.08
IVECO EURO 230T - Fiat-8060.25.662. 673 5.9 1987.01-1988.09
IVECO EURO 335T - Fiat-8060.25.631 5.9 1987.01-1988.09
IVECO EURO 340T - Fiat-8060.25.641 5.9 1987.01-1988.08
IVECO EURO 435T - Fiat-8060.25.631 5.9 1987.01-1988.08
IVECO EURO 450T - Fiat-8060.25.621 5.9 1987.01-1988.09
IVECO EURO TURBO 10-14 Fiat-8060.25.243 6.0 1988.10-1990.12
IVECO EURO TURBO 12-14 Fiat-8060.25.241.246 6.0 1988.10-1990.09
IVECO EURO TURBO 13-14 Fiat-8060.25.243 6.0 1990.04-1990.12
IVECO EURO TURBO 15-14 Fiat-8060.25.241.246 6.0 1988.10-1990.12
IVECO EURO TURBO 18-14 Fiat-8060.25.243 6.0 1988.10-1990.09
IVECO EURO TURBO 18-16 Fiat-8060.25.221 6.0 1990.02-1990.12
IVECO EURO TURBO 23-16 Fiat-8060.25.221 6.0 1988.10-1990.12
IVECO Z 110 - Fiat-8060.05.661 5.9 1986.06-1986.12
IVECO Z 120 - Fiat-8060.25.661 5.9 1986.02-1986.12
IVECO Z 220 T - Fiat-8060.05.662 5.9 1986.06-1986.12
IVECO Z 230 T - Fiat-8060.25.662 5.9 1986.07-1986.12
IVECO Z 235 T - Fiat-8060.25.630.631 5.9 1986.10-1986.12
IVECO Z 340 T - Fiat-8060.25.641 5.9 1986.06-1986.12
LAVERDA (FIATAGRI) 3700 - OM-8361 8.1 1983.01-1985.12
LAVERDA (FIATAGRI) 3790 - OM-8361 SI 10.00 8.1 1985.06-
LAVERDA (FIATAGRI) 3850 - OM-8361 S 10 8.1 1991.01-
LAVERDA (FIATAGRI) 3850 - OM-8361 SI 01 8.1 1985.04-
LAVERDA (FIATAGRI) 3890 - OM-8361 SI 10 8.1 1986.03-
NEW HOLLAND (SPERRY NEW HOLL.) 8000-SERIE 8430 8065.25T 5.9 1994.04-
NEW HOLLAND (SPERRY NEW HOLL.) 8000-SERIE 8630 8365.25T 8.1 1994.04-
NEW HOLLAND (SPERRY NEW HOLL.) 8000-SERIE 8830 8365.25T 8.1 1994.04-

More Information

More Information
Weight (kg)11.261000
ConditionNew
Voltage12 V
Power4.2 kW
Pinion teeth9
Rotation directionCW
NotesMass terminal 31, With reduction gear

Spare Parts
