24V 5.4kW z11 (IS9019, MS471)
Got Questions?
€345 €272
Available in 2-3 workdays i Our supplier has this item in stock that we can get within the given time. Orders placed outside of working hours will be processed the next workday.
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

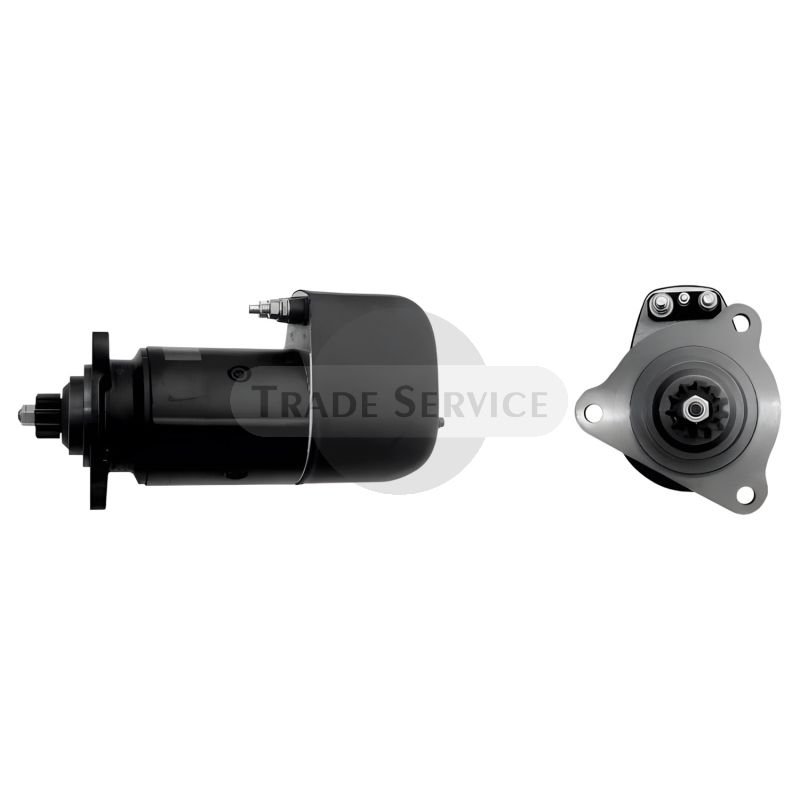

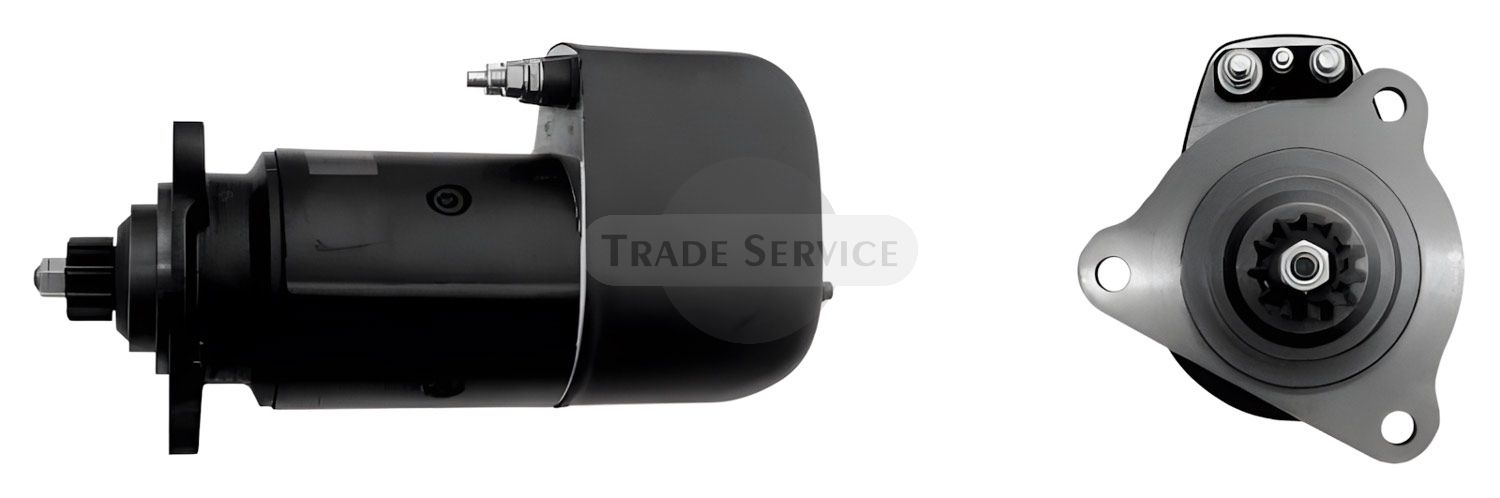

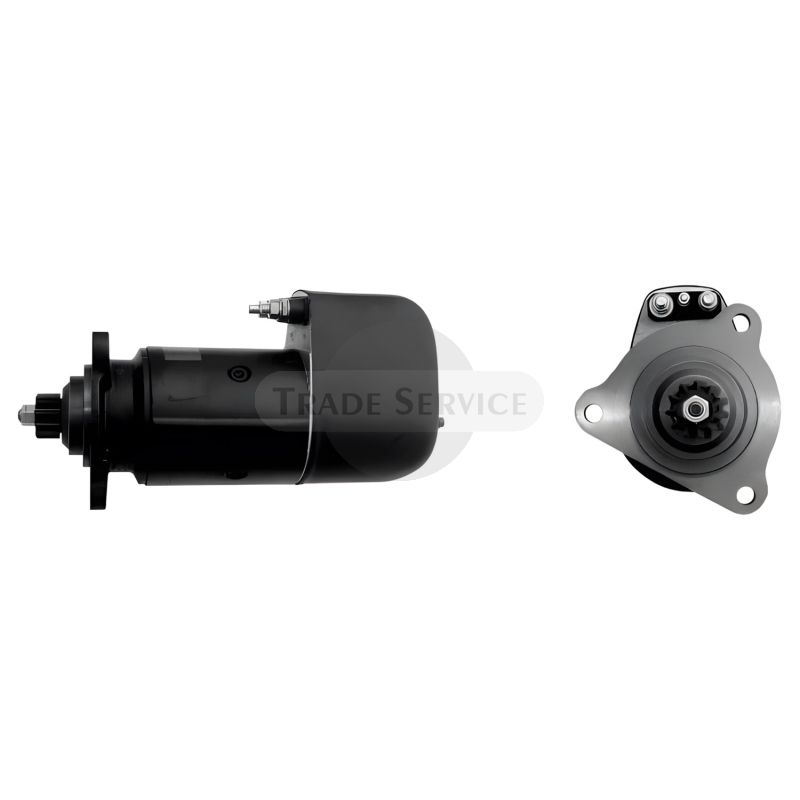

11.139.019 AZK5178 MAHLE (Letrika, Iskra) starter motor MS471
Similar products
We found other products you might like!
-
11.139.513 AZK5552 MAHLE (Letrika, Iskra) starter motor MS70824V 5.4kW z11 (IS9019, MS708) -
860516GB Prestolite starter motor24V 5.4kW z11
Information
This 11.139.019 AZK5178 MAHLE (Letrika, Iskra) starter motor MS471 is a reliable spare part which is widely used on FIAT, IVECO, LORRAINE (PLAXTON), PADANE (OFFICINE PADANE) engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AVF (REMY) | IM511 |
|---|---|
| BOSCH | 0001410106, 0001415017, 0001416011, 0001416211, 0986013420 |
| DEUTZ AG (KHD) | 04784745 |
| EFEL | 10825, 12990, 22608 |
| ELMOT | 6060000, R2306 |
| FIAT | 4784745 |
| HELLA | 8EA726150001, CS502 |
| IVECO | 42498148, 4784745 |
| LESTER | 19784 |
| LUCAS | LRS00986 |
| MAGNETI MARELLI | 943252228, MSR711 |
| MAHLE (Letrika, Iskra) | IS9019, 11139513, AZK5552, MS708, 11139019, AZK5178, MS471, 11130280, AZL3617 |
| REAL | 20401258 |
| VALEO | 455522 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| FIAT | 130 | NC.NR.NT20 | 8220.02 | 9.6 | 1973.01-1980.05 |
| FIAT | 1380 | DT | - | - | - |
| FIAT | 159 | NC20 | 8220.02 | 9.6 | 1979.08-1980.05 |
| FIAT | 170 | F20 | 8220.02.847 | 9.6 | 1979.08-1982.10 |
| FIAT | 170 | F20 | 8220.02.856 | 9.6 | 1979.08-1982.10 |
| FIAT | 190 | F20 | 8220.02.847 | 9.6 | 1979.08-1982.10 |
| FIAT | 190 | F20 | 8220.02.856 | 9.6 | 1979.08-1982.10 |
| FIAT | 190 | PAC20 | 8220.02 | 9.6 | 1979.08-1982.10 |
| FIAT | 470 | .10.20 | 8220.12.001 | 9.6 | 1979.01-1984.06 |
| FIAT | 470 | .12.20 | 8220.12.001 | 9.6 | 1979.01-1984.06 |
| FIAT | 566 | - | 8035.04.376 | 2.8 | 1982.02-1984.12 |
| FIAT | 570 | .10.20 | 8220.12.001 | 9.6 | 1979.01-1984.06 |
| IVECO | 165 | 24.T | Fiat-8220.22.002.102 | 9.6 | 1982.12-1986.09 |
| IVECO | 175 | 24.P | Fiat-8460.21.002.010 | 9.5 | 1986.09- |
| IVECO | AIFO-8460 | 41.970 | - | 9.5 | 1989.10- |
| IVECO | AIFO-8460 | SI00.00.All | - | 9.5 | 1989.10- |
| IVECO | LORRAINE | 200 | Fiat-8220.02.701 | 9.6 | 1981.01-1983.02 |
| IVECO | LORRAINE | 240 CS II. LS II | Unic-8460.21.708 | 9.5 | 1988.01-1988.09 |
| IVECO | LORRAINE | 240 CS.LS | 8220.22.102.4.6.708 | 9.6 | 1983.01-1988.09 |
| IVECO | LORRAINE | 240 Regional | Fiat-8220.22.708 | 9.6 | 1983.01-1988.09 |
| LORRAINE (PLAXTON) | 240 | CS II.LS II | Unic-8460.21.708 | 9.5 | 1988.06- |
| LORRAINE (PLAXTON) | 240 | CS.LS | 8220.22.102.4.6.708 | 9.6 | 1988.06- |
| LORRAINE (PLAXTON) | 240 | Regional | Fiat-8220.22.708 | 9.6 | 1988.06- |
| LORRAINE (PLAXTON) | 300 | LS.TS | Fiat-8210.22.406 | 13.8 | 1988.06- |
| PADANE (OFFICINE PADANE) | Z | 370.10.24 | Fiat-8220.22.708 | 9.6 | 1984.04-1988.12 |
More Information
| Weight (kg) | 17.000000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.4 kW |
| Pinion teeth | 11 |
| Rotation direction | CW |
| Notes | Mass terminal 31 |
