24V 6.6kW z11 (IS9020, MS495)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Discontinued product i This product is no longer in production.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

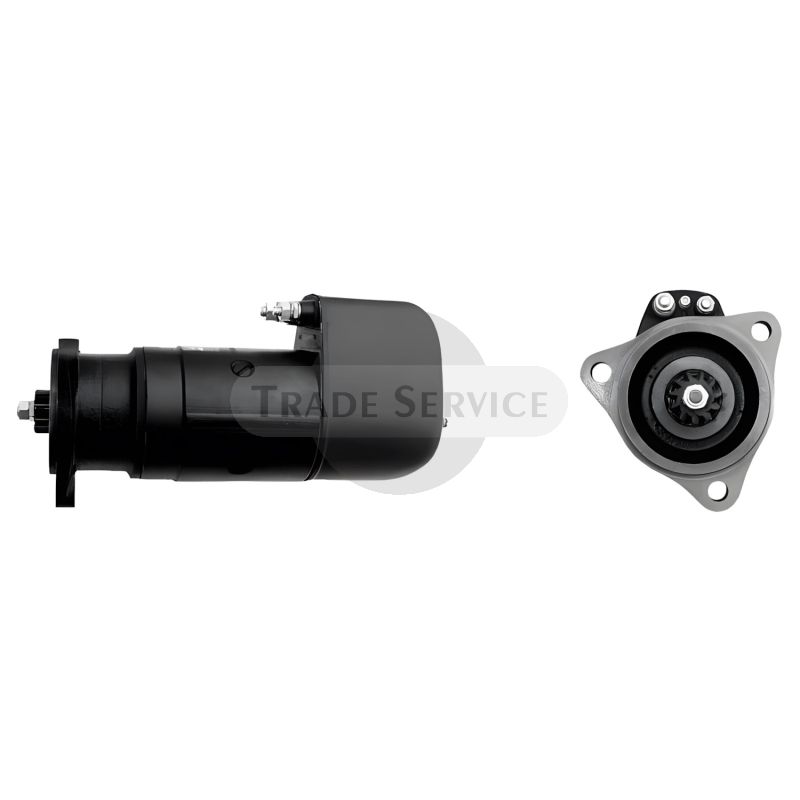

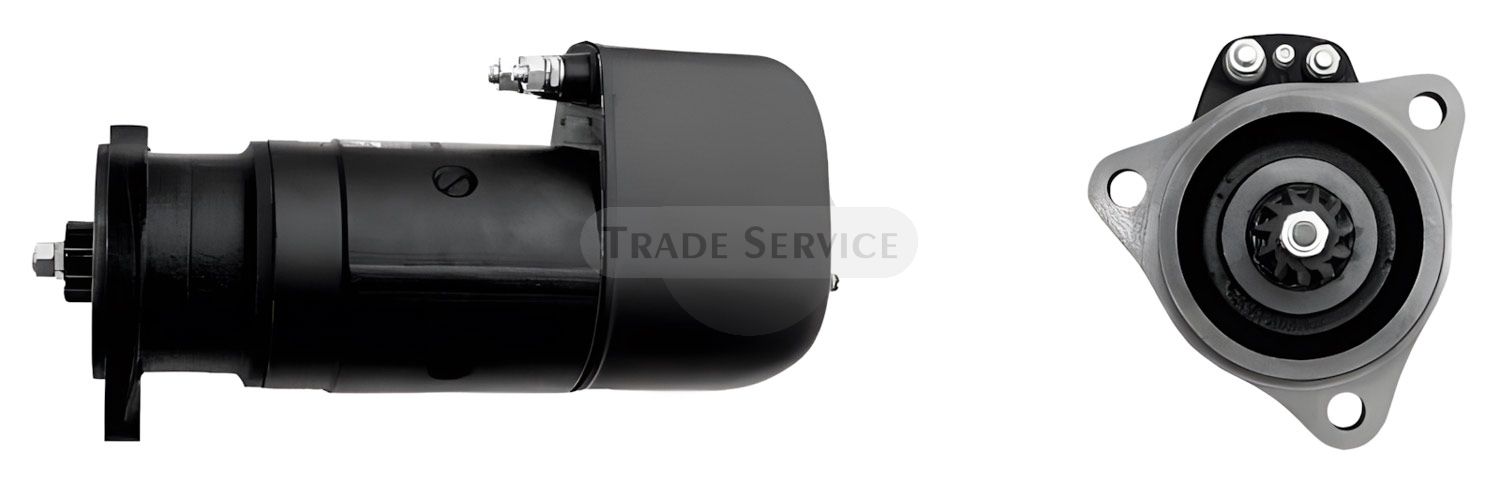

11.139.020 AZK5179 MAHLE (Letrika, Iskra) starter motor MS495
Similar products
We found other products you might like!
-
11.139.533 AZK5574 MAHLE (Letrika, Iskra) starter motor MS49524V 6.6kW z11 (IS9020, MS495) -
860545GB Prestolite starter motor24V 6.6kW z11
Information
This 11.139.020 AZK5179 MAHLE (Letrika, Iskra) starter motor MS495 is a reliable spare part which is widely used on ASTRA, FIAT, IVECO, LORRAINE (PLAXTON), ORLANDINI, PADANE (OFFICINE PADANE), UNIC engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AVF (REMY) | IM316, IM362, IM605 |
|---|---|
| BOSCH | 0001410065, 0001411025, 0001417005, 0986013430 |
| DEUTZ AG (KHD) | 04684280 |
| EFEL | 06860, 22703 |
| ELMOT | 0070000, R2207 |
| FIAT | 4732242, 4782803 |
| HELLA | 8EA726167001, CS526 |
| IVECO | 42498147 |
| LESTER | 30118 |
| LUCAS | LRS00845 |
| MAGNETI MARELLI | 63226301, 63226391, 943226391, 943252221, MSR709 |
| MAHLE (Letrika, Iskra) | IS9020, 11139533, AZK5574, MS495, 11139020, AZK5179 |
| REAL | 20401240 |
| UNIC | 004732242, 004782803 |
| VALEO | 455523 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| ASTRA | 64 | .26 | Fiat- | 13.8 | 1980.12- |
| ASTRA | 64 | .30 | Fiat-8210.22.290 | 13.8 | 1980.12- |
| ASTRA | 64 | .36 | Fiat-8210.42.290 | 13.8 | 1988.12-1992.12 |
| ASTRA | 66 | .30 | Fiat-8210.22.290 | 13.8 | 1988.12- |
| ASTRA | 66 | .36T | Fiat-8210.42.290 | 13.8 | 1988.12-1992.12 |
| ASTRA | BM | 20M.N.21E | Fiat-8210.02.032 | 13.8 | 1977.01-1985.12 |
| ASTRA | BM | 304 | Fiat-8210.02.791/793 | 13.8 | 1982.01-1989.12 |
| ASTRA | BM | 305 | Fiat-8280.109/120 | 17.0 | 1982.01-1983.08 |
| FIAT | 160 | .26 | 8210.02.020 | 13.8 | 1980.01-1982.10 |
| FIAT | 170 | F26.T | 8210.02 | 13.8 | 1978.01-1982.10 |
| FIAT | 190 | .30 | 8210.22.373 | 13.8 | 1980.07-1983.01 |
| FIAT | 190 | PAC26 | 8210.22 | 13.8 | 1977.11-1983.01 |
| FIAT | 240 | .26 | 8210.02.385 | 13.8 | 1979.01-1981.04 |
| FIAT | 260 | PAC26 | 8210.02 | 13.8 | 1977.11-1983.01 |
| FIAT | 300 | PC.PT | 8210.02 | 13.8 | 1974.01-1982.10 |
| FIAT | 619 | N1.T1 | 8210.02.032 | 13.8 | 1971.01-1982.10 |
| FIAT | 666 | - | 8045.02.276 | 3.5 | 1982.02-1983.12 |
| FIAT | 684 | N.NP.T | 8200.02... | 13.8 | 1971.01-1979.12 |
| IVECO | 190 | -30.H | Fiat-8210.22.175 | 13.8 | 1987.04- |
| IVECO | 190 | -30.P | Fiat-8210.22.175/317/373 | 13.8 | 1980.07-1987.06 |
| IVECO | 190 | -30N | Fiat-8210.22.175 | 13.8 | 1987.04- |
| IVECO | 190 | -30P | Fiat-8210.22.569 | 13.8 | 1987.09-1990.09 |
| IVECO | 190 | -32P | Fiat-8210.22.869 | 13.8 | 1987.09-1989.01 |
| IVECO | 190 | -36 | Fiat-8210.42.151/173/152/176 | 13.8 | 1990.07- |
| IVECO | 190 | -36.P | Fiat-8210.42.101 | 13.8 | 1987.07-1990.06 |
| IVECO | 190 | -36P | Fiat-8210.42.181/192 | 13.8 | 1990.07- |
| IVECO | 190 | -36T | Fiat-8210.42.061/073 | 13.8 | 1991.09- |
| IVECO | 190 | -38PT | Fiat-8210.42... | 13.8 | 1991.07- |
| IVECO | 190 | 33.P | Fiat-8210.22.105 | 13.8 | 1984.07-1987.05 |
| IVECO | 220 | -30PT | Fiat-8210.22.183 | 13.8 | 1985.04-1986.07 |
| IVECO | 220 | 36PT | Fiat-8210.42.115 | 13.8 | 1987.07-1990.06 |
| IVECO | 220 | 36TurboTech | Fiat-8210.42.152-175 | 13.8 | 1990.07- |
| IVECO | 240 | -30P | Fiat-8210.22.269/385 | 13.8 | 1980.07-1989.04 |
| IVECO | 240 | -36P | Fiat-8210.42.185/196 | 13.8 | 1990.07- |
| IVECO | 240 | -36TurboTech | Fiat-8210.42.152/172 | 13.8 | 1990.07- |
| IVECO | 240 | 36.P.TurboStar | Fiat-8210.42.115 | 13.8 | 1987.07-1990.06 |
| IVECO | 240 | 36PTurboTech | Fiat-8210.42.155-177 | 13.8 | 1990.07- |
| IVECO | 260 | -26H | Fiat-8210.02. | 13.8 | 1983.01-1986.02 |
| IVECO | 260 | -36 | Fiat-8210.42.115/152/172/155 | 13.8 | 1988.07- |
| IVECO | 300 | PC.PT | Fiat-8210.02.032/053 | 13.8 | 1977.01-1988.07 |
| IVECO | 330 | 26P | Fiat-8210.02.266.267 | 13.8 | 1983.01-1984.01 |
| IVECO | 370 | .12.26 | Fiat-8210.02.405 | 13.8 | 1980.01-1982.10 |
| IVECO | 370 | .12.30.HD | Fiat-8210.22.406 | 13.8 | 1983.10-1986.12 |
| IVECO | 370 | .12.L.25 | Fiat-8210.02.426 | 13.8 | 1983.10-1986.12 |
| IVECO | 370 | S.12.30 | Fiat-8210.22.406 | 13.8 | 1987.01- |
| IVECO | 370 | S.12.L.25 | Fiat-8210.02.426 | 13.8 | 1987.01-1991.12 |
| IVECO | 619 | N.T | Fiat-8210.02.032 | 13.8 | 1970.01-1988.07 |
| IVECO | AIFO-8210 | .02.580 | - | 13.8 | 1984.10-1985.02 |
| IVECO | LORRAINE | 300LS.TS | Fiat-8210.22.406 | 13.8 | 1987.01-1988.09 |
| LORRAINE (PLAXTON) | 300 | LS.TS | Fiat-8210.22.406 | 13.8 | 1988.06- |
| ORLANDINI | DOMINO | 370.12.35 | Fiat-8210.22.406 | 13.8 | 1986.02-1987.05 |
| ORLANDINI | POKER | 370.12.35 | Fiat-8210.22.406 | 13.8 | 1983.10-1987.04 |
| ORLANDINI | POKER | 370S12.30 | Fiat-8210.22.406 | 13.8 | 1984.02- |
| PADANE (OFFICINE PADANE) | X | 370.12.30 | Fiat-8210.22.406 | 13.8 | 1984.01- |
| PADANE (OFFICINE PADANE) | Z | 370.12.30 | Fiat-8210.22.406 | 13.8 | 1984.01- |
| UNIC | 619 | N1.T1 | Fiat-8210.02 | 14.0 | 1971.01-1981.12 |
| UNIC | 697 | N.NP.T | Fiat-8210.02 | 14.0 | 1971.01-1981.12 |
More Information
| Weight (kg) | 20.000000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 6.6 kW |
| Pinion teeth | 11 |
| Rotation direction | CW |
| Notes | Mass terminal 31, Oil sealed |
