24V 5.4kW z9 (IS9051, MS536)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Discontinued product i This product is no longer in production.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

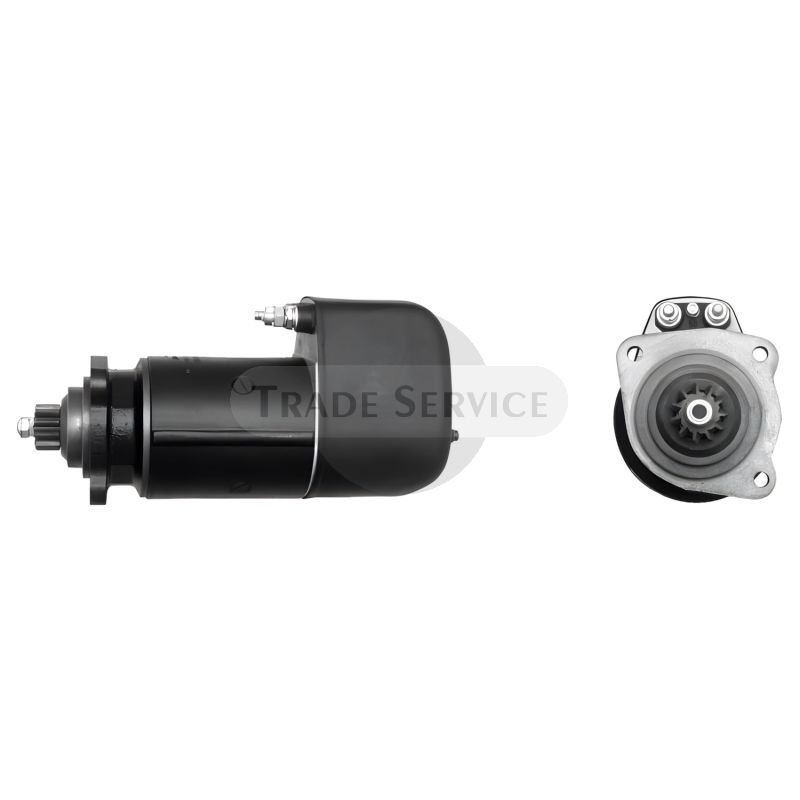

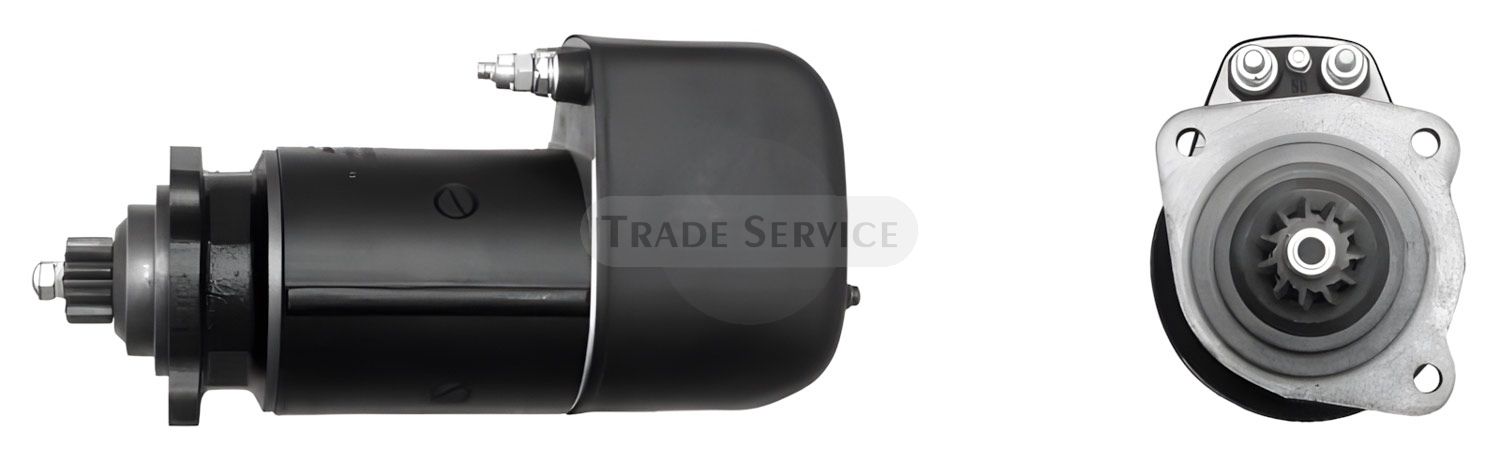

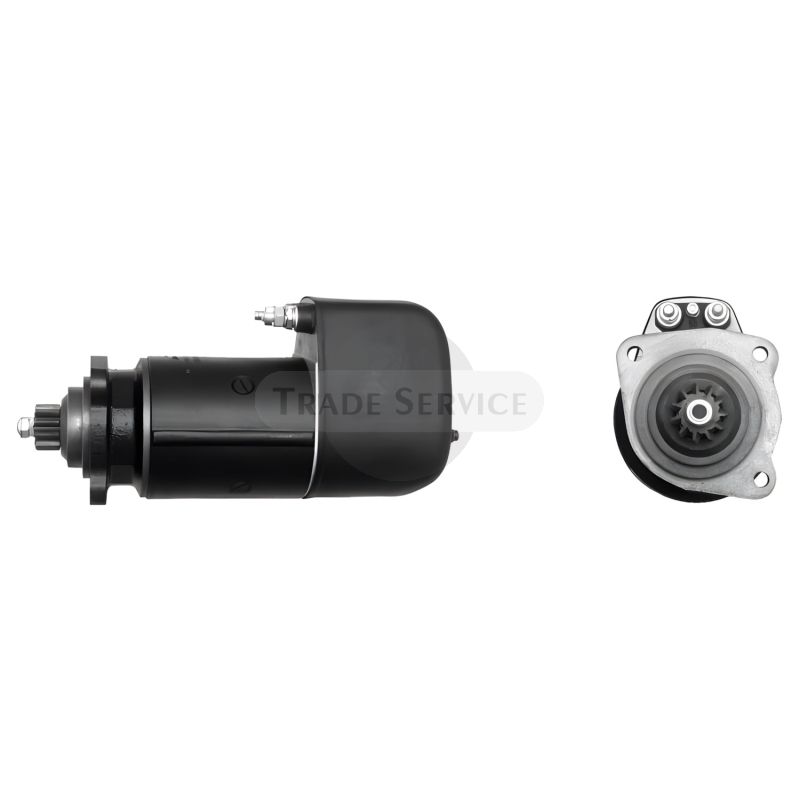

11.139.060 AZK5416 MAHLE (Letrika, Iskra) starter motor MS536
Similar products
We found other products you might like!
-
11.139.538 AZK5579 MAHLE (Letrika, Iskra) starter motor MS53624V 5.4kW z9 (IS9051, MS536) -
860657GB Prestolite starter motor24V 5.4kW z9
Information
This 11.139.060 AZK5416 MAHLE (Letrika, Iskra) starter motor MS536 is a reliable spare part which is widely used on BUSSING, MWM-DIESEL, STEYR (STEYR-DAIMLER-PUCH AG), TAM, VOLVO, VOLVO (BM), VOLVO PENTA engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AVF (REMY) | IM321, IM513 |
|---|---|
| BOMAG | 05710926 |
| BOSCH | 0001402043, 0001402058, 0001402059, 0001410029, 0001410030, 0001414002, 0001414017, 0001415010, 0001416013 |
| CASE | 161500090030 |
| DEUTZ AG (KHD) | 01178720 |
| EFEL | 06710, 22609 |
| ELMOT | 6130000, R2313 |
| FIAT | 8961949 |
| LESTER | 18924, 18932, 30145 |
| MAGNETI MARELLI | MSR651 |
| MAHLE (Letrika, Iskra) | IS9051, 11139538, AZK5579, MS536, 11139060, AZK5416, 10130170, AZK5119 |
| MAN | 51262017014, 90801105110 |
| MWM MOTORES DIESEL LTDA | 12343770 |
| MWM-DIESEL | 01178720 |
| PEUGEOT | 1178720 |
| RENAULT | 0025841025 |
| STEYR | 61500090030 |
| UNIC | 008961949 |
| VOLVO | 240502, 5001682 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| BUSSING | BURGLÖWE | 09-110.BS09LT | U5/125 | 5.9 | 1966.01-1969.12 |
| BUSSING | BURGLÖWE | U.BS11L | U5/125 | 5.9 | 1962.01-1969.12 |
| BUSSING | BURGLÖWE | UK.BS11K | U5/125 | 5.9 | 1962.01-1969.12 |
| BUSSING | BURGLÖWE | UM.BS11LT | U5/125 | 5.9 | 1962.01-1969.12 |
| BUSSING | BURGLÖWE | US.BS11S | U5/125 | 5.9 | 1962.01-1969.12 |
| BUSSING | BURGLÖWE | Universal | U5/125 | 5.9 | 1962.01-1969.12 |
| BUSSING | KONSUL | 11 | U5/125 | 5.9 | 1966.01-1968.12 |
| BUSSING | PRÄFEKT | 11.D | U5/126 | 5.9 | 1966.01-1969.12 |
| BUSSING | PRÄFEKT | 12.D | U5/126 | 5.9 | 1966.01-1969.12 |
| BUSSING | PRÄFEKT | 13.D | U5/126 | 5.9 | 1966.01-1969.12 |
| MWM-DIESEL | D232 | -12 | - | 17.6 | 1966.06-1982.05 |
| MWM-DIESEL | D233 | V12 | - | 19.1 | 1966.06-1982.05 |
| MWM-DIESEL | TBD233 | V12 | - | 17.6 | 1976.01-1982.05 |
| MWM-DIESEL | TD232 | -12 | - | 17.6 | 1966.06-1982.05 |
| MWM-DIESEL | TD233 | V12 | - | 19.1 | 1976.01-1982.05 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1290 | - | WD615.00 | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | - | WD615.60/615.70 | - | 1978.05-1982.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1390 | - | WD615.00 | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1395 | - | WD615.00 | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 8300 | A | WD615.84 | - | 1982.02-1987.04 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 8320 | A | WD615.85/615.87 | 9.7 | 1987.05-1989.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 880 | - | - | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 890 | - | - | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 990 | - | WD615.00 | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 9900 | - | - | - | - |
| STEYR (STEYR-DAIMLER-PUCH AG) | 991 | - | WD615.00/615.20 | 9.7 | 1978.05-1987.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | MEX-MOBIL | - | WD615.84 | - | 1982.02-1987.04 |
| TAM | TT | 130 | - | - | - |
| TAM | TT | 130 D | - | - | - |
| VOLVO | B | 54 | D50A | 5.0 | 1966.10-1971.03 |
| VOLVO | B | 54T | TD50A | 5.0 | 1966.10-1971.03 |
| VOLVO | B | 57 | D70A.B | 6.7 | 1965.10-1978.09 |
| VOLVO | B | 57T | TD70A.B | 6.7 | 1965.10-1976.09 |
| VOLVO | BB | 57 | D70B | 6.7 | 1970.10-1978.10 |
| VOLVO | BB | 57T | TD70B.E | 6.7 | 1970.10-1985.10 |
| VOLVO | F | 84 | D50A.B | 5.0 | 1965.10-1974.08 |
| VOLVO | F | 85 | D50A.B | 5.0 | 1965.10-1974.12 |
| VOLVO | F | 85T | TD50A | 5.0 | 1965.10-1970.08 |
| VOLVO | F/FB | 84 | D50B | 5.0 | 1972.01-1974.12 |
| VOLVO | F/FB | 84T | TD50B | 5.0 | 1970.09-1987.10 |
| VOLVO | F/FB | 85T | TD50B | 5.0 | 1970.09-1987.10 |
| VOLVO | F/FB | 86 | D70A.B | 6.7 | 1965.10-1974.01 |
| VOLVO | F/FB | 86T | TD70A.B | 6.7 | 1965.10-1974.09 |
| VOLVO | F/FB | 86T | TD70C.D | 6.7 | 1973.10-1975.09 |
| VOLVO | F/FB | 86T | TD70E.ES | 6.7 | 1974.10-1978.08 |
| VOLVO | FB | 86 | D70B | 6.7 | 1970.06-1974.12 |
| VOLVO | L | 485 | D67C.TD67C | 6.7 | 1959.02-1965.09 |
| VOLVO | N | 7 | TD70B.E.E-S | 6.7 | 1973.09-1978.10 |
| VOLVO | N | 84 | D50A.B | 5.0 | 1965.10-1971.08 |
| VOLVO | N | 86 | D70A.B | 6.7 | 1965.10-1973.05 |
| VOLVO | N | 86T | TD70A | 6.7 | 1965.10-1970.05 |
| VOLVO | N/NB | 84 | D50B | 5.0 | 1972.01-1973.08 |
| VOLVO | N/NB | 86T | TD70B | 6.7 | 1970.08-1973.08 |
| VOLVO | NB | 86 | D70B | 6.7 | 1970.06-1973.08 |
| VOLVO (BM) | LM1240 | - | D70B | 6.7 | 1972.12- |
| VOLVO (BM) | VHK116 | - | D70A | 7.0 | 1966.01-1970.12 |
| VOLVO (BM) | VHK118 | - | D70B | 7.0 | 1970.04-1976.06 |
| VOLVO (BM) | VHK310 | - | D70A | 7.0 | 1966.01-1970.12 |
| VOLVO PENTA | TMD47B | - | 6 cyl | - | - |
More Information
| Weight (kg) | 17.133000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.4 kW |
| Pinion teeth | 9 |
| Rotation direction | CW |
| Notes | Mass terminal 31 |
