12V 1.7kW z13 (IS9547, MS1089)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

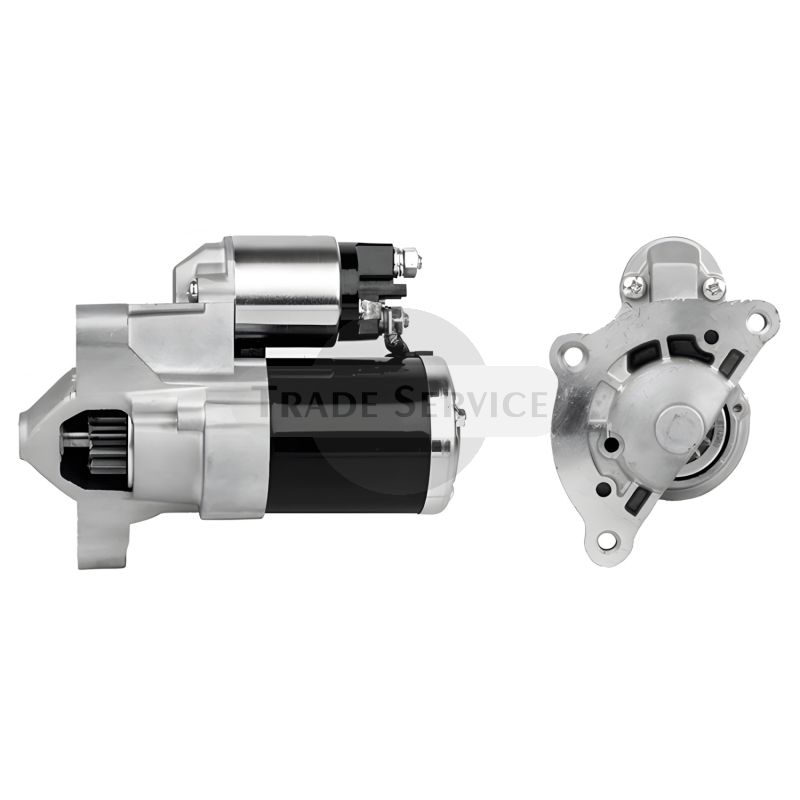

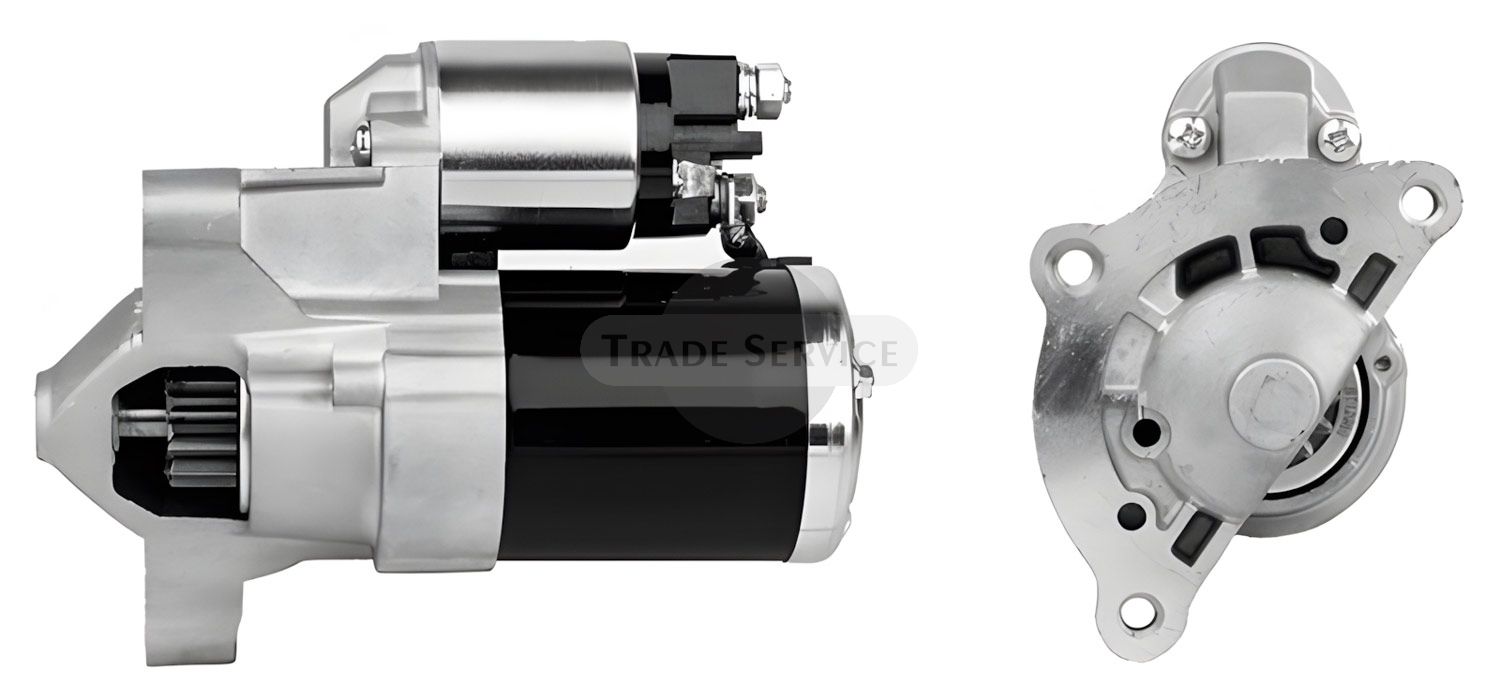

11.139.249 AZD2147 MAHLE (Letrika, Iskra) starter motor MS1089
Information
This 11.139.249 AZD2147 MAHLE (Letrika, Iskra) starter motor MS1089 is a reliable spare part which is widely used on CITROEN, FIAT, LADA (VAZ), LANCIA, PEUGEOT, TALBOT, TALBOT (E), VAZ engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH | 0001109010, 0001109026, 0001110017, 0001110056, 0001314034, 0986012400, 0986013240, 0986013241 |
|---|---|
| CASCO | CST15104AS, CST15104GS |
| CITROEN | 580236, 580250, 580292, 5802A6, 5802C3, 5802C4, 5802CJ, 5802CP, 5802CQ, 5802E2, 5802EQ, 5802G0, 5802G9, 5802H7, 5802L4, 5802M4, 5802Q5, 91040098, 91514125, 91514312, 95607234 |
| DAF | 1516680R |
| DELCO REMY | DRS3240, RAS34351 |
| FIAT | 1320921080, 1332419080, 71716564, 71719595, 71719598, 71719604, 71719605, 71719606, 71722374, 71722375, 9603503580, 9603503680, 9624291480, 9947830, K1320921080, K1332419080, K9603503580, K9603503680, K9624291480, K9625382780, K9625383280 |
| HC-CARGO | 111070 |
| HELLA | 8EA011610071, 8EA011611011, 8EA726090001, 8EA726121001, 8EA726218001, 8EA737751001, CS1177, CS342, CS373, CS594 |
| HYUNDAI | 3610029000 |
| LADA (VAZ) | 212153708010 |
| LANCIA | 9947830 |
| LESTER | 18501, 18967, 30473, 30475, 30476, 33015 |
| LUCAS | LRS00475, LRS00476 |
| MAGNETI MARELLI | 943251127, 943251144, MSR377 |
| MAHLE (Letrika, Iskra) | IS9547, 11139249, AZD2147, MS1089 |
| MITSUBISHI | M001T50171, M001T50172, M001T90281, M002T90071, M1T50171, M1T50172, M1T90281, M2T90071 |
| PARIS-RHONE | 182604, 184643, 185625, 185994, D7R2, D7R8, D9R84 |
| PEUGEOT | 555836, 555838, 580235, 580236, 580250, 580292, 5802A6, 5802C3, 5802C4, 5802CJ, 5802CP, 5802CQ, 5802E2, 5802EQ, 5802G0, 5802G9, 5802H7, 5802L4, 5802M4, 5802Q5, 91040098, 91514125, 91536044 |
| TALBOT | A04009880 |
| VALEO | 432561, 432665, 433305, 436068, 438069, 455514, 455928, D7R12, D7R127, D7R20, D7R27, D7R32, D7R8, D9R121, D9R84, ND053, ND123, ND138, VS140, VS283, VS285 |
| WAI | 30477N |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| CITROEN | BERLINGO | 1.8D | A9A | 1.8 | 1996.07-2002.11 |
| CITROEN | BERLINGO | 1.9D | DJY.D9B | 1.9 | 1996.07-2003.11 |
| CITROEN | BERLINGO | 2.0HDI | RHY | 2.0 | 1999.12-2002.11 |
| CITROEN | BX | 17Diesel | 161A | 1.8 | 1985.07-1994.12 |
| CITROEN | BX | 17DieselTurbo | AJZ.A8A | 1.8 | 1988.02-1994.12 |
| CITROEN | BX | 19Diesel | 162 | 1.9 | 1983.09-1987.12 |
| CITROEN | BX | 19Diesel | DJZ.D9B | 1.9 | 1987.03-1994.12 |
| CITROEN | C15 | 1.8 | 161A(XUD7); 44kW | 1.8 | 1986.07-2000.12 |
| CITROEN | C15 | 1.9 | WJX(DW8B); 44kW | 1.9 | 2000.02-2005.12 |
| CITROEN | C15 | E 1.0 | C1A | 1.0 | 1988.07-1997.12 |
| CITROEN | C25 | 1.9D | D9B | 1.9 | 1987.07- |
| CITROEN | C25 | 2.5D Turbo | CRD93LS | 2.5 | 1987.08- |
| CITROEN | C4 | 2.0 HDi | AHX (DW10FD); 110kW | 2.0 | 2013.06- |
| CITROEN | C4 | 2.0 HDi | RFN (EW10J4); 136kW | 2.0 | 2004.11-2007.07 |
| CITROEN | C4 | 2.0 HDi | RHE (DW10CTED4); 110kW | 2.0 | 2009.11- |
| CITROEN | C4 | 2.0 HDi | RHH (DW10CTED4); 120kW | 2.0 | 2004.11- |
| CITROEN | C4 | 2.0 HDi | RHR(DW10BTED4); 100kW | 2.0 | 2004.11-2011.07 |
| CITROEN | C4 | 2.0 HDi Picasso | RHR(DW10CTED4); 120kW | 2.0 | 2004.11-2011.07 |
| CITROEN | C5 | 2.0 HDi | AHW(DW10FC); 133kW | 2.0 | 2015.03- |
| CITROEN | C5 | 2.0 HDi | RHM(DW10ATED4); 79kW | 2.0 | 2007.07- |
| CITROEN | C5 | 2.0 HDi | RHR(DW10BTED4); 100kW | 2.0 | 2004.10- |
| CITROEN | C5 | 2.0 HDi | RHS(DW10ATED); 79kW | 2.0 | 2002.06-2004.08 |
| CITROEN | C5 | 2.0 HDi | RHT(DW10ATED4); 79kW | 2.0 | 2007.07- |
| CITROEN | C5 | 2.0 HDi | RHZ(DW10ATED); 80kW | 2.0 | 2001.03-2004.08 |
| CITROEN | C5 | 2.0HDi | RHY(DW10TD); 66kW | 2.0 | 2001.06-2004.09 |
| CITROEN | C5 | 2.2 HDi | 4HX; 98kW | 2.2 | 2003.01-2004.09 |
| CITROEN | C5 | 2.2HDI. HDI Break | 4HP(DW12BTED4); 120kW | 2.2 | 2006.05- |
| CITROEN | C5 | 2.2HDI. HDI Break | 4HR(DW12TED4); 120kW | 2.2 | 2004.09- |
| CITROEN | C5 | 2.2HDI. HDI Break | 4HT(DW12BTED4); 125kW | 2.2 | 2001.03-2004.09 |
| CITROEN | C5 | 2.2HDI. HDI Break | 4HX(DW12TED); 98kW | 2.2 | 2001.03-2004.09 |
| CITROEN | C8 | 2.0 HDi | RHE(DW10CTED4); 120kW | 2.0 | 2006.03- |
| CITROEN | C8 | 2.0 HDi | RHH(DW10CTED4); 120kW | 2.0 | 2006.03- |
| CITROEN | C8 | 2.0 HDi | RHK(DW10BTED4); 79kW | 2.0 | 2002.07- |
| CITROEN | C8 | 2.0 HDi | RHR(DW10BTED4); 100kW | 2.0 | 2006.03- |
| CITROEN | C8 | 2.0 HDi | RHW(DW10ATED4); 80kW | 2.0 | 2007.07- |
| CITROEN | C8 | 2.0 HDi | RHX(DW10UTED4); 79kW | 2.0 | 2002.07- |
| CITROEN | C8 | 2.0HDI | RHT/RHM;RHW | 2.0 | 2001.03- |
| CITROEN | C8 | 2.2HDI | 4HW(DW12TED); 128kW | 2.2 | 2001.03- |
| CITROEN | EVASION | 1.8i | LFW | 1.8 | 1996.09-2002.07 |
| CITROEN | EVASION | 1.9D Turbo | DHX.D8B | 1.9 | 1994.10-2002.07 |
| CITROEN | EVASION | 2.0HDI | RHZ | 2.0 | 1999.01-2002.07 |
| CITROEN | EVASION | 2.0i | RFU | 2.0 | 1994.06-2002.07 |
| CITROEN | EVASION | 2.0i Turbo | RGX | 2.0 | 1994.06-1997.02 |
| CITROEN | EVASION | 2.1D Turbo | P8C | 2.1 | 1996.04-2002.07 |
| CITROEN | JUMPER | 1.9 HDI | WJZ(DW8); 51kW | 1.9 | 1998.04-2006.10 |
| CITROEN | JUMPER | 1.9D | D9B; 51kW | 1.9 | 1994.02-2002.02 |
| CITROEN | JUMPER | 1.9D Turbo | DHX;D8C; 66kW | 1.9 | 1994.02-2002.02 |
| CITROEN | JUMPER | 2.0 HDI | RHZ(DW10ATED); 80kW | 2.0 | 2001.02-2006.10 |
| CITROEN | JUMPER | 2.0HDi | RHV; 62kW | 2.0 | 2001.03-2002.02 |
| CITROEN | JUMPER | 2.2HDI | 4HY(DW12TED); 74kW | 2.2 | 2002.02- |
| CITROEN | JUMPER II | 1.9 HDi | D8B(XUD9TF); 69kW | 1.9 | 1999.10-2006.10 |
| CITROEN | JUMPER II | 2.0 HDi | RHX (DW10BTED); 69kW | 2.0 | 1999.10-2006.10 |
| CITROEN | JUMPER III | 2.0 HDi | RHZ (DW10CD); 94kW | 2.0 | 2011.07- |
| CITROEN | JUMPY | 1.9 D | D9B (XUD9A/U); 51kW | 1.9 | 1995.10-1998.08 |
| CITROEN | JUMPY | 1.9 Diesel Turbo | DHX | 1.9 | 1995.10-2000.08 |
| CITROEN | JUMPY | 1.9DTurbo | DHX;D8B | 1.9 | 1995.10- |
| CITROEN | JUMPY | 2.0HDI | RHX; 69kW | 2.0 | 1999.10-2006.10 |
| CITROEN | JUMPY | 2.0HDi | RHW(DW10ATED4); 80kW | 2.0 | 1999.10-2006.10 |
| CITROEN | JUMPY | 2.0HDi | RHZ(DW10ATED); 80kW | 2.0 | 1999.10-2006.10 |
| CITROEN | VISA | 17D | 161A | 1.7 | 1984.04-1991.03 |
| CITROEN | XANTIA | 1.9D | DJY.D9B | 1.9 | 1993.07-1996.12 |
| CITROEN | XANTIA | 1.9D Turbo | DHW | 1.9 | 1996.09-2001.12 |
| CITROEN | XANTIA | 1.9D Turbo | DHW | 1.9 | 1997.12-2001.12 |
| CITROEN | XANTIA | 1.9D Turbo | DHX.D8B | 1.9 | 1993.07-1998.01 |
| CITROEN | XANTIA | 1.9D Turbo | PSA.DHX | 1.9 | 1997.12-2001.12 |
| CITROEN | XANTIA | 1.9D Turbo Break | DHW.PSA.DHX | 1.9 | 1997.12-2001.12 |
| CITROEN | XANTIA | 1.9D Turbo Break | DHX.D8B | 1.9 | 1995.09-1998.01 |
| CITROEN | XANTIA | 2.0HDI | PSA.HZ | 2.0 | 1998.10-2001.12 |
| CITROEN | XANTIA | 2.0HDI Break | PSA.RHZ | 2.0 | 1998.10-2001.12 |
| CITROEN | XANTIA | 2.1D Turbo | P8C | 2.1 | 1995.05-2001.12 |
| CITROEN | XANTIA | 2.1D Turbo | PSA.P8C | 2.1 | 1995.05-2001.12 |
| CITROEN | XANTIA | 2.1D Turbo Break | P8C.PSA | 2.1 | 1996.06-2001.12 |
| CITROEN | XM | 2.1D | PJZ.P9A | 2.1 | 1989.05-1994.06 |
| CITROEN | XM | 2.1D | PJZ.P9A | 2.1 | 1994.07-1996.12 |
| CITROEN | XM | 2.1D Turbo | P8A | 2.1 | 1989.05-1994.06 |
| CITROEN | XM | 2.1D Turbo | P8C | 2.1 | 1994.07-2000.10 |
| CITROEN | XM | 2.1D Turbo | PHZ.P8B | 2.1 | 1989.05-1994.06 |
| CITROEN | XM | 2.1D Turbo | PHZ.P8B | 2.1 | 1994.07-2000.10 |
| CITROEN | XSARA | 1.8D | A9A.161A | 1.8 | 1998.07-2000.08 |
| CITROEN | XSARA | 1.8D Break | A9A.161A | 1.8 | 1998.04-2000.08 |
| CITROEN | XSARA | 1.9 Diesel Turbo | DHW.DHY.D8A | 1.9 | 1997.01-2000.08 |
| CITROEN | XSARA | 1.9D | DJY | 1.9 | 1997.07-2000.08 |
| CITROEN | XSARA | 1.9D | WJZ | 1.9 | 1998.04-2000.08 |
| CITROEN | XSARA | 1.9D Break | DJY | 1.9 | 1998.04-2005.08 |
| CITROEN | XSARA | 1.9D Break Coupe | DJY | 1.9 | 1997.07-2000.08 |
| CITROEN | XSARA | 1.9D Coupe | WJZ | 1.9 | 1998.04-2000.08 |
| CITROEN | XSARA | 1.9D Turbo | DHW;DHY;D8A | 1.9 | 1997.07-2000.08 |
| CITROEN | XSARA | 1.9D Turbo Break | DHY | 1.9 | 1998.04-2000.08 |
| CITROEN | XSARA | 2.0 HDI | RHY. RHZ | 2.0 | 2000.09-2001.06 |
| CITROEN | XSARA | 2.0HDi | RHY | 2.0 | 1999.02-2000.08 |
| CITROEN | XSARA | 2.0HDi Break | RHY | 2.0 | 1999.02-2000.08 |
| CITROEN | XSARA | 2.0HDi Break | RHY.RHZ | 2.0 | 2000.09-2001.06 |
| CITROEN | ZX | 1.8 Diesel | XUD7 | 1.8 | 1991.03-1997.10 |
| CITROEN | ZX | 1.9 Diesel | XUD9A/D9B | 1.9 | 1991.03-1997.10 |
| CITROEN | ZX | 1.9 Turbo Diesel | XUD9TE | 1.9 | 1991.03-1997.10 |
| FIAT | SCUDO | 1.9D | D9B | 1.9 | 1995.10-2000.05 |
| FIAT | SCUDO | 1.9D | WJZ | 1.9 | 1998.06-2004.05 |
| FIAT | SCUDO | 1.9TD | D8B | 1.9 | 1995.10-2006.04 |
| FIAT | SCUDO | 1.9TD | DHX | 1.9 | 1997.03-2006.04 |
| FIAT | SCUDO | 2.0JTD | RHX.RHZ | 2.0 | 1999.10-2004.05 |
| FIAT | ULYSSE | 1.9TD | D8B.DHX | 1.9 | 1995.05-1999.12 |
| LADA (VAZ) | NIVA | 1.9D | Peugeot XUD9A | 1.9 | - |
| LANCIA | Z | 2.0 JTD | RHZ EDC-BOSCH | 2.0 | 1999.06-2000.10 |
| LANCIA | Z | 2.1TD | P8C EDC-Bosch | 2.1 | 1996.05-1999.06 |
| LANCIA | ZETA | 2.0JDT | RHZ EDC | 1.7 | 1999.06-2002.06 |
| LANCIA | ZETA | 2.1TD | P8CE EDC | 2.1 | 1996.05-1999.06 |
| PEUGEOT | 205 | 1.8 Diesel | XUD7 | 1.8 | 1983.10-1989.12 |
| PEUGEOT | 205 | 1.8 Diesel Pick up | XUD7 | 1.8 | 1985.05-1998.09 |
| PEUGEOT | 205 | 1.8 Diesel Turbo | XUD7T | 1.8 | 1990.01-1998.09 |
| PEUGEOT | 205 | 1.9 Diesel | XUD9 | 1.9 | 1986.10-1998.09 |
| PEUGEOT | 206 | 1.9D | WJZ | 1.9 | 1998.06- |
| PEUGEOT | 206 | 2.0HDi | RHY(DW10TD); 66kW | 2.0 | 1999.04-2002.06 |
| PEUGEOT | 305 | 1.7 Diesel | XUD7 | 1.7 | 1982.10-1988.06 |
| PEUGEOT | 305 | 1.9 Diesel | XUD9 | 1.9 | 1982.10-1990.07 |
| PEUGEOT | 306 | 1.8 | A9A.161A.XUD7 | 1.8 | 1993.05-1997.04 |
| PEUGEOT | 306 | 1.9 | D8B.WJZ.XUD9.DW8 | 1.9 | 1998.09-2003.10 |
| PEUGEOT | 306 | 1.9 | DJY.D9B.XUD9Y.XUD9A | 1.9 | 1994.07-1997.04 |
| PEUGEOT | 306 | 1.9 | DJZ.XUD9Y | 1.9 | 1993.05-1994.06 |
| PEUGEOT | 306 | 1.9D Break | DYJ.D9B.XUD9; 47kW | 1.9 | 1994.05-2002.03 |
| PEUGEOT | 306 | 1.9D Break | WJZ.WJY.DW8.DW8B | 1.9 | 1998.09-2002.03 |
| PEUGEOT | 306 | 1.9D Turbo | DHW.DHY.XUD9BSD.XUD9TE | 1.9 | 1997.05-2003.10 |
| PEUGEOT | 306 | 1.9D Turbo | DHY.D8A.XUD9TE | 1.9 | 1993.05-1997.04 |
| PEUGEOT | 306 | 1.9D TurboBreak | DHY.DHV.XUD9BSD.XUD9TE | 1.9 | 1997.05-2002.03 |
| PEUGEOT | 306 | 2.0HDI | RHY.DW10TD | 2.0 | 1999.06-2003.10 |
| PEUGEOT | 306 | 2.0HDI Break | RHY.DW10TD | 2.0 | 1999.06-2002.03 |
| PEUGEOT | 309 | 1.7 Diesel | XUD7 | 1.7 | 1986.06-1993.12 |
| PEUGEOT | 309 | 1.7 Diesel | XUD7TE | 1.7 | 1989.11-1993.12 |
| PEUGEOT | 309 | 1.9 Diesel | XUD9 | 1.9 | 1986.06-1993.12 |
| PEUGEOT | 309 | 1.9 Diesel | XUD9Y | 1.9 | 1986.06-1993.12 |
| PEUGEOT | 405 | 1.8 Diesel | XUD7 | 1.8 | 1990.10-1992.12 |
| PEUGEOT | 405 | 1.8 Diesel Turbo | XUD7EY | 1.8 | 1990.10-1992.12 |
| PEUGEOT | 405 | 1.8 Diesel Turbo | XUD7TE | 1.8 | 1988.03-1992.12 |
| PEUGEOT | 405 | 1.9 Diesel | XUD9A | 1.9 | 1988.03-1992.12 |
| PEUGEOT | 405 | 1.9 Diesel | XUD9Y | 1.9 | 1988.03-1992.09 |
| PEUGEOT | 405 | 1.9 Diesel Turbo | XUD9TE.XUD9TE Kat. | 1.9 | 1992.06-1997.04 |
| PEUGEOT | 406 | 1.9D Tubro | D8B.XUD9TE.DHX.SUD9TE | 1.9 | 1995.12-1999.01 |
| PEUGEOT | 406 | 1.9D Tubro | DHW.XUD9SD | 1.9 | 1996.06-1999.03 |
| PEUGEOT | 406 | 1.9D Turbo Break | D8B.XUD9TE.DHW.XUD9SD | 1.9 | 1996.10-1999.03 |
| PEUGEOT | 406 | 2.0HDI | RHZ.RHY | 2.0 | 1999.04-2004.06 |
| PEUGEOT | 605 | 2.1 Diesel | XUD11A | 2.1 | 1989.06-1994.06 |
| PEUGEOT | 605 | 2.1 Diesel Turbo | XUD11ATE | 2.1 | 1989.06-1999.05 |
| PEUGEOT | 607 | 2.0HDI | RHZ.DW10ATED | 2.2 | 2000.03-2004.11 |
| PEUGEOT | 607 | 2.2HDI | 4HX.DW12TED4 | 2.2 | 2000.03-2004.11 |
| PEUGEOT | 806 | 1.9D Turbo | DHY.D8B.XUD9TE | 1.9 | 1994.12-2002.08 |
| PEUGEOT | 806 | 2.0HDI | RHZ.DW10ATED | 2.0 | 1999.08-2002.08 |
| PEUGEOT | 806 | 2.1D Turbo | P8C.XUD11BTE | 2.1 | 1996.04-2000.08 |
| PEUGEOT | BOXER | 1.9D | XUD9; 66kW | 1.9 | 1994.02-2002.05 |
| PEUGEOT | BOXER | 1.9DTurbo | DHY(XUD9TE); 66kW | 1.9 | 1994.02-2002.05 |
| PEUGEOT | EXPERT | 1.9D | D9B.XUD9TE; 68kW | 1.9 | 1995.09-2000.10 |
| PEUGEOT | EXPERT | 1.9D | WJZ.DW8 | 1.9 | 1998.06- |
| PEUGEOT | EXPERT | 1.9D Turbo | DHX.XUD9TE.D8B.XUD9TE | 1.9 | 1995.09- |
| PEUGEOT | J5 | 1.9D | XUD9A | 1.9 | 1987.11-1993.12 |
| PEUGEOT | PARTNER | 1.8D | XUD7 | 1.8 | 1996.09-2002.08 |
| PEUGEOT | PARTNER | 1.9D | XUD9/XUD9A/L | 1.9 | 1996.09-2002.08 |
| PEUGEOT | RANCH | 1.9D | D9B | 1.9 | 1997.07-1998.10 |
| TALBOT | EXPRESS | 1.9D | XUD9A | 1.9 | 1987.11-1993.12 |
| TALBOT | HORIZON | 1.9 Diesel | XUD9 | 1.9 | 1982.07-1986.06 |
| TALBOT (E) | HORIZON | 1.9 Diesel | XUD9 | 1.9 | 1982.09-1986.06 |
| TALBOT (E) | SOLARA | 1.9 Diesel | XUD9 | 1.9 | 1984.11-1986.07 |
| VAZ | 21215 | 1.9 | Peugeot XUD9A | 1.9 | - |
| VAZ | 2131-50 | 1.9 | Peugeot XUD9A | 1.9 | - |
More Information
| Weight (kg) | 3.550000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 1.7 kW |
| Pinion teeth | 13 |
| Rotation direction | N/A |
| Notes | With reduction gear |
