24V 5.4kW z11 (IS9002, MS669)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

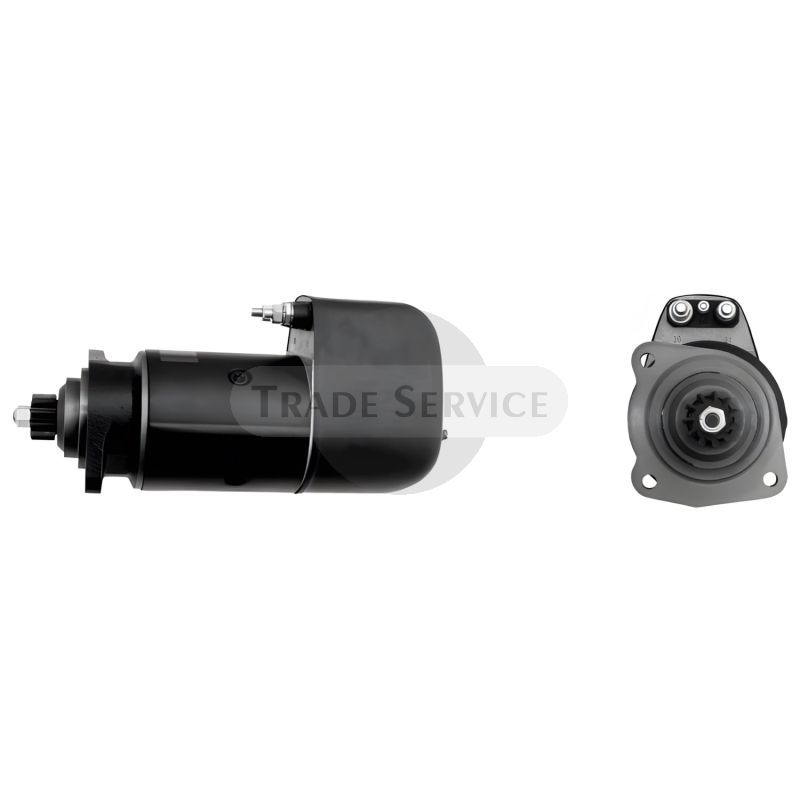

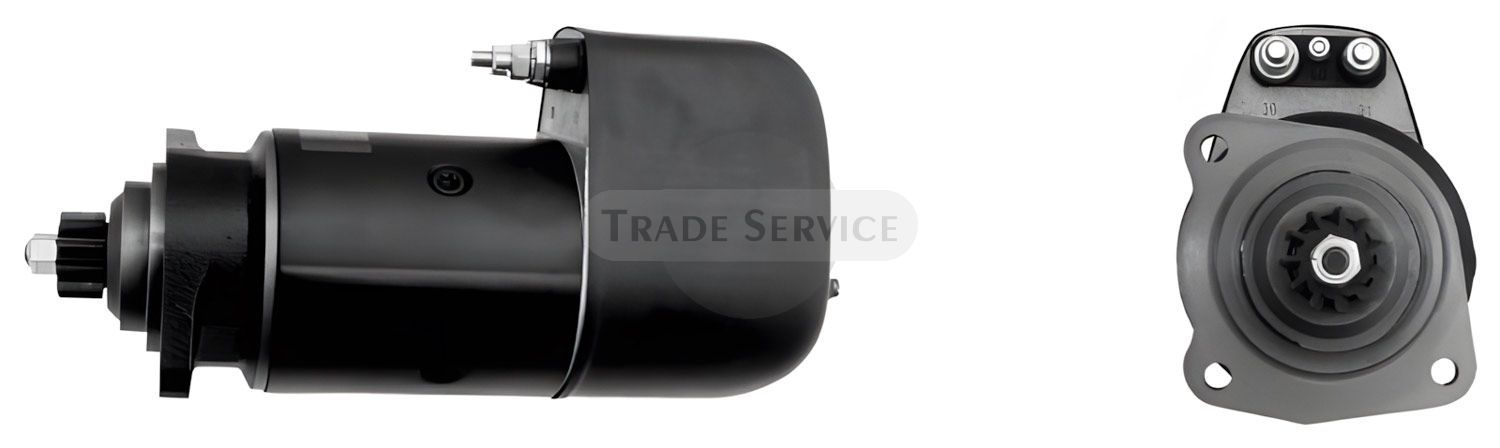

11.139.501 AZK5540 MAHLE (Letrika, Iskra) starter motor MS669
Similar products
We found other products you might like!
-
11.139.002 AZK5162 MAHLE (Letrika, Iskra) starter motor24V 5.4kW z11 (IS9002, MS493)
Information
This 11.139.501 AZK5540 MAHLE (Letrika, Iskra) starter motor MS669 is a reliable spare part which is widely used on ABG, AHLMANN (MECALAC), ATLAS, ATLAS COPCO, DEMAG, DEUTZ AG (KHD), FAHR, HAMM, IVECO, LIEBHERR, MAGIRUS-DEUTZ, O&, ZETTELMEYER engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AVF (REMY) | IM324, IM530 |
|---|---|
| BOSCH | 0001410053, 0001410063, 0001410081, 0001410109, 0001416030, 0986011460 |
| CLAAS | 1326430 |
| DEUTZ AG (KHD) | 01162506, 01174633, 02403887, D8R24X6H762 |
| EFEL | 10600, 22617 |
| ELMOT | 6180000, R2318 |
| FAUN | 1707049 |
| FIAT | 8122161 |
| HELLA | 8EA726131001, CS383 |
| LESTER | 17094 |
| LIEBHERR | 6000887 |
| LUCAS | LRS00861 |
| MAGNETI MARELLI | 943252189, MSR689 |
| MAHLE (Letrika, Iskra) | IS9002, 11139501, AZK5540, MS669, 11139002, AZK5162, MS493, 11130428, AZL3639, 11130132, AZL3603, 11130032, AZK4301 |
| REAL | 20401236 |
| TAM | 5568603, 5583430 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| ABG | JUMBO | 140 | KHD-F6L413V | 8.5 | 1975.01-1990.12 |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AS16 | KHD-F6L413V | 8.5 | 1972.06-1974.12 |
| ATLAS | 2002 | KHD-F6L413V | 8.5 | 1973.01-1988.02 | |
| ATLAS COPCO | LONG HOLE DRILLING RIGS | SIMBA 1350 Electr. Dir. Syst. | F5L 912 W; 55kW | - | |
| ATLAS COPCO | PR | 425 | KHD-F6L413 | 8.5 | 1972.02-1986.12 |
| DEMAG | H | 31.36 | KHD-F6L413V | 8.5 | 1974.04-1978.12 |
| DEUTZ AG (KHD) | F6L312 | - | 7.5 | 1971.06-1973.12 | |
| DEUTZ AG (KHD) | F6L413 | - | 9.6 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | F8L312 | - | 10.0 | 1971.07-1973.12 | |
| DEUTZ AG (KHD) | F8L413 | - | - | ||
| FAHR | M | 1600 | KHD-F8L413V | 11.3 | 1972.05-1980.12 |
| HAMM | STATIC ROLLERS GRW SERIES | GRW 30 | KHD-F8LL413V | 11.3 | 1977.05- |
| IVECO | 140 | 19AH.. | KHD-F6L413F | 9.6 | 1983.01-1983.12 |
| IVECO | 150 | 23 | KHD-F8L413F | 12.8 | 1984.02-1986.02 |
| IVECO | 160 | -19ANW | KHD-F6L413F | 9.6 | 1983.01-1984.12 |
| IVECO | 160 | -23ANW | KHD-F8L413F | 12.8 | 1984.04-1989.05 |
| IVECO | 160 | 19AH.. | KHD-F6L413F | 9.6 | 1983.01-1984.12 |
| IVECO | 160 | 23AHW | KHD-F8L413F | 12.8 | 1984.04-1988.02 |
| IVECO | 170 | -23ANW | KHD-F8L513 | 13.4 | 1990.01- |
| IVECO | 190 | 32AH.. | KHD-F10L413F | 16.0 | 1983.01-1985.12 |
| IVECO | 260 | -23AH.. | KHD-F8L413F | 12.8 | 1984.03-1989.03 |
| IVECO | 260 | -25AH.. | KHD-F8L413F | 12.8 | 1984.03-1986.06 |
| IVECO | 260 | -25AHB | KHD-F8L413F | 12.8 | 1979.12-1985.10 |
| IVECO | 260 | 32AH.. | KHD-F10L413F | 16.0 | 1983.01-1985.12 |
| LIEBHERR | CRAWLER EXCAVATORS | R961 | KHD-F6L413V | 8.5 | 1983.04-1990.02 |
| LIEBHERR | CRAWLER EXCAVATORS | R971 | KHD-F8L413V | 11.3 | 1983.04-1990.02 |
| MAGIRUS-DEUTZ | 260L | 117 | F8L413F | 12.8 | 1978.02-1982.12 |
| MAGIRUS-DEUTZ | 260L | 117P | F8L413F | 12.8 | 1977.10-1982.12 |
| MAGIRUS-DEUTZ | M170 | D11/14/16FL | F6L413 | 8.5 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M170 | D12/15/17/21AK | F6L413 | 8.5 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M170 | D14FS | F6L413 | 8.5 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M170 | D15FK.FAK | F6L413 | 8.5 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M170 | D15K | F6L413 | 8.5 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M170 | L/R100 | F6L413 | 8.5 | 1975.01-1979.09 |
| MAGIRUS-DEUTZ | M170 | L/R120 | F6L413 | 8.5 | 1975.01-1977.09 |
| MAGIRUS-DEUTZ | M170 | SH110 | F6L413 | 8.5 | 1975.01-1978.06 |
| MAGIRUS-DEUTZ | M170 | SH110 | F8L413 | 11.3 | 1975.01-1978.06 |
| MAGIRUS-DEUTZ | M170 | TL/TR100 | F6L413 | 8.5 | 1975.01-1979.09 |
| MAGIRUS-DEUTZ | M200 | L/R100 | F8L413 | 11.3 | 1975.01-1979.09 |
| MAGIRUS-DEUTZ | M200 | SH110U | F8L413W | 11.3 | 1975.01-1978.05 |
| MAGIRUS-DEUTZ | M200 | TL/TR100 | F8L413 | 11.3 | 1975.01-1979.09 |
| MAGIRUS-DEUTZ | M230 | L/R120 | F8L413 | 11.3 | 1975.01-1979.09 |
| MAGIRUS-DEUTZ | M230 | L117 | F8L413 | 11.3 | 1975.01-1980.04 |
| MAGIRUS-DEUTZ | M230 | TL/TR120 | F8L413 | 11.3 | 1975.01-1979.09 |
| MAGIRUS-DEUTZ | M232 | D13/16/19FS | F8L413 | 11.3 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M232 | D13/16FL | F8L413 | 11.3 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M232 | D15/19/22/26FK.FAK | F8L413 | 11.3 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M232 | D15FLL | F8L413 | 11.3 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M232 | D16/19/22/26K.AK | F8L413 | 11.3 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M232 | D19S | F8L413 | 11.3 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M256 | D16/26K.AK | F8L413F | 12.8 | 1977.03-1982.10 |
| MAGIRUS-DEUTZ | M256 | D16FL | F8L413F | 12.8 | 1977.03-1982.10 |
| MAGIRUS-DEUTZ | M256 | D16FS | F8L413F | 12.8 | 1977.03-1982.10 |
| MAGIRUS-DEUTZ | M256 | D22FLL | F8L413F | 12.8 | 1977.03-1982.10 |
| O&K | G | 12 | KHD-F6L413 | 8.5 | 1974.01-1987.06 |
| O&K | L | 25 | KHD-F8L413 | 11.3 | 1974.01-1986.12 |
| O&K | RH | 14 | KHD-F6L413 | 8.5 | 1969.01-1979.12 |
| O&K | RH | 18HD.LC | KHD-F8L413 | 11.3 | 1976.04-1990.06 |
| O&K | RH | 25HD | KHD-F8L413 | 11.3 | 1972.01-1983.12 |
| ZETTELMEYER | EUROP | KL25 | KHD-F6L413 | 8.5 | 1972.09-1977.12 |
| ZETTELMEYER | EUROP | KL30 | KHD-F8L413 | 11.3 | 1971.05-1977.12 |

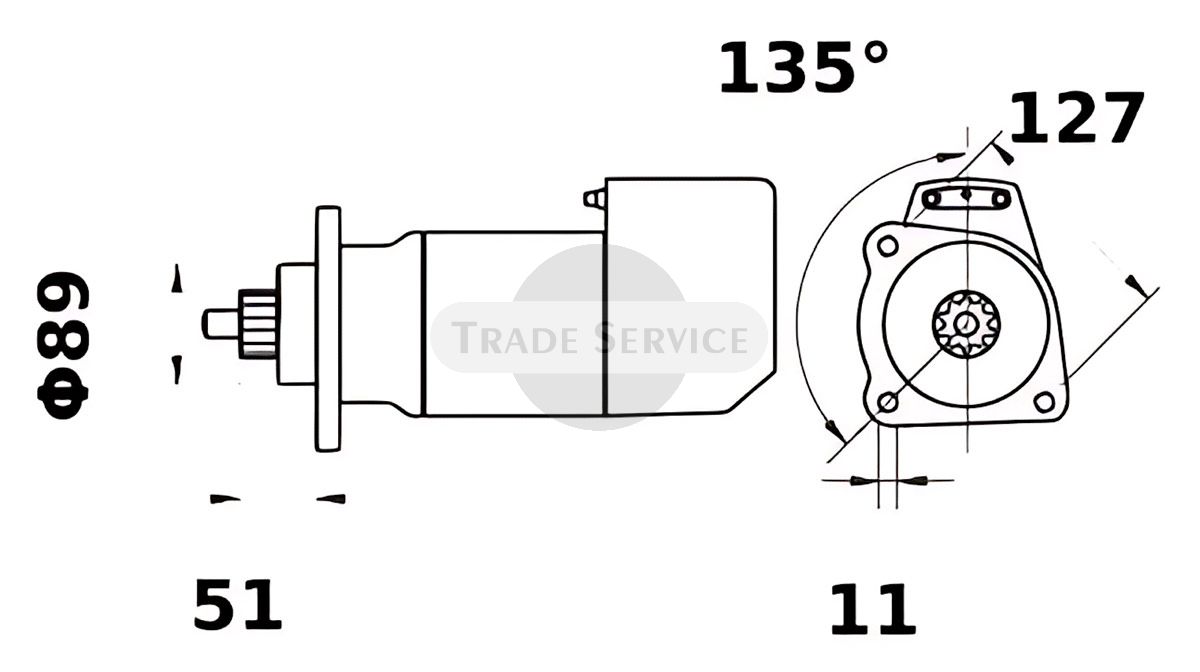

More Information
| Weight (kg) | 16.855000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.4 kW |
| Pinion teeth | 11 |
| Rotation direction | CW |
| Notes | Mass terminal 31 |
