24V 5.5kW z12 (IS9477, MS779)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

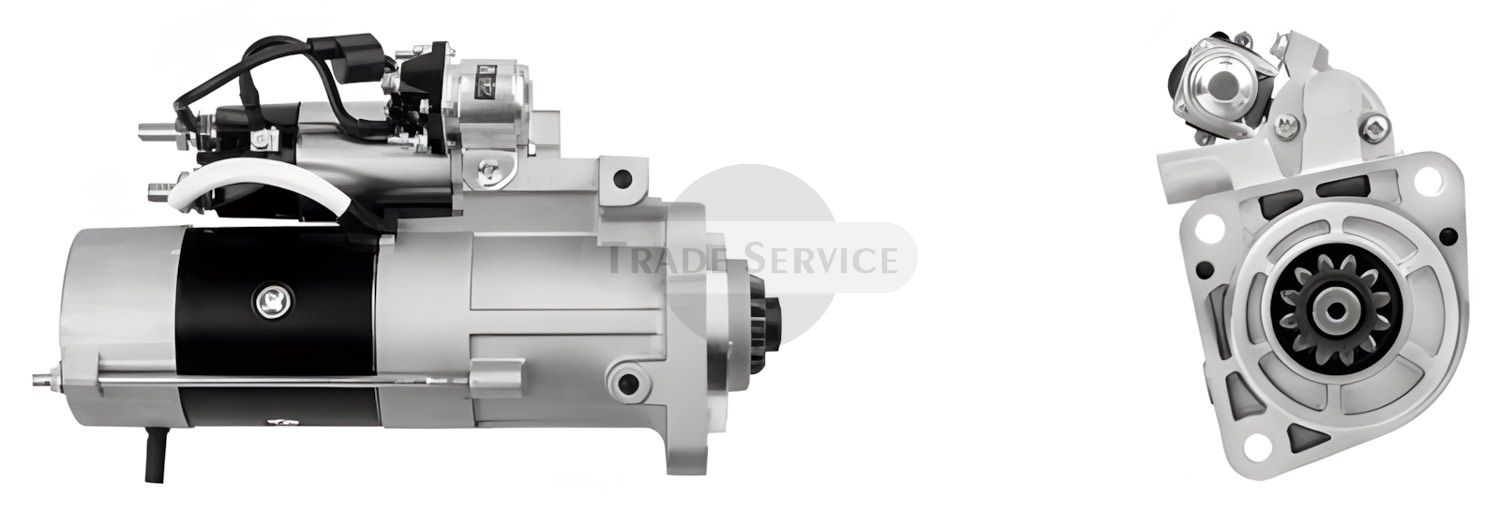

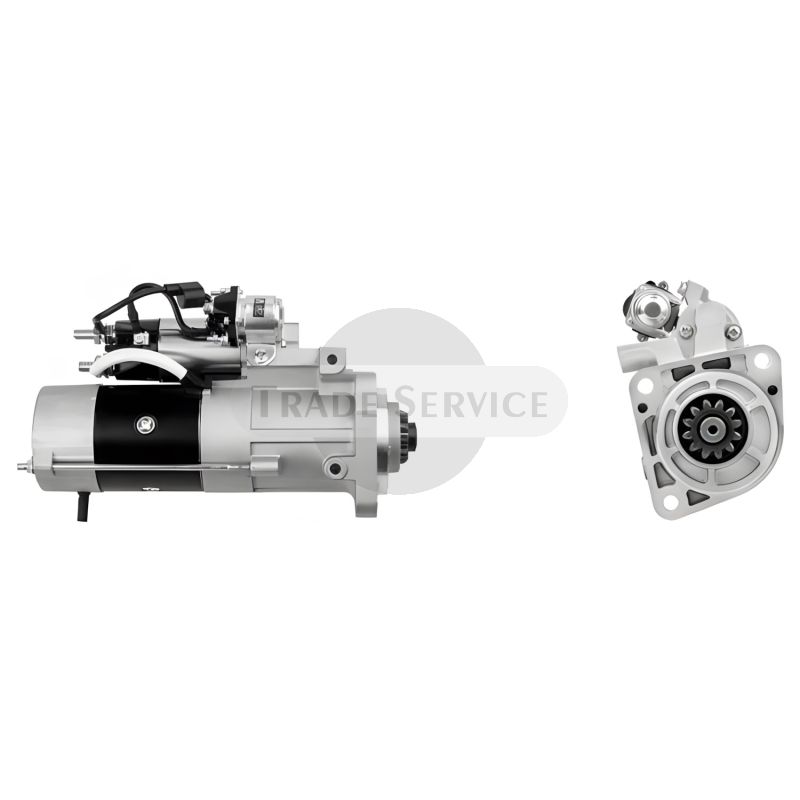

11.139.625 AZE4698 MAHLE (Letrika, Iskra) starter motor MS779
Similar products
We found other products you might like!
-
M9T62671 / M009T62671 (AM) Mitsubishi starter motor24V 5.5 kW z12 -
19801N WAI starter motor24V 5,5 kW z12 -
Information
This 11.139.625 AZE4698 MAHLE (Letrika, Iskra) starter motor MS779 is a reliable spare part which is widely used on RENAULT, VOLVO, VOLVO (BM), VOLVO PENTA engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH | 0001241023, 0986024660, F042001228 |
|---|---|
| CASCO | CST35639AS, CST35639GS |
| DELCO REMY | 19081013, 19081913, DRS0325, DRS0325N |
| DEUTZ AG (KHD) | 01182315, 01182759, 01183286, 01183973 |
| FARCOM | 107204 |
| HC-CARGO | 114733, 115894 |
| HELLA | 8EA012586301, CS1496 |
| LUCAS | LRS02599 |
| MAHLE (Letrika, Iskra) | IS9477, 11139625, AZE4698, MS779 |
| MITSUBISHI | M009T62671, M9T62671, M9TD1971 |
| RENAULT V. I. (RVI) - VOLVO | 5001868233, 7420997672, 7421164607, M9TD1971, M9TD6267 |
| UNIPOINT | F042S01228 |
| VOLVO | 20796052, 20880693, 20997669, 21164603, 21306350, 22851149, 23025978, 85000749 |
| WAI | 19801N, 30619N |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| RENAULT | MIDLUM | 160.08 | DXi5 | 4.8 | 2006.05- |
| RENAULT | MIDLUM | 160.10 | DXi5 | 4.8 | 2006.05- |
| RENAULT | MIDLUM | 160.12 | DXi5 | 4.8 | 2006.05- |
| RENAULT | MIDLUM | 190.13 | DXi5 | 4.8 | 2006.05- |
| RENAULT | MIDLUM | 190.14 | DXi5 | 4.8 | 2006.05- |
| RENAULT | MIDLUM | 220.08 | DXi5 | 4.8 | 2006.05- |
| RENAULT | MIDLUM | 220.10 | DXi5 | 4.8 | 2006.05- |
| RENAULT | MIDLUM | 220.14 | DXi5 | 4.8 | 2006.05- |
| RENAULT | MIDLUM | 240.12 | DXi7 | 7.2 | 2006.05- |
| RENAULT | MIDLUM | 240.14 | DXi7 | 7.2 | 2006.05- |
| RENAULT | MIDLUM | 280.12 | DXi7 | 7.2 | 2006.05- |
| RENAULT | MIDLUM | 280.14 | DXi7 | 7.2 | 2006.05- |
| RENAULT | MIDLUM | 280.18 | DXi7 | 7.2 | 2006.05- |
| RENAULT | PREMIUM | 320.18 | DXi7 | 7.2 | 2006.05- |
| RENAULT | PREMIUM | 320.26 | DXi7 | 7.2 | 2005.10- |
| RENAULT | PREMIUM 2 | 270.18 | DXi7 | 7.2 | 2006.10- |
| RENAULT | PREMIUM 2 | 280.18 Lander | - | 7.2 | 2008.06-2013.04 |
| RENAULT | PREMIUM 2 | 310.18 | DXi7 | 7.2 | 2006.10- |
| RENAULT | PREMIUM 2 | 310.26 | DXi7 | 7.2 | 2006.10- |
| RENAULT | PREMIUM 2 | 340.19 | DXi7 | 7.2 | 2006.10- |
| VOLVO | FE | FE 240-18 | D7E240 | 7.1 | 2006.05- |
| VOLVO | FE | FE 240-18 | D7F240 | 7.1 | 2006.05- |
| VOLVO | FE | FE 240-26 | D7F240 | 7.1 | 2006.05- |
| VOLVO | FE | FE 260-18 | D7F260 | 7.1 | 2006.05- |
| VOLVO | FE | FE 260-26 | D7F260 | 7.1 | 2006.05- |
| VOLVO | FE | FE 280-18 | D7E280 | 7.1 | 2006.05- |
| VOLVO | FE | FE 280-22 | D7E280 | 7.1 | 2006.05- |
| VOLVO | FE | FE 280-26 | D7E280 | 7.1 | 2006.05- |
| VOLVO | FE | FE 300-18 | D7F300 | 7.1 | 2006.05- |
| VOLVO | FE | FE 300-26 | D7F300 | 7.1 | 2006.05- |
| VOLVO | FE | FE 320-18 | D7E320 | 7.1 | 2006.05- |
| VOLVO | FE | FE 320-22 | D7E320 | 7.1 | 2006.05- |
| VOLVO | FE | FE 320-26 | D7E320 | 7.1 | 2006.05- |
| VOLVO | FE | FE 340-18 | D7F340 | 7.1 | 2006.05- |
| VOLVO | FE | FE 340-26 | D7F340 | 7.1 | 2006.05- |
| VOLVO | FE II | FE 280-26 | D7E280 | 7.1 | 2013.05- |
| VOLVO | FE II | FE 300-18 | - | 7.1 | 2012.05- |
| VOLVO | FE II | FE 300-26 | - | 7.1 | 2012.05- |
| VOLVO | FE II | FE 320-26 | D7E320 | 7.1 | 2013.05- |
| VOLVO | FE II | FE 340-18 | - | 7.1 | 2012.05- |
| VOLVO | FE II | FE 340-26 | - | 7.1 | 2012.05- |
| VOLVO | FL | FL 280-12 | D7E280 | 7.1 | 2006.05- |
| VOLVO | FL | FL 280-15 | D7E280 | 7.1 | 2006.05- |
| VOLVO | FL | FL 280-16 | D7E280 | 7.1 | 2006.05- |
| VOLVO | FL | FL 280-18 | D7E280 | 7.1 | 2006.05- |
| VOLVO | FL 2 SERIE | FL 240-14 | D7F240 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 260-12 | D7F260 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 260-14 | D7F260 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 260-15 | D7F260 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 260-16 | D7F260 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 260-18 | D7F260 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 280-14 | D7E280 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 290-12 | D7F290 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 290-14 | D7F290 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 290-16 | D7F290 | 7.1 | 2009.06- |
| VOLVO | FL 2 SERIE | FL 290-18 | D7F290 | 7.1 | 2009.06- |
| VOLVO | FLH | FLH 240-18 | D7E240 | 7.1 | 2013.05- |
| VOLVO | FLH | FLH 240-18 | D7F240 | 7.1 | 2013.05- |
| VOLVO | FLH | FLH 260-12 | D7F260 | 7.1 | 2013.05- |
| VOLVO | FLH | FLH 260-18 | D7F260 | 7.1 | 2013.05- |
| VOLVO | FLH | FLH 280-12 | D7E280 | 7.1 | 2013.05- |
| VOLVO | FLH | FLH 280-18 | D7E280 | 7.1 | 2013.05- |
| VOLVO | FLH | FLH 290-12 | D7F290 | 7.1 | 2013.05- |
| VOLVO | FLH | FLH 290-18 | D7F290 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 240-14 | D7E240 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 240-14 | D7F240 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 240-15 | D7E240 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 240-15 | D7F240 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 240-16 | D7E240 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 240-16 | D7F240 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 260-14 | D7F260 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 260-15 | D7F260 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 260-16 | D7F260 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 280-14 | D7E280 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 280-16 | D7E280 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 290-14 | D7F290 | 7.1 | 2013.05- |
| VOLVO | FLL | FLL 290-16 | D7F290 | 7.1 | 2013.05- |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC140BLC | D4D-EAE 1 | 69kW | 4.0 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC140CL | D4D-EAE 1 | 69kW | 4.0 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC140DL | D4H-F | 4-cyl | 84kW |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC140EL | D4J | 90kW | 4.0 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC160BLC | D6D-EHE2 | 81kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC160DL | D4H | 4-cyl | 104kW |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC160DNL | D4H | 4-cyl | 104kW |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC180BLC | D6D-EHE2 | 81kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC180CL | D6E | 92kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC180DL | D4H | 4-cyl | 104kW |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC210BLC | D6D-EJE 2 | 107kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC210BNLC | D6D-EJE 2 | 107kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC210CL | D6E | 110kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC210CNL | D6E | 110kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC220DN | D6H. 6-cyl | 129kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC220DNL | D6H. 6-cyl | 129kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC220EN | D6J | 129kW | 6-cyl |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC220ENL | D6J | 129kW | 6-cyl |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC235CL | D6E | 6-cyl | 110kW |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC235EL | D6J | 129kW | 6-cyl |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC240BLC | D7D-EBE 2 | 125kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC240BNLC | D7D-EBE 2 | 125kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC240CL | D7E | 125kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC240CLD | D7E | 125kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC240CLR | D7E | 125kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC240CNL | D7E | 125kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC250DL | D8H | 151kW | 7.8 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC250DLR | D8H | 151kW | 7.8 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC250EL | D8J | 160kW | 7.8 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC290BLC | D7D-EAE 2 | 143kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC290BNLC | D7D-EAE 2 | 143kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC290CL | D7E | 143kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC290CLD | D7E | 143kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC290CLR | D7E | 143kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC290CNL | D7E-EAE 3 | 143kW | 7.2 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC300DL | D8H | 169kW | 7.8 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC300DNL | D8H | 169kW | 7.8 |
| VOLVO (BM) | CRAWLER EXCAVATORS | EC300EL | D8J | 160kW | 7.8 |
| VOLVO (BM) | CRAWLER EXCAVATORS | ECR145DL | D6H | 84kW | 4.0 |
| VOLVO (BM) | CRAWLER EXCAVATORS | ECR235DL | D6H | 128kW | 5.7 |
| VOLVO (BM) | CRAWLER EXCAVATORS | ECR305CL | D7E | 143kW | 7.2 |
| VOLVO (BM) | WHEEL EXCAVATORS | EW160C | D6D-EJE2 | 103kW | 5.7 |
| VOLVO (BM) | WHEEL EXCAVATORS | EW180C | D6D-EFE 2 | 112kW | 5.7 |
| VOLVO (BM) | WHEEL EXCAVATORS | EW180D | D6H | 129kW | 5.7 |
| VOLVO (BM) | WHEEL EXCAVATORS | EW210D | D6H | 129kW | 5.7 |
| VOLVO (BM) | WHEEL EXCAVATORS | EW230C | D6E | 125kW | 5.7 |
| VOLVO (BM) | WHEEL LOADERS | L45G | D4H-F | 4-cyl | 75kW |
| VOLVO (BM) | WHEEL LOADERS | L50G | D4H-F | 4-cyl | 87kW |
| VOLVO (BM) | WHEEL LOADERS | L50H | D4J | 4-cyl | |
| VOLVO PENTA | TAD420VE | - | TAD 420 | 6-cyl | 75kW |
| VOLVO PENTA | TAD520VE | - | TAD 520 | 6-cyl | 118kW |
| VOLVO PENTA | TAD530GE | - | TAD 530 | 4-cyl | 95kW |
| VOLVO PENTA | TAD531GE | - | TAD 531 | 4-cyl | 110kW |
| VOLVO PENTA | TAD620GE | - | TAD 620 | 6-cyl | 155kW |
| VOLVO PENTA | TAD620VE | - | TAD 620 | 6-cyl | 155kW |
| VOLVO PENTA | TAD650VE | - | TAD 650 | 6-cyl | 147kW |
| VOLVO PENTA | TAD660GE | - | TAD 760 | 6-cyl | 180kW |
| VOLVO PENTA | TAD720GE | - | TAD 720 | 6-cyl | 197kW |
| VOLVO PENTA | TAD720VE | - | TAD 720 | 6-cyl | 197kW |
| VOLVO PENTA | TAD721GE | - | TAD 720 | 6-cyl | 197kW |
| VOLVO PENTA | TAD721VE | - | TAD 720 | 6-cyl | 197kW |
| VOLVO PENTA | TAD722VE | - | TAD 720 | 6-cyl | 197kW |
| VOLVO PENTA | TAD760GE | - | TAD 760 | 6-cyl | 180kW |
More Information
| Weight (kg) | 9.780000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.5 kW |
| Pinion teeth | 12 |
| Rotation direction | N/A |
| Notes | Noseless version of starter, Off set drive end bracket, Soft start relay, With reduction gear |
