14V 70A (IA0592, MG277)
Got Questions?
€222 €175
In stock i Available in our store from stock. Update frequency: 5 minutes
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

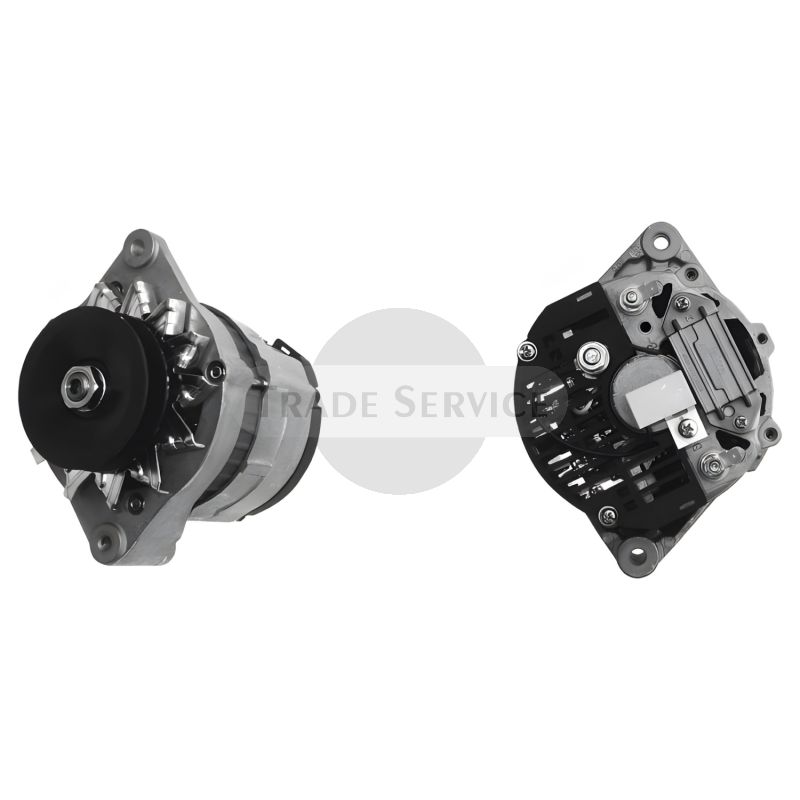

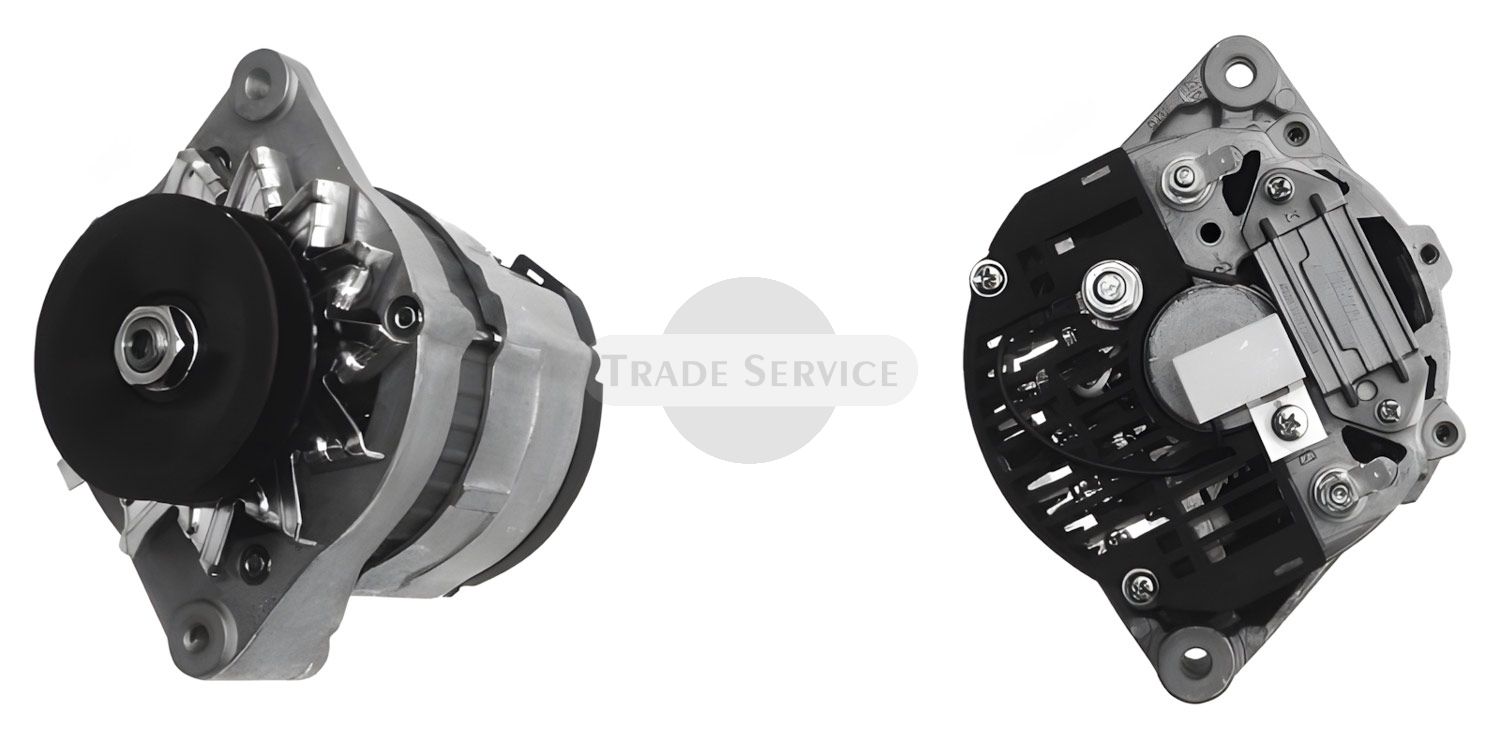

11.201.934 AAK3329 MAHLE (Letrika, Iskra) alternator MG277
Information
This 11.201.934 AAK3329 MAHLE (Letrika, Iskra) alternator MG277 is a reliable spare part which is widely used on JOHN DEERE engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AGCO | C000900010140 |
|---|---|
| BETA MARIN | 25000466 |
| BOSCH (USA) | AL9915X |
| BOSCH | 0120488217, 0120488218, 0120488267, 0120488290, 0120489156, 0120489317, 0120489703, 0986037450 |
| HELLA | 8EL732698001, 8EL732699001, CA1027IR, CA915IR |
| JOHN DEERE | AL28516, AL35998, AL67175, AL67176, AL78692, AL81436, AZ26910, TY6669 |
| LESTER | 13192, 13195, 13199 |
| LUCAS | LRA01703 |
| MAHLE (Letrika, Iskra) | IA0592, 11201934, AAK3329, MG277, 11201592, AAK1362 |
| SPAREX | 359350 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| JOHN DEERE | COMBINES | 1055 | - | - | - |
| JOHN DEERE | COMBINES | 1068 | - | - | - |
| JOHN DEERE | COMBINES | 1075 | - | - | - |
| JOHN DEERE | COMBINES | 1085 | - | - | - |
| JOHN DEERE | COMBINES | 1166 | - | - | - |
| JOHN DEERE | COMBINES | 1169 | - | - | - |
| JOHN DEERE | COMBINES | 1177 | - | - | - |
| JOHN DEERE | COMBINES | 955 | - | - | - |
| JOHN DEERE | COMBINES | MD1032 | - | 4.0 | 1983.10-1989.06 |
| JOHN DEERE | COMBINES | MD1042 | - | 4.0 | 1983.10-1989.06 |
| JOHN DEERE | COMBINES | MD1052 | - | 4.0 | 1983.10-1989.06 |
| JOHN DEERE | COMBINES | MD1055 | - | 5.9 | 1983.10-1989.06 |
| JOHN DEERE | ENGINES | 3029 | 3-cyl | 2.9 | - |
| JOHN DEERE | FARM | 1020. OU. VU | 3.164 | 5.8 | 1981.01-1983.01 |
| JOHN DEERE | FARM | 1065 | - | - | 1982.01-1994.01 |
| JOHN DEERE | FARM | 1068. Hydro | - | - | 1981.01-1994.01 |
| JOHN DEERE | FARM | 1072 | - | - | 1981.01-1991.01 |
| JOHN DEERE | FARM | 1075. Hydro | - | - | 1982.01-1994.01 |
| JOHN DEERE | FARM | 1085. Hydro | - | - | 1982.01-1991.01 |
| JOHN DEERE | FARM | 1630. OU. VU | 3.179DL-01 | 2.9 | 1973.08-1982.08 |
| JOHN DEERE | FARM | 1750. 1750V | 3.179DL | 2.9 | 1987.01-1994.12 |
| JOHN DEERE | FARM | 1830 | 4.219DL-03 | 3.6 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 1840. 1840F | 4.239DL-04 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 1850. 1850F.V | 3.179DL | 2.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 1950. 1950F | 3.179TL | 2.9 | 1988.01-1994.12 |
| JOHN DEERE | FARM | 2020. OU | - | - | 1972.01- |
| JOHN DEERE | FARM | 2120 | - | - | 1970.01-1979.12 |
| JOHN DEERE | FARM | 2130 | 4.239DL-01 | 3.9 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 2250. 2250F | 4.239DL | 3.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 2355 | - | - | 1987.01-1992.12 |
| JOHN DEERE | FARM | 2450. 2450F | 4.239DL | 3.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 2555 | 4-239 | - | 1987.01-1992.12 |
| JOHN DEERE | FARM | 2650. 2650F | 4.239TL | 3.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 2755 | 4-239 | - | 1987.01-1992.12 |
| JOHN DEERE | FARM | 2840 | 6.329 | - | 1977.01-1982.01 |
| JOHN DEERE | FARM | 2850 | 4.239TL | 3.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 2855 N | 4-239 | - | 1987.01-1993.12 |
| JOHN DEERE | FARM | 2955 | 6.359 | 5.9 | 1987.01-1992.12 |
| JOHN DEERE | FARM | 3040 | 6.359 | 5.9 | 1982.05-1987.12 |
| JOHN DEERE | FARM | 3040 | 6.359DL-01 | 5.9 | 1979.09-1982.05 |
| JOHN DEERE | FARM | 3050 | 6.359DL | 5.9 | 1986.01-1993.12 |
| JOHN DEERE | FARM | 3120 | - | - | 1972.01- |
| JOHN DEERE | FARM | 3150 | 6-359 | 5.9 | - |
| JOHN DEERE | FARM | 3350 | 6.359DL | 5.9 | 1986.01-1993.12 |
| JOHN DEERE | FARM | 3640 | 6.359DL | 5.9 | 1984.01-1987.12 |
| JOHN DEERE | FARM | 6200-2. | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6200-4 | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6300. 6300L | 4-239 | 3.9 | 1993.01- |
| JOHN DEERE | FARM | 6400 | 4-276 | - | 1993.01- |
| JOHN DEERE | FARM | 6400. L. SP | 4045T | 4.5 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6400-2.-4 | 4-239 | 4.5 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6500. 6500L | - | - | 1993.01- |
| JOHN DEERE | POWER UNITS | CD3029DF | - | 2.9 | - |
| JOHN DEERE | POWER UNITS | CD4039DF/TF | - | 3.9 | - |
| JOHN DEERE | POWER UNITS | CD4045TF | - | 4.5 | - |
| JOHN DEERE | POWER UNITS | CD6068TF | - | 6.8 | - |
| JOHN DEERE | TRACTORS | 2150 | - | - | 1983.01-1986.12 |
| JOHN DEERE | TRACTORS | 2155 | 3-179 | - | 1987.01-1992.12 |
| JOHN DEERE | UTILITY | 2150 | 3-179 | - | 1982.01-1982.12 |
| JOHN DEERE | UTILITY | 2240 | 164 Dsl | - | 1976.01-1982.12 |
| JOHN DEERE | UTILITY | 2255 | 3-179 Dsl | - | 1983.01-1987.12 |
| JOHN DEERE | UTILITY | 2355. 2355N | 4-239 Dsl | - | 1986.01-1992.12 |
| JOHN DEERE | UTILITY | 2550 | 4-239 | - | 1982.01-1987.12 |
| JOHN DEERE | UTILITY | 2555 | 4-239 | - | 1987.01-1992.12 |
| JOHN DEERE | UTILITY | 2755 | 4-239 | - | 1987.01-1992.12 |
| JOHN DEERE | UTILITY | 2855 N | 4-239 Dsl | - | 1987.01-1993.12 |
| JOHN DEERE | UTILITY | 6403 | - | - | - |
| JOHN DEERE | UTILITY | 6603 | - | - | - |
More Information
| Weight (kg) | 5.318000 |
|---|---|
| Condition | New |
| Voltage | 14 V |
| Current | 70 A |
| Rotation direction | N/A |
| Notes | Dust-proof |
