14V 55A (IA9430, MG504)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Discontinued product i This product is no longer in production.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

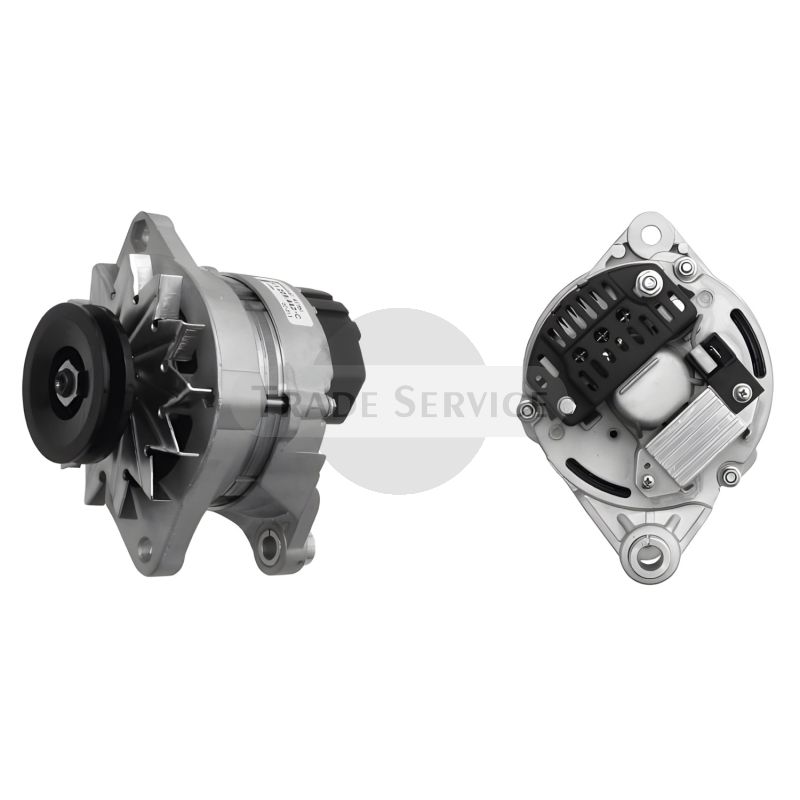

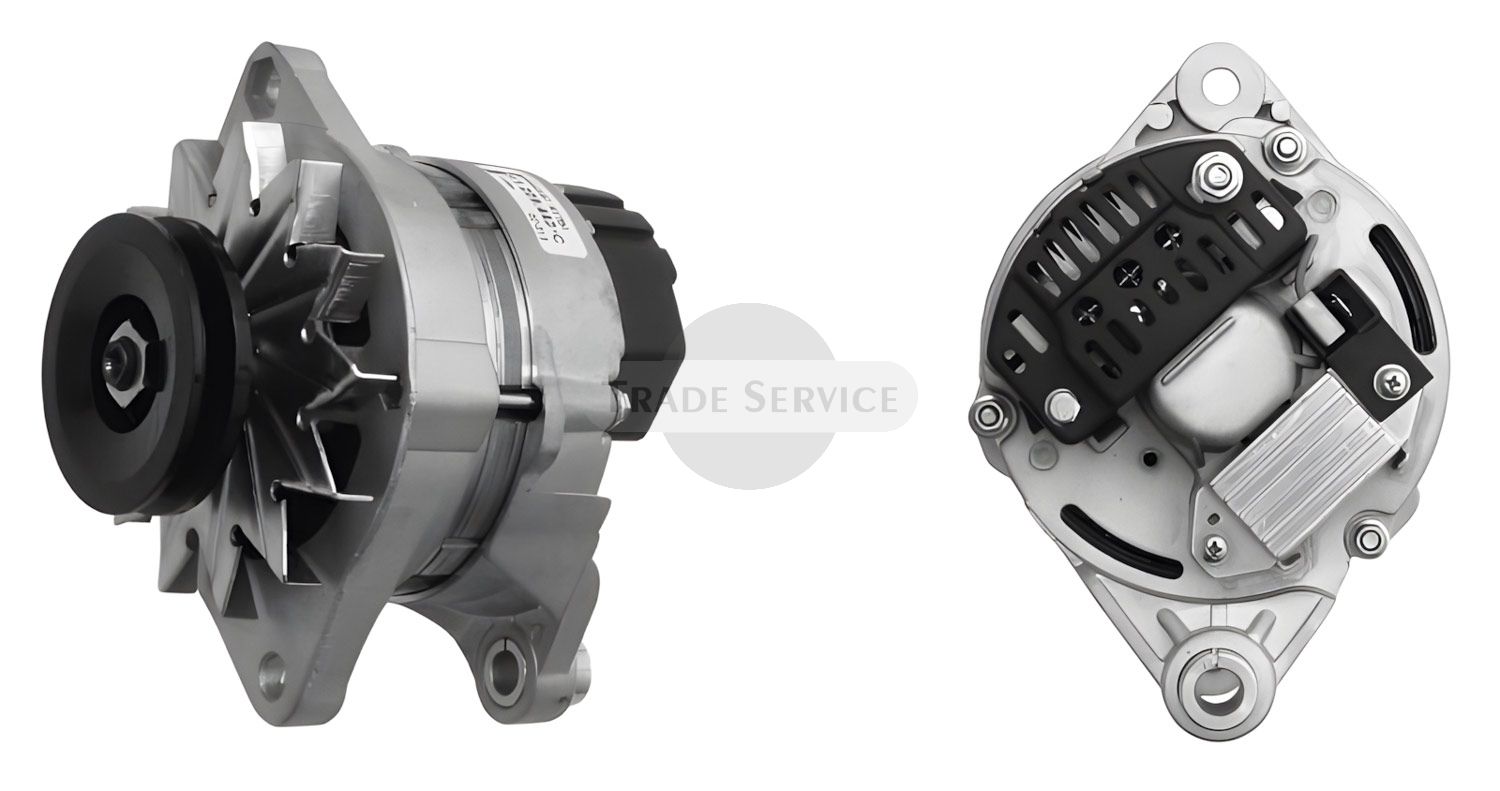

11.209.443 AAK3197 MAHLE (Letrika, Iskra) alternator MG504
Information
This 11.209.443 AAK3197 MAHLE (Letrika, Iskra) alternator MG504 is a reliable spare part which is widely used on AIFO, ALFA ROMEO, FIAT, FIAT-OM-CARELLI-ELEVATORI, IVECO, SAURER, UNIC engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BOSCH (USA) | AL913X |
|---|---|
| BOSCH | 0120489145, 0120489761, 0120489762, 0986033880, 0986033881 |
| FIAT | 4152612, 46231751, 4711700, 4721587, 4808498, 5101645, 7565244, 77515410 |
| HELLA | 8EL725673001, CA255IR |
| IVECO | 42498239, 4808497 |
| LESTER | 12030, 12580, 13075, 13204, 13205, 13206 |
| LUCAS | LRA00779, LRA00975 |
| MAGNETI MARELLI | 63305206, 63305226, 63305256, 63307206, 63307246, 63307256, 63320021, 63321035, 63321036, 63321037, 943305226, 943307236, 943320021, 943321037, 943356305 |
| MAHLE (Letrika, Iskra) | IA9430, 11209443, AAK3197, MG504 |
| VALEO | VA306 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AIFO | 8141 | .61.200 | - | 2.4 | 1978.06-1983.05 |
| ALFA ROMEO | 30AR8 | 2.5 | Sofim8140.61.200 | 2.5 | 1978.04-1989.12 |
| ALFA ROMEO | 32AR8 | 2.5 | Sofim8140.61.200 | 2.5 | 1978.04-1980.09 |
| ALFA ROMEO | 35AR8 | 2.5 | Sofim8140.61.200 | 2.5 | 1978.04-1989.12 |
| ALFA ROMEO | 40AR8 | 2.5 | Sofim8140.61.200 | 2.5 | 1978.04-1988.12 |
| FIAT | 131 | Mirafiori 2000D | 8144.65 | 2.0 | 1978.03-1979.03 |
| FIAT | 131 | Mirafiori 2500D | 8144.61 | 2.5 | 1978.08-1979.03 |
| FIAT | 131 | Panorama 2500D | 8144.61 | 2.5 | 1978.08-1979.03 |
| FIAT | 132 | 2000D | 8144.65 | 2.0 | 1978.03-1979.03 |
| FIAT | 132 | 2500D | 8144.61 | 2.5 | 1978.03-1979.03 |
| FIAT | 40 | .8.DT.V | - | - | - |
| FIAT | 440 | .DT.V | - | - | - |
| FIAT | 446 | .DT | - | - | - |
| FIAT | 45 | .46.DT | - | - | - |
| FIAT | 45 | .66.DT | - | - | - |
| FIAT | 465 | C.CF.CV | - | - | - |
| FIAT | 466 | .DT | 8035.02.276 | - | 1982.02-1983.12 |
| FIAT | 470 | S | - | - | - |
| FIAT | 474 | .DT | - | - | - |
| FIAT | 480 | DT.S.V | - | - | - |
| FIAT | 500 | S | 8035.04.272 | - | 1982.04-1982.07 |
| FIAT | 505 | C. C SUPER | 8035.02.202 | 2.6 | 1978.06-1982.03 |
| FIAT | 540 | S | 8035.02.302 | - | 1978.06-1982.03 |
| FIAT | 55 | .46.DT | - | - | - |
| FIAT | 55 | .65 | - | - | - |
| FIAT | 55 | .66.DT.DTF.F.LP.LPDT.V | - | - | - |
| FIAT | 565 | C | 8035.04.376 | 2.8 | 1982.01-1983.12 |
| FIAT | 566 | 8035.04.376 | - | - | 1982.02-1983.12 |
| FIAT | 570 | .DT.DTF.V | 8035.04.270 | - | 1977.12-1982.12 |
| FIAT | 580 | .DT | 8035.04.270 | - | 1977.12-1982.04 |
| FIAT | 60 | .65 | - | - | - |
| FIAT | 60 | .66.DT.F.LP.LPDT | - | - | - |
| FIAT | 605 | C SUPER | 8045.02.211 | - | 1977.01-1982.07 |
| FIAT | 640 | .DT | 8045.02.200 | - | 1972.10-1982.03 |
| FIAT | 65 | .46.DT | - | - | - |
| FIAT | 665 | C | 8045.02.276 | - | 1982.06-1983.12 |
| FIAT | 666 | .DT | 8045.02.376 | - | 1982.12-1983.12 |
| FIAT | 670 | .DT.F | 8045.02.270 | - | 1977.07-1982.04 |
| FIAT | 680 | .DT | 8045.02.270 | - | 1977.07-1983.12 |
| FIAT | 70 | .65 | - | - | - |
| FIAT | 70 | .66.DT.F.FDT.LP.LPDT | - | - | - |
| FIAT | 756 | C | 8047.04.276 | - | 1982.06-1983.12 |
| FIAT | 766 | .DT | 8045.04.376 | - | 1982.01-1983.12 |
| FIAT | 780 | .DT | 8045.04.270 | - | 1975.01-1984.02 |
| FIAT | 80 | .65 | - | - | - |
| FIAT | 80 | .66.DT.F.FDT | - | - | - |
| FIAT | 880 | .DT | - | - | - |
| FIAT | DAILY | 28F8 | 8140.61.204 | 2.5 | 1978.04-1982.07 |
| FIAT | DAILY | 30F8 | 8140.61 | 2.5 | 1978.04-1982.12 |
| FIAT | DAILY | 32F8 | 8140.61 | 2.5 | 1978.04-1980.10 |
| FIAT | DAILY | 35F8 | 8140.61 | 2.5 | 1978.04-1982.12 |
| FIAT | DAILY | 40F8 | 8140.61 | 2.5 | 1978.04-1982.12 |
| FIAT | PANDA | 0.6 | 141A | 0.6 | 1982.01-1985.12 |
| FIAT-OM-CARELLI-ELEVATORI | DI | 23 | 8141I67.01 | 2.4 | 1990.12- |
| IVECO | AIFO-8141 | Sl 27.01 | - | 2.4 | 1990.01- |
| IVECO | DAILY/GRINTA | 30-8 | Sofim-8140.61.200 | 2.4 | 1978.04-1989.06 |
| IVECO | DAILY/GRINTA | 35.8 | Sofim8140.61.200 | 2.4 | 1978.04-1989.06 |
| IVECO | DAILY/GRINTA | 40-8 | Sofim8140.61.200 | 2.4 | 1983.01-1989.06 |
| IVECO | SOFIM-8140 | 21.235 | - | 2.4 | 1987.06-1989.12 |
| IVECO | SOFIM-8141 | 61.200 | - | 2.4 | 1989.01-1989.12 |
| IVECO | SOFIM-8141 | 61.203 | - | 2.4 | 1984.10-1989.12 |
| IVECO | SOFIM-8141 | 67.203 | - | 2.4 | 1987.07-1989.12 |
| IVECO | SOFIM-8141 | 81.200 | - | 2.4 | 1984.01-1988.05 |
| IVECO | SOFIM-8141 | I 67.00 | - | 2.4 | 1990.01- |
| IVECO | SOFIM-8141 | M08.00 | - | 2.4 | 1990.01- |
| IVECO | SOFIM-8141 | M8 | - | 2.5 | 1989.01-1989.12 |
| IVECO | SOFIM-8141 | SI21.00 | - | 2.4 | 1990.01-1990.06 |
| SAURER | GRINTA | 30OM8 | 8140.61 | 2.4 | 1978.04-1982.12 |
| SAURER | GRINTA | 32OM8 | 8140.61 | 2.4 | 1978.04-1982.12 |
| SAURER | GRINTA | 35OM8 | 8140.61 | 2.4 | 1978.04-1982.12 |
| UNIC | 30U8/BUS | - | - | - | 1978.04-1982.12 |
| UNIC | 32U8 | - | - | - | - |
| UNIC | 35U8 | - | - | - | 1978.04-1982.12 |
| UNIC | 35U8 BUS | - | - | - | 1978.04-1982.12 |
| UNIC | 40U8 | - | - | - | 1978.04-1982.12 |
More Information
| Weight (kg) | 5.000000 |
|---|---|
| Condition | New |
| Voltage | 14 V |
| Current | 55 A |
| Rotation direction | N/A |
