24V 4.5kW z10
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

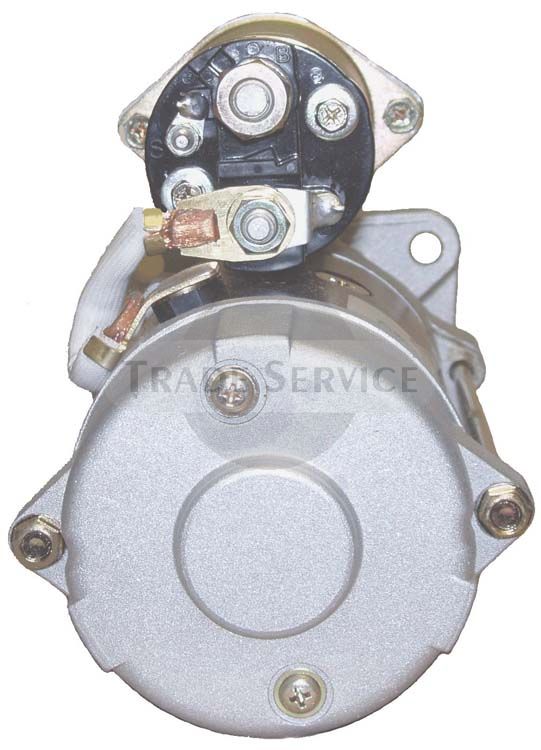

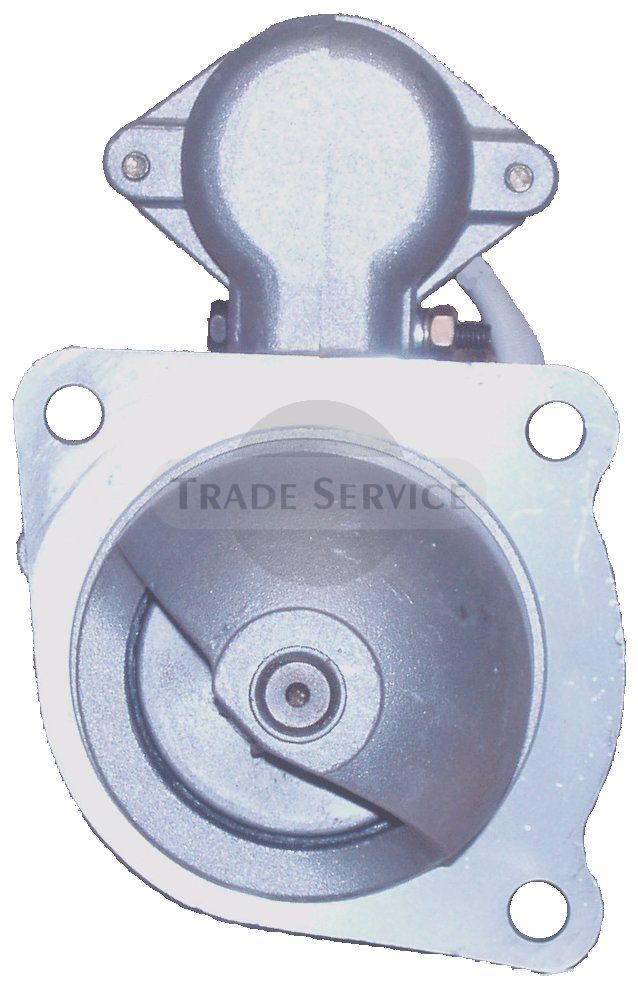

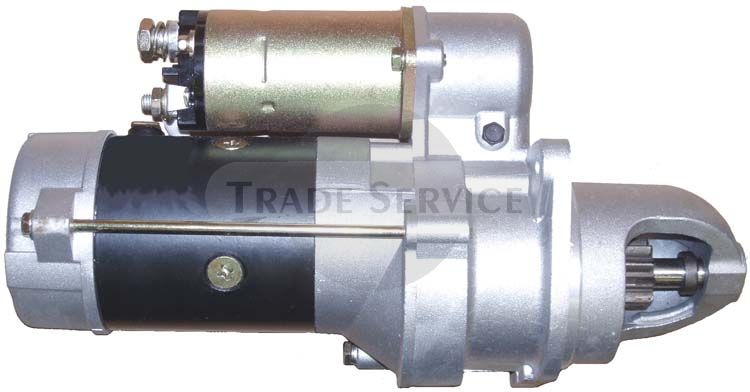

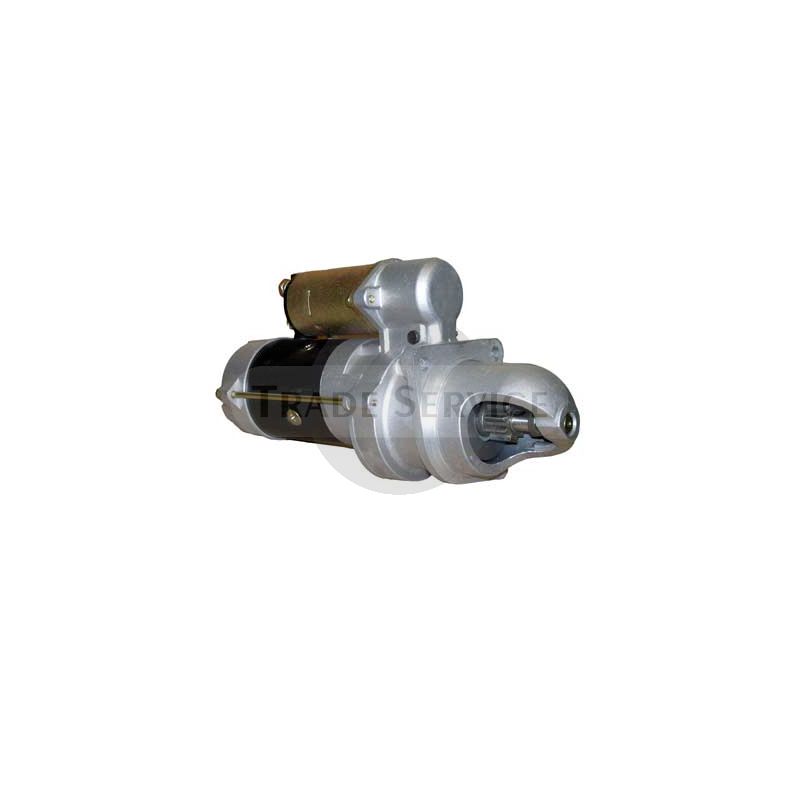

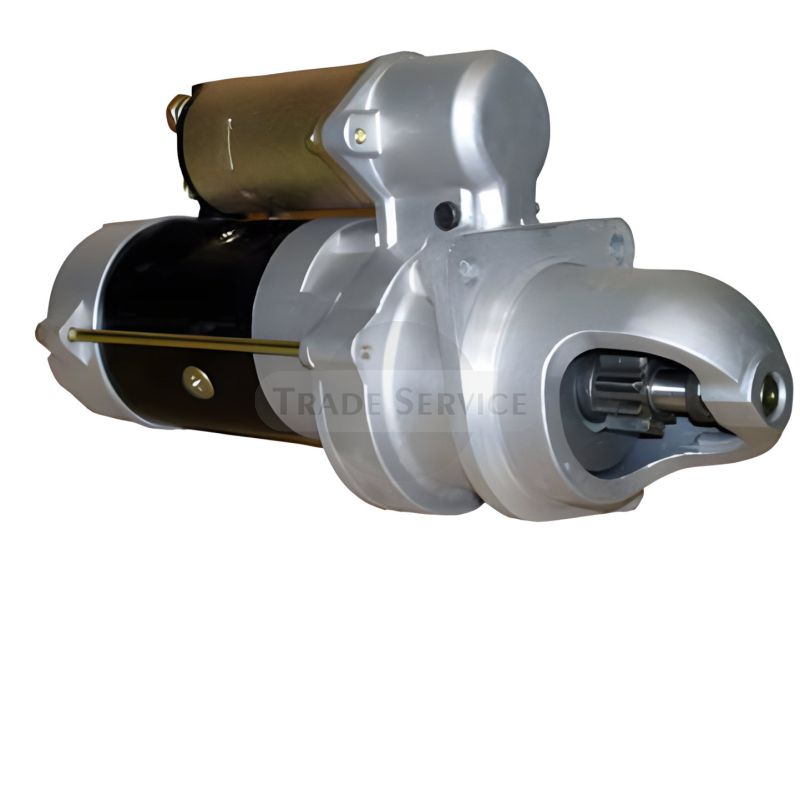

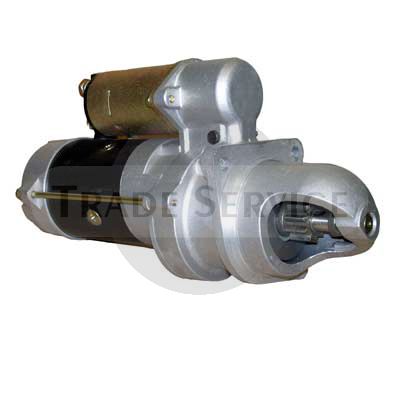

860318 Prestolite starter motor
Similar products
We found other products you might like!
-
11.131.359 AZF4594 MAHLE (Letrika, Iskra) starter motor MS242€610 €48024V 4.0kW z10 (IS1140, MS242) -
Information
This 860318 Prestolite starter motor is a reliable spare part which is widely used on CASE IH, TIMBERJACK engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| BMC | 9P901544 |
|---|---|
| CUMMINS | 1912346, 3604677PX, 3604677RX, 3675204RX, 3904057, 3909914, 3910369, 3918377, 3918378, 3926932, 3926932R, 3926932X, 3926933, 505421, ST9005, ST9042, ST9097, ST9121, ST9173 |
| DAF | 1147632 |
| DELCO REMY | 10461283, 10461468, 10461486, 10465400, 1046640, 10479616, 10479622, 10479656, 10496884, 1113277, 1113291, 1113594, 11300003, 11300004, 11300010, 1998459, 1998488 |
| ERF | 1036136, 3058118 |
| FIAT | 76192011 |
| HC CARGO | 111257 |
| HELLA | 8EA732680001, US857 |
| JCB | 71440033 |
| KOMATSU | 1268855H91 |
| LUCAS | 61924036 |
| LUCAS ELECTRICAL | 61924036 |
| NIKKO | 0230002030, 0230002470 |
| ONAN | 1911961, 1912103 |
| PRESTOLITE | 860318, LNS2840, OMS126 |
| TEREX | F0241574 |
| UNIPOINT | F042S03112, STR7150 |
| VOLVO | 707112, 9011707112 |
| WAI | 5084161, 6582N |
| WILSON | 91014361 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| CASE IH | CRAWLER TRACTORS 850 | - | 360 Diesel | - | 1983.00-1985.00 |
| TIMBERJACK | FELLER BUNCHER 608 | - | Cummins 5.9L Diesel | - | 1995.00- |
| TIMBERJACK | MISC. EQUIPMENT 608 Harvester | - | All | - | 1995.00- |
More Information
| Weight (kg) | 10.500000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 4.5 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
| Spigot diameter (mm) | 89 |
| Notes | 0 |
