24V 5.4kW z11 (IS9013, MS566)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Discontinued product i This product is no longer in production.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

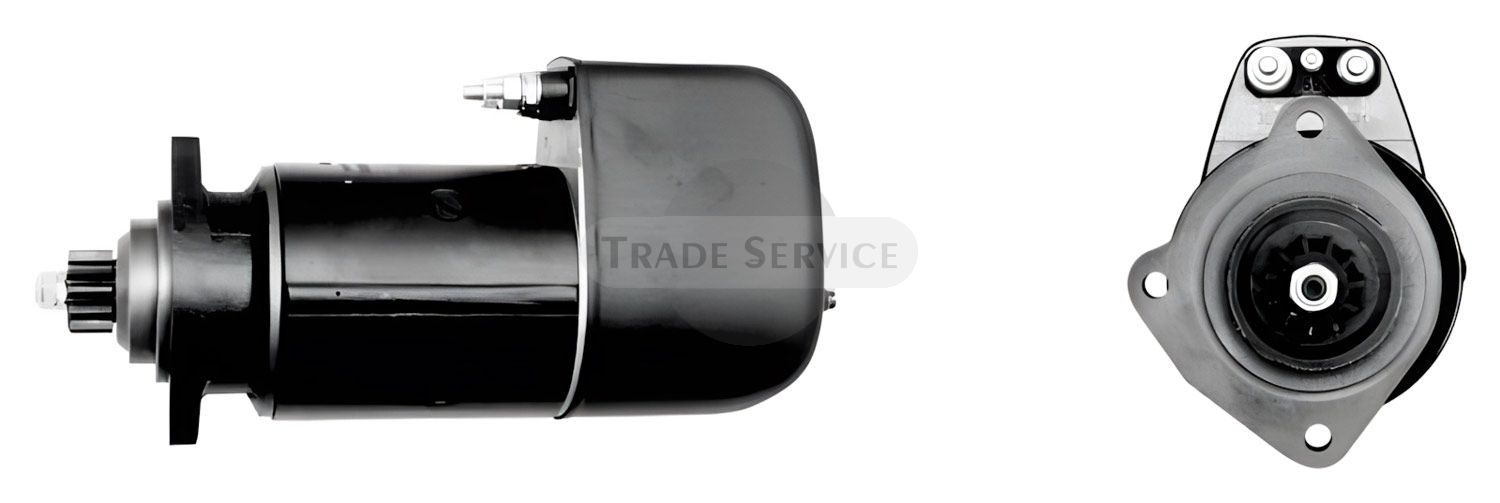

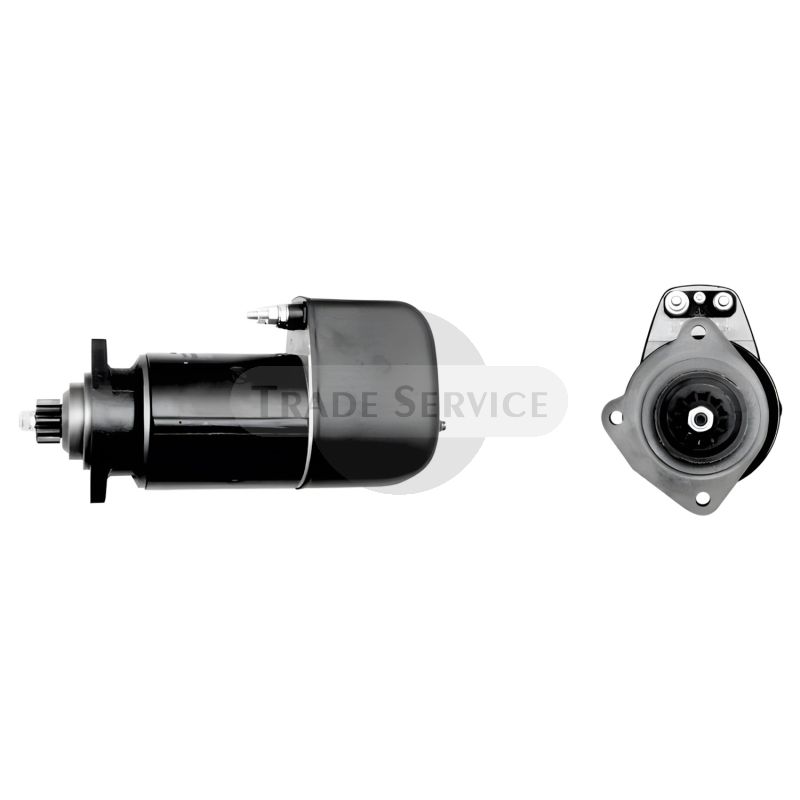

11.139.013 AZK5173 MAHLE (Letrika, Iskra) starter motor MS566
Similar products
We found other products you might like!
-
11.139.520 AZK5559 MAHLE (Letrika, Iskra) starter motor MS70124V 5.4kW z11 (IS9013, MS701) -
860655GB Prestolite starter motor24V 5.4kW z11
Information
This 11.139.013 AZK5173 MAHLE (Letrika, Iskra) starter motor MS566 is a reliable spare part which is widely used on IVECO, MAGIRUS-DEUTZ engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| ATLAS COPCO | 2913103700, 2913121300 |
|---|---|
| AVF (REMY) | IM328, IM536 |
| BOSCH | 0001410111, 0001416036, 0986012730, 9000084015 |
| DEUTZ AG (KHD) | 01171955, 01174645, 03040680 |
| EFEL | 22620 |
| ELMOT | 6210000, R2321 |
| HELLA | 8EA726132001, CS384 |
| IVECO | 42498250, 42522680 |
| LESTER | 18379 |
| LUCAS | LRS00748 |
| MAGIRUS-DEUTZ | 8121335 |
| MAGNETI MARELLI | 943252220, MSR708 |
| MAHLE (Letrika, Iskra) | IS9013, 11139520, AZK5559, MS701, 11139013, AZK5173, MS566, 11130429, AZL3640 |
| VALEO | 455616 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| IVECO | 160 | 30AH | KHD-BF8L513 | 12.8 | 1986.06-1988.02 |
| IVECO | 170 | -23AH | KHD-F8L513 | 6.1 | 1983.06-1991.07 |
| IVECO | 170 | -23AHW | KHD-F8L513 | 13.4 | 1988.04-1991.07 |
| IVECO | 170 | -25AH | KHD-F8L513 | 13.4 | 1989.03-1991.07 |
| IVECO | 170 | -25AHW | KHD-F8L513 | 13.4 | 1989.03-1991.07 |
| IVECO | 170 | 23AH | KHD-F8L513 | 13.4 | 1988.04-1991.07 |
| IVECO | 170 | 34AH | KHD-BF8L513 | 12.8 | 1989.04- |
| IVECO | 170 | 34AHW | KHD-BF8L513 | 12.8 | 1989.04-1991.07 |
| IVECO | 180 | -23AH | KHD-F8L513 | 13.4 | 1991.07- |
| IVECO | 180 | -23AHW | KHD-F8L513 | 13.4 | 1991.07- |
| IVECO | 180 | -25AH | KHD-F8L513 | 13.4 | 1991.07- |
| IVECO | 180 | -25AHW | KHD-F8L513 | 13.4 | 1991.07- |
| IVECO | 180 | -34AH | KHD-BF8L513 | 12.8 | 1991.07- |
| IVECO | 180 | -34AHW | KHD-BF8L513 | 12.8 | 1991.07- |
| IVECO | 190 | -25AH | KHD-F8L413F | 12.8 | 1983.07-1986.06 |
| IVECO | 190 | -25AN | KHD-F8L413F | 12.8 | 1983.07-1990.09 |
| IVECO | 190 | -29A | KHD-BF8L413F | 12.8 | 1983.01-1983.12 |
| IVECO | 190 | -30AHW | KHD-BF8L513 | 12.8 | 1987.09- |
| IVECO | 190 | 25AH | KHD-F8L413F | 12.8 | 1983.07-1986.06 |
| IVECO | 190 | 30AHW | KHD-BF8L513 | 12.8 | 1987.09- |
| IVECO | 240 | 29AP | KHD-BF8L413F | 12.8 | 1983.01-1983.12 |
| IVECO | 260 | -25AH | KHD-F8L513 | 13.4 | 1989.04- |
| IVECO | 260 | -25AN | KHD-F8L413F | 12.8 | 1983.07-1986.06 |
| IVECO | 260 | -30AH | KHD-BF8L513 | 12.8 | 1986.06-1990.05 |
| IVECO | 260 | 23AH | KHD-F8L513 | 13.4 | 1989.04- |
| IVECO | 260 | 25AH | KHD-F8L513 | 13.4 | 1989.04- |
| IVECO | 260 | 30AH | KHD-BF8L513 | 12.8 | 1986.06-1990.05 |
| IVECO | 260 | 34AH | KHD-BF8L513 | 12.8 | 1989.04- |
| IVECO | 260 | 34AHW | KHD-BF8L513 | 12.8 | 1989.04- |
| IVECO | 300 | -25AH | KHD-F8L513 | 13.4 | 1986.01-1986.02 |
| IVECO | 300 | 30AH | KHD-BF8L513 | 12.8 | 1987.04-1989.05 |
| IVECO | 300 | 32AH | KHD-BF8L513 | 12.8 | 1989.04- |
| IVECO | 300 | 34AH | KHD-BF8L513 | 12.8 | 1989.04-1992.04 |
| IVECO | 320 | 32AH.. | KHD-BF8L513 | 12.8 | 1989.04- |
| IVECO | 330 | -25AH | KHD-F8L413F | 12.8 | 1983.07-1985.02 |
| IVECO | 330 | -30AH | KHD-BF8L513 | 12.8 | 1986.05-1991.10 |
| IVECO | 330 | -30AN | KHD-BF8L513 | 12.8 | 1986.05-1990.09 |
| IVECO | 330 | -36AH | KHD-BF10L413F | 16.0 | 1983.07-1985.06 |
| IVECO | 330 | 30AH | KHD-BF8L513 | 12.8 | 1986.05-1991.10 |
| IVECO | 330 | 32ANW | KHD-F10L413F | 16.0 | 1983.07-1987.06 |
| IVECO | 330 | 32ANW | KHD-F10L413F | 16.0 | 1983.07-1987.06 |
| IVECO | 330 | 36AH | KHD-BF10L413F | 16.6 | 1983.07-1985.06 |
| IVECO | 340 | -34AH | KHD-BF8L513 | 12.8 | 1989.03- |
| IVECO | M | 2000 | KHD-F8L413F | 12.8 | 1982.01-1984.12 |
| MAGIRUS-DEUTZ | 192M | 14FL | F6L413F | 9.6 | 1979.01-1982.12 |
| MAGIRUS-DEUTZ | 192M | 14FS | F6L413F | 9.6 | 1979.01-1982.12 |
| MAGIRUS-DEUTZ | 192M | 16FL | F6L413F | 9.6 | 1979.01-1982.12 |
| MAGIRUS-DEUTZ | 192M | 16FS | F6L413F | 9.6 | 1979.01-1982.12 |
| MAGIRUS-DEUTZ | 230SH | 110 | F6L413F | 9.6 | 1977.10-1980.04 |
| MAGIRUS-DEUTZ | 230SH | 110 | F8L413F | 12.8 | 1977.10-1980.04 |
| MAGIRUS-DEUTZ | 256M | 19FL | F8L413F | 12.8 | 1978.05-1983.07 |
| MAGIRUS-DEUTZ | 256M | 19FLL | F8L413F | 12.8 | 1978.05-1983.07 |
| MAGIRUS-DEUTZ | 256M | 19FS | F8L413F | 12.8 | 1978.05-1983.07 |
| MAGIRUS-DEUTZ | 256M | 19FSL | F8L413F | 12.8 | 1978.05-1983.07 |
| MAGIRUS-DEUTZ | 256M | 22FLL | F8L413F | 12.8 | 1978.05-1983.07 |
| MAGIRUS-DEUTZ | 256M | 22FSL | F8L413F | 12.8 | 1978.05-1983.07 |
| MAGIRUS-DEUTZ | 320M | 19FL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 19FL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 19FLL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 19FLL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 19FS | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 19FS | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 19FSL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 19FSL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 22FLL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 22FLL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 22FSL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | 320M | 22FSL | F10L413F | 16.0 | 1978.05-1982.07 |
| MAGIRUS-DEUTZ | M270 | D16/22FL | F10L413 | 14.1 | 1975.01-1978.06 |
| MAGIRUS-DEUTZ | M270 | D16/22FL.FLL | F10L413 | 14.1 | 1975.01-1978.06 |
| MAGIRUS-DEUTZ | M270 | D16/22FLL | F10L413 | 14.1 | 1975.01-1978.06 |
| MAGIRUS-DEUTZ | M270 | D16/22FSL | F10L413 | 14.1 | 1976.04-1978.06 |
| MAGIRUS-DEUTZ | M270 | D16/22S | F10L413 | 14.1 | 1975.01-1978.06 |
| MAGIRUS-DEUTZ | M270 | D16/26K.AK | F10L413 | 14.1 | 1975.01-1978.06 |
| MAGIRUS-DEUTZ | M270 | D16FK.22/26FAK | F10L413 | 14.1 | 1976.04-1978.06 |
| MAGIRUS-DEUTZ | M270 | D16S | F10L413 | 14.1 | 1975.01-1978.06 |
| MAGIRUS-DEUTZ | M310 | D16/19/22/26FK.FAK | F10L413 | 14.1 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M310 | D16/19/22/26K.AK | F10L413 | 14.1 | 1975.01-1981.12 |
| MAGIRUS-DEUTZ | M310 | D16/19/22FL | F10L413 | 14.1 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M310 | D16/19/22FL.FS | F10L413 | 14.1 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M310 | D16/19/22FS | F10L413 | 14.1 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M310 | D16/19S | F10L413 | 14.1 | 1975.01-1981.12 |
| MAGIRUS-DEUTZ | M310 | D16/22FLL | F10L413 | 14.1 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M310 | D16/22FSL | F10L413 | 14.1 | 1975.01-1982.10 |
More Information
| Weight (kg) | 17.159000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.4 kW |
| Pinion teeth | 11 |
| Rotation direction | CW |
| Notes | Mass terminal 31 |
