24V 5.4kW z11 (IS9016, MS507)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

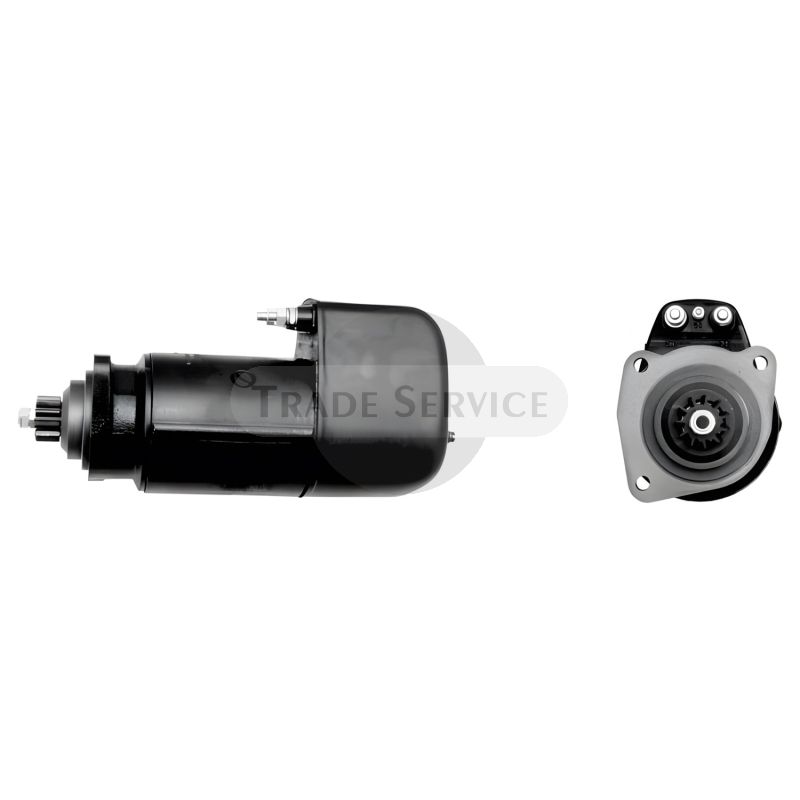

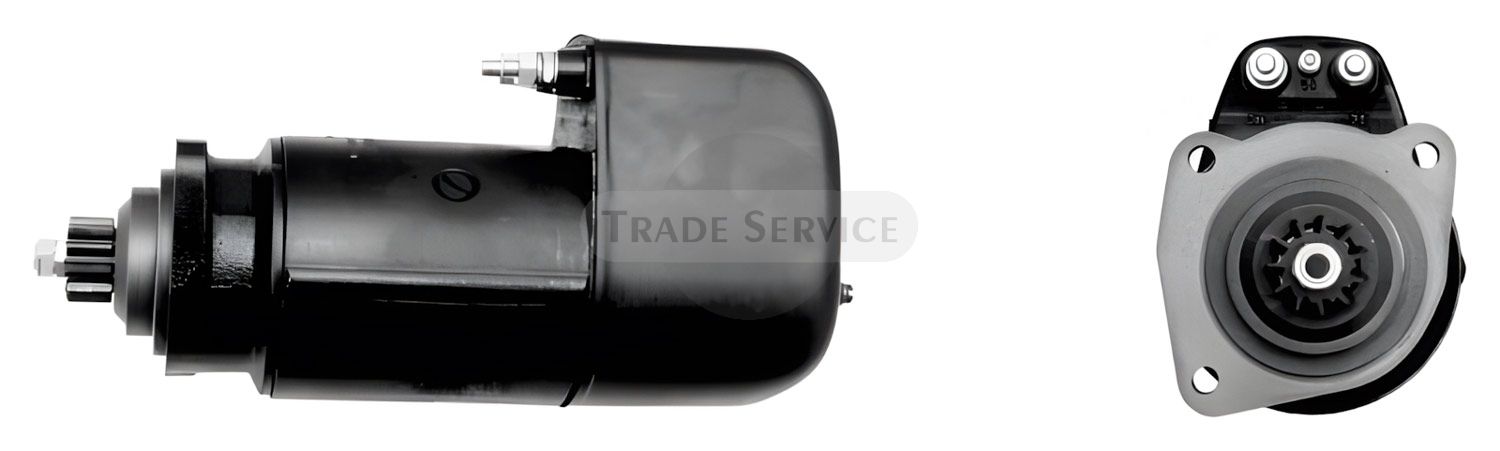

11.139.016 AZK5175 MAHLE (Letrika, Iskra) starter motor MS507
Similar products
We found other products you might like!
-
11.139.512 AZK5550 MAHLE (Letrika, Iskra) starter motor MS672€561 €44224V 5.4kW z11 (IS9016, MS672) -
-
860519 Prestolite starter motor24V 6.6kW z10 -
11.139.128 AZK5477 MAHLE (Letrika, Iskra) starter motor MS545€358 €28224V 5.4kW z11 (IS9115, MS545)
Cross References
| AVF (REMY) | IM325, IM350, IM509, IM521 |
|---|---|
| BOSCH | 0001402040, 0001410044, 0001411016, 0001414008, 0001415016, 0001416009, 0001416021, 0986012740, 0986013260 |
| DAF | 636306 |
| DELCO REMY | 19024110, DRS0316, DRS3260 |
| DEUTZ AG (KHD) | 01161280, D2R24X6H7622 |
| EFEL | 08790, 22606 |
| ELMOT | 6110000, R2311 |
| FIAT | 61227993 |
| HELLA | 8EA726154001, 8EA730226001, CS506, CS710 |
| LESTER | 18253 |
| LIEBHERR | 6000733 |
| LUCAS | LRS00860, LRS02178 |
| MAGNETI MARELLI | 943252190, MSR690 |
| MAHLE (Letrika, Iskra) | IS9016, 11139512, AZK5550, MS672, 11139075, AZK5429, 11139016, AZK5175, MS507, 11130601, AZL3653 |
| MAN | 51262017034, 51262017048, 51262017100, 51262019034 |
| MERCEDES-BENZ | 0011512901 |
| PRESTOLITE | 860504GB, 860519, 860519GB |
| REAL | 20401241, 20401251 |
| RENAULT | 5000270909 |
| SAVIEM | 5000270909 |
| STEYR | 81500090049 |
| UNIC | 000227993, 061227993, 061662550 |
| VALEO | 458340 |
| VOLVO | 11030906, 11129121, 11139128, 240504, 465929, 5001683, 5003027 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| AIFO | M | 32S | 5.4 | 1980.07-1983.05 | |
| AIFO | M | 32SD | 4.5 | 1980.07-1983.05 | |
| AIFO | M | 42S | 8.1 | 1980.07-1983.05 | |
| AIFO | M | 52S | 6.7 | 1980.07-1983.05 | |
| AIFO | M | 62S | 10.8 | 1980.07-1983.05 | |
| AIFO | MZ | 42S-OM | 8.1 | 1980.07-1983.05 | |
| FIAT | 190 | Unic-V85S | 15.0 | 1972.02-1982.10 | |
| FIAT | 190 | UnicV85S | 15.0 | 1972.02-1982.10 | |
| FIAT | 260 | UnicV85S | 14.9 | 1972.02-1982.10 | |
| HANOMAG (RHEINSTAHL) | K | 12C | D562 | 8.2 | 1972.07-1973.05 |
| MAN | 20 t | 22.304FVS.FN | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 22 t | 22.304FVS.FN | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 26 t | 26.304DF.DFK.DFKA.DFS | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 30 t | 30.304DFSA | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | D2148 | M | 12.9 | 1965.01-1974.12 | |
| MAN | D2148 | MT | 12.9 | 1965.01-1974.12 | |
| OM (BRESCIA) | 150 | -3AC.N.L | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 150 | 3AC.N.L.T | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 150 | C.N.L.T | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 190 | C.L.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | -4AN.L | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | -4AN.L.C.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | C.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| SAVIEM | SM | 280TU | MAN-D2658M4 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 280TU | MAN-D2658M4 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 300.T | MAN-D2658M41 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 300.T | MAN-D2658M41 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 320 | MAN-D2858M4 | 16.0 | 1972.01-1974.12 |
| SAVIEM | SM | 340V | MAN-D2858M4 | 15.0 | 1971.01-1980.06 |
| SAVIEM | SM | 340V | MAN-D2858M4 | 16.0 | 1974.01-1980.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 320 | WD815.61/71 | 12.0 | 1982.02-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 320 | WD815.61/71 | 12.0 | 1982.02-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 330 | WD815.64/67/74 | 12.0 | 1982.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1491 | 320 | WD815.61/71 | 12.0 | 1982.08-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1491 | 330 | WD815.64/67/74 | 12.0 | 1982.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1891 | 320 | WD815.61/71 | 12.0 | 1982.05-1982.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1891 | 330 | WD815.62/72/68 | 12.0 | 1972.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 34 | WD815.64.79;.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 37 | WD815.66.76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 39 | WD815.66 | 12.0 | 1990.05-1996.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 22 S | 34 | WD815.64.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 22 S | 37 | WD815.66 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 26 S | 34 | WD815.64.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 26 S | 37 | WD815.66.76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 2891 | 330 | WD815.97 | 12.0 | 1983.10-1987.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 32 S | 34 | WD815.64/67/69/79 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 32 S | 37 | WD815.66/76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 33 S | 34 | WD815.67 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 40 S | 37 | WD815.66 | 12.0 | 1988.01-1996.06 |
| UNIC | M | 32S | 5.4 | 1967.10-1980.06 | |
| UNIC | M | 32SD | 4.5 | 1967.10-1980.06 | |
| UNIC | M | 42S | 8.0 | 1967.10-1980.06 | |
| UNIC | M | 52S | 7.0 | 1967.10-1980.06 | |
| UNIC | M | 62S | 11.0 | 1967.10-1980.06 | |
| UNIC | MZ | 42S-OM | 8.0 | 1967.04-1980.06 | |
| UNIC | P | 270A | M62S | 11.0 | 1974.01-1981.12 |
| UNIC | P | 270A | M62S | 11.0 | 1974.01-1981.12 |
| UNIC | P | 9A | M32S | 5.4 | 1972.01-1981.12 |
| UNIC | T | 340A | V85S | 15.0 | 1972.01-1981.12 |
| UNIC | T | 340A | V85S | 15.0 | 1972.01-1981.12 |
| VOLVO | B | 10M | THD100DA | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DA | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DA/DC/DD/EA/EB/EC | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DC | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DC | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DD | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DD | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100EA | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EA | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EB | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EB | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EC | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EC | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100ED | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100ED | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100ED/EE/EK | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100EE | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EE | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EK | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EK | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD101GB | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GB/GC/GD/KB/KC | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GC | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GD | 9.6 | 1986.06-2003.12 |
| VOLVO | B | 10M | THD101KB | 9.6 | 1988.05- |
| VOLVO | B | 10M | THD101KC | 9.6 | 1988.05-2003.12 |
| VOLVO | B | 10R | THD100D | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100D | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100D/DA/DB/EB/EC | 9.6 | 1986.06- |
| VOLVO | B | 10R | THD100DA | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100DA | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100DB | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100DB | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100EB | 9.6 | 1986.06- |
| VOLVO | B | 10R | THD100EB | 9.6 | 1983.11-1983.12 |
| VOLVO | B | 10R | THD100EC | 9.6 | 1986.06- |
| VOLVO | B | 58 | HD100D | 9.6 | 1972.08-1980.03 |
| VOLVO | B | 58T | THD100D | 9.6 | 1972.01-1980.03 |
| VOLVO | B | 59T | THD100D | 9.6 | 1972.10-1979.01 |
| VOLVO | C | 10M | THD100GD/KC | 9.6 | 1984.10-1987.12 |
| VOLVO | C | 10M | THD101GD | 9.6 | 1984.10-1987.12 |
| VOLVO | C | 10M | THD101KC | 9.6 | 1984.10-1985.12 |
| VOLVO (BM) | WHEEL LOADERS | L150E | D12D LD E3; 200kW | 9.6 | 2002.01-2007.12 |
More Information
| Weight (kg) | 17.000000 |
|---|---|
| Condition | New |
| Voltage | 24 V |
| Power | 5.4 kW |
| Pinion teeth | 11 |
| Rotation direction | CW |
| Notes | Mass terminal 31 |
