12V 3.2kW z10
Got Questions?
€136 €107
In stock i Available in our store from stock. Update frequency: 5 minutes
Shipping Cost Calculator
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST
TS13102043 Primot starter motor
Similar products
We found other products you might like!
-
11.130.533 AZJ3157 MAHLE (Letrika, Iskra) starter motor MS33412V 2.7kW z10 (IS0533, MS334) -
11.130.534 AZJ3158 MAHLE (Letrika, Iskra) starter motor MS31212V 3.0kW z10 (IS0534, MS312) -
11.130.819 AZJ3283 MAHLE (Letrika, Iskra) starter motor MS26412V 3.1kW z10 (IS0569, MS264) -
-
TS13102057 Primot starter motor12V 2.7kW z10
Information

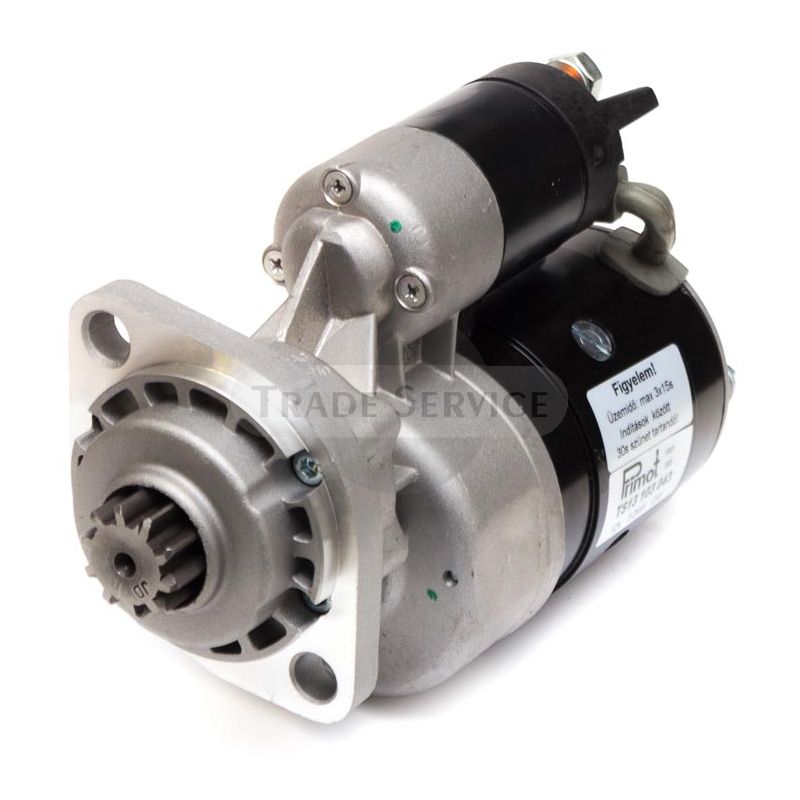

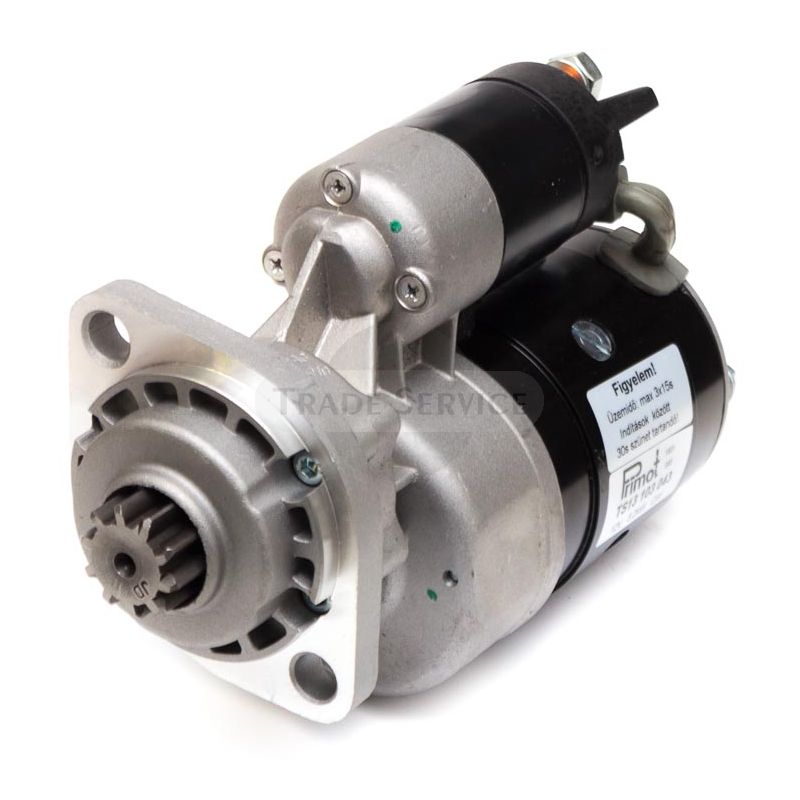

This TS13102043 Primot starter motor is a reliable spare part which is widely used on JOHN DEERE engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| ADI | DEM1097 |
|---|---|
| BOSCH | 0001359016, 0001359090, 0001362312, 0001362316, 0001367037, 0001367075, 0001367078, 0001369022, 0986012420, 0986014730, 0986014740 |
| HC-PARTS | CS395 |
| HELLA | 8EA726143001 |
| IAT | S16563 |
| JOHN DEERE | AL110503, AL110504, AL11503, AL41247, AL62691, AL62773, AL78760, AR70437, AT23401, RE500733, RE60384 |
| LESTER | 16563, 17095 |
| LETRIKA (ISKRA) | 11130533, 11130534, 11130569, 11130762, 11130819, AZJ3157, AZJ3158, AZJ3181, AZJ3274, AZJ3283, IS0533, IS0534, IS0569, IS0762, IS0793 |
| LUCAS | LRS565 |
| MAGNETI MARELLI | 943252256, 943252295, MSR733, MSR746 |
| MAGNETON | 9142700 |
| PRIMOT | TS13102043, TS13102057 |
| PIC | 120497, 120499, 120500A |
| REAL | 20488003 |
| RENAULT AGRICULTURE | 6005012976 |
| VALEO | 436070 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| JOHN DEERE | 1020 | 3.164DL-04 | 3.2 L | 1971.04-1975.07 | |
| JOHN DEERE | 1030 | 3.164DL-04 | 3.2 L | 1975.08-1979.08 | |
| JOHN DEERE | 1040 | 3.179DL-06 | 2.9 L | 1979.09-1986.10 | |
| JOHN DEERE | 1120 | 3.164DL-01 | 3.2 L | 1971.04-1975.07 | |
| JOHN DEERE | 1130 | 3.164DL-13 | 3.2 L | 1975.08-1979.08 | |
| JOHN DEERE | 1140 | 3.179DL-01 | 2.9 L | 1979.09-1986.10 | |
| JOHN DEERE | 1530 | 3.164DL-13 | 3.2 L | 1972.07-1975.07 | |
| JOHN DEERE | 1630 | 3.179DL-01 | 2.9 L | 1975.08-1979.08 | |
| JOHN DEERE | 1640 | 4.239DL-03 | 3.9 L | 1979.09-1986.10 | |
| JOHN DEERE | 1830 | 4.219DL-03 | 3.6 L | 1972.09-1979.08 | |
| JOHN DEERE | 1840 | 4.239DL-04 | 3.9 L | 1979.09-1986.10 | |
| JOHN DEERE | 2030 | 4.219DL-03 | 3.6 L | 1972.09-1979.08 | |
| JOHN DEERE | 2040 | 3.164DL-04 | 3.2 L | 1975.08-1979.08 | |
| JOHN DEERE | 2040 | 4.239DL-04 | 3.9 L | 1979.09-1986.10 | |
| JOHN DEERE | 2130 | 4.239DL-01 | 3.9 L | 1972.09-1979.08 | |
| JOHN DEERE | 2140 | 4.239TL-02 | 3.9 L | 1979.09-1986.10 | |
| JOHN DEERE | 2150 | - | 1980.08-1984.04 | ||
| JOHN DEERE | 2550 | 4.239DL-06 | 3.9 L | 1982.05- | |
| JOHN DEERE | 2750 | 4239TL-04 | 3.9 L | 1982.05- | |
| JOHN DEERE | 2940 | 6.359DL-03 | 5.9 L | 1982.05- | |
| JOHN DEERE | 2950 | 6.359DL-04 | 5.9 L | 1982.05- | |
| JOHN DEERE | 3040 | 6.359DL-01 | 5.9 L | 1979.09-1982.05 | |
| JOHN DEERE | 3040 | 6.359DL-06 | 5.9 L | 1982.05-1986.10 | |
| JOHN DEERE | 3130 | 6.329DL-11 | 5.4 L | 1972.09-1979.08 | |
| JOHN DEERE | 3140 | 6.329DL-03 | 5.9 L | 1979.09-1982.05 | |
| JOHN DEERE | 3140 | 6.359DL-04 | 5.9 L | 1982.05-1986.10 | |
| JOHN DEERE | 820 VU | 3;153 | 2.5 L / 30 KW | 1973.01-1986.10 | |
| JOHN DEERE | 820 | 3.152DL-01 | 2.5 L | 1971.04-1975.07 | |
| JOHN DEERE | 830 | 3.152DL-02 | 2.5 L / 26 KW | 1972.07-1975.07 | |
| JOHN DEERE | 830 | 3.164DL-14 | 3.2 L | 1975.08-1979.08 | |
| JOHN DEERE | 840 | 3.174DL-04 | 2.9 L / 26 KW | 1979.09-1986.10 | |
| JOHN DEERE | 920 | 3.152DL-02 | 2.5 L | 1971.04-1975.07 | |
| JOHN DEERE | 930 | 3.164DL-15 | 3.2 L | 1975.08-1979.08 | |
| JOHN DEERE | 940 | 3.179DL-05 | 2.9 L | 1979.09-1986.10 | |
| JOHN DEERE | JD 300A | 3.152DL-05 | 2.5 L | 1971.03-1974.04 | |
| JOHN DEERE | JD 310 | 3.179DL-03 | 2.9 L / 39 KW | 1974.03-1992.02 | |
| JOHN DEERE | JD 350A | 3.152DL-10 | 2.5 L / 32 KW | 1971.03-1992.02 | |
| JOHN DEERE | JD 350A | 3.164DL-12 | 3.2 L | 1974.04-1975.07 | |
| JOHN DEERE | JD 400A | 4.202DL-02 | 3.3 L / 44 KW | 1971.03-1973.02 | |
| JOHN DEERE | JD 400A | 4.219DL-05 | 3.6 L | 1973.03-1992.02 | |
| JOHN DEERE | JD 410 | 4.219DL-09 | 3.6 L / 45 KW | 1974.03-1992.02 | |
| JOHN DEERE | JD 450A | 4.202DL-04 | 3.3 L / 43 KW | 1971.03-1973.02 | |
| JOHN DEERE | JD 450A | 4.219DL-07 | 3.6 L | 1973.03-1992.02 | |
| JOHN DEERE | JD 450B | 4.219DL-10 | 3.6 L | 1973.12-1974.07 | |
| JOHN DEERE | JD 450C | 4.219DL-10 | 3.6 L | 1974.08-1975.12 | |
| JOHN DEERE | MD 1032 | - | 4.0 L / 48 KW | 1983.10-1992.02 | |
| JOHN DEERE | MD 1042 | - | 4.0 L / 55 KW | 1983.10-1992.02 | |
| JOHN DEERE | MD 1052 | - | 4.0 L / 63 KW | 1983.10-1992.02 | |
| JOHN DEERE | MD 1055 | - | 5.9 L / 77 KW | 1983.10-1992.02 | |
| JOHN DEERE | MD 1065 | 6.359TZ-03 | 5.9 L / 92 KW | 1981.11-1992.02 | |
| JOHN DEERE | MD 1068 HYDRO | - | 5.9 L / 92 KW | 1981.10-1992.02 | |
| JOHN DEERE | MD 1072 | - | 5.9 L / 92 KW | 1981.10-1992.02 | |
| JOHN DEERE | MD 1075 HYDRO/4 | 6.359TZ-02 | 5.9 L / 110 KW | 1982.01-1987.03 | |
| JOHN DEERE | MD 1075 | 6.359TZ-02 | 5.9 L / 110 KW | 1981.12-1992.02 | |
| JOHN DEERE | MD 1085 HYDRO/4 | 6.466AZ-01 | 7.6 L / 143 KW | 1982.03- | |
| JOHN DEERE | MD 1085 | 6.466TZ-01 | 7.6 L / 125 KW | 1982.02- | |
| JOHN DEERE | MD 330 | 164D27Z | 3.2 L | 1972.01-1974.10 | |
| JOHN DEERE | MD 925 | 3.164DZ-02 | 3.2 L | 1974.11-1978.09 | |
| JOHN DEERE | MD 930 | 4.219DZ-05 | 3.6 L | 1972.08-1974.10 | |
| JOHN DEERE | MD 932 | 4.239DZ-04 | 3.9 L | 1979.10-1983.10 | |
| JOHN DEERE | MD 935 | 4.219DZ-05 | 3.6 L | 1974.11-1979.06 | |
| JOHN DEERE | MD 940 | 4.239DZ-01 | 3.9 L | 1972.08-1975.07 | |
| JOHN DEERE | MD 942 | 4.239DZ-03 | 3.9 L | 1979.10-1983.10 | |
| JOHN DEERE | MD 945 | 4.239TZ-01 | 3.9 L | 1975.08-1977.10 | |
| JOHN DEERE | MD 950 | 6.329DZ-02 | 5.4 L | 1974.09-1975.07 | |
| JOHN DEERE | MD 950 | 6.329DZ-07 | 5.4 L | 1972.08-1974.08 | |
| JOHN DEERE | MD 952 | 4.239TZ-01 | 3.9 L | 1977.11-1983.10 | |
| JOHN DEERE | MD 955 | 6.329DZ-02 | 5.4 L | 1975.06-1983.10 | |
| JOHN DEERE | MD 960 | 6.329DZ-02 | 5.4 L | 1972.08-1974.08 | |
| JOHN DEERE | MD 960 | 6.359DZ-01 | 5.9 L | 1974.09-1975.08 | |
| JOHN DEERE | MD 965 | 6.359TZ-03 | 5.9 L | 1975.09-1983.10 | |
| JOHN DEERE | MD 968H | 6.359TZ-03 | 5.9 L | 1981.04-1983.10 | |
| JOHN DEERE | MD 970 | 6.329TZ-01 | 5.4 L | 1972.08-1974.08 | |
| JOHN DEERE | MD 970 | 6.359TZ-01 | 5.9 L | 1974.09-1975.07 | |
| JOHN DEERE | MD 975 | 6.359TZ-02 | 5.9 L | 1975.09-1981.05 |
More Information
| Weight (kg) | 5.500000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.2 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
