12V 3.0kW z10 (IS0534, MS312)
Got Questions?
This item is currently out of stock.
Please contact us for price and availability info.
Please contact us for price and availability info.
Out of stock i Please contact us for price and availability info.
Order Cut-Off Time:
UPS: 12:30, GLS: 15:00 CET/CEST

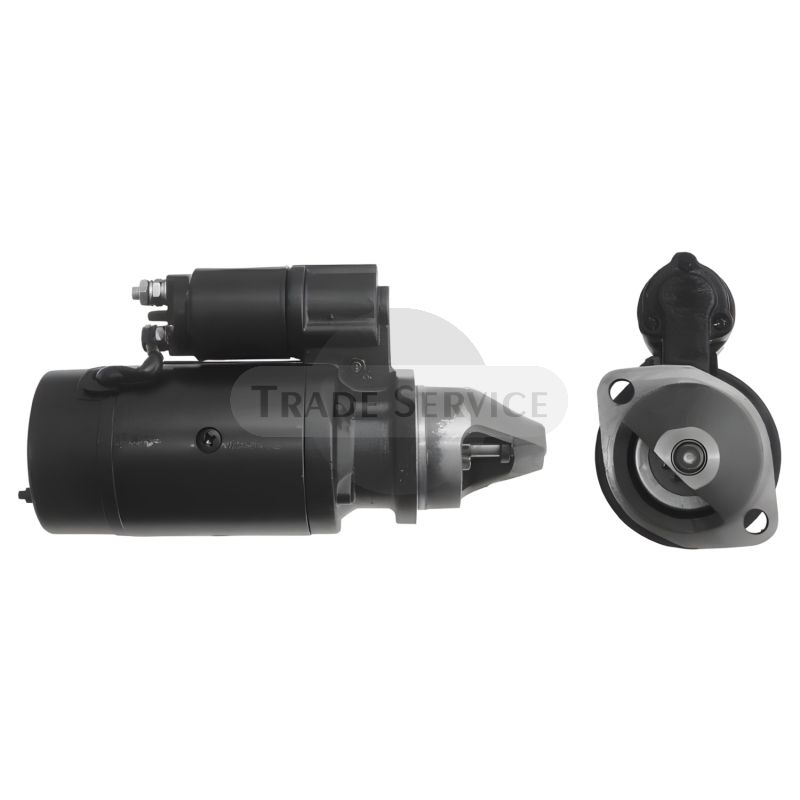

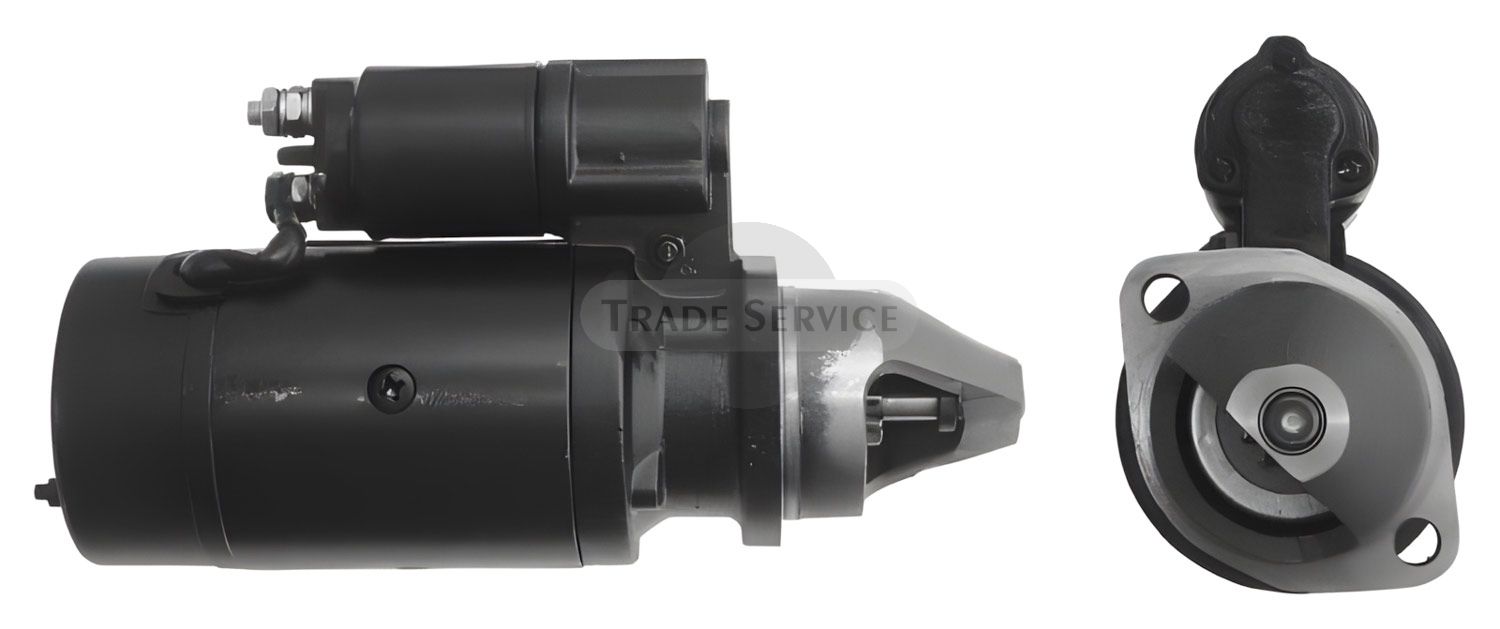

11.130.534 AZJ3158 MAHLE (Letrika, Iskra) starter motor MS312
Similar products
We found other products you might like!
-
-
M100R2017SE Prestolite starter motor12V 4kW z10 -
-
TS13102057 Primot starter motor12V 2.7kW z10
Information
This 11.130.534 AZJ3158 MAHLE (Letrika, Iskra) starter motor MS312 is a reliable spare part which is widely used on JOHN DEERE engines.
For exact models and reference numbers please check the lists below.
In case you have questions about this product or you need help to find the correct spare part, please feel free to contact us!
We are here to help to keep your business moving.
Cross References
| AGCO | C000900060100 |
|---|---|
| BOSCH | 0001359016, 0001359090, 0001367037, 0986012420 |
| CLAAS | 6005706631 |
| JOHN DEERE | AR70436, AT23401, TY6720 |
| LESTER | 16563, 17095, 3579 |
| LUCAS | LRS00565 |
| MAGNETI MARELLI | 943252295, MSR746 |
| MAHLE (Letrika, Iskra) | IS0534, 11130534, AZJ3158, MS312 |
| SPAREX | 359750 |
Compatibility
| Make | Model | Type | Engine | Power | Years |
|---|---|---|---|---|---|
| JOHN DEERE | COMBINES | MD1065 | 6.359TZ-03 | 5.9 | 1994.03- |
| JOHN DEERE | COMBINES | MD1075 Hydro/4 | 6.359TZ-02 | 5.9 | 1994.03- |
| JOHN DEERE | COMBINES | MD1085 | 6.466TZ-01 | 5.9 | 1994.03- |
| JOHN DEERE | COMBINES | MD925 | 3.164DZ-02 | 2.7 | 1975.07-1978.09 |
| JOHN DEERE | COMBINES | MD952 | 4.239TZ-01 | 3.9 | 1977.11-1983.10 |
| JOHN DEERE | COMBINES | MD955 | 6.329DZ-02 | 5.4 | 1975.06-1981.01 |
| JOHN DEERE | COMBINES | MD960 | 6.329DZ-02 | 5.4 | 1972.08-1974.08 |
| JOHN DEERE | COMBINES | MD965 | 6.359TZ-03 | 5.9 | 1975.09-1983.10 |
| JOHN DEERE | COMBINES | MD968H | 6.359TZ-03 | 5.9 | 1981.04-1983.10 |
| JOHN DEERE | COMBINES | MD970 | 6.359TZ-01 | 5.9 | 1974.09-1975.07 |
| JOHN DEERE | COMBINES | MD975 | 6.359TZ-02 | 5.9 | 1975.09-1981.05 |
| JOHN DEERE | FARM | 1020 | 3.164DL-04 | 2.7 | 1971.04-1975.07 |
| JOHN DEERE | FARM | 1030. OU. VU | 3.164DL-04 | 2.7 | 1975.08-1979.08 |
| JOHN DEERE | FARM | 1040. 1040V | 3.179DL-06 | 2.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 1130 | 3.164DL-13 | 2.7 | 1975.08-1979.08 |
| JOHN DEERE | FARM | 1140. F. V | 3.179DL-01 | 2.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 1530 | 3.164DL-13 | 2.7 | 1972.07-1975.07 |
| JOHN DEERE | FARM | 3130 | 6.329DL-11 | 5.4 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 3140 | 6.359DL-03 | 5.9 | 1979.09-1987.05 |
More Information
| Weight (kg) | 13.884000 |
|---|---|
| Condition | New |
| Voltage | 12 V |
| Power | 3.0 kW |
| Pinion teeth | 10 |
| Rotation direction | CW |
